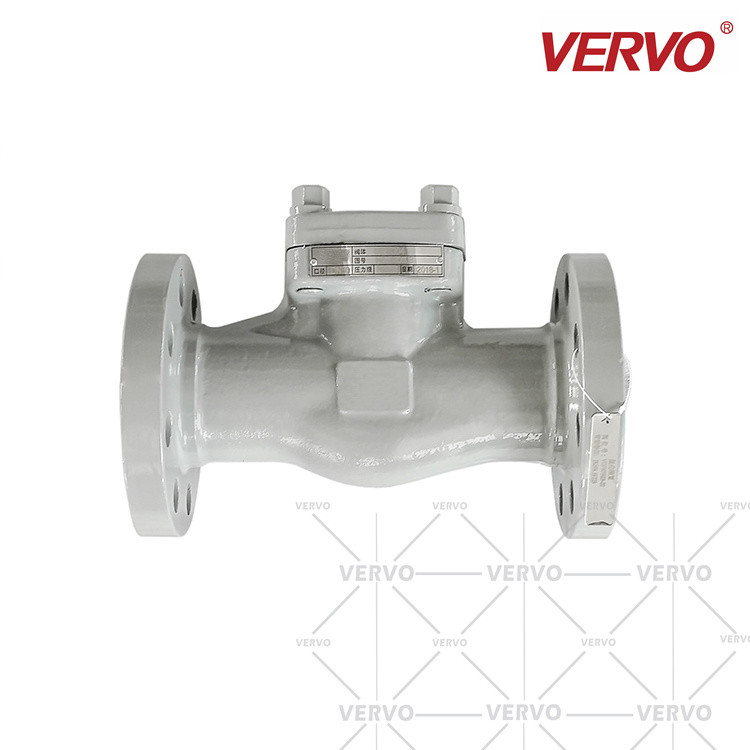

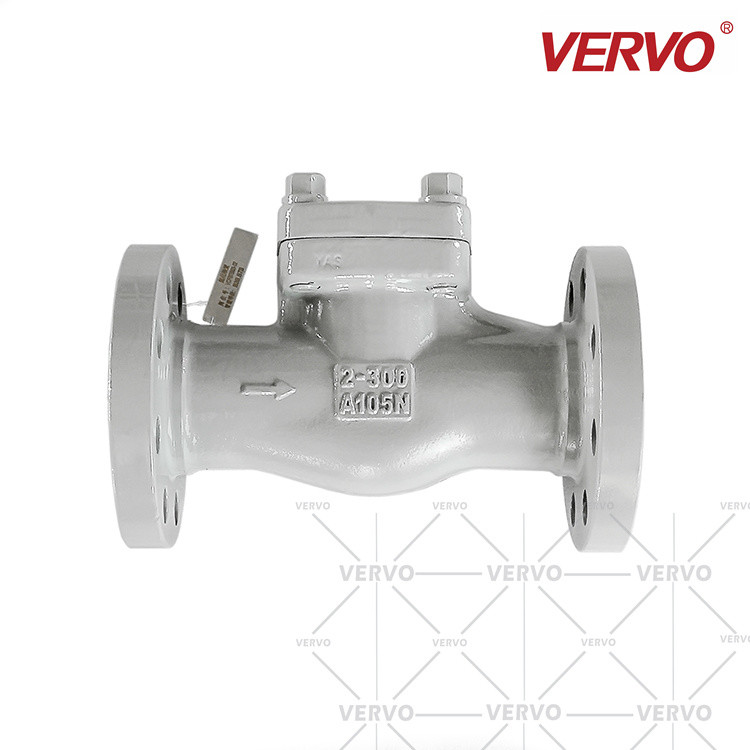

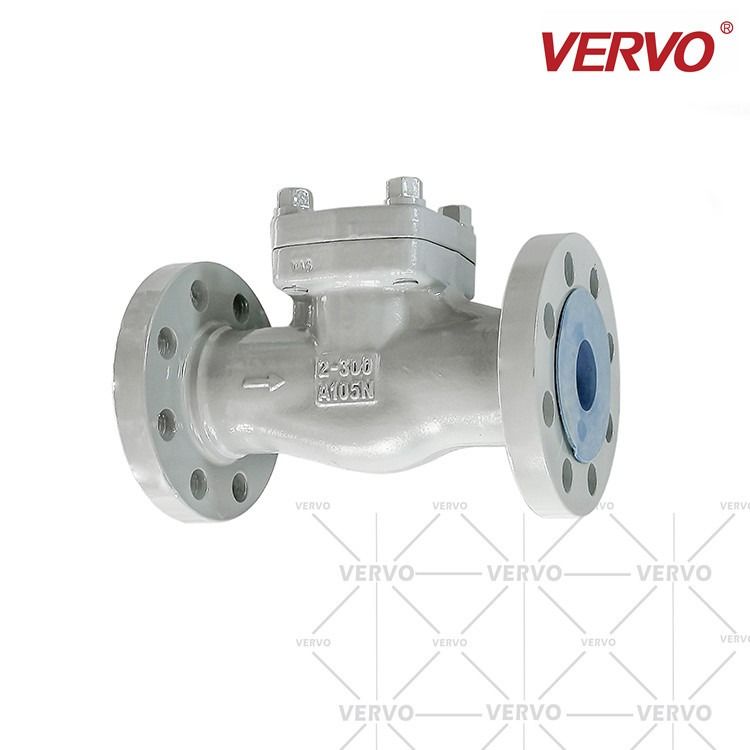

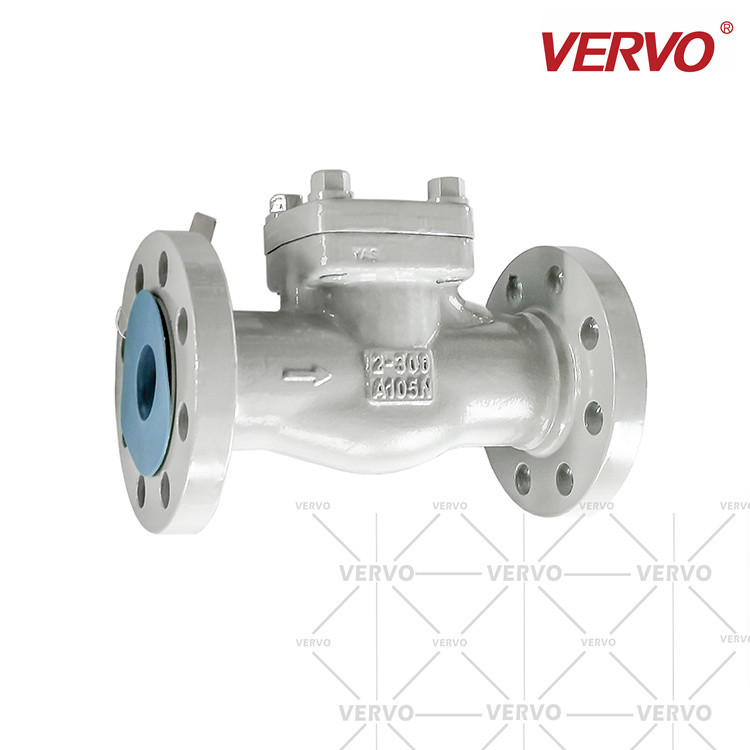

BS 5352 Piston Lift Forged Steel Check Valve DN50 A105N 300LB 50mm NRV

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/ISO/CE
Model Number: H41Y-300LB-DN50
Minimum Order Quantity: 1
Packaging Details: plywood case
Delivery Time: 30
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 400000
Design Standard: API602/BS5352 Body Material:: ASTM A105N
Nominal Diameter: I Inch DN25 Pressure: 800LB,2000PSI
End Connection.: Integral Raise Flange Face To Face: ASME B16.10
Test And Inspection: API 598
High Light:

BS 5352 Forged Steel Check Valve

,

Forged Steel Check Valve DN50

,

bs 5352 check valve

BS5352 Piston Check Valve Lift Check Valve Forged Steel Check Valve A105N DN50 300LB Check Valve Non Return Valve



Item Carbon steel Check Valve
Type Piston Check Valve
Certification ISO9001,ISO14001,ISO18001,CE,TS,API
Brand VERVO
Model number H41Y-300LB-DN50
Port Size 2'',DN50
Pressure 300LB
Temperature -29~425
Connection form Integral Raised Flange
Body material Carbon steel ASTM A105N
Feature Easy disassembly and assembly



Forged Steel Check Valve

BS 5352 Piston Lift Forged Steel Check Valve DN50 A105N 300LB 50mm NRV 0

forged steel check valves are offered in swing type, lift type, bolted bonnet and welded bonnet design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. FBV forged steel check valves are manufactured according to API 602 Design.



PRODUCT RANGE

BS 5352 Piston Lift Forged Steel Check Valve DN50 A105N 300LB 50mm NRV 0

Sizes NPS 1/2 to NPS 4

Class 800 to Class 2500



MATERIALS

BS 5352 Piston Lift Forged Steel Check Valve DN50 A105N 300LB 50mm NRV 0

Available in Forged (A105, LF2, F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51), Alloy 20, Monel, Inconel, Hastelloy



DESIGN FEATURES

BS 5352 Piston Lift Forged Steel Check Valve DN50 A105N 300LB 50mm NRV 0

SW, NPT, RF or BW

Outside Screw & Yoke (OS&Y)

Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet



DESIGN STANDARD

BS 5352 Piston Lift Forged Steel Check Valve DN50 A105N 300LB 50mm NRV 0

Design & manufacture according to API 602, BS5352,ASME B16.34

End Connection according to ASME B16.11 (SW), ASME B1.20.1 (NPT), ASME B16.5 (RF, RTJ)

Test & inspection according to API 598

Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624


                                                BS 5352 Piston Lift Forged Steel Check Valve DN50 A105N 300LB 50mm NRV 5
                                                                     BS 5352 Piston Lift Forged Steel Check Valve DN50 A105N 300LB 50mm NRV 6

                                                     BS 5352 Piston Lift Forged Steel Check Valve DN50 A105N 300LB 50mm NRV 7

CL800 CL900~CL1500 Bolt Cover (BC)/ Welding Cover (WC)
Full Port (FP)
Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size (NPS) F.P 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face CL800 L 100 100 120 140 140 172
CL900
CL1500
100 120 140 140 172 220
Height H 70 70 70 100 110 120
Flow Port Diameter d 13.5 17 22 28 34 44
Weight (Kg) CL800 B.B 2.2 2.2 2.2 4.2 9 9
W.B 2.1 2.1 2.1 4 8.8 8.8
CL900 CL1500 B.B 4.2 9 9 10 18.6 20
W.B 4 8.8 8.8 9.7 18.2 19.5
                                                                   BS 5352 Piston Lift Forged Steel Check Valve DN50 A105N 300LB 50mm NRV 8
CL150~CL600 Bolt Cover (BC)/ Welding Cover (WC)
Reduce Port (RP),
Flanged (RF/RTJ)
Size
(NPS)
R.P 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face CL150 L (RF) 108 117 127 140 165 203
CL300 152 178 203 216 229 267
CL600 165 190 216 229 241 292
Height H 55 55 65 80 85 105
Flow Port Diameter d 10.5 13.5 17 22 28 34
Weight
(Kg)
CL150 B.B 3.5 3.5 4.7 8.5 11.5 13
CL300 3.5 3.5 5.6 8.6 12 14
CL600 3.5 3.5 6.5 10.5 16 22
                                                           BS 5352 Piston Lift Forged Steel Check Valve DN50 A105N 300LB 50mm NRV 8
CL900 CL1500 Bolt Cover (BC)/ Welding Cover (WC)
Reduce Port (RP),
Flanged (RF/RTJ)
Size
(NPS)
R.P 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face CL900 CL1500 L (RF) 216 229 254 279 305 368
Height H 55 55 65 80 85 105
Flow Port Diameter d 10.5 13.5 17 22 28 34
Weight (Kg) CL150 CL300 B.B 4.5 5.8 8.7 14.5 22 32
The dimension and weights are for reference only and subject to change without notice.
1. For more size or dimensional information, please contact our sales representative.
