Design Standard: | API600 BS1868 | Body Material:: | A216 WCB |
---|---|---|---|
Nominal Diameter: | 10INCH/DN250 | Pressure: | 1500LB |
End Connection.: | RTJ RF FLANGE | Face To Face: | ASME B16.10 |
Test And Inspection: | API 598 | ||
High Light: | Rf flanged swing check valve,flanged swing check valve BS 1868,BS 1868 check valve |

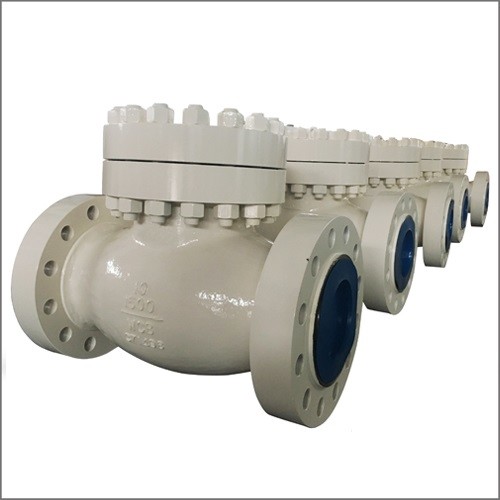

Item | Check Valve |
Certification | ISO9001,ISO14001,ISO18001,TS,CE |
Brand | VERVO |
Model number | H41Y-300LB |
Port Size | 2'' |

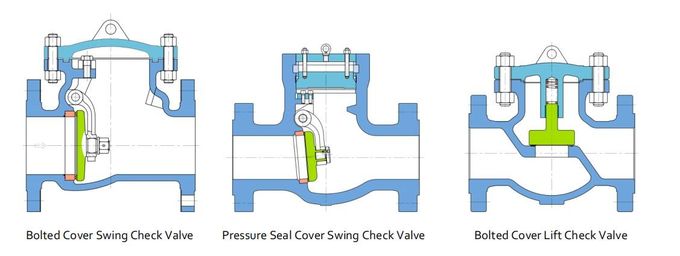

Structure type | swing check valve |
Pressure | 1500LB |
Temperature | -46-325 |
Connection form | Flanged |
Material | A216 WCB |
Feature | Easy disassembly |
INTRODUCTION
Check valve is installed on the pipeline to prevent the media reverse flow and ensure one-way flow of media channels only.
