DN25 With Nozzle Ball Valve High Pressure Forged Samll Size Lever Operated Extended Butt Weld Ball Valve with Nipples​

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/CE/ISO
Model Number: Q61F-800LB
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1 week
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 40000pcs/month
Name: 3 Piece Ball Valve Standard: API608/Gost/Din
Pressure: Class150 Class300 Class600 Class900 Class1500 Class2500 Temperature Of Media: Medium Temperature,Normal Temperature,High Temperature-29℃ To 120℃)
Size: 1/4"-4",DN8-DN100 Seat Material: PTFE,RPTFE,Devlon,Nylon,Peek
Connection: Thread BSP NPT,Female Thread/OD Size,threaded,Female,RF,RTJ,SW

DN25 With Nozzle Ball Valve High Pressure Forged Samll Size Lever Operated Extended Butt Weld Ball Valve With Nipples​



Model number

Q61F-800LB
Item Ball valve
Certification CE,TS,ISO9001,ISO14001,ISO18001
Connection form Butt Welding+100MM Nipple
Body material A105 Carbon steel
Seal material Gasket
Feature Easy disassembly and assembly



VERVO Metal Seat Ball Valves are manufactured to the latest edition of API 6D, API608, BS5351 and ASME BE 16.34 and tested to API 598. All valves from VERVO VALVE are strictly 100% tested before shipment to guarantee zero leakage.


Technical data
Design API 6D, ASME B16.34, ISO 14313, ISO 10423, ISO 17292
Pressures range ANSI 150 ~ANSI 2500 ,PN10~PN420
Size range DN15(1/2") ~DN1200 (48")
Body Material Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel.etc.
  NACE MR-01-75/NACE MR-01-03 Special Requirements
Face to face API 6D, ASME B 16.10,EN 558,DIN3202
Fanged RF, FF, RTJ Ends ASME B16.5 ≤ DN600 (24") ASME B16.47 A ≥ DN650 (26")
  BS 4504,DIN 2543-2545,EN1092
Butt-Weld BW Ends ASME B16.25 ,DIN 3239,BS 2080, EN 12627
Temperature range -29°~ 425°C
Design feature
Construction One,Two or Three piece body and Welded body
Port Full bore and Reduced bore
Ball Type Floating ball and fixed ball
Stem Blowout-proof stem
Seat Sealing Front-seat sealing, Back-seat sealing, bi-directional sealing
Valve Operation Gear,pneumatic,Hydraulic,Electric actuators.
  By passes,locking devices,extended stem,etc
Fire Safe API 607, BS 6755, ISO 10497-5
Other design Anti-static design,automatic pressure relief design, emergency grease injection design, drain valve, anti-corrosion design, anti-sulfur design,etc
Inspection and Test
Visual Inspection MSS SP-55
Material Inspection
PMI Test----Chemical Analysis
HB Test---Hardness Test
UT---Ultrasonic Test
RT---Radio-graphic Test
MT---Magnetic Test
NDT Test Non-destructive
Dimensioninspection According to drawings
Valve Inspection and Test API 598,DIN 3230,EN 12266,BS 5146




BALL VALVE
Our ball valves are mainly three-way ball valves, DBB ball valves, threaded ball valves, welded ball valves, flange ball valves and so on.Mainly used in pipelines of oil and natural gas.Products can withstand high and low temperature, high pressure, corrosion resistance, and stable sealing performance, we can also according to your needs for production.All of our products are precisely adjusted and assembled by professionals, and are 100% tested by professionals and professional testing equipment. Only when all the details are perfect, we will deliver the products to customers.If you are interested in our products, please do not hesitate to contact us, we look forward to working with you!

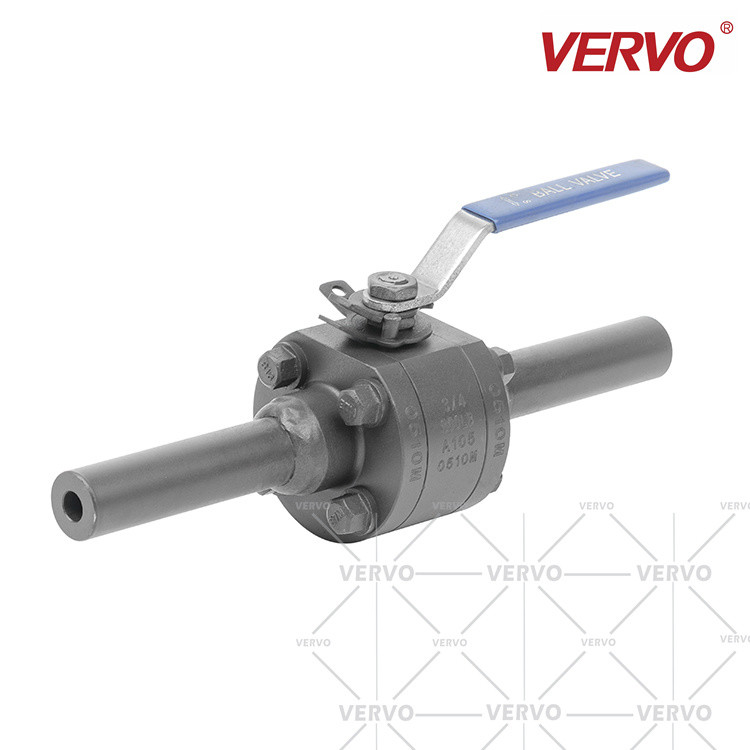

DN25 With Nozzle Ball Valve High Pressure Forged Samll Size Lever Operated Extended Butt Weld Ball Valve with Nipples​ 0

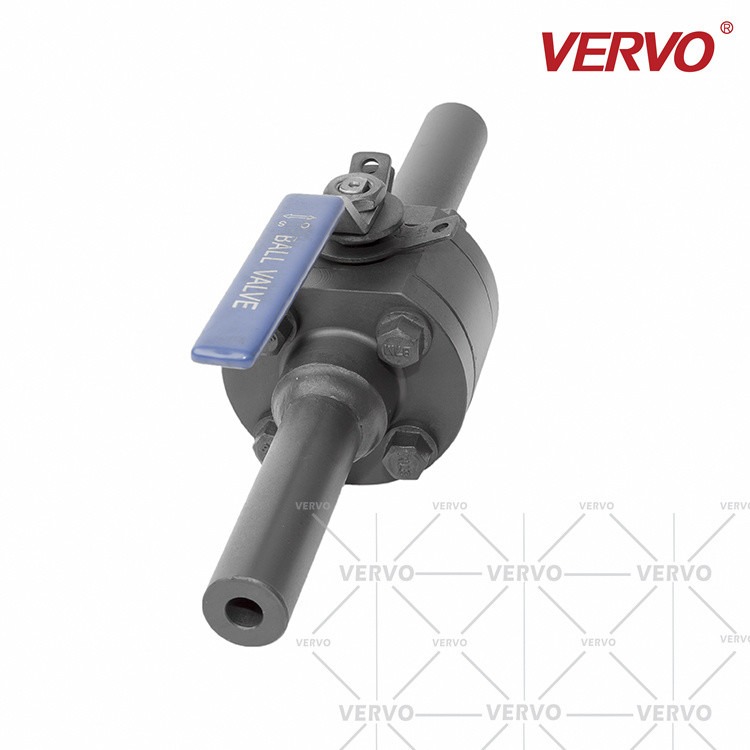

DN25 With Nozzle Ball Valve High Pressure Forged Samll Size Lever Operated Extended Butt Weld Ball Valve with Nipples​ 1



1/Do you have any Certification ?

Yes we have ISO9001-2015 and CE/PED according to Directive 2014/68/EU,fire safe certificate,ISO15848-1

2/Can we visit your factory?

Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.

3/Do you have quality control system?

Yes, we have ISO/PED certifications and our own quality control laboratory.

4/Can you arrange the shipment for us?

Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earliest vessel and professional service.

5/Can I get some samples?

We are glad to provide free samples to you, but the express fee will be on your charge.

6/What is your after-sale service?

We provide after-sale service and offer 100% guarantee on our products.

7/What is your main products?

Valve, and in order to meet different needs, we expanded our business, we also do sanitary type products.

8/Are you trading company or manufacturer

We are factory, and welcome to visit our factory

9/What is your MOQ

No MOQ, As your request .Normal size and material we have stock



Keywords of DN25 With Nozzle Ball Valve High Pressure Forged Samll Size Lever Operated Extended Butt Weld Ball Valve With Nipples​

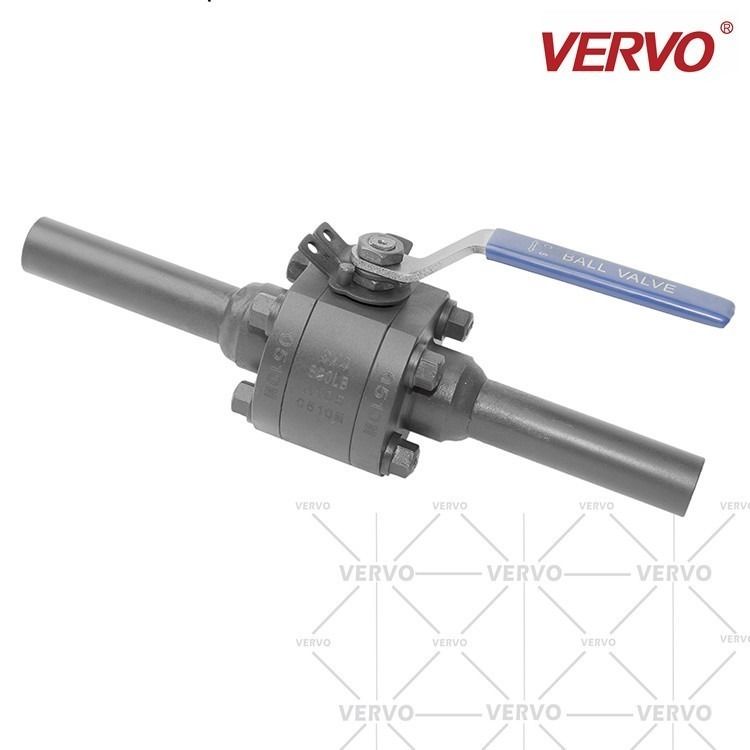

DN25 With Nozzle Ball Valve High Pressure Forged Samll Size Lever Operated Extended Butt Weld Ball Valve with Nipples​ 2

DN25 Ball Valve,Nozzle Ball Valve,3 Piece Ball Valve,Soft Seal Ball Valve,Three Piece Ball Valve,Forged steel Stainless Steel Ball Valve,Metal to Metal Seat Ball Valve,Extended Butt Weld Ball Valve, With Nipples​ Ball Valve
