| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/CE/ISO |
| Model Number: | Q11F-1500LB-DN20 |
| Minimum Order Quantity: | 10 |
| Price: | Negotiable |
| Packaging Details: | plywood case |
| Delivery Time: | 1 week |
| Payment Terms: | L/C, T/T, Western Union, D/A |
| Supply Ability: | 40000pcs/month |
| Name: | 3 Piece Ball Valve | Standard: | API608/Gost/Din |
|---|---|---|---|
| Pressure: | Class150 Class300 Class600 Class900 Class1500 Class2500 | Temperature Of Media: | Medium Temperature,Normal Temperature,High Temperature-29℃ To 120℃) |
| Size: | 1/4"-4",DN8-DN100 | Seat Material: | PTFE,RPTFE,Devlon,Nylon,Peek |
| Connection: | Thread BSP NPT,Female Thread/OD Size,threaded,Female,RF,RTJ,SW |

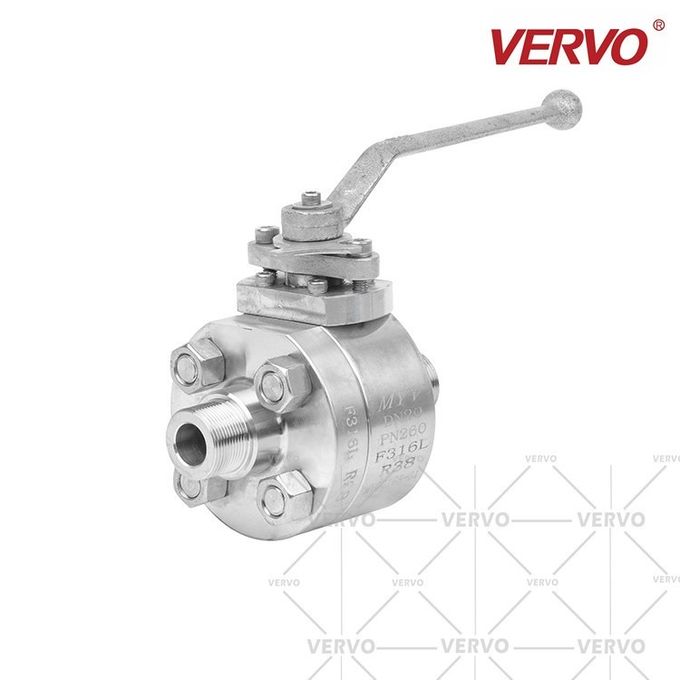

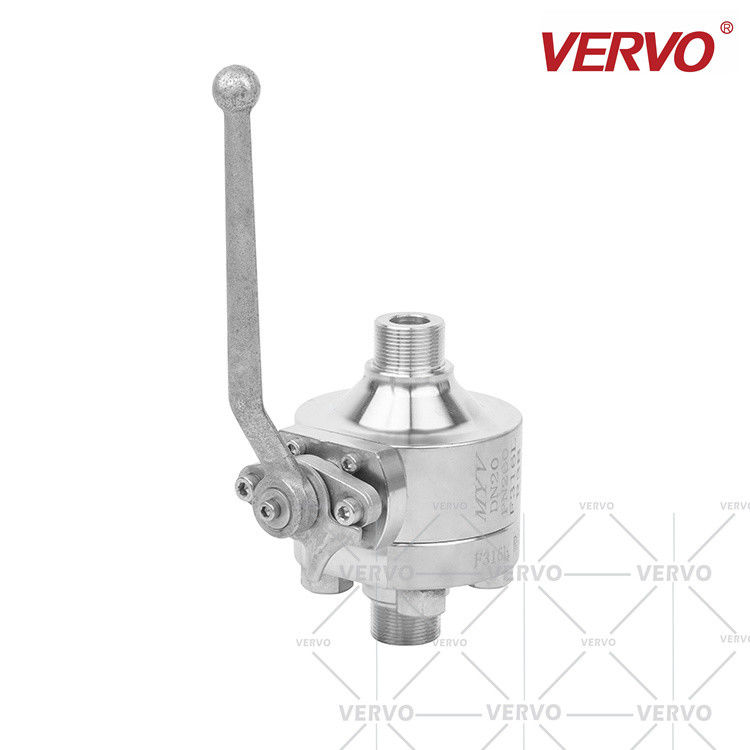

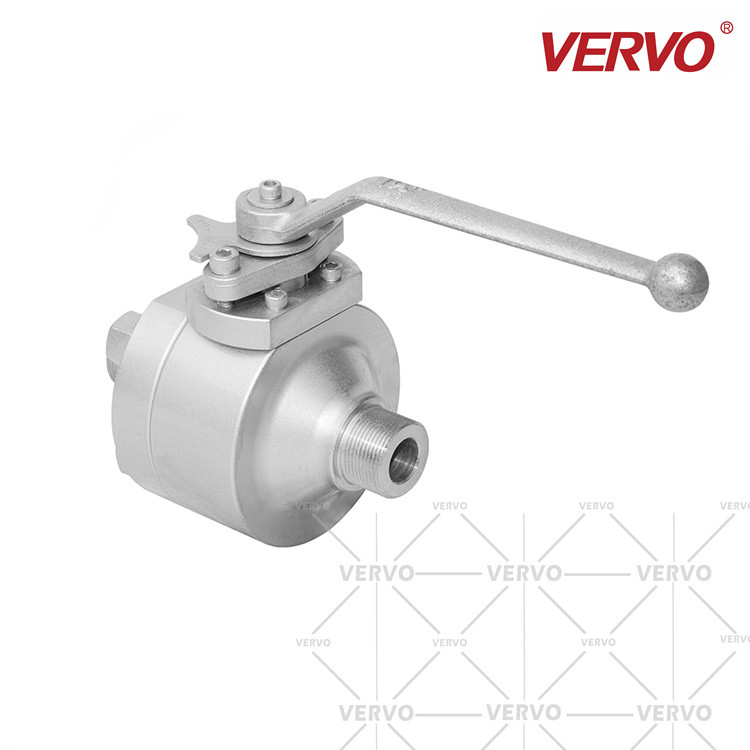

MNPT 2 Piece Ball Valve Welding Forged 2PC High Pressure 3/4'' Hard Seal Float Ball Valve 1500LB metal to Metal Seat F316L Ball Valve
PRODUCT RANGE
Sizes NPS 1/2 to NPS 4
Class 150 to Class 2500
MATERIALS
Available Forging (A105, A182 F304, F3304L, F316, F316L, A182 F51, F53, A350 LF2, LF3, LF5) Casting (A216 WCB, A351 CF3, CF8, CF3M, CF8M, A352 LCB, LCC, LC2, A995 4A. 5A), Inconel, Hastelloy, Monel
DESIGN FEATURES
Test: API 598
Fire Safe Test: API 607/API 6FA
Full or Reduced Bore
RF, RTJ, or BW
Bolted bonnet
Anti-Static Device
Anti-Blow out Stem
Cryogenic or High Temperature, Extended Stem
DESIGN STANDARD
Three, Two-Pieces Forged Body
Floating Type, Full & Reduced Bore
Blow-out Proof Stem
Fire Safe Design
Design & manufacture according to API 6D, API 608, ISO 17292,BS 5351
Face-to-face according to API 6D, ASME B16.10 OR MFG’s standard
End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)
Test & inspection according to API 6D, API 598
Fire safe design according to API 6FA, API 607
Also available per NACE MR-0175, NACE MR-0103, ISO 15848
|
1/Do you have any Certification ?
Yes we have ISO9001-2015 and CE/PED according to Directive 2014/68/EU,fire safe certificate,ISO15848-1
2/Can we visit your factory?
Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
3/Do you have quality control system?
Yes, we have ISO/PED certifications and our own quality control laboratory.
4/Can you arrange the shipment for us?
Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earliest vessel and professional service.
5/Can I get some samples?
We are glad to provide free samples to you, but the express fee will be on your charge.
6/What is your after-sale service?
We provide after-sale service and offer 100% guarantee on our products.
7/What is your main products?
Valve, and in order to meet different needs, we expanded our business, we also do sanitary type products.
8/Are you trading company or manufacturer
We are factory, and welcome to visit our factory
9/What is your MOQ
No MOQ, As your request .Normal size and material we have stock
We welcome all the world customers to contact us for more cooperation.
With our years of technical knowledge and experience,we assure you,
VERVO VALVE will be one of your best parters in China.
Keywords of MNPT 2 Piece Ball Valve Welding Forged 2PC High Pressure 3/4'' Hard Seal Float Ball Valve 1500LB metal to Metal Seat F316L Ball Valve
Stainless Steel Ball Valve, Floating Ball Valve, DN20 Ball Valve, 0.75 Inch Ball Valve, MNPT Ball Valve, DN20 Floating Ball Valve,Soft Seated Ball Valve,Soft Ball Valve,Metal to Metal Seat,Side Entry Ball Valve,F316L Ball Valve,MNPT Ball Valve,Male NPT Ball Valve
