| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/CE/ISO |
| Model Number: | Q61F-800LB |
| Minimum Order Quantity: | 10 |
| Price: | Negotiable |
| Packaging Details: | plywood case |
| Delivery Time: | 1 week |
| Payment Terms: | L/C, T/T, Western Union, D/A |
| Supply Ability: | 40000pcs/month |
| Name: | 3 Piece Ball Valve | Standard: | API608/Gost/Din |
|---|---|---|---|
| Pressure: | Class150 Class300 Class600 Class900 Class1500 Class2500 | Temperature Of Media: | Medium Temperature,Normal Temperature,High Temperature-29℃ To 120℃) |
| Size: | 1/4"-4",DN8-DN100 | Seat Material: | PTFE,RPTFE,Devlon,Nylon,Peek |
| Connection: | Thread BSP NPT,Female Thread/OD Size,threaded,Female,RF,RTJ,SW |

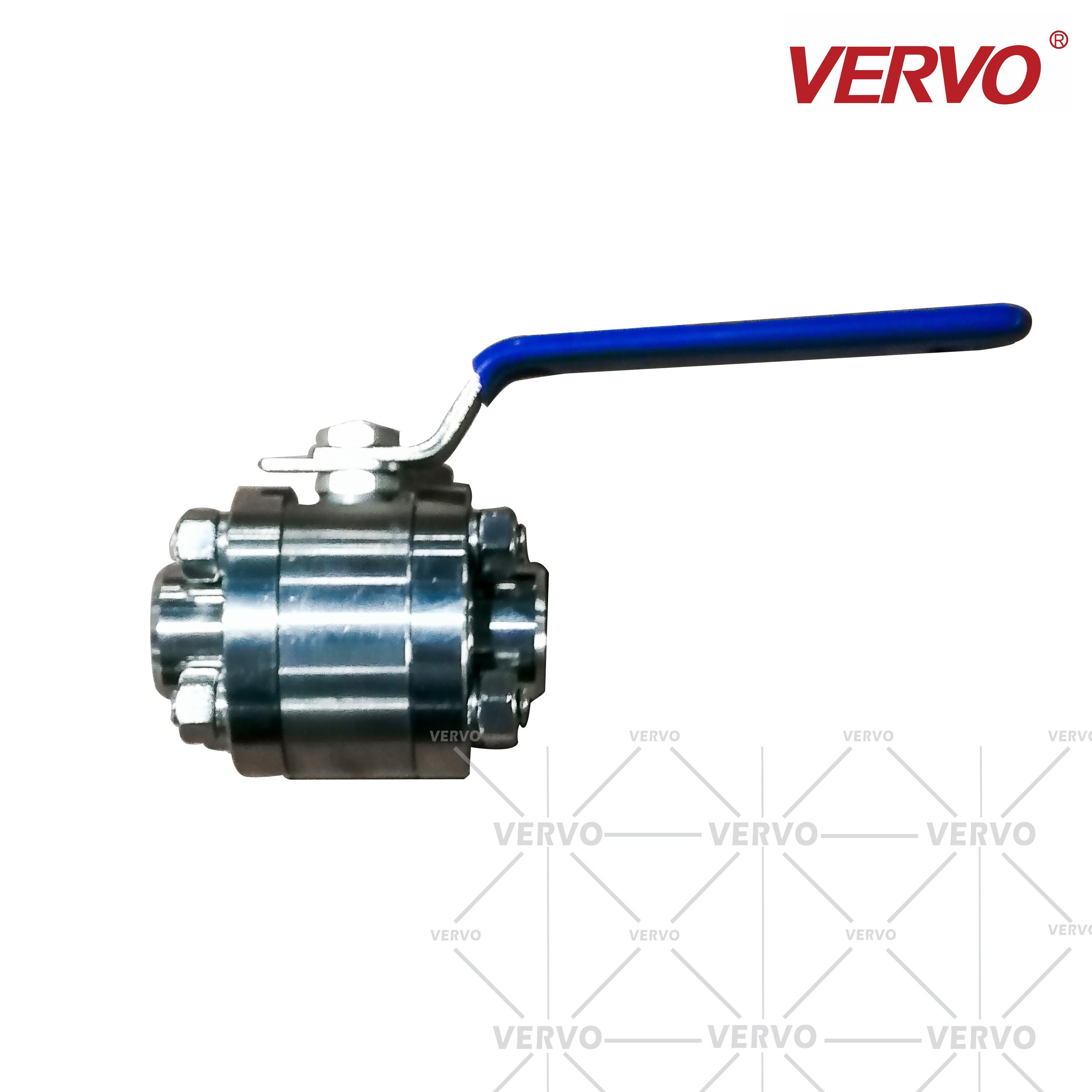

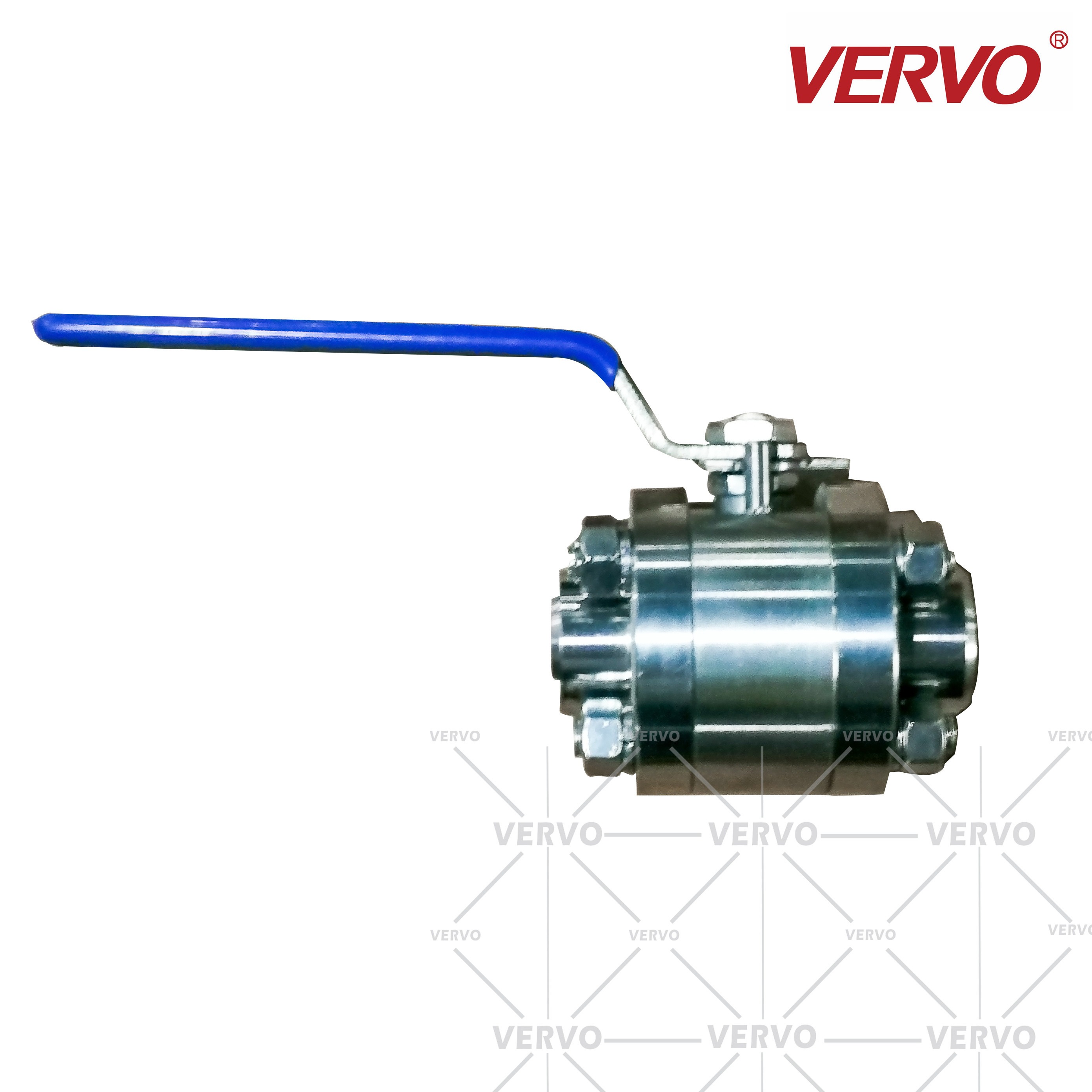

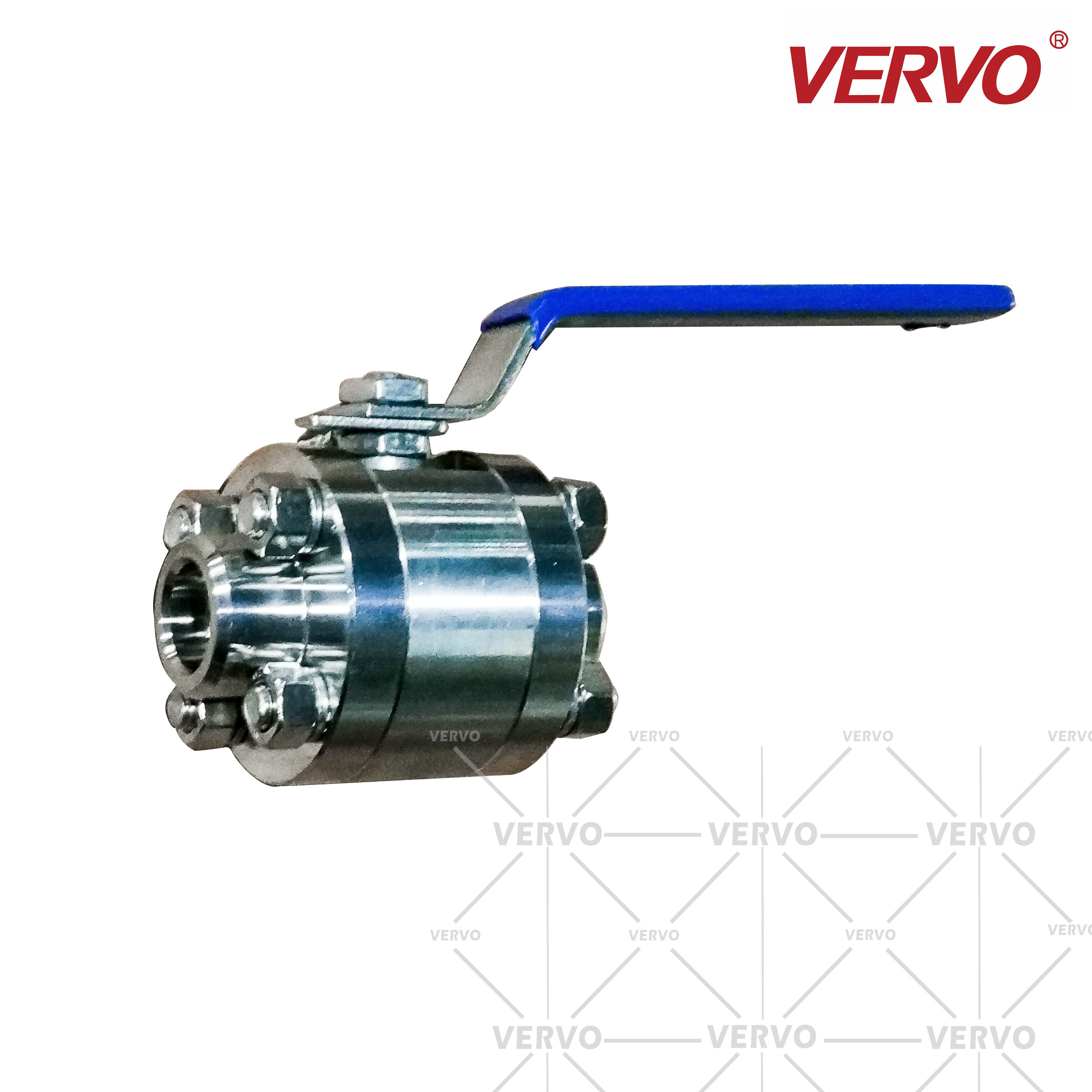

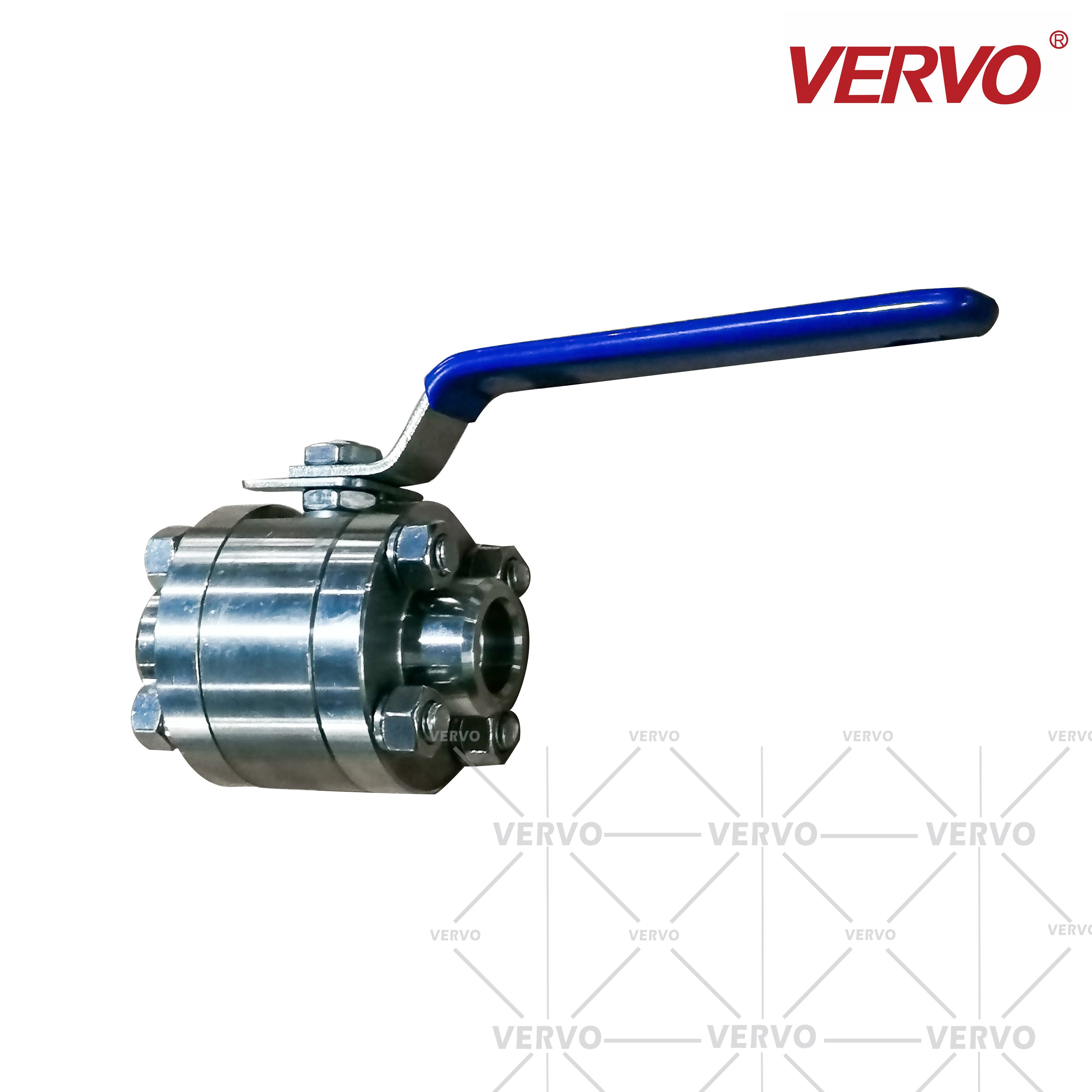

DN40 Floating Ball Type Three Piece Forged Steel Ball Valve Stainless Steel Soft Seal Handwheel Operated API608
| Structure | Floating |
| Pressure | High Pressure |
| Temperature | -46~220 |
| Medium | Weak Acid Base Medium |
| Connection Form | Welding |
| Body Material | Forged Steel |
| Seal Material | Gasket |
| Operation | Manual |
| Feature | Full Diameter |
Quick Detail
VERVO floating ball valves are offered in 2 PC side entry, 3 PC side entry or welded body design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO floating ball valves are manufactured according to API 6D or API 608 Design and fire tested per API 6FA and API 607 Standard.
| Main Material | Can ensure us impose reliable control in metal material like casting and forging. |
| Standard | DIN/ ANSI /BS/ JIS /CNS |
| Color | As Custom |
| Main Market | Southeast Asia,The Middle Eas,North Africa,South America |
| Certificate | ISO 9001, API 600, API 6D , API Q1, CE/PED etc |
| Advantage | We are one of the leading manufacturers in china to supply quality valve solutions for oil, gas, refinery, chemistry, marine, power plant, pipeline transmit industries etc.; |
| Application | Industry,electric power,petrochemistry,coal gas channel etc. |
| CLASS 800LB/1500LB | |||||||
| SIZE | L | D | S | W | H | Weght kg) | |
| DN(mm) | NPS (in) | ||||||
| 15 | 1/2'' | 92 | 125 | 21.8 | 141 | 66 | 1.7 |
| 20 | 3/4'' | 112 | 17 | 27.2 | 141 | 72 | 2.7 |
| 25 | 1'' | 126 | 24 | 339 | 198 | 100 | 4.7 |
| 40 | 1 1/2'' | 152 | 37 | 438 | 239 | 112 | 9.5 |
| 50 | 2'' | 176 | 49 | 61.2 | 239 | 122 | 145 |
| CLASS 800LB/1500LB(with 100mmpup nipples on both ends) | |||||||
| SIZE | L | D | S | W | H | Weght kg) | |
| DN(mm) | NPS (in) | ||||||
| 15 | 1/2'' | 92 | 100 | 12.5 | 141 | 66 | 2 |
| 20 | 3/4'' | 112 | 100 | 17 | 141 | 72 | 33 |
| 25 | 1'' | 126 | 100 | 24 | 198 | 100 | 5.5 |
| 40 | 1 1/2'' | 152 | 100 | 37 | 239 | 112 | 11 |
| 50 | 2'' | 176 | 100 | 49 | 239 | 122 | 17.5 |
RFQ
1/Do you have any Certification ?
Yes we have ISO9001-2015 and CE/PED according to Directive 2014/68/EU,fire safe certificate,ISO15848-1
2/Can we visit your factory?
Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
3/Do you have quality control system?
Yes, we have ISO/PED certifications and our own quality control laboratory.
4/Can you arrange the shipment for us?
Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earliest vessel and professional service.
5/Can I get some samples?
We are glad to provide free samples to you, but the express fee will be on your charge.
6/What is your after-sale service?
We provide after-sale service and offer 100% guarantee on our products.
7/What is your main products?
Valve, and in order to meet different needs, we expanded our business, we also do sanitary type products.
8/Are you trading company or manufacturer
We are factory, and welcome to visit our factory
9/What is your MOQ
No MOQ, As your request .Normal size and material we have stock
Keywords of DN40 Floating Ball Type Three Piece Forged Steel Ball Valve Stainless Steel Soft Seal Handwheel Operated API608
DN40 Ball Valve,Stainless Steel Ball Valve,3 Piece Ball Valve,Soft Seal Ball Valve,SW Ball Valve,Forged steel Stainless Steel Ball Valve,Metal to Metal Seat Ball Valve,Fire Safe Design Ball Valve,API608 Ball Valve,1 1/2 inch Ball Valve
