DN20 Forged 2PC High Pressure 3/4'' Hard Seal Float Ball Valve Full Bore And Reduced Bore MNPT

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/CE/ISO
Model Number: Q21Y-1500LB
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1 week
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 40000pcs/month
Name: 2 Piece Ball Valve Standard: API608/Gost/Din
Pressure: Class150 Class300 Class600 Class900 Class1500 Class2500 Temperature Of Media: Medium Temperature,Normal Temperature,High Temperature-29℃ To 120℃)
Size: 1/4"-4",DN8-DN100 Seat Material: PTFE,RPTFE,Devlon,Nylon,Peek
Connection: Thread BSP NPT,Female Thread/OD Size,threaded,Female,RF,RTJ,SW,Male
High Light:

3/4'' Hard Seal Float Ball Valve

,

DN20 Hard Seal Float Ball Valve

,

ball valve full bore and reduced bore MNPT

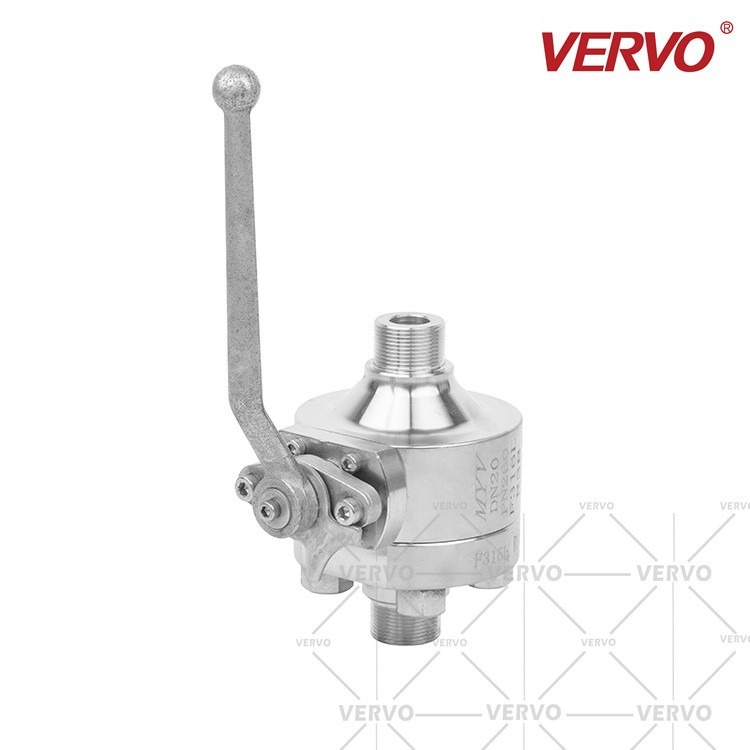

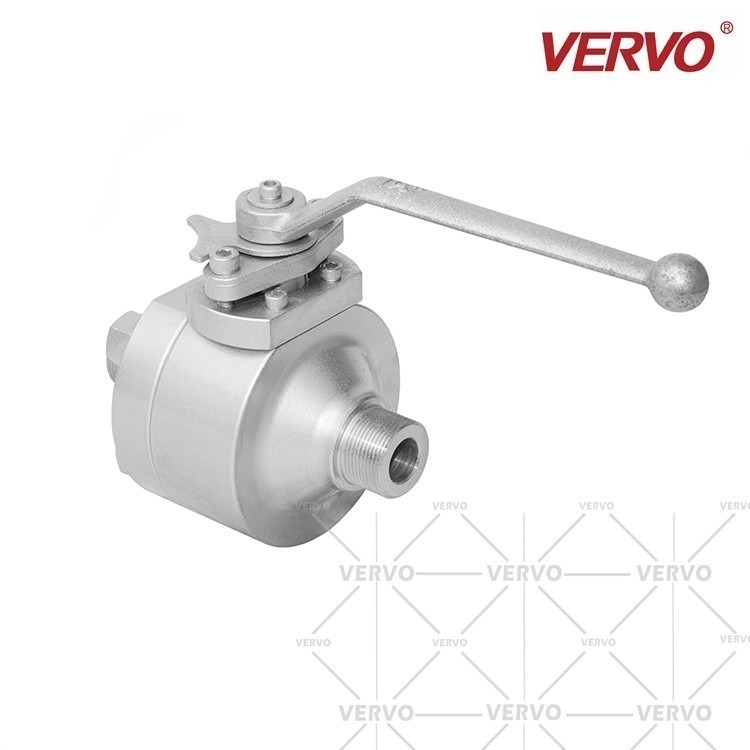

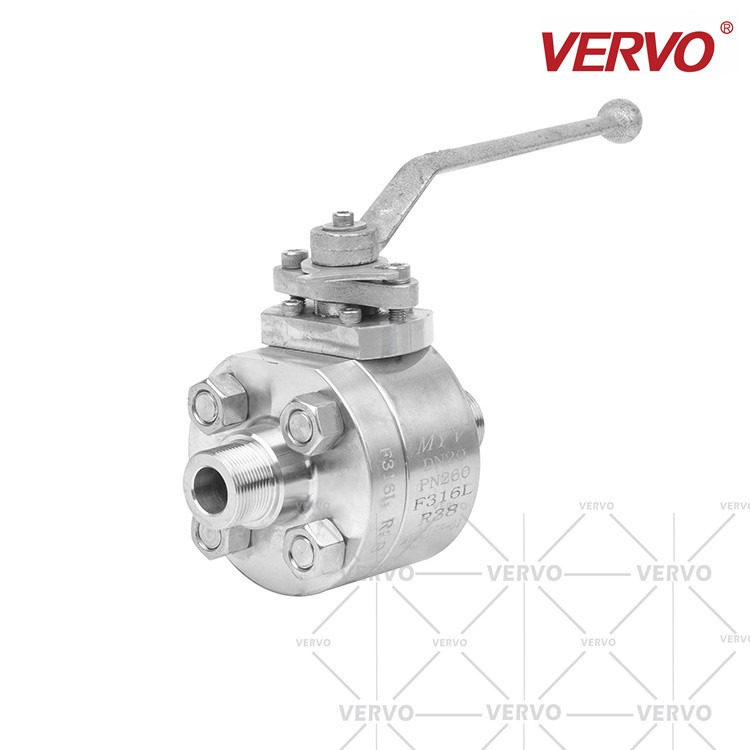

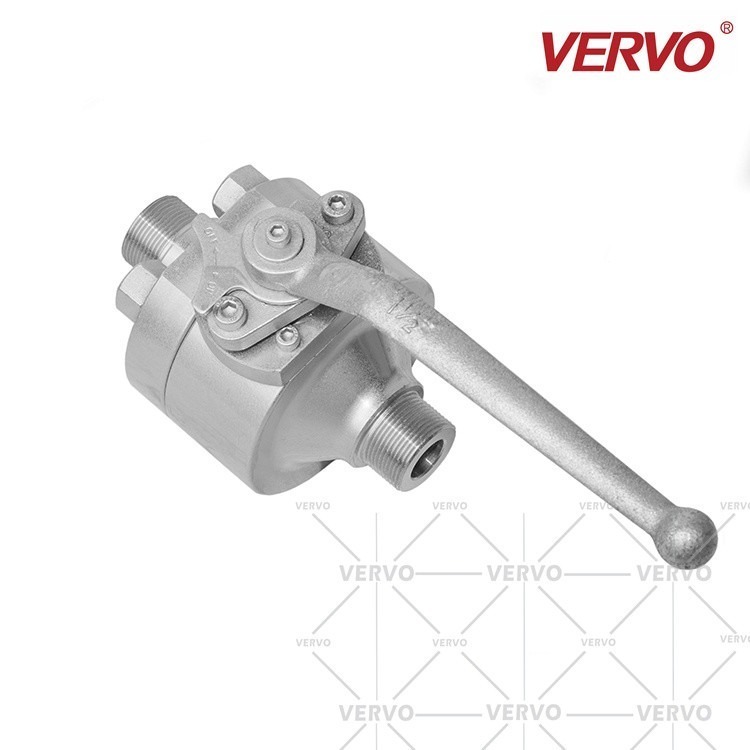

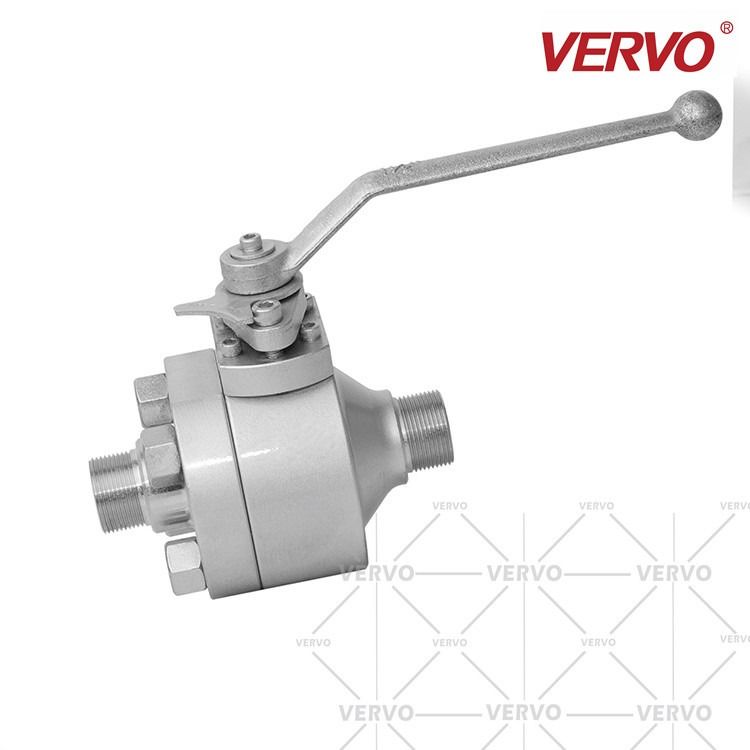

DN20 Forged 2PC High Pressure 3/4'' Hard Seal Float Ball Valve Full Bore And Reduce Bore MNPT Connection Metal To Metal



Model number Q21Y-1500LB
Item Ball valve
Certification CE,TS,ISO9001,ISO14001,ISO18001,API6D
Connection form    Socket welding
Body material Stainless Steel F316L
Seal material Gasket
Feature Easy disassembly and assembly



PRODUCT RANGE

DN20 Forged 2PC High Pressure 3/4'' Hard Seal Float Ball Valve Full Bore And Reduced Bore MNPT 0

Sizes NPS 1/2 to NPS 4

Class 150 to Class 2500



MATERIALS

DN20 Forged 2PC High Pressure 3/4'' Hard Seal Float Ball Valve Full Bore And Reduced Bore MNPT 0

Available Forging (A105, A182 F304, F3304L, F316, F316L, A182 F51, F53, A350 LF2, LF3, LF5) Casting (A216 WCB, A351 CF3, CF8, CF3M, CF8M, A352 LCB, LCC, LC2, A995 4A. 5A), Inconel, Hastelloy, Monel



DESIGN FEATURES

DN20 Forged 2PC High Pressure 3/4'' Hard Seal Float Ball Valve Full Bore And Reduced Bore MNPT 0

Test: API 598
Fire Safe Test: API 607/API 6FA

Full or Reduced Bore

RF, RTJ, or BW

Bolted bonnet

Anti-Static Device

Anti-Blow out Stem

Cryogenic or High Temperature, Extended Stem



DESIGN STANDARD

DN20 Forged 2PC High Pressure 3/4'' Hard Seal Float Ball Valve Full Bore And Reduced Bore MNPT 0

Three, Two-Pieces Forged Body
Floating Type, Full & Reduced Bore
Blow-out Proof Stem
Fire Safe Design

Design & manufacture according to API 6D, API 608, ISO 17292,BS 5351

Face-to-face according to API 6D, ASME B16.10 OR MFG’s standard

End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)

Test & inspection according to API 6D, API 598

Fire safe design according to API 6FA, API 607

Also available per NACE MR-0175, NACE MR-0103, ISO 15848



DN20 Forged 2PC High Pressure 3/4'' Hard Seal Float Ball Valve Full Bore And Reduced Bore MNPT 4



1/Do you have any Certification ?

Yes we have ISO9001-2015 and CE/PED according to Directive 2014/68/EU,fire safe certificate,ISO15848-1

2/Can we visit your factory?

Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.

3/Do you have quality control system?

Yes, we have ISO/PED certifications and our own quality control laboratory.

4/Can you arrange the shipment for us?

Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earliest vessel and professional service.

5/Can I get some samples?

We are glad to provide free samples to you, but the express fee will be on your charge.

6/What is your after-sale service?

We provide after-sale service and offer 100% guarantee on our products.

7/What is your main products?

Valve, and in order to meet different needs, we expanded our business, we also do sanitary type products.

8/Are you trading company or manufacturer

We are factory, and welcome to visit our factory

9/What is your MOQ

No MOQ, As your request .Normal size and material we have stock



We welcome all the world customers to contact us for more cooperation.


With our years of technical knowledge and experience,we assure you,

VERVO VALVE will be one of your best parters in China.





Keywords of DN20 Forged 2PC High Pressure 3/4'' Hard Seal Float Ball Valve Full bore and reduce bore MNPT Connection



DN20 Forged 2PC High Pressure 3/4'' Hard Seal Float Ball Valve Full Bore And Reduced Bore MNPT 5

Stainless Steel Ball Valve, Floating Ball Valve, DN20 Ball Valve, 0.75 Inch Ball Valve, MNPT Ball Valve, DN20 Floating Ball Valve,Soft Seated Ball Valve,Soft Ball Valve,Metal to Metal Seat,Side Entry Ball Valve,F304 Ball Valve
