DN50 2 Inch Socket Weld Ball Valve Soft Seated Ball Valve Side Entry Ball Valve API608 Full Bore and Reduce bore

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/CE/ISO
Model Number: Q61F-800LB-DN50
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1 week
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 40000pcs/month
Name: 3 Piece Ball Valve Standard: API608/Gost/Din
Pressure: Class150 Class300 Class600 Class900 Class1500 Class2500 Temperature Of Media: Medium Temperature,Normal Temperature,High Temperature-29℃ To 120℃)
Size: 1/4"-4",DN8-DN100 Seat Material: PTFE,RPTFE,Devlon,Nylon,Peek
Connection: Thread BSP NPT,Female Thread/OD Size,threaded,Female,RF,RTJ,SW

DN50 2 Inch Socket Weld Ball Valve Soft Seated Ball Valve Side Entry Ball Valve API608 Full Bore and Reduce bore



Quick Detail

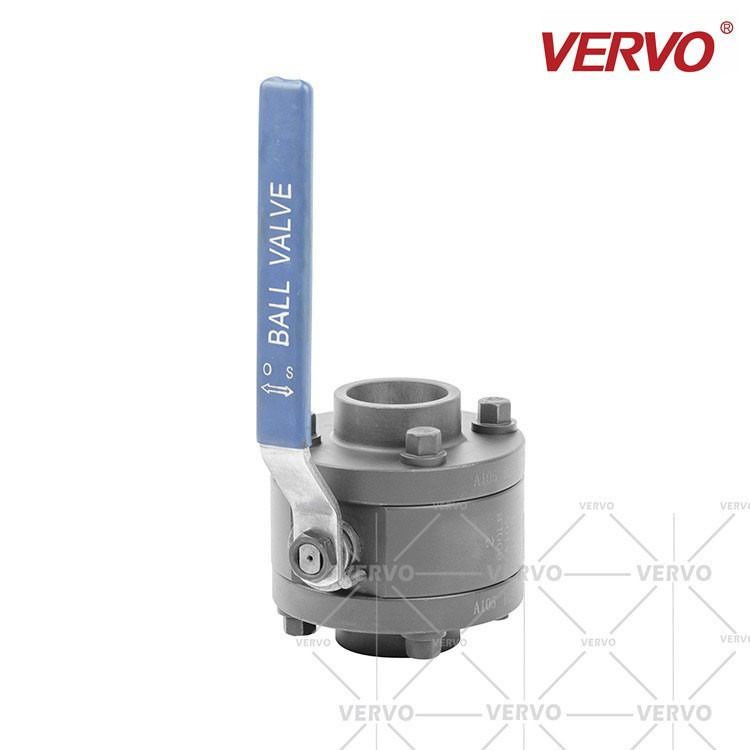

DN50 2 Inch Socket Weld Ball Valve Soft Seated Ball Valve Side Entry Ball Valve API608 Full Bore and Reduce bore 0

VERVO floating ball valves are offered in 2 PC side entry, 3 PC side entry or welded body design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO floating ball valves are manufactured according to API 6D or API 608 Design and fire tested per API 6FA and API 607 Standard.



Main Material Can ensure us impose reliable control in metal material like casting and forging.
Standard DIN/ ANSI /BS/ JIS /CNS
Color As Custom
Main Market Southeast Asia,The Middle Eas,North Africa,South America
Certificate ISO 9001, API 600, API 6D , API Q1, CE/PED etc
Advantage We are one of the leading manufacturers in china to supply quality valve solutions for oil, gas, refinery, chemistry, marine, power plant, pipeline transmit industries etc.;
Application Industry,electric power,petrochemistry,coal gas channel etc.



DESIGN STANDARD

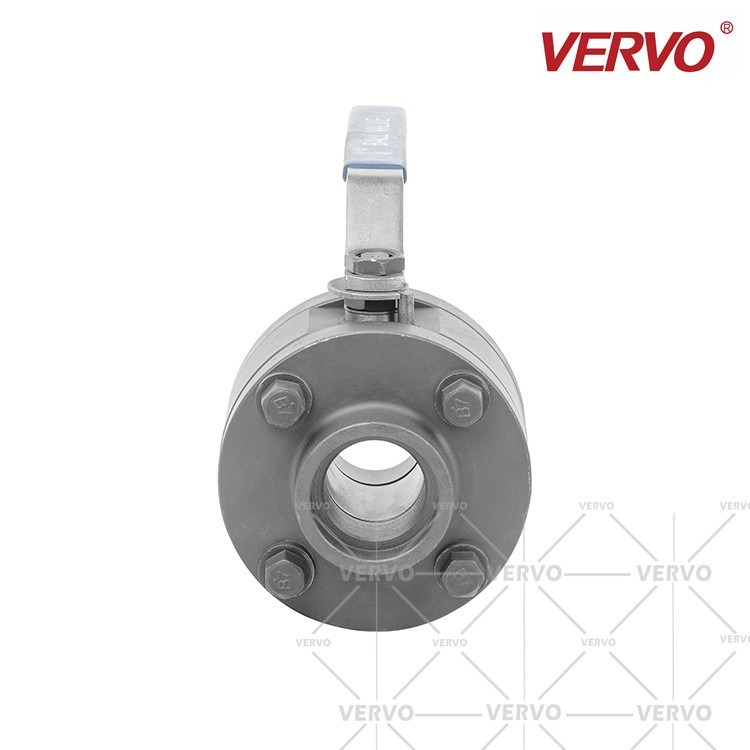

DN50 2 Inch Socket Weld Ball Valve Soft Seated Ball Valve Side Entry Ball Valve API608 Full Bore and Reduce bore 1

Design & manufacture according to API 6D, API 608, ISO 17292

Face-to-face according to API 6D, ASME B16.10 OR MFG’s standard

End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)

Test & inspection according to API 6D, API 598

Fire safe design according to API 6FA, API 607

Also available per NACE MR-0175, NACE MR-0103, ISO 15848

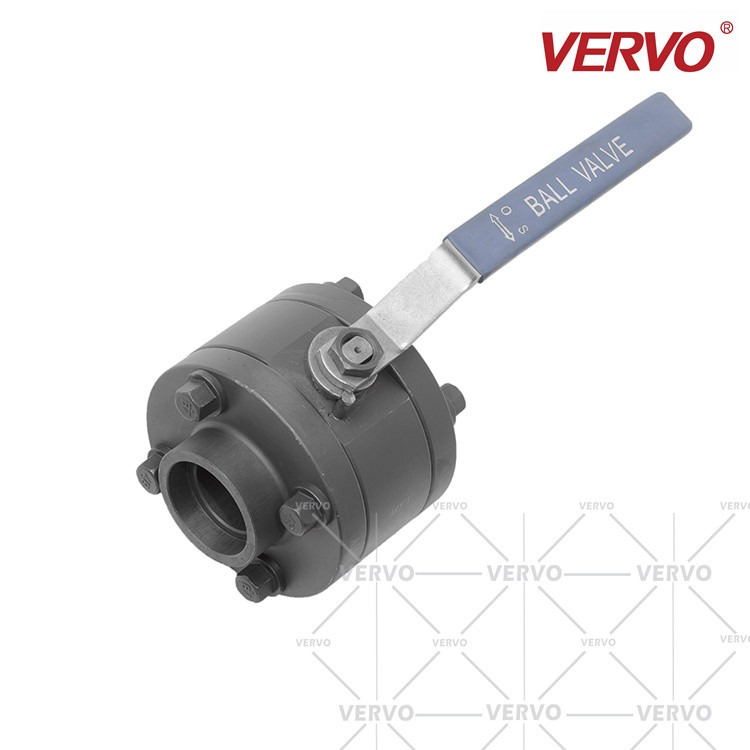

DN50 2 Inch Socket Weld Ball Valve Soft Seated Ball Valve Side Entry Ball Valve API608 Full Bore and Reduce bore 2

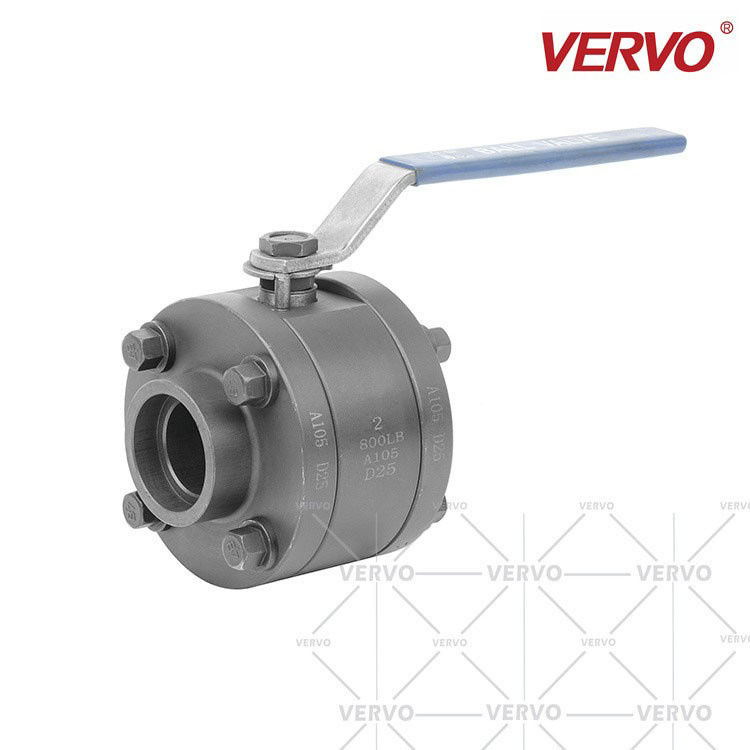

DN50 2 Inch Socket Weld Ball Valve Soft Seated Ball Valve Side Entry Ball Valve API608 Full Bore and Reduce bore 3



CLASS 800LB/1500LB
SIZE L D S W H Weght kg)
DN(mm) NPS (in)
15 1/2'' 92 125 21.8 141 66 1.7
20 3/4'' 112 17 27.2 141 72 2.7
25 1'' 126 24 339 198 100 4.7
40 1 1/2'' 152 37 438 239 112 9.5
50 2'' 176 49 61.2 239 122 145
CLASS 800LB/1500LB(with 100mmpup nipples on both ends)
SIZE L D S W H Weght kg)
DN(mm) NPS (in)
15 1/2'' 92 100 12.5 141 66 2
20 3/4'' 112 100 17 141 72 33
25 1'' 126 100 24 198 100 5.5
40 1 1/2'' 152 100 37 239 112 11
50 2'' 176 100 49 239 122 17.5





Company Information

We are one of the leading manufacturers in china to supply quality valve solutions for oil, gas, refinery, chemistry, marine, power plant, pipeline transmit industries etc.; We provide full range of industrial valves products, include Gate valve, Globe valve, Check valve, Ball valve, Plug valve, Butterfly valve, strainer etc. of different types ,sizes and material, Available standard include API, BS,JIS, EN, DIN, GOST etc.

All our branch factories have strict Quality control system as per ISO 9001, API 600, API 6D , API Q1, CE/PED etc. so our products are designed and manufactured strictly as per client's requirements and latest manufacturing specification of international standards organization

Keywords of DN50 2 Inch Socket Weld Ball Valve Soft Seated Ball Valve Side Entry Ball Valve API608 Full Bore and Reduce bore

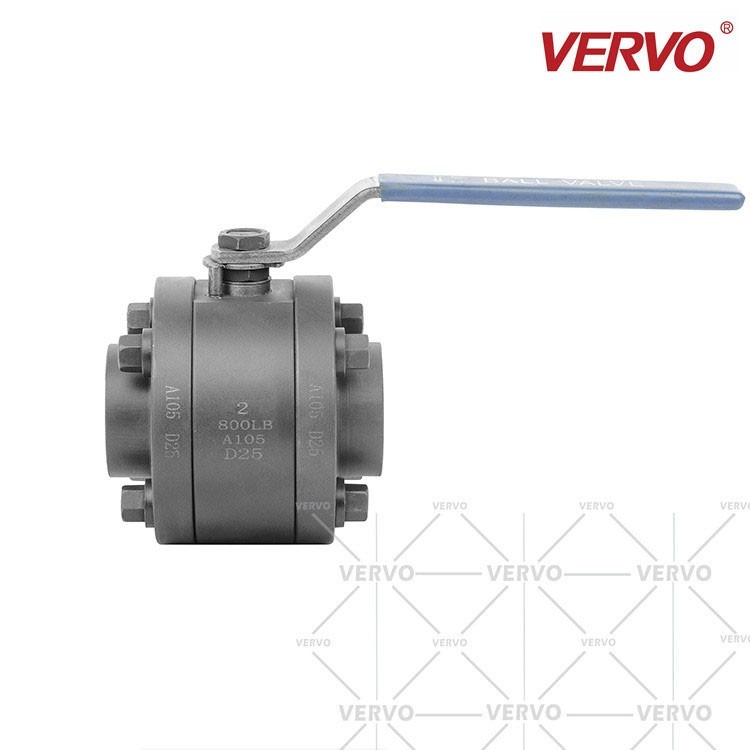

DN50 2 Inch Socket Weld Ball Valve Soft Seated Ball Valve Side Entry Ball Valve API608 Full Bore and Reduce bore 0
