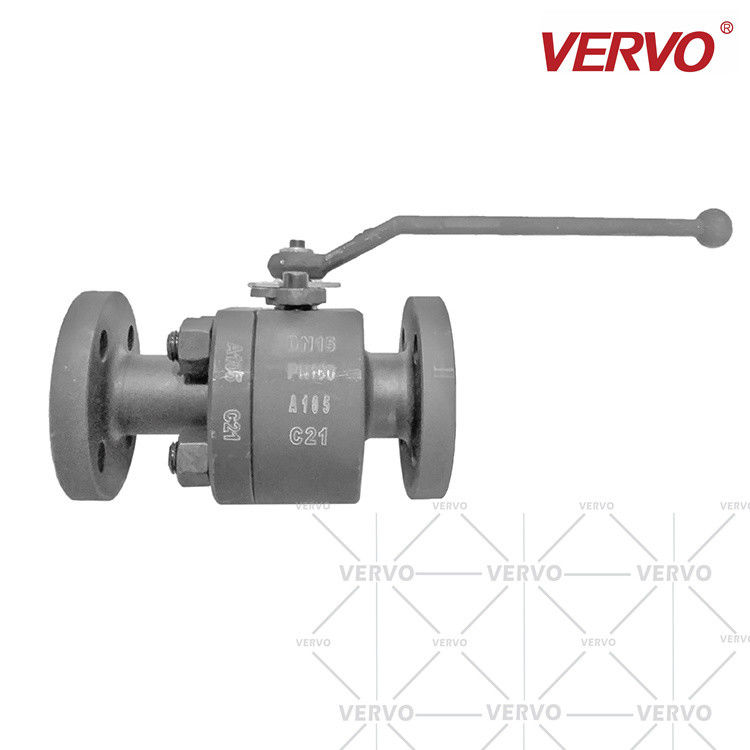

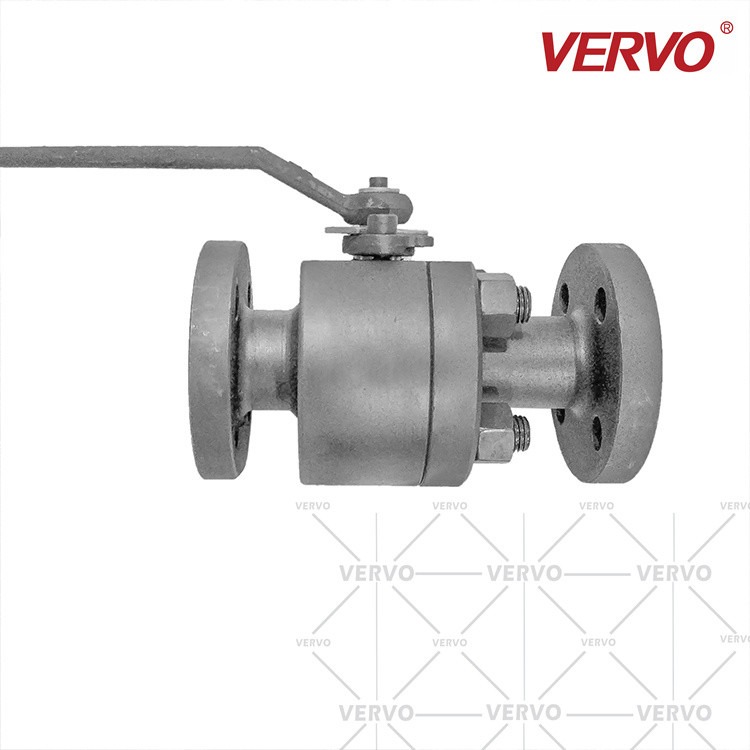

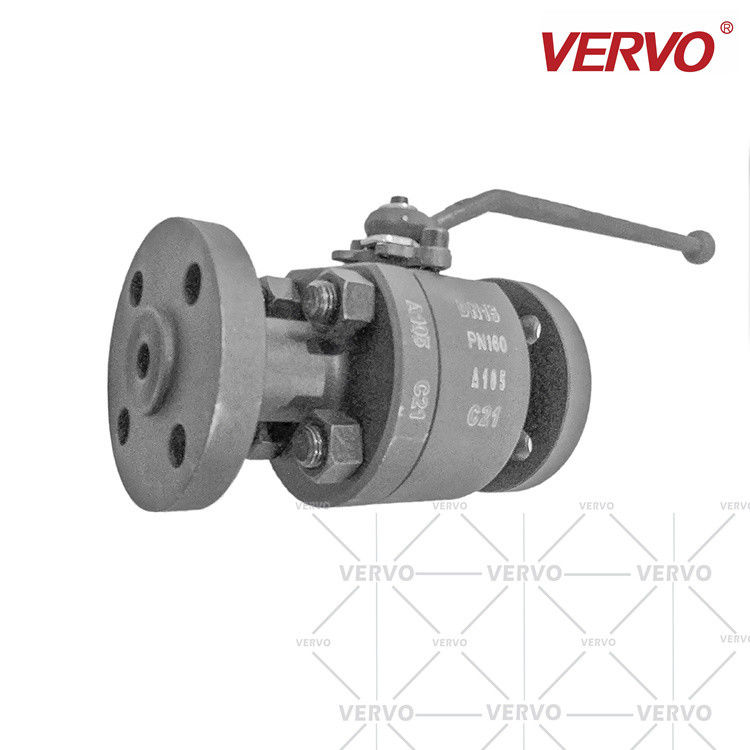

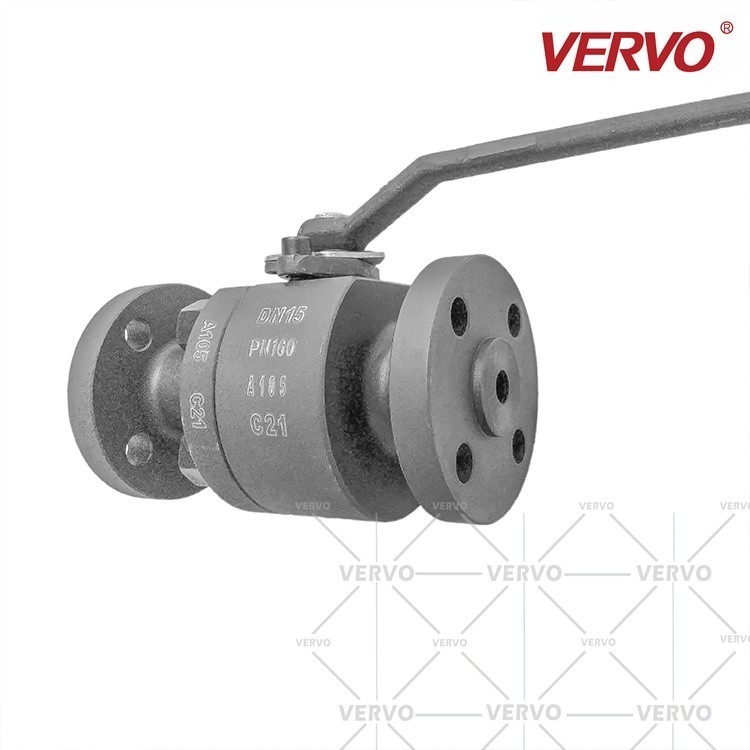

DN15 Flange Manual 2pc Ball Valve'S Wcb A105 1/2inch 2 Piece Type Ball Valve Carbon Steel Ball Valve Forged Steel

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/CE/ISO
Model Number: Q61F-800LB
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1 week
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 40000pcs/month
Name: 2 Piece Ball Valve Standard: API608/Gost/Din
Pressure: Class150 Class300 Class600 Class900 Class1500 Class2500 Temperature Of Media: Medium Temperature,Normal Temperature,High Temperature-29℃ To 120℃)
Size: 1/4"-4",DN8-DN100 Seat Material: PTFE,RPTFE,Devlon,Nylon,Peek
Connection: Thread BSP NPT,Female Thread/OD Size,threaded,Female,RF,RTJ,SW

DN15 Flange Manual 2pc Ball Valve'S Wcb A105 1/2inch 2 Piece Type Ball Valve Carbon Steel Ball Valve Forged Steel



INTRODUCTION

DN15 Flange Manual 2pc Ball Valve'S Wcb A105 1/2inch 2 Piece Type Ball Valve Carbon Steel Ball Valve Forged Steel 0

VERVO Valves manufactures a versatile range of Process Ball Valves in single, two and three piece constructions. The valves are available in full-bore and regular-bore designs, in a variety of end connections and materials to suit customer requirements.
The valves are of floating-ball design where the ball moves towards the downstream seat, under pressure, to effect a tight seal.

Antistatic feature:
DN15 Flange Manual 2pc Ball Valve'S Wcb A105 1/2inch 2 Piece Type Ball Valve Carbon Steel Ball Valve Forged Steel 0
Actuator-mounting flange conforms to ISO 5211
SIL3 Safety Integrity Level for Automated Valves


PRODUCT RANGE

DN15 Flange Manual 2pc Ball Valve'S Wcb A105 1/2inch 2 Piece Type Ball Valve Carbon Steel Ball Valve Forged Steel 0

Sizes NPS 1/2 to NPS 4

Class 150 to Class 2500



MATERIALS

DN15 Flange Manual 2pc Ball Valve'S Wcb A105 1/2inch 2 Piece Type Ball Valve Carbon Steel Ball Valve Forged Steel 0

Available Forging (A105, A182 F304, F3304L, F316, F316L, A182 F51, F53, A350 LF2, LF3, LF5) Casting (A216 WCB, A351 CF3, CF8, CF3M, CF8M, A352 LCB, LCC, LC2, A995 4A. 5A), Inconel, Hastelloy, Monel



DESIGN FEATURES

DN15 Flange Manual 2pc Ball Valve'S Wcb A105 1/2inch 2 Piece Type Ball Valve Carbon Steel Ball Valve Forged Steel 0

Full or Reduced Bore

RF, RTJ, or BW

Bolted bonnet

Anti-Static Device

Anti-Blow out Stem

Cryogenic or High Temperature, Extended Stem

Single, two and three piece constructions
Soft and metal-seated
Screwed, socket-weld and flanged ends
Variety of actuation options
Fire-safe to ISO 10497 and API 607
Mirror-finished solid stainless ball
Fine-grained PTFE seats
Cavity Pressure Relief mechanism
Blowout-proof stem
High integrity stem sealing – Belleville springs compensate for wear and thermal expansions



DESIGN STANDARD

DN15 Flange Manual 2pc Ball Valve'S Wcb A105 1/2inch 2 Piece Type Ball Valve Carbon Steel Ball Valve Forged Steel 0

Design & manufacture according to API 6D, API 608, ISO 17292

Face-to-face according to API 6D, ASME B16.10 OR MFG’s standard

End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)

Test & inspection according to API 6D, API 598

Fire safe design according to API 6FA, API 607

Also available per NACE MR-0175, NACE MR-0103, ISO 15848





Item Valve
Type Ball Valve
Certification CE,TS,ISO9001,ISO14001,ISO18001
Brand VERVO
Model number Q41K-160
Power manual
Port Size 1/2"
Structure Ball,Floating
Pressure low perssure
Temperature -46~200
Medium Water gas steam
Connection form Flanged
Body material Forged Steel A105
Seal material Gasket

DN15 Flange Manual 2pc Ball Valve'S Wcb A105 1/2inch 2 Piece Type Ball Valve Carbon Steel Ball Valve Forged Steel 6

FAQ

DN15 Flange Manual 2pc Ball Valve'S Wcb A105 1/2inch 2 Piece Type Ball Valve Carbon Steel Ball Valve Forged Steel 7

1/Do you have any Certification ?

Yes we have ISO9001-2015 and CE/PED according to Directive 2014/68/EU,fire safe certificate,ISO15848-1

2/Can we visit your factory?

Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.

3/Do you have quality control system?

Yes, we have ISO/PED certifications and our own quality control laboratory.

4/Can you arrange the shipment for us?

Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earliest vessel and professional service.

5/Can I get some samples?

We are glad to provide free samples to you, but the express fee will be on your charge.

6/What is your after-sale service?

We provide after-sale service and offer 100% guarantee on our products.

7/What is your main products?

Valve, and in order to meet different needs, we expanded our business, we also do sanitary type products.

8/Are you trading company or manufacturer

We are factory, and welcome to visit our factory

9/What is your MOQ

No MOQ, As your request .Normal size and material we have stock
