Forged Steel Lift Check Valve Welding TA2 Titanium Check Valve API 602 SW

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/ISO/CE
Model Number: H61Y-800LB
Minimum Order Quantity: 1
Packaging Details: plywood case
Delivery Time: 30
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 400000
Design Standard: API602 Body Material:: A105N
Nominal Diameter: 1 Pressure: 800 LB
End Connection.: SW Face To Face: Factory STD
Test And Inspection: API 598
High Light:

Forged Steel Lift Check Valve

,

Welding TA2 Titanium Check Valve

,

Titanium Check Valve API 602

TA2 Titanium Alloy Forged Steel Lift Check Valve Welding Check Valve



Model number H61W-150LB
Item Forged steel Check Valve
Certification ISO9001,ISO14001,ISO18001,CE,TS
Port Size 1 1/2''
Connection form Welding
Body material Forged steel TA2
Structure type Lift check valve
Feature Easy disassembly and assembly



Forged Steel Check Valve

forged steel check valves are offered in swing type, lift type, bolted bonnet and welded bonnet design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. FBV forged steel check valves are manufactured according to API 602 Design.



PRODUCT RANGE

Sizes NPS 1/2 to NPS 4

Class 800 to Class 2500



MATERIALS

Available in Forged (A105, LF2, F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51), Alloy 20, Monel, Inconel, Hastelloy



DESIGN FEATURES

SW, NPT, RF or BW

Outside Screw & Yoke (OS&Y)

Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet



DESIGN STANDARD

Design & manufacture according to API 602, ASME B16.34

End Connection according to ASME B16.11 (SW), ASME B1.20.1 (NPT), ASME B16.5 (RF, RTJ)

Test & inspection according to API 598

Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624

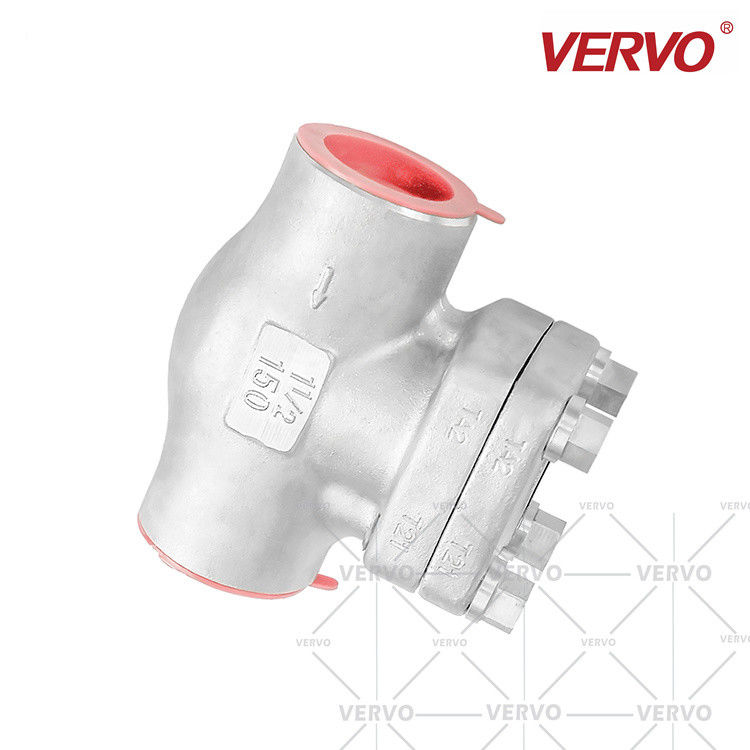

Forged Steel Lift Check Valve Welding TA2 Titanium Check Valve API 602 SW 0

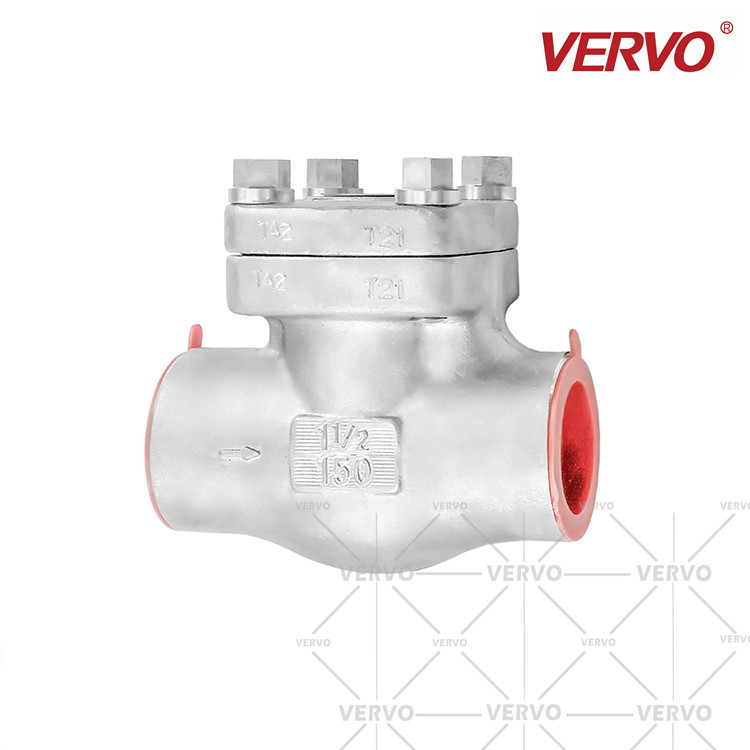

Forged Steel Lift Check Valve Welding TA2 Titanium Check Valve API 602 SW 1

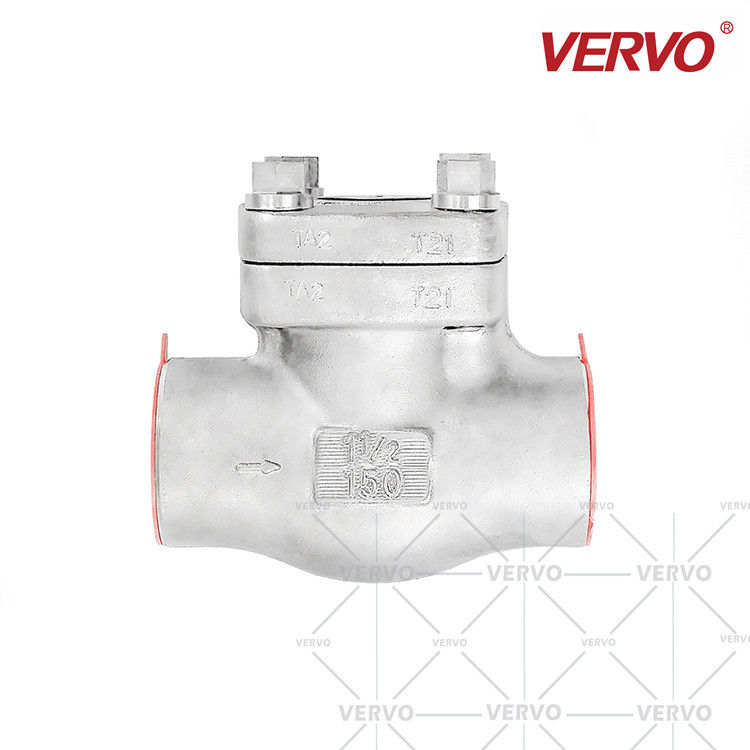

Forged Steel Lift Check Valve Welding TA2 Titanium Check Valve API 602 SW 2

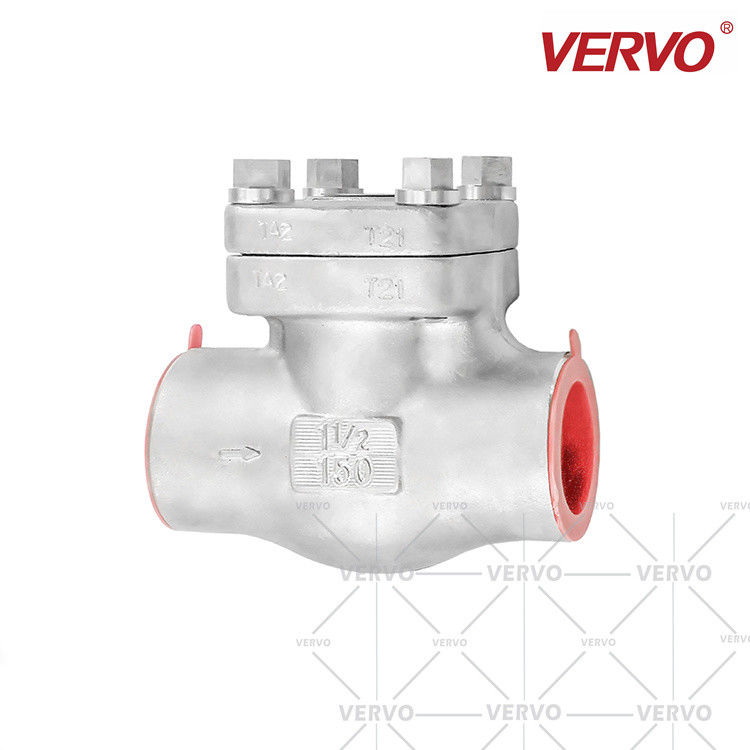

Forged Steel Lift Check Valve Welding TA2 Titanium Check Valve API 602 SW 3

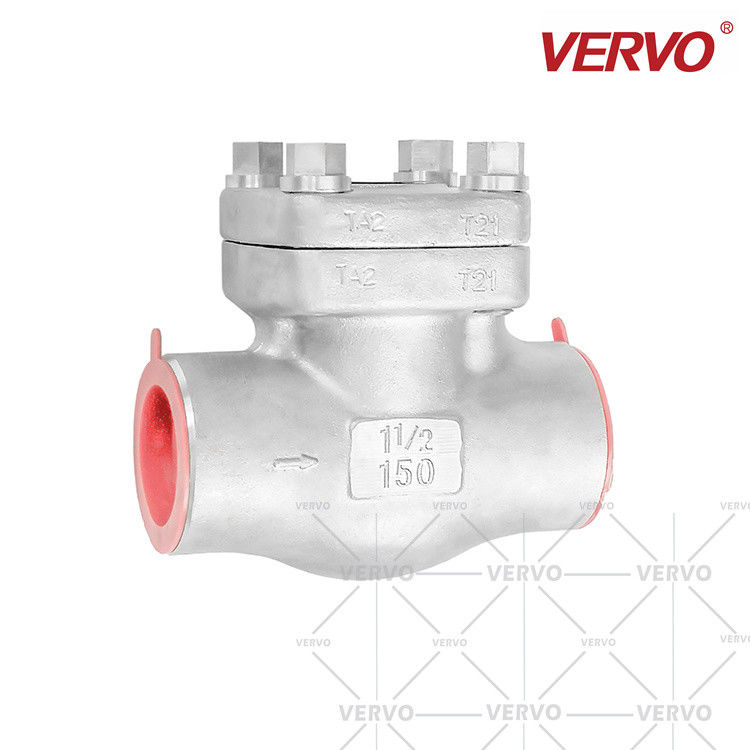

Forged Steel Lift Check Valve Welding TA2 Titanium Check Valve API 602 SW 4

The dimension and weights are for reference only and subject to change without notice.
1. For more size or dimensional information, please contact our sales representative.
