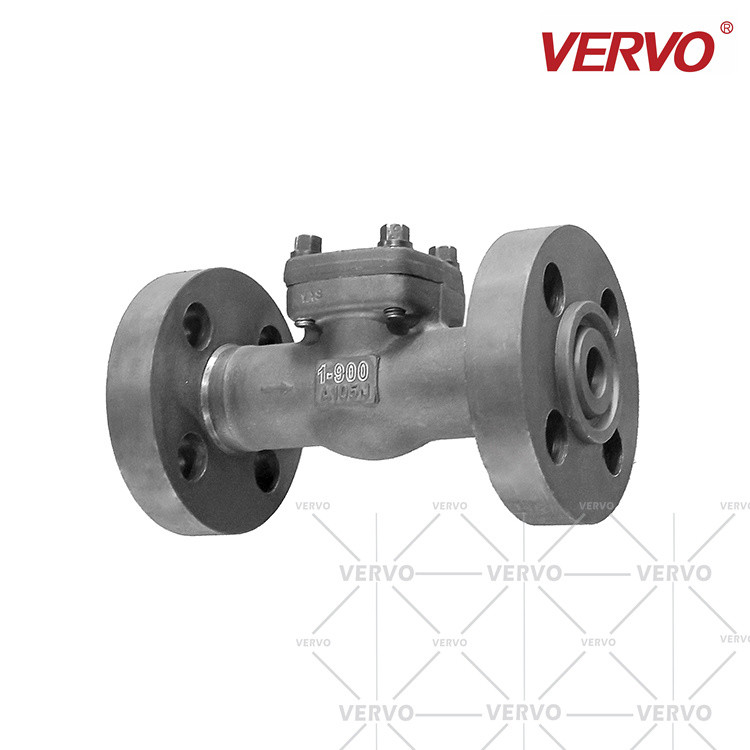

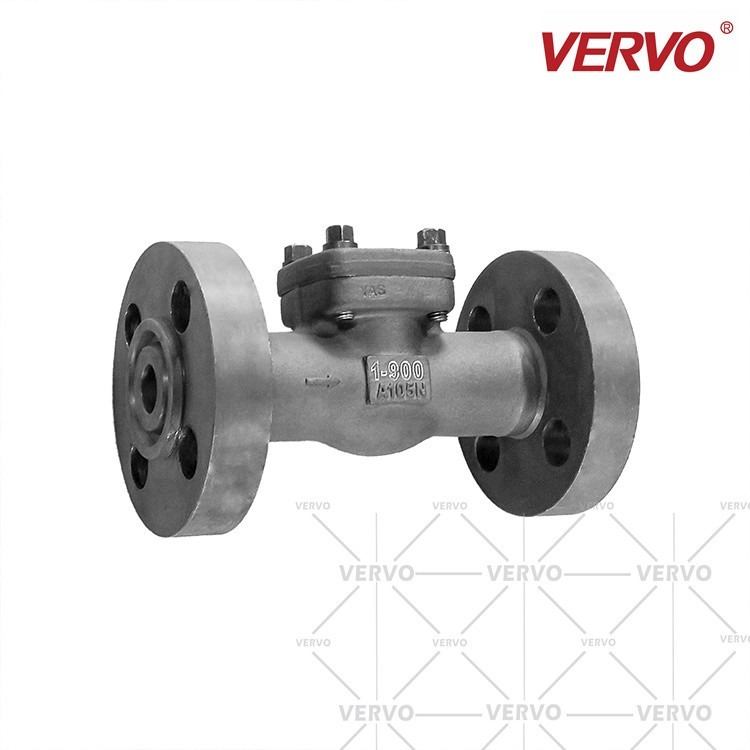

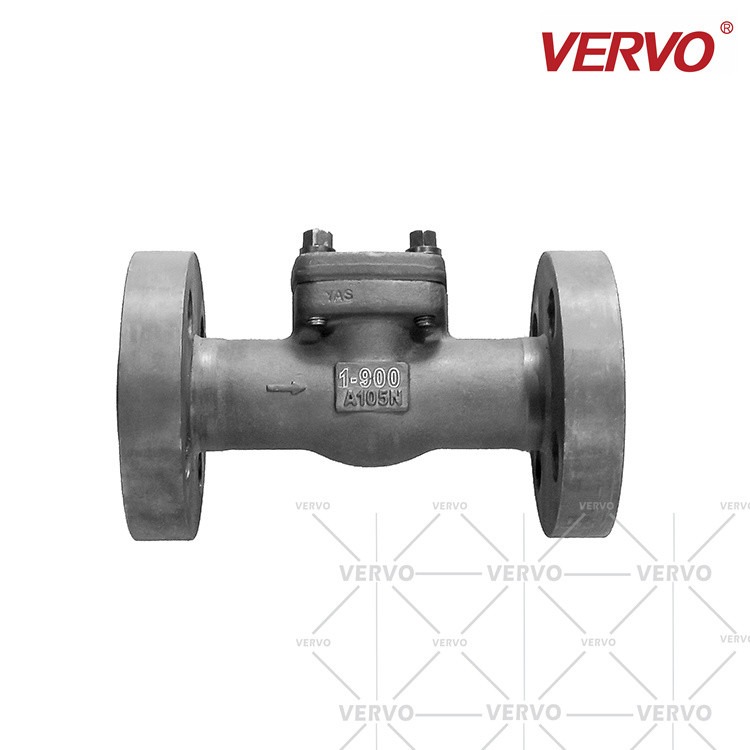

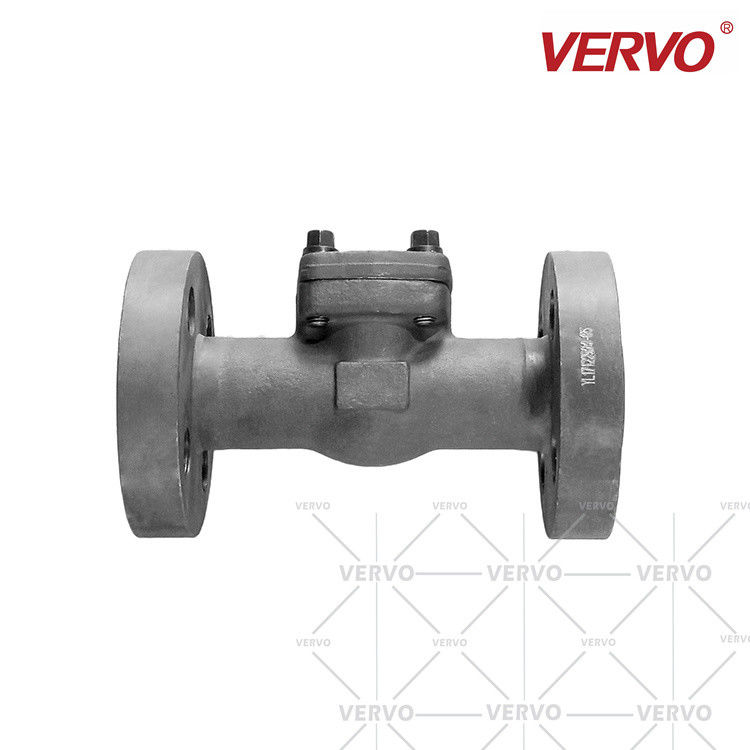

High Pressure Check Valve Oil Check Valve Flap 1 Inch Dn25 900lb Rf Flanged Vertical Forged Steel Swing Check Valve

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/ISO/CE
Model Number: H41Y-900LB-DN25
Minimum Order Quantity: 1
Packaging Details: plywood case
Delivery Time: 30
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 400000
Design Standard: API602 Body Material:: A105N
Nominal Diameter: DN25 25MM 1INCH Pressure: 900LB
End Connection.: RTJ FLANGE Face To Face: ASME B16.10
Test And Inspection: API 598

High Pressure Check Valve Oil Check Valve Flap 1 Inch Dn25 900lb Rf Flanged Vertical Forged Steel Swing Check Valve



VERVO swing check valve has typically a globe style valve body with a hinged valve disc, to block reverse flow. The valve seat is typically full-ported in an angled our straight thru. VERVO offer several different type of swing check valves for water and wastewater applications.

Swing Check Valve

High Pressure Check Valve Oil Check Valve Flap 1 Inch Dn25 900lb Rf Flanged Vertical Forged Steel Swing Check Valve 0

Swing check valves are normally recommended for water and wastewater systems applications because of the simple construction, low pressure drop across the valve, and field serviceability.

Swing check valves are available in either metal-to-metal seat or resilient seating. Resilient seated swing check valves are usually recommended for wastewater or services where dirt or other particles may be present in the fluid and positive shutoff is required.



Typically a swing check valve operation depends on gravity (weight of disc) and reverse flow. The pivot point of the swing check is outside the periphery of the disc and, the greater the flow velocity and head pressure possibility the greater the valve closing force. To prevent the slamming of the disc and reducing hydraulic shocks external hinge arm is available with either a lever weight or an adjustable spring.



Product name check valve
Size 1 ''
Construction style swing check valve
Pressure 1500LB
Temperature -29-425
Medium water gas gas
Connection type Flange
Material swing check valve
Purpose suitable for various industries
Model H41Y-900LB-DN25



High Pressure Check Valve Oil Check Valve Flap 1 Inch Dn25 900lb Rf Flanged Vertical Forged Steel Swing Check Valve 1

DIMENSIONS AND WEIGHTS (Check Valve )

                            High Pressure Check Valve Oil Check Valve Flap 1 Inch Dn25 900lb Rf Flanged Vertical Forged Steel Swing Check Valve 2

CL800 CL900~CL1500 Bolt Cover (BC)/ Welding Cover (WC)
Full Port (FP)
Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size (NPS) F.P 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face CL800 L 100 100 120 140 140 172
CL900
CL1500
100 120 140 140 172 220
Height H 70 70 70 100 110 120
Flow Port Diameter d 13.5 17 22 28 34 44
Weight (Kg) CL800 B.B 2.2 2.2 2.2 4.2 9 9
W.B 2.1 2.1 2.1 4 8.8 8.8
CL900 CL1500 B.B 4.2 9 9 10 18.6 20
W.B 4 8.8 8.8 9.7 18.2 19.5
High Pressure Check Valve Oil Check Valve Flap 1 Inch Dn25 900lb Rf Flanged Vertical Forged Steel Swing Check Valve 3
CL150~CL600 Bolt Cover (BC)/ Welding Cover (WC)
Reduce Port (RP),
Flanged (RF/RTJ)
Size
(NPS)
R.P 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face CL150 L (RF) 108 117 127 140 165 203
CL300   152 178 203 216 229 267
CL600   165 190 216 229 241 292
Height   H 55 55 65 80 85 105
Flow Port Diameter   d 10.5 13.5 17 22 28 34
Weight
(Kg)
CL150 B.B 3.5 3.5 4.7 8.5 11.5 13
CL300 3.5 3.5 5.6 8.6 12 14
CL600 3.5 3.5 6.5 10.5 16 22
High Pressure Check Valve Oil Check Valve Flap 1 Inch Dn25 900lb Rf Flanged Vertical Forged Steel Swing Check Valve 4
CL900 CL1500 Bolt Cover (BC)/ Welding Cover (WC)
Reduce Port (RP),
Flanged (RF/RTJ)
Size
(NPS)
R.P 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face CL900 CL1500 L (RF) 216 229 254 279 305 368
Height H 55 55 65 80 85 105
Flow Port Diameter d 10.5 13.5 17 22 28 34
Weight (Kg) CL150 CL300 B.B 4.5 5.8 8.7 14.5 22 32

1.The dimension and weights are for reference only and subject to change without notice.

2.The flanged valve are defaulted by integral flange.

3.For more size or dimensional information, please contact our sales representative.



FAQ

High Pressure Check Valve Oil Check Valve Flap 1 Inch Dn25 900lb Rf Flanged Vertical Forged Steel Swing Check Valve 5

1/Do you have any Certification ?

Yes we have ISO9001-2015 and CE/PED according to Directive 2014/68/EU,fire safe certificate,ISO15848-1

2/Can we visit your factory?

Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.

3/Do you have quality control system?

Yes, we have ISO/PED certifications and our own quality control laboratory.

4/Can you arrange the shipment for us?

Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earliest vessel and professional service.

5/Can I get some samples?

We are glad to provide free samples to you, but the express fee will be on your charge.

6/What is your after-sale service?

We provide after-sale service and offer 100% guarantee on our products.

7/What is your main products?

Valve, and in order to meet different needs, we expanded our business, we also do sanitary type products.

8/Are you trading company or manufacturer

We are factory, and welcome to visit our factory

9/What is your MOQ

No MOQ, As your request .Normal size and material we have stock
