| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/ISO/CE |
| Model Number: | H41Y-1500LB-DN25 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | plywood case |
| Delivery Time: | 30 |
| Payment Terms: | T/T, L/C, D/P, Western Union |
| Supply Ability: | 400000 |
| Design Standard: | API602 | Body Material:: | A105N |
|---|---|---|---|
| Nominal Diameter: | 1INCH DN25 | Pressure: | 1500LB |
| End Connection.: | RTJ FLANGE | Face To Face: | ASME B16.10 |
| Test And Inspection: | API 598 |

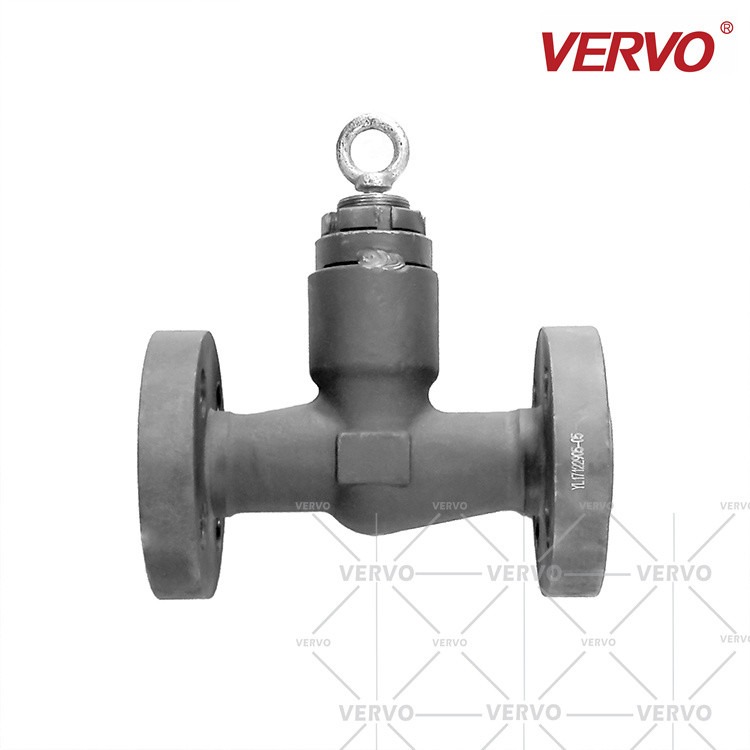

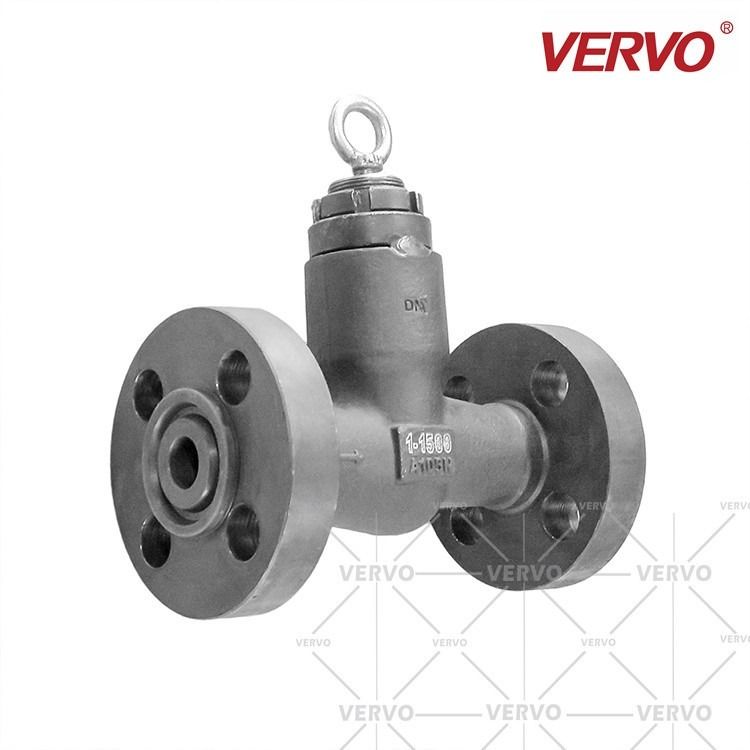

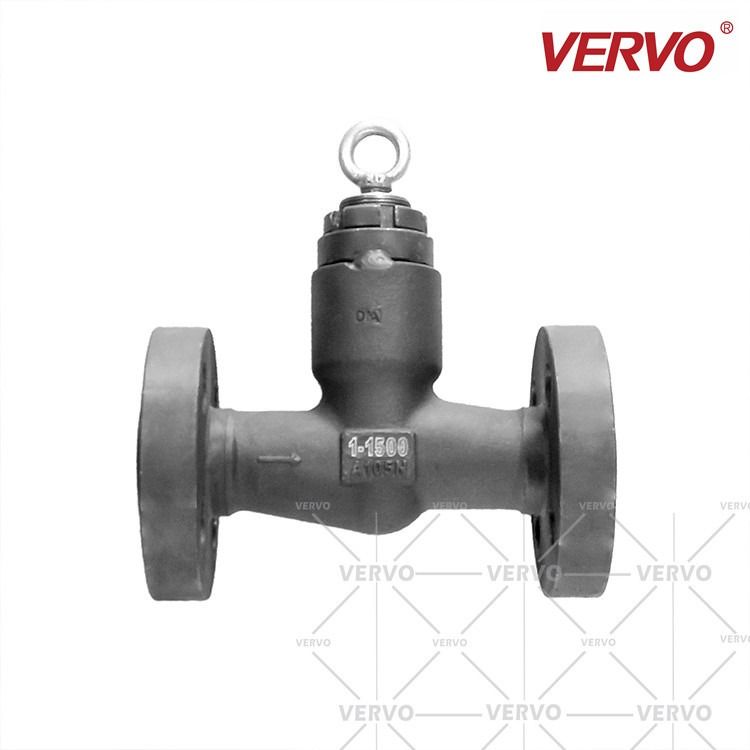

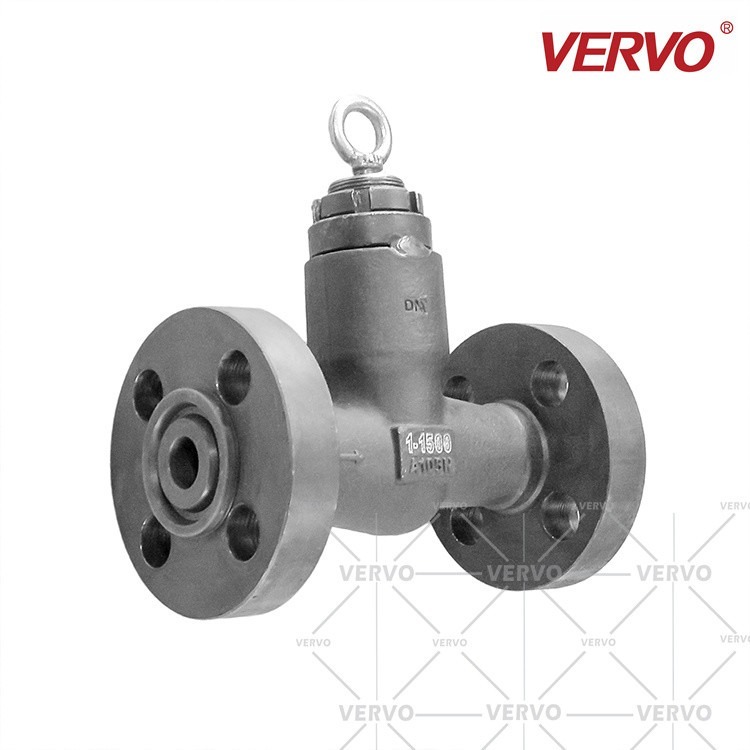

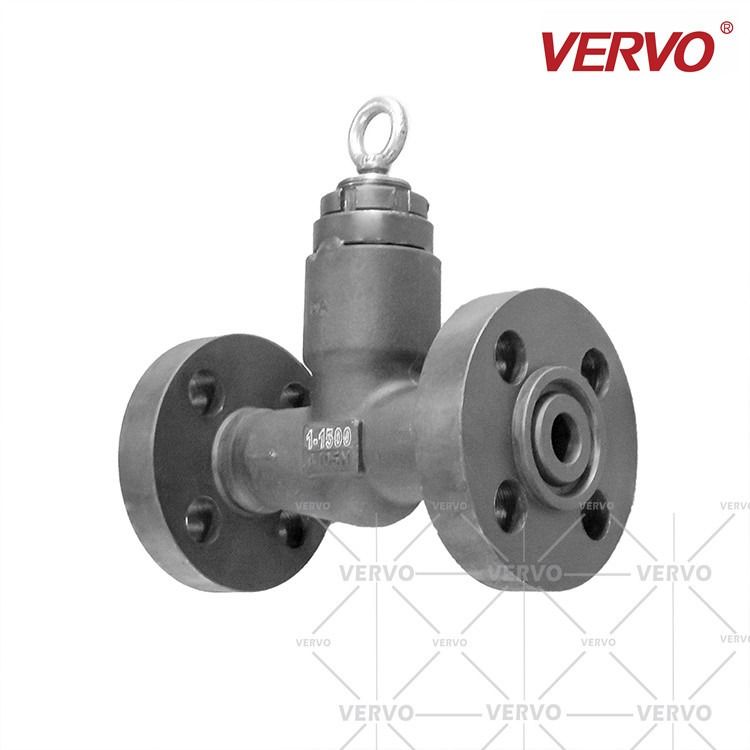

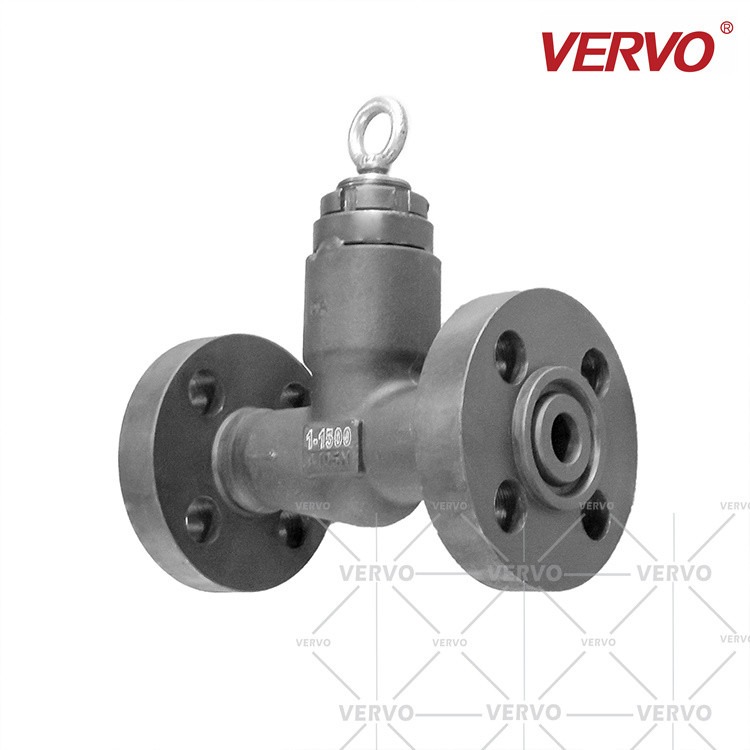

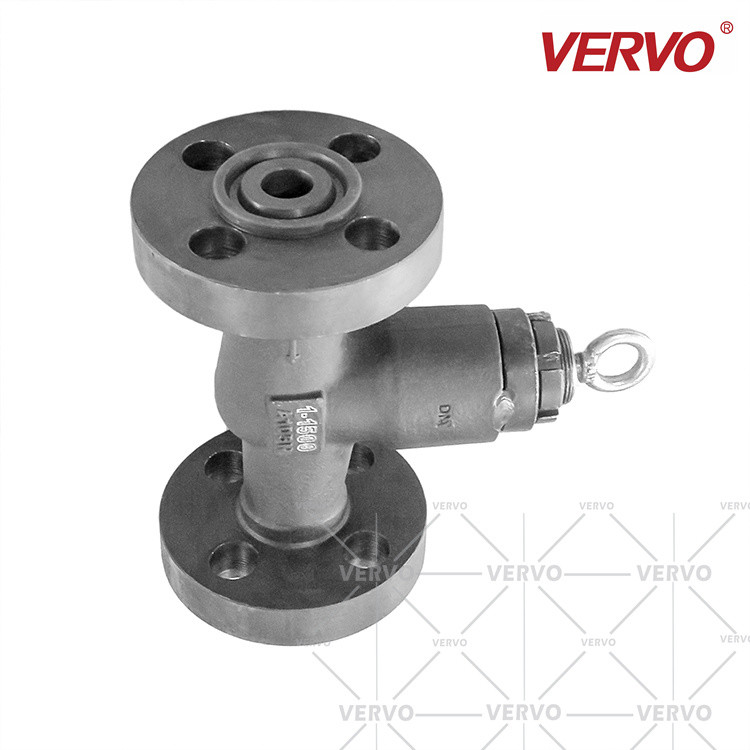

Lift Type Check Valve Carbon Steel Check Valve 1inch Dn25 1500lb RTJ Self Sealing PSC Piston Check Valve API602
Product Details
VERVO forged steel check valves are designed and manufactured to provide maximum service life and dependability. Forged check valves can be full port or reduced port as per requirements of customers. Valves are available in a complete range of body/bonnet materials and trims.
Applicable Standard
Design Standard: API 602, ASME B16.34, BS 5352
Face to Face: ASME B16.10, EN 558, DIN 3202
End Flange: ASME B16.5, DIN2533
Buttwelding Ends: ASME B16.25, DIN3239
Socket Welded Ends: ASME B16.11
Threaded Ends: ASME B1.20.1
Inspection and Test: API 598
Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624
Products Range
Size: 1/2" ~ 2"(DN15 ~ DN50)
Rating: ANSI 150lb ~ 2500lb
Body Materials: A105,LF2,F9,F11,F22,F304,F304L,F316,F316L,F321,F51, Alloy Steel,etc.
Trim: Per API 600
Design Features
Full port or reduced port design
Swing or Piston / lift type
Bolted bonnet, welded bonnet, or pressure sealed bonnet
Flanged, butt-welded, socket- welded, or threaded ends
Optional Y-type structure
DIMENSIONS AND WEIGHTS (Check Valve - Pressure Seal Cover)
| CL900~CL2500 | Pressure Seal Bonnet (PSB), Reduce Port (RP), Thread (NPT), Socket Weld (SW), Butt Weld (BW) |
||||||||
| Size (NPS) | R.P | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
| Face To Face | CL900 CL1500 |
L | 140 | 140 | 140 | 140 | 178 | 178 | 216 |
| CL2500 | 182 | 182 | 182 | 182 | 232 | 232 | 272 | ||
| Height | H | 115 | 115 | 115 | 115 | 150 | 150 | 195 | |
| Flow Port Diameter | d | 8 | 10.3 | 13.5 | 18 | 23 | 29 | 36 | |
| Weight (Kg) | CL900 CL1500 |
PSB | 7.5 | 7.5 | 7.5 | 7.5 | 10.5 | 10.3 | 22 |
| CL2500 | 11.8 | 11.8 | 11 | 11 | 23 | 26.5 | 39 | ||
 |
|||||||||
| CL900~CL2500 | Pressure Seal Bonnet (PSB), Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW) |
||||||||
| Size (NPS) | R.P | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
| Face To Face | CL900 CL1500 |
L | 140 | 140 | 140 | 140 | 178 | 178 | 216 |
| CL2500 | 182 | 182 | 182 | 182 | 232 | 232 | 272 | ||
| Height | H | 115 | 115 | 115 | 115 | 150 | 150 | 195 | |
| Flow Port Diameter | d | 8 | 13.5 | 17 | 22 | 28 | 34 | 42 | |
| Weight (Kg) | CL900 CL1500 |
PSB | 7.5 | 7.5 | 7.5 | 7.5 | 10.5 | 10.3 | 22 |
| CL2500 | 11.8 | 11.8 | 11 | 11 | 23 | 26.5 | 39 | ||
 |
|||||||||
| CL900~CL2500 | Pressure Seal Bonnet (PSB), Reduce Port (RP), Flanged (RF/RTJ) |
||||||||
| Size (NPS) | R.P | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
| Face To Face | CL900 CL1500 |
L | 216 | 229 | 254 | 279 | 305 | 368 | |
| CL2500 | 264 | 273 | 308 | 349 | 384 | 451 | |||
| Height | H | 115 | 115 | 115 | 150 | 150 | 195 | ||
| Flow Port Diameter | d | 13.5 | 17 | 22 | 28 | 34 | 42 | ||
| Weight (Kg) | CL900 CL1500 |
PSB | 10.5 | 12 | 14 | 20 | 27 | 33 | |
| CL2500 | 13 | 15 | 17 | 25 | 30 | 35 | |||
