Dn20 300lb Api 602 Pressure Seal Gate Valve 2.5 Inch 60mm One Piece 3 Way Double Hard Sealed

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/CE/ISO
Model Number: Z41-300LB-DN20
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1 week
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 40000pcs/month
Name: Forged Gate Valve Media: Oli,Gas,Water
Standard: API602/BS5352/GOST/JIS/DIN/ISO Pressure: 150LB-800LB,1500LB,2500LB
Power: Manual,Pneumatic,Solenoid,Electrical Actuated Temperature Of Media: Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃)
Size: 1/4"-4",DN8-DN100
High Light:

api 602 Pressure Seal Gate Valve

,

api 602 Pressure Seal gate valve 2.5 inch 60mm

,

api 602 gate valve VERVO

API602 BS5352 Gate Valve 800lbs API602 Forged A105 SW BW NPT



General Introduction:

VERVO forged steel valve has the advantages of small volume and compact type. Bolted bonnet, welded bonnet, pressure bonnet, bellow seal bonnet, high/low temperature extended bonnet and ISO 15848 fugitive emission designed valves are available upon different request of services.



Forged Steel Gate Valve
VERVO forged steel gate vales adopts solid gate, renewable seat, rising stem and non-ring hand wheel. It plays the role of pipe opening and closing ultimately through the rotation of the hand wheel to drive the lifting of gate.



Item flanged gate valve
Type Integral
Certification ISO9001,ISO14001,ISO18001,CE,TS
Brand VERVO
Model number SZ41/11/61Y-300LB
Port Size 3/4''
Structure Integral gate valve
Pressure 300LB
Temperature -29~425
Connection form Flange/thread/weld
Body material stainless steel
Feature

Easy disassembly

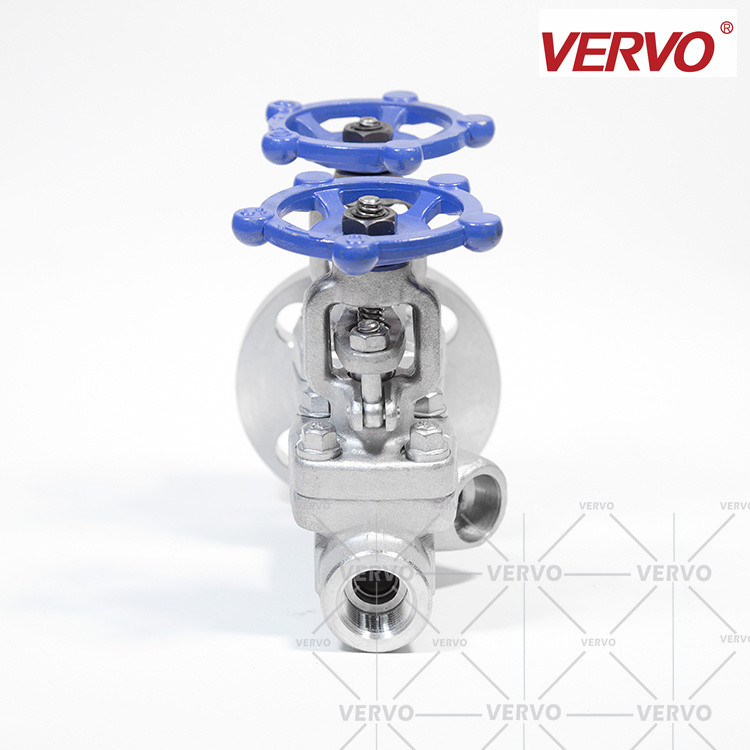

Dn20 300lb Api 602 Pressure Seal Gate Valve 2.5 Inch 60mm One Piece 3 Way Double Hard Sealed 0

Standards
Design & Manufacture
API 602, ISO 15761, ASME B16.34
Face-to-face
VERVO'STD, ASME B16.10
End Dimension
ASME B1.20.1 (NPT)
ASME B16.11 (SW)
ASME B16.25 (BW)
ASME B16.5 (RF, RTJ),
Test & Inspection
API 598
Typical Materials
Body,Bonnet,Disc
A105,A350 LF2, LF3, LF5, A182 F304, F304L, F316, F316L, F51, F53,
F5,F11,F22,F91, Monel, Inconel, Hastelloy,C95800,B62
Stem
A276 410, F304, F304L, F316, F316L, F51, F53, Monel, Inconel, Hastelloy,C95800






Dn20 300lb Api 602 Pressure Seal Gate Valve 2.5 Inch 60mm One Piece 3 Way Double Hard Sealed 1

About Us



VERVO is an ISO 9001 certified company specializing in manufacturing industrial valves including ball valves, gate valves, globe valves, check valves, plug valves and butterfly valves in carbon steel, stainless steel, duplex stainless and alloy materials. Our products conform to the latest industry standards in accordance to ANSI, ASME and API.VERVO today has over 10000 square meters of manufacturing facilities. Through its conviction to provide only the finest quality products and services to match the need of our customers, VERVO has now established itself as a serious player in the valve business.
VERVO has sold worldwide in North America, Europe, South America, South Asia, Africa and the Middle East. We consider product quality and customer satisfaction as our highest priority.
We look forward to new customer relationships by providing value, quality, customer service,honesty, integrity and the commitment to maintain product consistency with each and every order.
