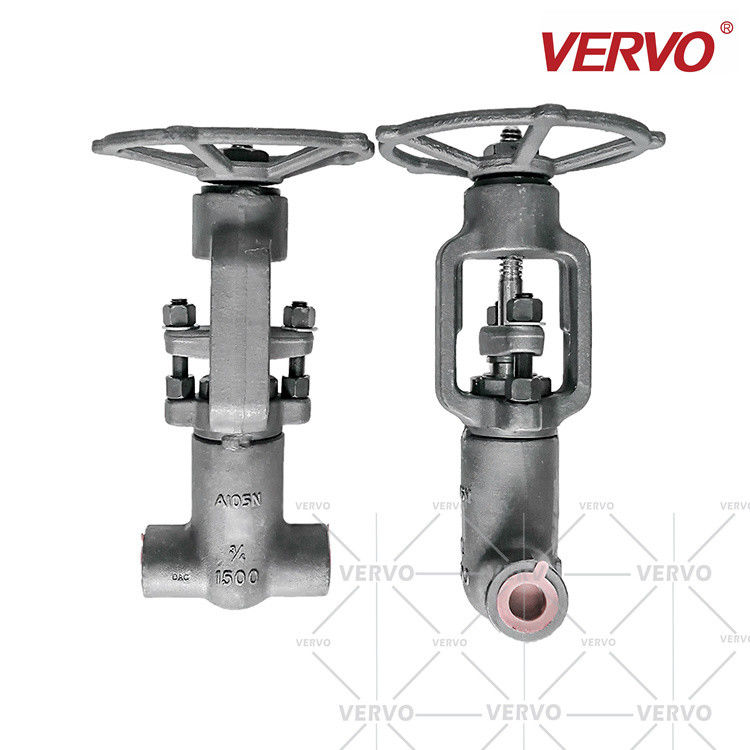

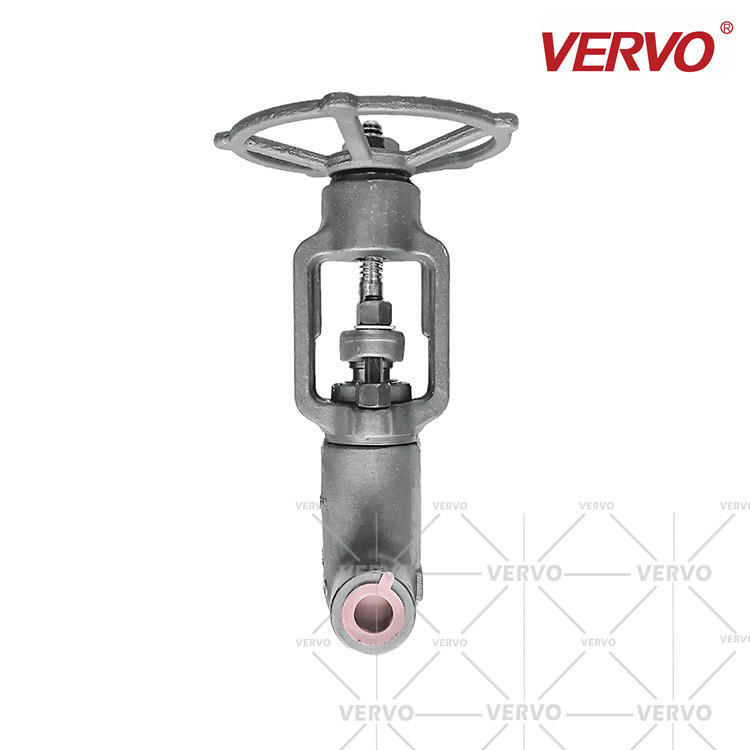

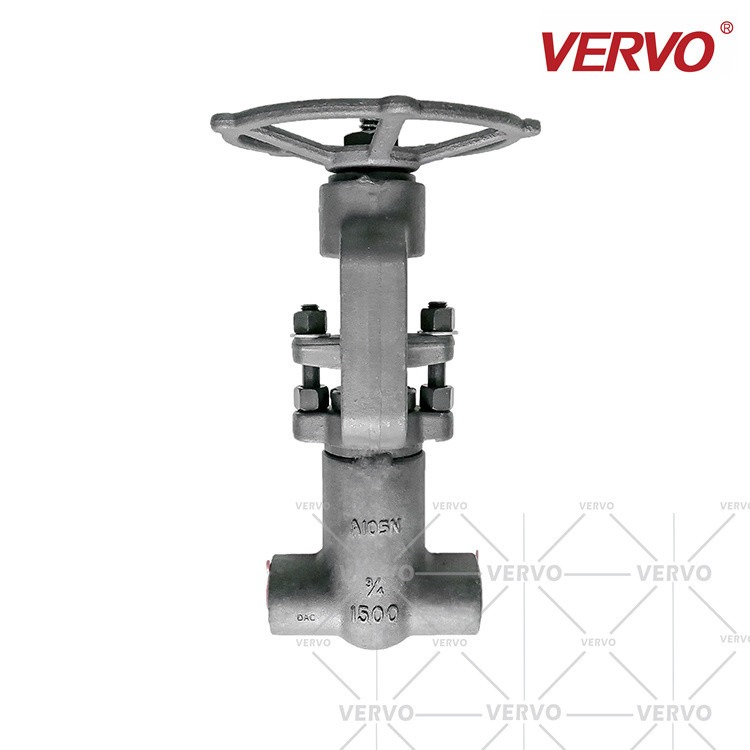

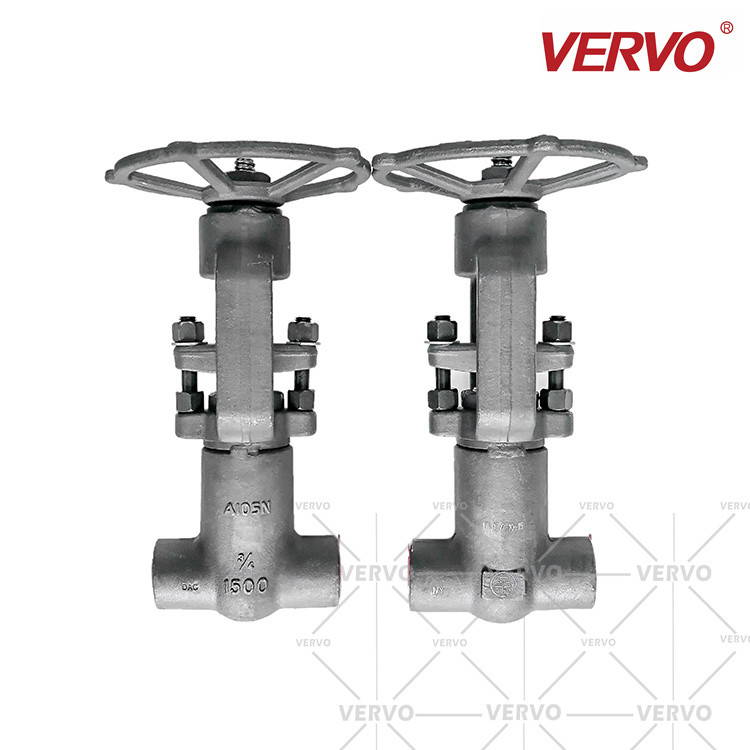

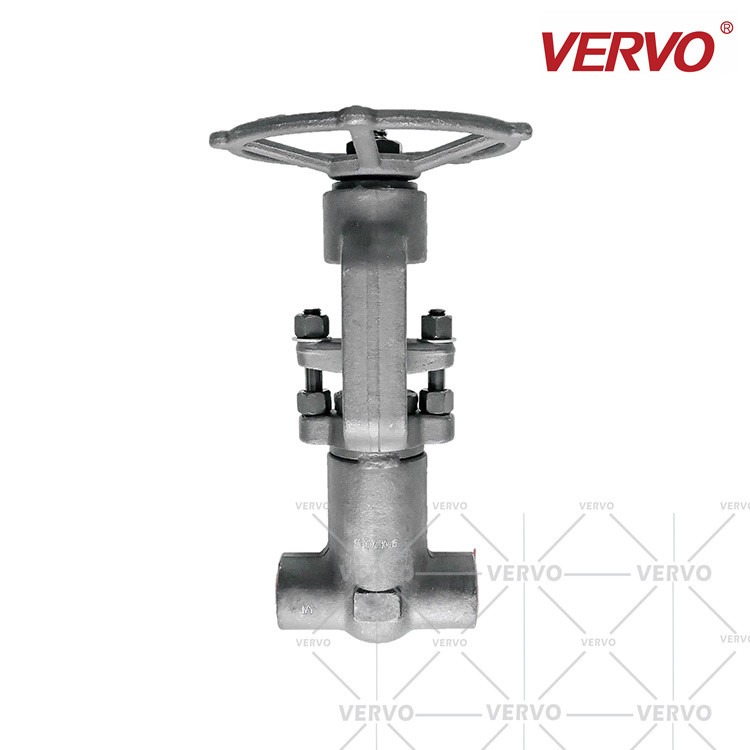

High Pressure Gate Valve Forged Steel A105N DN20 1500LB PSB Pressure Sealing Bonnet Gate Valve Solid Wedge Gate Valve

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/CE/ISO
Model Number: Z61Y-1500LB-DN20
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1 week
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 40000pcs/month
Name: Forged Steel Pressure Seal Bonnet Gate Valve Media: Oli,Gas,Water
Standard: API602/BS5352/GOST/JIS/DIN/ISO Pressure: 150LB-800LB,1500LB,2500LB
Power: Manual,Pneumatic,Solenoid,Electrical Actuated Temperature Of Media: Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃)
Size: 1/4"-4",DN8-DN100

High Pressure Gate Valve Forged Steel A105N DN20 1500LB PSB Pressure Sealing Bonnet Gate Valve Solid Wedge Gate Valve



Quick Detail

High Pressure Gate Valve Forged Steel A105N DN20 1500LB PSB Pressure Sealing Bonnet Gate Valve Solid Wedge Gate Valve 0
Model number PSBZ61Y-1500LB-DN20
Item High Pressure Pressure Seal Bonnet Gate Valve 1500LB
Certification ISO9001,ISO14001,ISO18001,TS,CE,API
Connection form BUTT WELDING
Body material Forged steel ASTM A105N
Purpose Sutiable for Various Industrise
Temperature -29-425



General Introduction

High Pressure Gate Valve Forged Steel A105N DN20 1500LB PSB Pressure Sealing Bonnet Gate Valve Solid Wedge Gate Valve 0

VERVO forged steel valve has the advantages of small volume and compact type. Bolted bonnet, welded bonnet, pressure bonnet, bellow seal bonnet, high/low temperature extended bonnet and ISO 15848 fugitive emission designed valves are available upon different request of services.



Forged Steel Gate Valve

VERVO forged steel gate vales adopts solid gate, renewable seat, rising stem and non-ring hand wheel. It plays the role of pipe opening and closing ultimately through the rotation of the hand wheel to drive the lifting of gate.



SPECIFICATIONS

High Pressure Gate Valve Forged Steel A105N DN20 1500LB PSB Pressure Sealing Bonnet Gate Valve Solid Wedge Gate Valve 0
1) Valve Size : 1/2" ~ 6"
2) Applicable Rating : ASME 1500# ~ 4500#
3) Temperature : Up to 500℃
4) Code & Standard : API, BS, ASME, ASTM
Designed by ASME B16.11 / 16.25 / 16.34 / 16.5
5) Constructions
• End Connection : Socket-Welded or Flanged Type
• PSB (=Pressure-Seal Bonnet) Type
• Full Bore
• Manual or Motor Operated
(Pneumatic, Electric, or Hydraulic)



PSB GLOBE VALVE DIMENSION

High Pressure Gate Valve Forged Steel A105N DN20 1500LB PSB Pressure Sealing Bonnet Gate Valve Solid Wedge Gate Valve 0

                                High Pressure Gate Valve Forged Steel A105N DN20 1500LB PSB Pressure Sealing Bonnet Gate Valve Solid Wedge Gate Valve 4



CL900~CL2500 Pressure Seal Bonnet (PSB),
Full Port (FP), Outside Screw and Yoke (OS&Y),
Thread(NPT), Socket Weld(SW), Butt Weld (BW)
Size (NPS)   F.P 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face CL900
CL1500
L 140 140 140 140 178 178 216
CL2500 182 182 182 182 232 232 272
Handwheel Diameter CL900 CL1500 CL2500 W 200 200 200 200 280 280 300
Height CL900 CL1500 H 308 308 315 315 446 446 540
CL2500   325 325 325 325 460 460 550
Flow Port Diameter   d 8 10.3 13.5 18 23 29 36
Weight (Kg) CL900 CL1500 PSB 9 9 9 9 26 26 36
CL2500 11.9 11.9 11.8 11.7 30 28 42
High Pressure Gate Valve Forged Steel A105N DN20 1500LB PSB Pressure Sealing Bonnet Gate Valve Solid Wedge Gate Valve 5
CL900~CL2500 Pressure Seal Bonnet (PSB),
Full Port (FP), Outside Screw and Yoke (OS&Y),
Flanged (RF/RTJ)
Size (NPS) F.P 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face CL900 CL1500 L (RF)   216 229 254 279 305 368
CL2500   264 273 308 349 384 451
Handwheel Diameter CL900 CL1500 CL2500 W   200 200 200 280 280 300
Height CL900
CL1500
H   308 315 315 446 446 540
CL2500   325 325 325 460 460 550
Flow Port Diameter d   10.3 13.5 18 23 29 36
Weight (Kg) CL900 CL1500 PSB   11.9 13.7 18 36.8 37 45
CL2500   13 17 22 30 42 58



High Pressure Gate Valve Forged Steel A105N DN20 1500LB PSB Pressure Sealing Bonnet Gate Valve Solid Wedge Gate Valve 6High Pressure Gate Valve Forged Steel A105N DN20 1500LB PSB Pressure Sealing Bonnet Gate Valve Solid Wedge Gate Valve 7



Keywords of

Pressure Seal Gate Valve Forged Steel A105N 1 INCH DN 25 2500lb Flanged End Gate Valve Solid Gate Solid Wedge Gate Valve



Quick Detail

High Pressure Gate Valve Forged Steel A105N DN20 1500LB PSB Pressure Sealing Bonnet Gate Valve Solid Wedge Gate Valve 0
Model number PSBZ41Y-2500LB-DN25
Item High Pressure Pressure Seal Bonnet Globe Valve 2500LB
Certification ISO9001,ISO14001,ISO18001,TS,CE,API
Connection form RF FLANGE
Body material Forged steel ASTM A105N
Purpose Sutiable for Various Industrise
Temperature -29-425



General Introduction

High Pressure Gate Valve Forged Steel A105N DN20 1500LB PSB Pressure Sealing Bonnet Gate Valve Solid Wedge Gate Valve 0

VERVO forged steel valve has the advantages of small volume and compact type. Bolted bonnet, welded bonnet, pressure bonnet, bellow seal bonnet, high/low temperature extended bonnet and ISO 15848 fugitive emission designed valves are available upon different request of services.



Forged Steel Gate Valve

VERVO forged steel gate vales adopts solid gate, renewable seat, rising stem and non-ring hand wheel. It plays the role of pipe opening and closing ultimately through the rotation of the hand wheel to drive the lifting of gate.



SPECIFICATIONS

High Pressure Gate Valve Forged Steel A105N DN20 1500LB PSB Pressure Sealing Bonnet Gate Valve Solid Wedge Gate Valve 0
1) Valve Size : 1/2" ~ 6"
2) Applicable Rating : ASME 1500# ~ 4500#
3) Temperature : Up to 500℃
4) Code & Standard : API, BS, ASME, ASTM
Designed by ASME B16.11 / 16.25 / 16.34 / 16.5
5) Constructions
• End Connection : Socket-Welded or Flanged Type
• PSB (=Pressure-Seal Bonnet) Type
• Full Bore
• Manual or Motor Operated
(Pneumatic, Electric, or Hydraulic)



PSB GLOBE VALVE DIMENSION

High Pressure Gate Valve Forged Steel A105N DN20 1500LB PSB Pressure Sealing Bonnet Gate Valve Solid Wedge Gate Valve 0

High Pressure Gate Valve Forged Steel A105N DN20 1500LB PSB Pressure Sealing Bonnet Gate Valve Solid Wedge Gate Valve 4



CL900~CL2500 Pressure Seal Bonnet (PSB),
Full Port (FP), Outside Screw and Yoke (OS&Y),
Thread(NPT), Socket Weld(SW), Butt Weld (BW)
Size (NPS)   F.P 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face CL900
CL1500
L 140 140 140 140 178 178 216
CL2500 182 182 182 182 232 232 272
Handwheel Diameter CL900 CL1500 CL2500 W 200 200 200 200 280 280 300
Height CL900 CL1500 H 308 308 315 315 446 446 540
CL2500   325 325 325 325 460 460 550
Flow Port Diameter   d 8 10.3 13.5 18 23 29 36
Weight (Kg) CL900 CL1500 PSB 9 9 9 9 26 26 36
CL2500 11.9 11.9 11.8 11.7 30 28 42
High Pressure Gate Valve Forged Steel A105N DN20 1500LB PSB Pressure Sealing Bonnet Gate Valve Solid Wedge Gate Valve 5
CL900~CL2500 Pressure Seal Bonnet (PSB),
Full Port (FP), Outside Screw and Yoke (OS&Y),
Flanged (RF/RTJ)
Size (NPS) F.P 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face CL900 CL1500 L (RF)   216 229 254 279 305 368
CL2500   264 273 308 349 384 451
Handwheel Diameter CL900 CL1500 CL2500 W   200 200 200 280 280 300
Height CL900
CL1500
H   308 315 315 446 446 540
CL2500   325 325 325 460 460 550
Flow Port Diameter d   10.3 13.5 18 23 29 36
Weight (Kg) CL900 CL1500 PSB   11.9 13.7 18 36.8 37 45
CL2500   13 17 22 30 42 58



High Pressure Gate Valve Forged Steel A105N DN20 1500LB PSB Pressure Sealing Bonnet Gate Valve Solid Wedge Gate Valve 6High Pressure Gate Valve Forged Steel A105N DN20 1500LB PSB Pressure Sealing Bonnet Gate Valve Solid Wedge Gate Valve 7



Keywords of Pressure Seal Gate Valve Forged Steel A105N 1 INCH DN 25 2500lb Flanged End Gate Valve Solid Gate Solid Wedge Gate Valve

High Pressure Gate Valve Forged Steel A105N DN20 1500LB PSB Pressure Sealing Bonnet Gate Valve Solid Wedge Gate Valve 16

High Pressure Gate Valve,Forged Steel PSB Gate Valve, Stainless Steel PSB Gate Valve, Pressure Seal Bonnet Gate Valve, High Pressure PSB Gate Valve ,Class 1500 Globe Valve,API602 Gate Valve, BS5352 Gate Valve, 25mm PSB Gate Valve,DN25 Gate Valve,Butt Weld Gate Valve,High Pressure Valve,RTJ Flange Gate Valve
