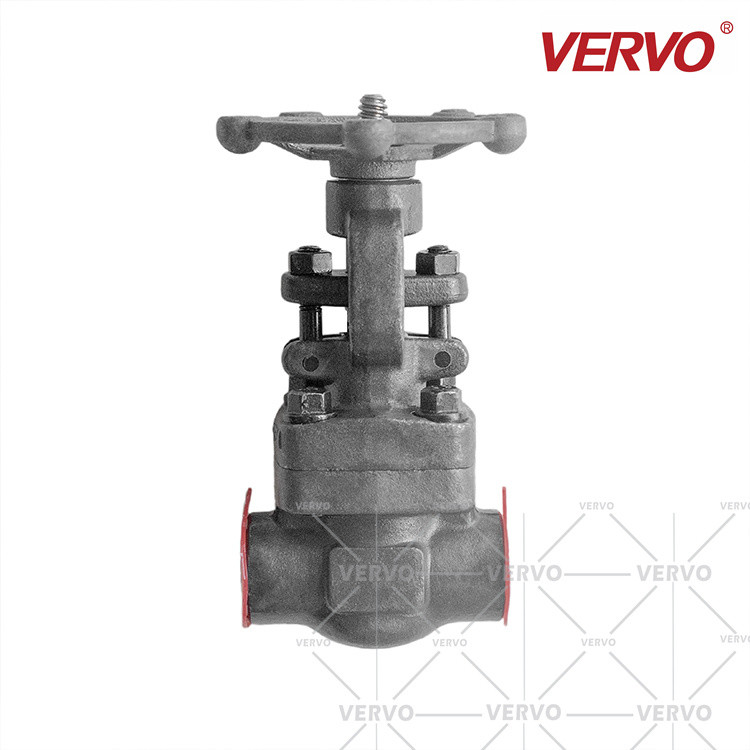

A182 F5 Forged Steel Gate Valve API602 Gate Valve Socket Weld Gate Valve Full Port Gate Valve Handwheel Operated Valve

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/CE/ISO
Model Number: Z61-800LB-DN15
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1 week
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 40000pcs/month
Name: Forged Steel A182 F5 Gate Valve Media: Oli,Gas,Water
Standard: API602/BS5352/GOST/JIS/DIN/ISO Pressure: 150LB-800LB,1500LB,2500LB
Power: Manual,Pneumatic,Solenoid,Electrical Actuated Temperature Of Media: Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃)
Size: 1/4"-4",DN8-DN100

A182 F5 Forged Steel Gate Valve API602 Gate Valve Socket Weld Gate Valve Full Port Gate Valve Handwheel Operated Valve



Quick Detail

A182 F5 Forged Steel Gate Valve API602 Gate Valve Socket Weld Gate Valve Full Port Gate Valve Handwheel Operated Valve 0
Model number Z61Y-800LB-DN15
Item Forged Steel Solid Wedge Gate Valve
Certification ISO9001,ISO14001,ISO18001,TS,CE,API
Connection form SOCKET WELD
Body material Forged steel ASTM A182 F5
Purpose Sutiable for Various Industrise
Temperature -29-425




Forged Alloy Steel A182 F5 Gate Valve

A182 F5 Forged Steel Gate Valve API602 Gate Valve Socket Weld Gate Valve Full Port Gate Valve Handwheel Operated Valve 0

• Forged Alloy Steel F5 Gate Valve
• Class 150/300/600/800/900/1500/2500/4500
• Reduced Port/Full Port
Available in Forged (A105, LF2, F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51,F53,F55,F60), Alloy 20, Monel, Inconel, Hastelloy,C95800
• ASME B16.34
• Maximum Pressure 1975 PSI
• Maximum Temperature 850
• Bolted Bonnet/Welded Bonnet/Pressure Seal Bonnet
• API 602 /BS5352/ API 598
• NACE MR0175
• Sizes 1/2” - 4”

Features and benefits

A182 F5 Forged Steel Gate Valve API602 Gate Valve Socket Weld Gate Valve Full Port Gate Valve Handwheel Operated Valve 2

TWO TYPES:

● This valve is available with an extended body or an integrally reinforcedextended body (IREB).
● Extended body gate valves have a welded or threaded connection and are used for tapping of pressure vessels and header lines for vents, drains or takeoff lines and instrumentation.
● Also available: extended body assemblies for vents, drains, and instrument root valves.



A182 F5 Forged Steel Gate Valve API602 Gate Valve Socket Weld Gate Valve Full Port Gate Valve Handwheel Operated Valve 3
CL800 Bolt Bonnet (BB)/Welding Bonnet (WB),
Reduce Port (RP)/Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW),
Size (NPS) R.P 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2
F.P 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face L 79 92 111 120 120 140 178
Handwheel Diameter W 100 100 125 160 160 180 200
Height H 165 169 207 230 249 283 333
Flow Port Diameter d 10.3 13.5 18 23 29 36 45
Weight (Kg) B.B 2.2 2.4 4.1 5.5 7.5 10 19
W.B 2.1 2.3 4 5.5 7.3 9.5 18.5
A182 F5 Forged Steel Gate Valve API602 Gate Valve Socket Weld Gate Valve Full Port Gate Valve Handwheel Operated Valve 3
CL900~CL1500 Bolt Bonnet (BB)/ Welding Bonnet (WB),
Reduce Port (RP)/ Full Port(FP), Outside Screw and Yoke(OS&Y), Thread(NPT), Socket Weld(SW), Butt Weld(BW)
Size (NPS) R.P 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2
  F.P 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face L 92 111 120 120 140 178
Handwheel Diameter W 100 125 160 160 180 200
Height H 169 207 230 249 283 333
Flow Port Diameter d 10.3 13.5 18 23 29 36
Weight (Kg) B.B 2.4 4.1 6.2 6.2 8.7 12.5
W.B 2.2 4 6 6 8.5 12
A182 F5 Forged Steel Gate Valve API602 Gate Valve Socket Weld Gate Valve Full Port Gate Valve Handwheel Operated Valve 5
CL2500 Welding Bonnet (WB),
Reduce Port (RP)/Full Port (FP), Outside Screw and Yoke (OS&Y),
Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size
(NPS)
R.P 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face L   120 120 120 140 178 178
Handwheel Diameter W   160 160 160 180 200 200
Height H   230 235 249 283 333 333
Flow Port Diameter d   10.3 13.5 18 23 29 36
Weight
(Kg)
W.B   6.5 6.5 6.5 9 13 13



Keywords of A182 F5 Forged Steel Gate Valve API602 Gate Valve Socket Weld Gate Valve Full Port Gate Valve Handwheel Operated Valve

A182 F5 Forged Steel Gate Valve API602 Gate Valve Socket Weld Gate Valve Full Port Gate Valve Handwheel Operated Valve 6

High Pressure Gate Valve,Forged Steel BB Gate Valve, Socket Weld End Gate Valve, A182 F5 Gate Valve, 1/2 Inch Gate Valve ,Class 800 Gate Valve,API602 Gate Valve, BS5352 Gate Valve, 15 mm BB Gate Valve,DN15 Gate Valve,SW End Gate Valve,Full Port Gate Valve,Solid Wedge Gate Valve
