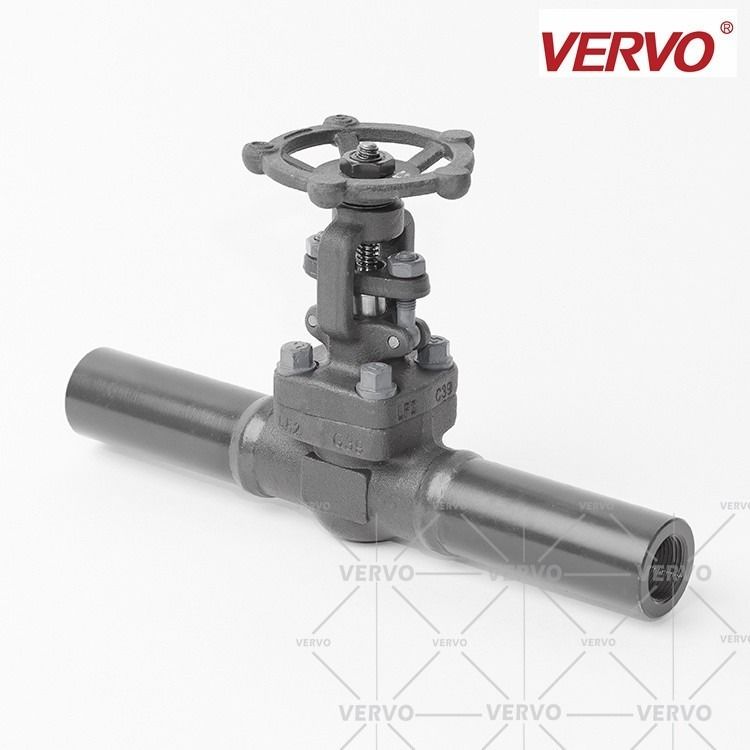

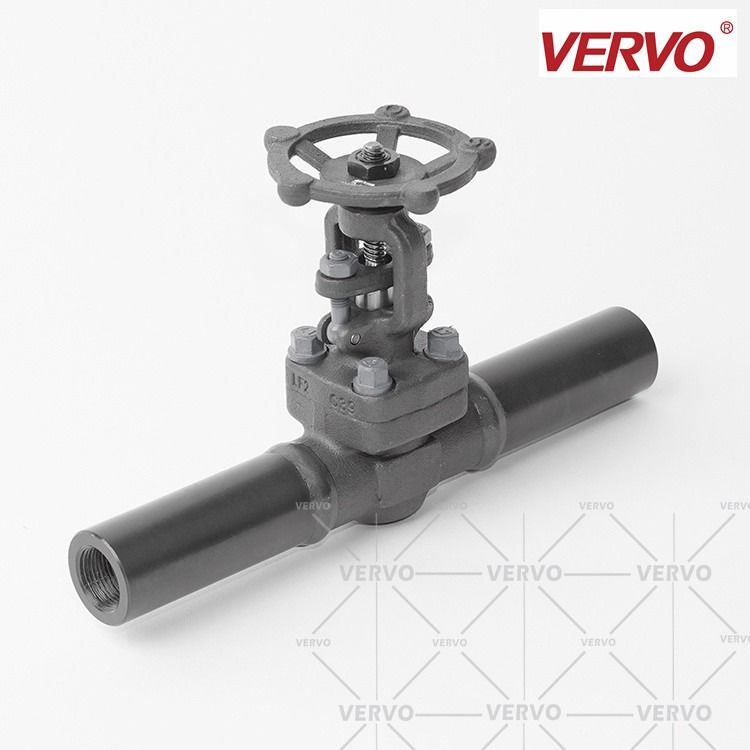

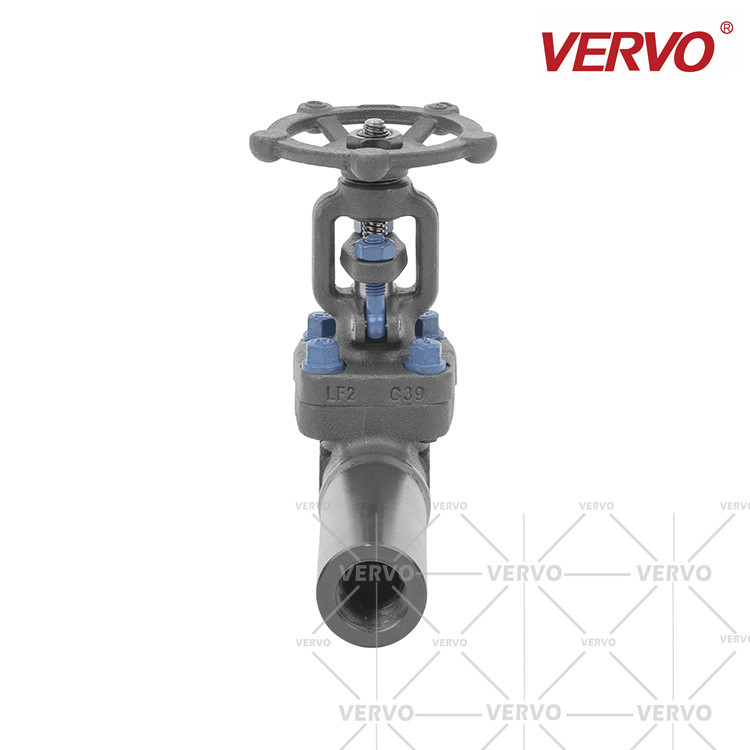

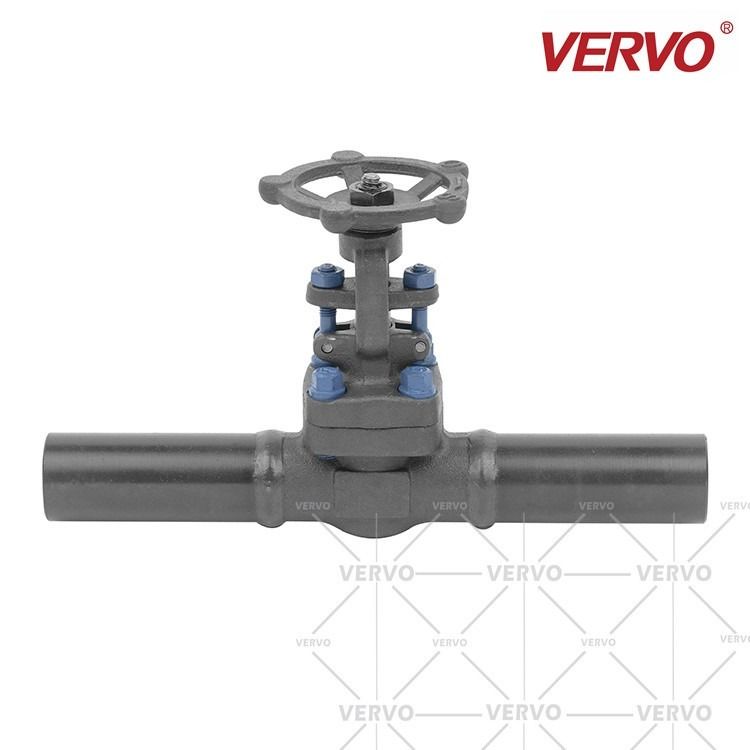

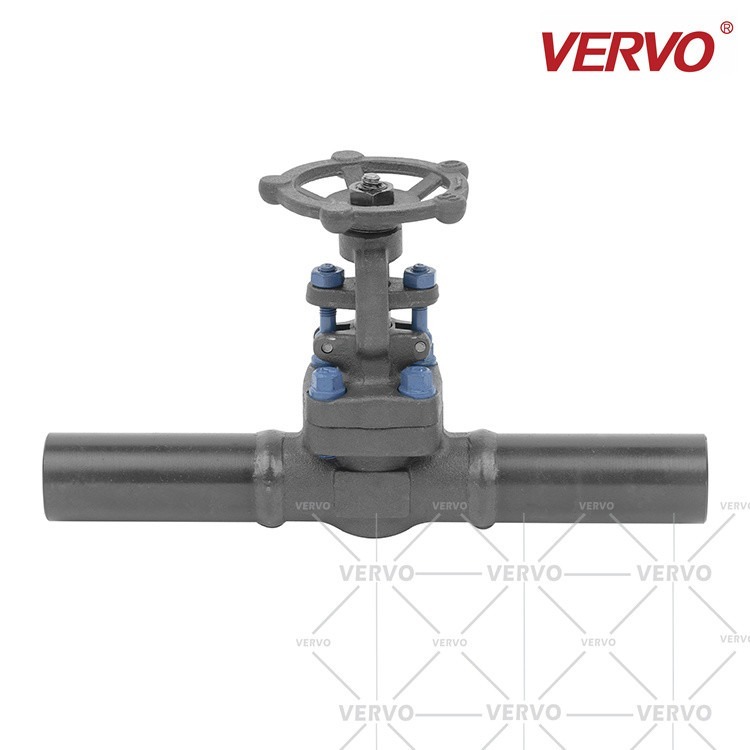

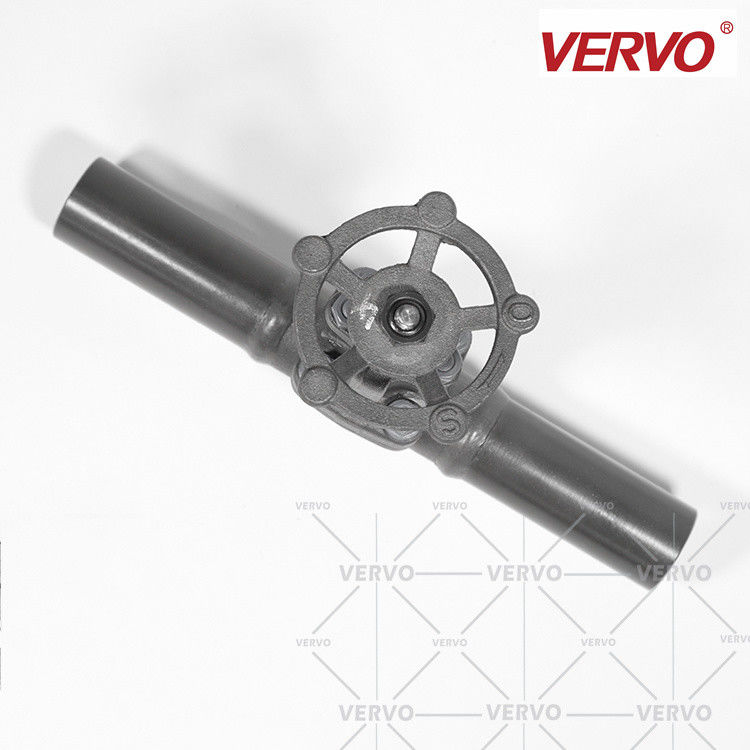

4" Extended Tube Metal Seated Gate Valve DN25 800LB Welding Pup CE API Certificated

Extended Tube Gate Valve Metal Seated Gate Valve 800LB DN25 Gate Valve Industrial Valves CE API Certificated Welding Pup

Quick Detail

Forged Carbon Steel Gate Valve

• Forged Carbon Steel Gate Valve
• Class 150/300/600/800/900/1500/2500/4500
• Reduced Port/Full Port
• Available in Forged (A105, LF2, F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51,F53,F55,F60), Alloy 20, Monel, Inconel, Hastelloy,C95800
• ASME B16.34
• Maximum Pressure 1975 PSI
• Maximum Temperature 850
• Bolted Bonnet/Welded Bonnet/Pressure Seal Bonnet
• API 602 /BS5352/ API 598
• NACE MR0175
• Sizes 1/2” - 4”

Features and benefits

TWO TYPES:

● This valve is available with an extended body or an integrally reinforcedextended body (IREB).
● Extended body gate valves have a welded or threaded connection and are used for tapping of pressure vessels and header lines for vents, drains or takeoff lines and instrumentation.
● Also available: extended body assemblies for vents, drains, and instrument root valves.

CL800	Bolt Bonnet (BB)/Welding Bonnet (WB), Reduce Port (RP)/Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW),
Size (NPS)	R.P	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2
	F.P	3/8	1/2	3/4	1	1-1/4	1-1/2	2
Face To Face	L	79	92	111	120	120	140	178
Handwheel Diameter	W	100	100	125	160	160	180	200
Height	H	165	169	207	230	249	283	333
Flow Port Diameter	d	10.3	13.5	18	23	29	36	45
Weight (Kg)	B.B	2.2	2.4	4.1	5.5	7.5	10	19
	W.B	2.1	2.3	4	5.5	7.3	9.5	18.5
CL900~CL1500	Bolt Bonnet (BB)/ Welding Bonnet (WB), Reduce Port (RP)/ Full Port(FP), Outside Screw and Yoke(OS&Y), Thread(NPT), Socket Weld(SW), Butt Weld(BW)
Size (NPS)	R.P	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2
	F.P	3/8	1/2	3/4	1	1-1/4	1-1/2	2
Face To Face	L	92	111	120	120	140	178
Handwheel Diameter	W	100	125	160	160	180	200
Height	H	169	207	230	249	283	333
Flow Port Diameter	d	10.3	13.5	18	23	29	36
Weight (Kg)	B.B	2.4	4.1	6.2	6.2	8.7	12.5
	W.B	2.2	4	6	6	8.5	12
CL2500	Welding Bonnet (WB), Reduce Port (RP)/Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size (NPS)	R.P	3/8	1/2	3/4	1	1-1/4	1-1/2	2
Face To Face	L		120	120	120	140	178	178
Handwheel Diameter	W		160	160	160	180	200	200
Height	H		230	235	249	283	333	333
Flow Port Diameter	d		10.3	13.5	18	23	29	36
Weight (Kg)	W.B		6.5	6.5	6.5	9	13	13
