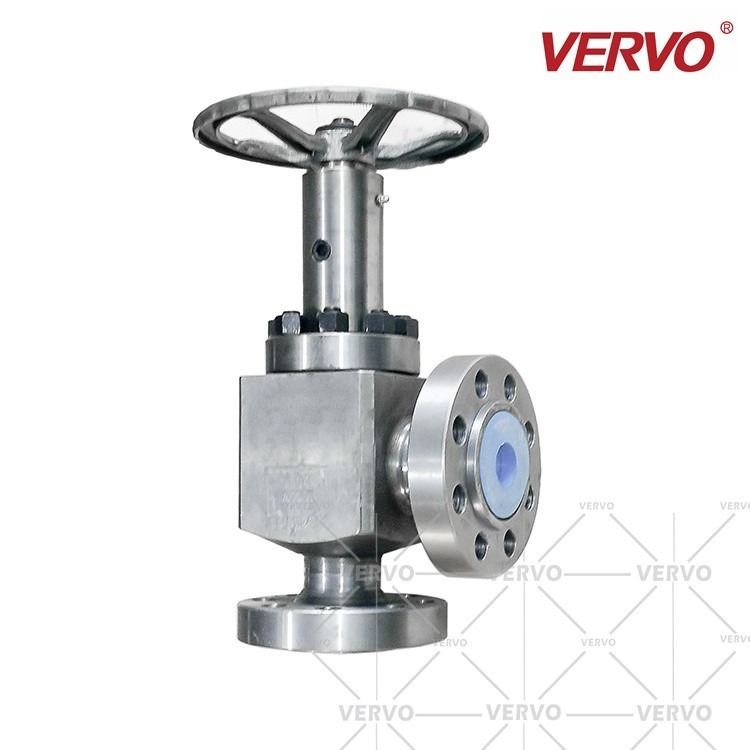

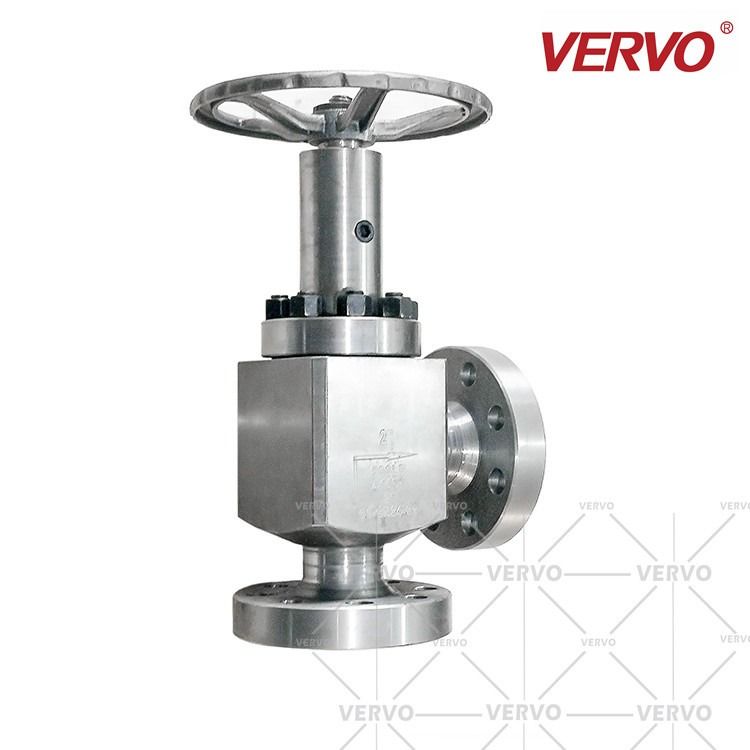

50mm Angle Type Globe Valve 900LB Forged Steel Cut Off Throttle Regulating Valve Disc J44

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/CE/ISO
Model Number: J41Y-900LB-DN50
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1 week
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 40000pcs/month
Name: Angle Type Globe Valve Media: Oli,Gas,Water
Standard: API602/BS5352/GOST/JIS/DIN/ISO Pressure: 150LB-800LB,1500LB,2500LB
Power: Manual,Pneumatic,Solenoid,Electrical Actuated Temperature Of Media: Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃)
Size: 1/4"-4",DN8-DN100
High Light:

throttle regulating valve disc J44

,

Forged steel throttle regulating valve 900LB

,

throttle control valves 900LB

Model number J44Y-900LB
Item Globe Valve
Certification ISO9001,ISO14001,ISO18001,TS,CE
Connection form Flanged
Body material Forged Steel
Seal material Gasket
Feature Easy disassembly and assembly



VERVO forged steel globe valves are offered in straight pattern, Y-pattern, bolted bonnet and welded bonnet design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO forged steel globe valves are manufactured according to API 602 Design.



PRODUCT RANGE

50mm Angle Type Globe Valve 900LB Forged Steel Cut Off Throttle Regulating Valve Disc J44 0

Sizes NPS 1/2 to NPS 4

Class 800 to Class 2500



MATERIALS

50mm Angle Type Globe Valve 900LB Forged Steel Cut Off Throttle Regulating Valve Disc J44 0

Available in Forged (A105, A350 LF2, A182 F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51), Alloy 20, Monel, Inconel, Hastelloy



DESIGN FEATURES

50mm Angle Type Globe Valve 900LB Forged Steel Cut Off Throttle Regulating Valve Disc J44 0

SW, NPT, RF, or BW

Outside Screw & Yoke (OS&Y)

Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet



DESIGN STANDARD

50mm Angle Type Globe Valve 900LB Forged Steel Cut Off Throttle Regulating Valve Disc J44 0

Design & manufacture according to API 602, ASME B16.34

End Connection according to ASME B16.11 (SW), ASME B1.20.1 (NPT), ASME B16.5 (RF, RTJ)

Test & inspection according to API 598

Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624

50mm Angle Type Globe Valve 900LB Forged Steel Cut Off Throttle Regulating Valve Disc J44 4

50mm Angle Type Globe Valve 900LB Forged Steel Cut Off Throttle Regulating Valve Disc J44 5

50mm Angle Type Globe Valve 900LB Forged Steel Cut Off Throttle Regulating Valve Disc J44 6

50mm Angle Type Globe Valve 900LB Forged Steel Cut Off Throttle Regulating Valve Disc J44 7

50mm Angle Type Globe Valve 900LB Forged Steel Cut Off Throttle Regulating Valve Disc J44 8

The dimension and weights are for reference only and subject to change without notice.
1. For more size or dimensional information, please contact our sales representative.
