90 Degree Globe Valve High Pressure Globe Valve Forged Steel Stainless Steel F304L Dn40 Throttle Regulating Disc

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/CE/ISO
Model Number: J41Y-900LB-DN40
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1 week
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 40000pcs/month
Name: Forged Stainless Steel Globe Valve-Angle Pattern Media: Oli,Gas,Water
Standard: API602/BS5352/GOST/JIS/DIN/ISO Pressure: 150LB-800LB,1500LB,2500LB
Power: Manual,Pneumatic,Solenoid,Electrical Actuated Temperature Of Media: Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃)
Size: 1/4"-4",DN8-DN100

90 Degree Globe Valve High Pressure Globe Valve Forged Steel Stainless Steel F304L Dn40 Throttle Regulating Disc

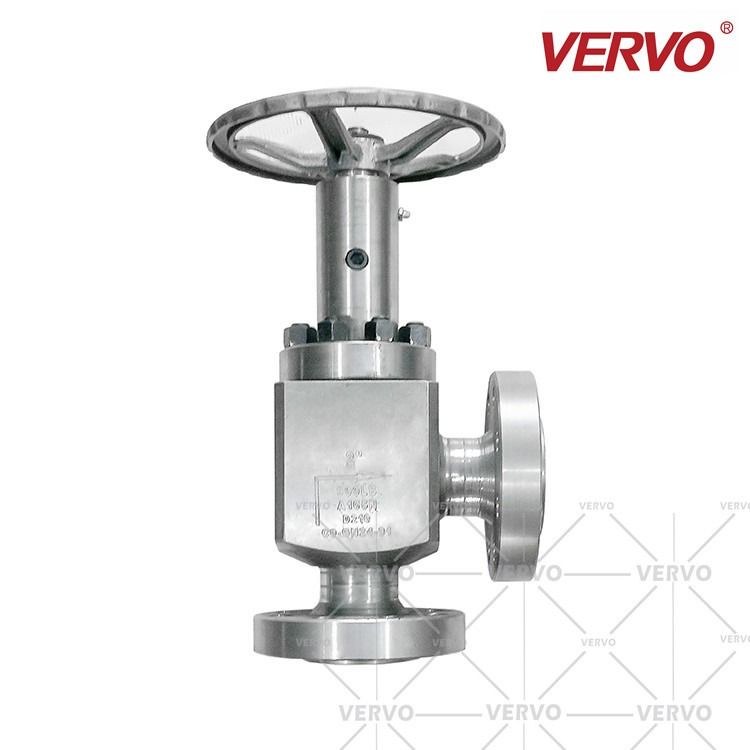

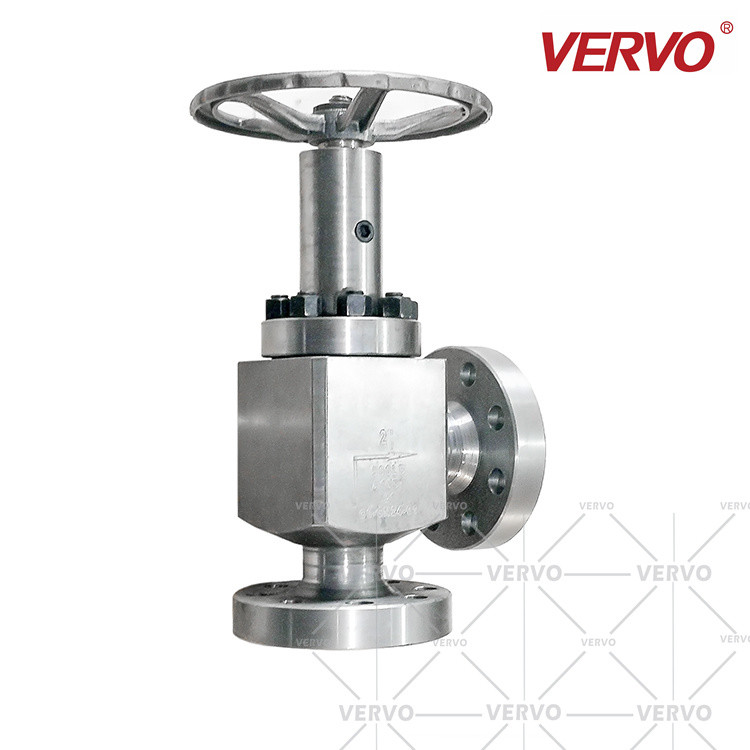

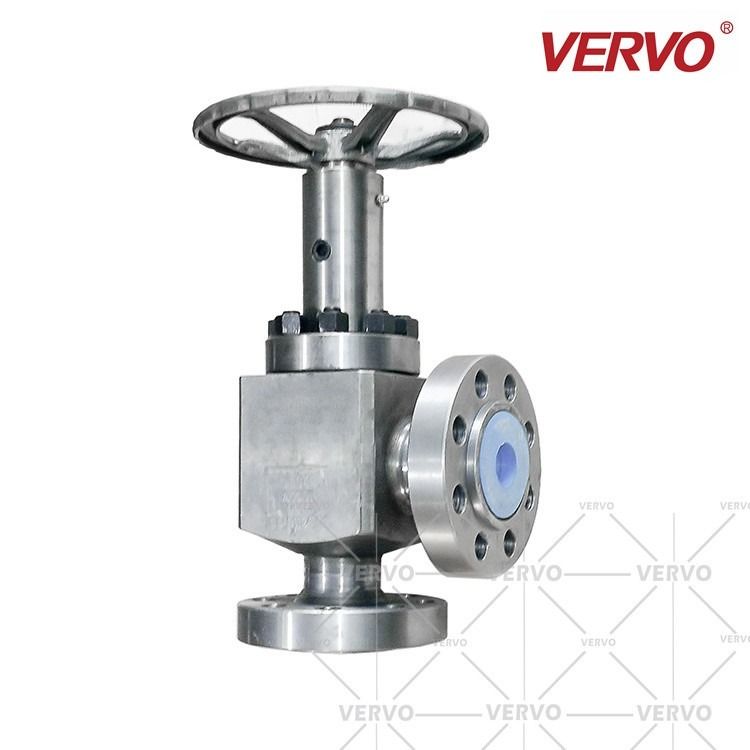

Angle pattern globe valve

90 Degree Globe Valve High Pressure Globe Valve Forged Steel Stainless Steel F304L Dn40 Throttle Regulating Disc 0

ANGLE PATTERN GLOBE VALVES DESIGN is a modification of the basic Tee Pattern Globe valve. The ends of this Globe valve are at an angle of 90 degrees, and fluid flow occurs with a single 90 degrees turn. They have a slightly lower coefficient of flow than wye-pattern Globe valves. They are used in applications that have periods of pulsating flow because of their capability to handle the slugging effect of this type of flow.



The Angle pattern globe valve is a modified version of “T”-Pattern Globe valve with inlet and outlet at right angles. When fitted at a change in piping direction, this valve eliminates a bend and has the advantage of smaller pressure drop than a conventional “T” pattern globe valve. Angle valves have the same features of stem, disc and seat ring design as the globe valve. The fundamental difference between the two is that the fluid flow through the angle valve makes a 90° turn. These valves offer less resistance to flow than a globe valve with an elbow which it would replace. An angle valve reduces the number joints in a line, in addition to saving installation time. They are also used in applications that have periods of pulsating flow because of their capability to handle the slugging effect of this type of flow.



Features and benefits

90 Degree Globe Valve High Pressure Globe Valve Forged Steel Stainless Steel F304L Dn40 Throttle Regulating Disc 0

Design Standard: BS 1873, ASME B16.34.
Body Material: WCB.
Nominal Diameter: 6 Inch (DN150).
Pressure: Class 150 (PN20).
End Connection: RF.
Face to Face: ASME B16.10.
Working Temperature: -29℃~+425℃.
Mode of Operation: Handwheel.
Test and Inspection: API 598.



Product Range

90 Degree Globe Valve High Pressure Globe Valve Forged Steel Stainless Steel F304L Dn40 Throttle Regulating Disc 0

Body Material: Carbon steel, Stainless steel, Alloy steel.
Normal diameter: 1/2"~24" (DN15~DN600).
End connection: BW, Flanged.
Pressure range: 150lbs~2500lbs(PN16~PN420).
Operation: Handwheel, Gearbox, Electric, Pneumatic.
Working temperature: -29℃~+560℃.
90 Degree Globe Valve High Pressure Globe Valve Forged Steel Stainless Steel F304L Dn40 Throttle Regulating Disc 3

90 Degree Globe Valve High Pressure Globe Valve Forged Steel Stainless Steel F304L Dn40 Throttle Regulating Disc 4

Keywords of 90 Degree Globe Valve High Pressure Globe Valve Forged Steel Stainless Steel F304L Dn40 Throttle Regulating Disc

90 Degree Globe Valve High Pressure Globe Valve Forged Steel Stainless Steel F304L Dn40 Throttle Regulating Disc 5

Right Angle Globe Valve, Angle Globe Valve, A182 F304L Angle Valve, SS Right Angle Valve, 1 1/2 Inch Angle Valve ,Class 900 Angle Valve, Angle Valve, Stainless Steel Angle Globe Valve, Angle Pattern Valve,Throttle Regulating Disc Angle Valve
