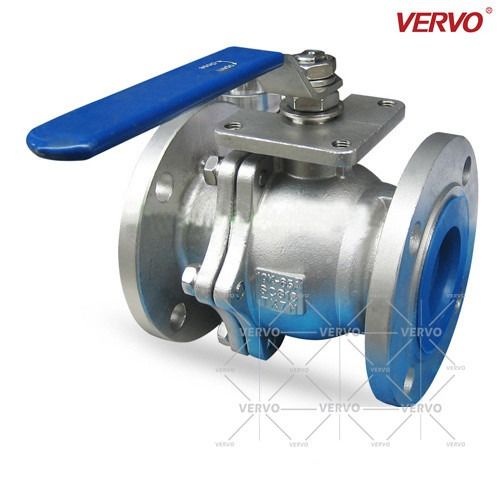

DN150 Stainless Steel Ball Valve 2 Piece Type 6 Inch 600Lb RF CF3M Side Entry Ball Valve Floating Ball Type Metal Seat

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/ISO/CE
Model Number: Q41F-600LB-DN150
Minimum Order Quantity: 1
Packaging Details: plywood case
Delivery Time: 30
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 400000
Design Standard: API6D Body Material:: A216 WCB
Nominal Diameter: 6 Inch Pressure: CL600 (PN100).
End Connection.: RF FLANGE RTJ FLANGE Face To Face: ASME B16.10
Test And Inspection: API 598

DN150 Stainless Steel Ball Valve 2 Piece Type 6 Inch 600Lb RF CF3M Side Entry Ball Valve Floating Ball Type Metal Seat



VERVO floating ball valves are offered in 2 PC side entry, 3 PC side entry or welded body design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO floating ball valves are manufactured according to API 6D or API 608 Design and fire tested per API 6FA and API 607 Standard.



PRODUCT RANGE

DN150 Stainless Steel Ball Valve 2 Piece Type 6 Inch 600Lb RF CF3M Side Entry Ball Valve Floating Ball Type Metal Seat 0

Sizes NPS 2 to NPS 8

Class 150 to Class 2500



MATERIALS

DN150 Stainless Steel Ball Valve 2 Piece Type 6 Inch 600Lb RF CF3M Side Entry Ball Valve Floating Ball Type Metal Seat 1



Available Forging (A105, A182 F304, F3304L, F316, F316L, A182 F51, F53, A350 LF2, LF3, LF5) Casting (A216 WCB, A351 CF3, CF8, CF3M, CF8M, A352 LCB, LCC, LC2, A995 4A. 5A), Inconel, Hastelloy, Monel



DESIGN FEATURES

DN150 Stainless Steel Ball Valve 2 Piece Type 6 Inch 600Lb RF CF3M Side Entry Ball Valve Floating Ball Type Metal Seat 2

Full or Reduced Bore

RF, RTJ, or BW

Bolted bonnet or welded body design

Anti-Static Device

Anti-Blow out Stem

Cryogenic or High Temperature, Extended Stem



DESIGN STANDARD

DN150 Stainless Steel Ball Valve 2 Piece Type 6 Inch 600Lb RF CF3M Side Entry Ball Valve Floating Ball Type Metal Seat 3

Design & manufacture according to API 6D, API 608, ISO 17292

Face-to-face according to API 6D, ASME B16.10 OR MFG’s standard

End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)

Test & inspection according to API 6D, API 598

Fire safe design according to API 6FA, API 607

Also available per NACE MR-0175, NACE MR-0103, ISO 15848

DN150 Stainless Steel Ball Valve 2 Piece Type 6 Inch 600Lb RF CF3M Side Entry Ball Valve Floating Ball Type Metal Seat 4

DN150 Stainless Steel Ball Valve 2 Piece Type 6 Inch 600Lb RF CF3M Side Entry Ball Valve Floating Ball Type Metal Seat 5



ASME CLASS 600 (PN 100) FULL BORE
Size D D1 L Casting Forging Casting Weight Forging
in/mm     RF RTJ BW A B B1 W A B B1 W (lb/kg) (lb/kg)
½ 0.5 0.5 16.5 6.42 16.5 1.89 3.15 4.69 7.87 1.89 2.95 4.69 7.87 6 8
15 12.7 12.7 65 163 65 48 80 119 200 48 75 119 200 2.8 3.8
¾ 0.75 0.75 7.48 7.48 7.48 2.28 3.35 5.51 7.87 2.28 3.15 5.51 7.87 12 14
20 19.1 19.1 190 190 190 58 85 140 200 58 80 140 200 5.3 6.2
1 1 1 8.5 8.5 8.5 2.48 3.54 6.69 7.87 2.48 3.35 6.69 7.87 18 25
25 25.4 25.4 216 216 216 63 90 170 200 63 85 170 200 8 11.5
1.25 1.25 9.02 9.02 9.02 2.87 4.33 7.09 11.81 2.87 4.13 7.09 11.81 25 33
32 31.8 31.8 229 229 229 73 110 180 300 73 105 180 300 11 15
1.5 1.5 9.49 9.49 9.49 3.07 4.53 7.48 13 3.07 4.33 7.48 13 230 40
40 38.1 38.1 241 241 241 78 115 190 330 78 110 190 330 13.6 18
2 1.94 1.94 11.5 11.61 11.5 3.23 5.91 7.87 13 3.23 5.71 7.87 13 42 66
50 49 49 292 295 292 82 150 200 330 82 145 200 330 19 30
2.44 2.44 12.99 13.11 12.99 3.74 6.50 8.46 22.05 3.74 6.3 8.46 22.05 71 106
65 62 62 330 333 330 95 165 215 560 95 160 215 560 32 48
3 2.91 2.91 14.02 14.13 14.02 4.33 7.28 8.9 31.5 4.33 7.09 8.9 31.5 113 144
80 74 74 356 359 356 110 185 226 800 110 180 226 800 51 65
ASME CLASS 600 (PN 100) REDUCED BORE
Size D D1 L Casting Forging Casting Weight Forging
in/mm     RF RTJ BW A B B1 W A B B1 W (lb/kg) (lb/kg)
½ 0.5 0.375 16.5 6.42 16.5 1.89 3.15 4.53 7.87 1.89 2.95 4.43 7.87 9 10
15 12.7 9.5 65 163 65 48 80 115 200 48 75 110 200 4 4.5
3/4 0.75 0.5 7.48 7.48 7.48 2.28 3.35 4.69 7.87 2.28 3.15 4.53 7.87 10 11
20 19.1 12.7 190 190 190 58 85 119 200 58 80 115 200 4.5 4.8
1 1 0.75 8.5 8.5 8.5 2.48 3.54 5.51 7.87 2.48 3.35 5.31 7.87 14 20
25 25.4 19.1 216 216 216 63 90 140 200 63 85 135 200 6.5 9
1.25 1 9.02 9.02 9.02 2.87 4.33 6.69 7.87 2.87 4.13 6.5 7.87 19 28
32 31.8 25.4 229 229 229 73 110 170 200 73 105 165 200 8.5 12.5
1.5 1.25 9.49 9.49 9.49 3.07 4.53 7.09 11.81 3.07 4.33 6.89 11.81 23 33
40 38.1 31.8 241 241 241 78 115 180 300 78 110 175 300 10.5 15
2 1.94 1.5 11.5 11.61 11.5 3.23 5.91 7.48 13 3.23 5.71 7.28 13 35 46
50 49 38.1 292 295 292 82 150 190 330 82 145 185 330 16 21
2.44 1.94 12.99 13.11 12.99 3.74 6.5 7.9 13 3.74 6.3 7.68 13 58 66
65 62 49 330 333 330 95 165 200 330 95 160 195 330 26.5 30
3 2.91 1.94 14.02 14.13 14.02 1.89 7.28 8.46 22.05 4.33 7.09 8.27 22.05 84 79
80 74 49 356 359 356 48 185 215 560 110 180 210 560 38 36
4 3.94 2.91 17 17.13 17 5.43 16.93 8.90 31.5 5.43 16.93 8.66 31.5 137 174
100 100 74 432 435 432 138 230 226 800 138 230 220 800 62 79



RFQ

DN150 Stainless Steel Ball Valve 2 Piece Type 6 Inch 600Lb RF CF3M Side Entry Ball Valve Floating Ball Type Metal Seat 6

1/Do you have any Certification ?

Yes we have ISO9001-2015 and CE/PED according to Directive 2014/68/EU,fire safe certificate,ISO15848-1

2/Can we visit your factory?

Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.

3/Do you have quality control system?

Yes, we have ISO/PED certifications and our own quality control laboratory.

4/Can you arrange the shipment for us?

Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earliest vessel and professional service.

5/Can I get some samples?

We are glad to provide free samples to you, but the express fee will be on your charge.

6/What is your after-sale service?

We provide after-sale service and offer 100% guarantee on our products.

7/What is your main products?

Valve, and in order to meet different needs, we expanded our business, we also do sanitary type products.

8/Are you trading company or manufacturer

We are factory, and welcome to visit our factory

9/What is your MOQ

No MOQ, As your request .Normal size and material we have stock





Keywords of DN150 Stainless Steel Ball Valve 2 Piece Type 6 Inch 600Lb RF CF3M Side Entry Ball Valve Floating Ball Type Metal Seat

DN150 Stainless Steel Ball Valve 2 Piece Type 6 Inch 600Lb RF CF3M Side Entry Ball Valve Floating Ball Type Metal Seat 7

Stainless Steel Ball Valve, Floating Ball Valve, DN150 Ball Valve, 6 Inch Ball Valve, RF Flange Ball Valve, DN150 Floating Ball Valve,Soft Seated Ball Valve,Soft Ball Valve,Metal to Metal Seat
