| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/ISO/CE |
| Model Number: | Q61F-DN20-1000WOG |
| Minimum Order Quantity: | 1 |
| Packaging Details: | plywood case |
| Delivery Time: | 30 |
| Payment Terms: | T/T, L/C, D/P, Western Union |
| Supply Ability: | 400000 |
| Design Standard: | API608 | Body Material:: | CF8M |
|---|---|---|---|
| Nominal Diameter: | 3/4 Inch | Pressure: | 1000WOG |
| End Connection.: | FNPT | Face To Face: | FACTORY STANDARD |
| Test And Inspection: | API 598 |

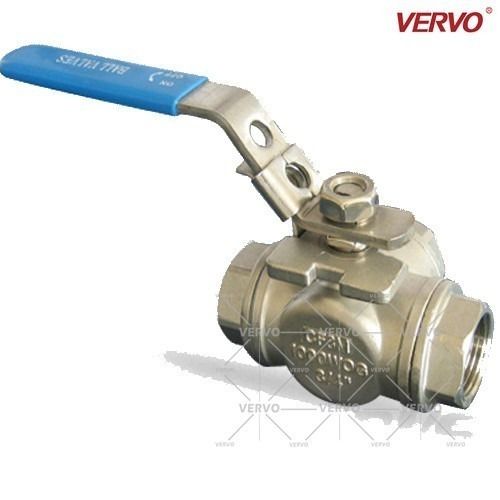

DN20 Three Way Ball Valve 3/4 Inch 1000WOG NPT CF8M Floating Ball Valve 3 Way Stainless Steel Ball Valve Casting Steel
Quick Detail
| General information about 3 Way Manual Operated Ball valves | |
| Material | SS304,304L,316,316L/SCS313,314/CF8,CF3,CF8M,CF3M |
| Product Size | DN6-DN100 |
| Working pressure | PN16,PN25,PN40,PN64/Class 150, Class 300, 1000PSI |
| Standard | DIN, API,ANSI, ASTM, JIS, EN, BS, GB |
| Working temperature | -30-185°C |
| Connection type | Thread(screw), Flange, Weld |
| Production process | Mold making, Precision casting(Investment Casting), Testing, CNC machining, Pressure and sealing tests, Assembling |
| Certificate | ISO9001, CE PED, SGS. (Other certificates can be applied with each shipment) |
| Lock and platform | Based on customers’ requirements |
| Applications | Fluid and pipeline transportation, Petroleum industry, Chemical and metallurgy, Medicine and Food industry |
| Package | Paper box with woven bag/Wooden Box/As customers’ requirements |
| Delivery | Based on quantity, normally 30-45 days / Delivery from SHANGHAI port or as customers’ choice |
| SIZE(inch) | φA | B | C | D | E | F | φG | H | N | L | n-φd |
| 1/2" | 12.7 | 37.5 | 26 | 75 | 11 | 9 | 42 | 68 | 1/2"PT | 125 | 4-φ6 |
| 3/4" | 16 | 42.5 | 32 | 85 | 11 | 9 | 42 | 72 | 3/4"PT | 125 | 4-φ6 |
| 1” | 20 | 48.5 | 36.5 | 97 | 12.5 | 11 | 50 | 82 | 1"PT | 154 | 4-φ7 |
| 1_1/4” | 25 | 57.5 | 42.5 | 115 | 12.5 | 11 | 50 | 87 | 1_1/4"PT | 154 | 4-φ7 |
| 1_1/2” | 32 | 62 | 47 | 124 | 16 | 14 | 70 | 97 | 1_1/2"PT | 182 | 4-φ9 |
| 2” | 38 | 72.5 | 54 | 145 | 16 | 14 | 70 | 104 | 2”PT | 182 | 4-φ9 |
RFQ
1/Do you have any Certification ?
Yes we have ISO9001-2015 and CE/PED according to Directive 2014/68/EU,fire safe certificate,ISO15848-1
2/Can we visit your factory?
Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
3/Do you have quality control system?
Yes, we have ISO/PED certifications and our own quality control laboratory.
4/Can you arrange the shipment for us?
Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earliest vessel and professional service.
5/Can I get some samples?
We are glad to provide free samples to you, but the express fee will be on your charge.
6/What is your after-sale service?
We provide after-sale service and offer 100% guarantee on our products.
7/What is your main products?
Valve, and in order to meet different needs, we expanded our business, we also do sanitary type products.
8/Are you trading company or manufacturer
We are factory, and welcome to visit our factory
9/What is your MOQ
No MOQ, As your request .Normal size and material we have stock
