| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/ISO/CE |
| Model Number: | H71W-DN80-PN20 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | plywood case |
| Delivery Time: | 30 |
| Payment Terms: | T/T, L/C, D/P, Western Union |
| Supply Ability: | 400000 |
| Design Standard: | API594 | Body Material:: | Casting Steel Stainless Steel A351 CF8M |
|---|---|---|---|
| Nominal Diameter: | 4Inch/DN100 | Pressure: | PN20(150LB) |
| End Connection.: | WAFER END | Face To Face: | API594 |
| Test And Inspection: | API 598 | ||
| High Light: | Api 594 Dual Plate Check Valve,Dual Plate Check Valve Class 150 DN100,DN100 Single Plate Wafer Check Valve |
||

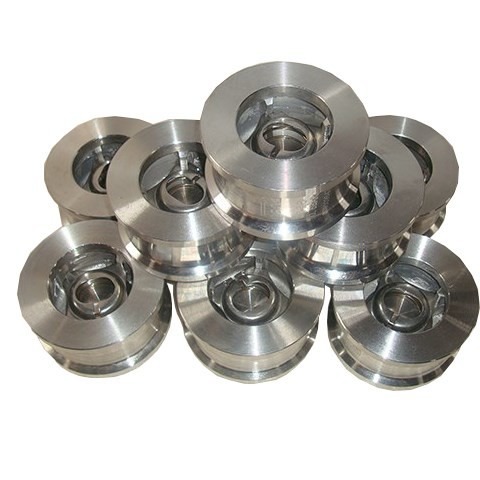

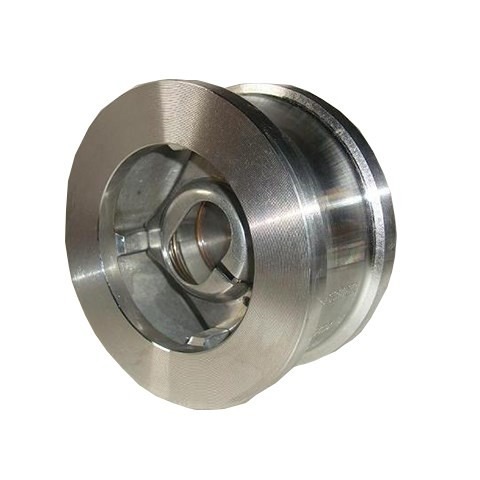

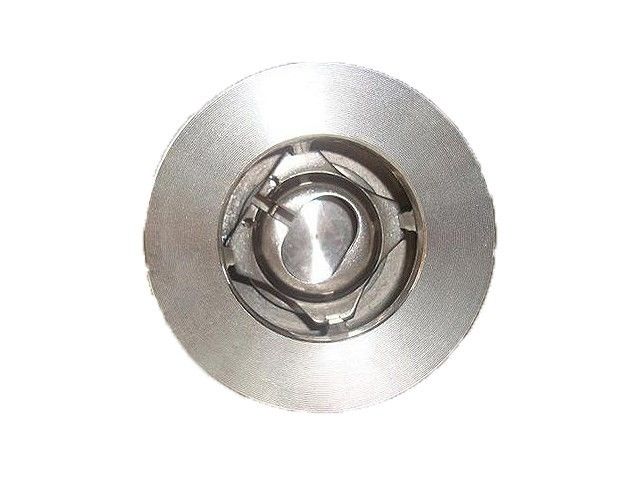

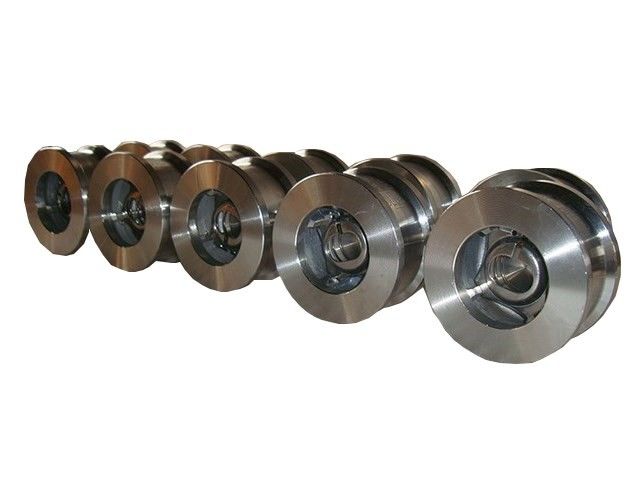

DN100 Single Disc Lift Check Valve 150LB Wafer Full Bore Non Return Valve Casting Steel Single Plate Piston Check Valve
| Item | Single Check Valve Stainless Steel Check Valve |
| Certification | ISO9001,ISO14001,ISO18001,TS,CE,API |
| Brand | VERVO |
| Model number | H71W-DN-150LB |
| Port Size | 4Inch /DN100 |
| Structure type | Single Disc Lift Check Valve |
| Pressure | 150LB(PN20) |
| Temperature | -46-325 |
| Connection form | WAFER END |
| Material | Casting Steel Stainless Steel A351 CF3 |
| Feature | Easy disassembly |
Quick Detail
Product Range
Compact structure
Wafer design, spring lift type, shut off by spring loaded plate, can provide better performance in eliminating water hammer.
Design specification
Face to face dimension as per manufacturer’s standard.
Long type and short type are available.
Inherently fire safe design
All VERVO check valves are inherently fire safe due to the valve design, material and construction. In case of fire, both resilient seat and metal seat valves provide metal to metal sealing performance.
Light weight and reduced size
Installation costs are greatly reduced by VERVO’s light weight and minimal space requirements. The compact design minimizes the distance between flanges and is easily installed between all flanges.
Horizontal/Vertical installation
Unlike most traditional swing check valves, VERVO check valves are ideal for both horizontal and vertical pipeline installation.
FAQ
1/Do you have any Certification ?
Yes we have ISO9001-2015 and CE/PED according to Directive 2014/68/EU,fire safe certificate,ISO15848-1
2/Can we visit your factory?
Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
3/Do you have quality control system?
Yes, we have ISO/PED certifications and our own quality control laboratory.
4/Can you arrange the shipment for us?
Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earliest vessel and professional service.
5/Can I get some samples?
We are glad to provide free samples to you, but the express fee will be on your charge.
6/What is your after-sale service?
We provide after-sale service and offer 100% guarantee on our products.
7/What is your main products?
Valve, and in order to meet different needs, we expanded our business, we also do sanitary type products.
8/Are you trading company or manufacturer
We are factory, and welcome to visit our factory
9/What is your MOQ
No MOQ, As your request .Normal size and material we have stock
Keywords of DN100 Single Disc Lift Check Valve 150LB Wafer Full Bore Non Return Valve Casting Steel Single Plate Piston Check Valve
DN100 API594 Piston Check Valve,150LB Lift Check Valve,Casting Steel Check Valve, Casting Steel Stainless Steel Single Disc Lift Check Valve,DN100 Piston Check Valve,PN20 Stainless Steel CF8M Check Valve,API594 Single Disc Lift Non Return Valve,NRV Check Valve
