| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/ISO/CE |
| Model Number: | Q41F-DN100-150LB |
| Minimum Order Quantity: | 1 |
| Packaging Details: | plywood case |
| Delivery Time: | 30 |
| Payment Terms: | T/T, L/C, D/P, Western Union |
| Supply Ability: | 400000 |
| Design Standard: | API6D | Body Material:: | A351 CF8 |
|---|---|---|---|
| Nominal Diameter: | 4Inch/DN100/100MM | Pressure: | CL150 |
| End Connection.: | FLANGE RF | Face To Face: | ASME B16.10 |
| Test And Inspection: | API 598 | ||
| High Light: | DN100 Full Bore Floating Ball Valve,CL150 Reduced Bore Ball Valve,Trunnion Mounted Floating Ball Valve |
||

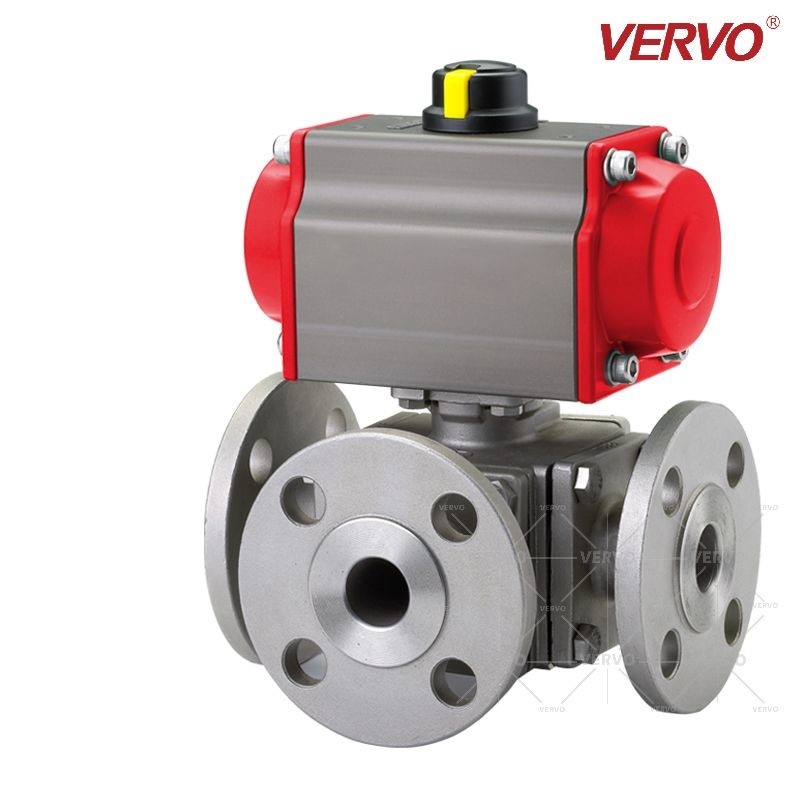

3/4-Way Trunnion Type Soft/Metal Seat Ball Valve T/L-Port Full Bore Flanged Ends ASME CLASS 150/300 PN16/40
The trunnion-mounted 3/4-way ball valves are designed for the most complex flow control equations. Our unique 4-seat design with many alternatives of soft and metal seats allows the Series to withstand the toughest operating conditions in the fields of Oil & Gas, Refineries, Power Generation, Pulp & Paper, Mining, Petrochemical and Chemical industries, etc.
APPLICABLE STANDARDS
Body Material: Standard in WCB, CF8, CF8M. Other materials are available according to requirements.
Nominal Size: 1-1/2” to 8” (DN40 to DN200)
Pressure Rating: ASME CLASS 150/300 DIN PN16/40
End Connections: RF
Temperature Range: Soft Seat: -20~356°F (-29~180°C) / Metal Seat: -20~932°F (-29~500°C)
Flanged Dimensions: ASME B16.5 / EN 1092-1
Body Pressure Test: API 598
Seat Leakage Test: Soft Seat: API 598 / Metal Seat: ANSI/FCI70-2 Class V
Casting: MSS-SP-25 / MSS-SP-55
PRODUCT FEATURES
Trunnion ball design keeping the torque stable and low, even at a high pressure drop.
Robust 1-PC trim combining ball & stem (size 4” and below), to increase the valve life cycle.
Oversized stem design preventing any deformation from high pressure or high temperature.
Unique 4-seats design ensuring a perfect balance and an optimum position of the ball.
Spring loaded design keeping the seat in tight contact with the ball, even at a low pressure.
Many options of soft and metal seats to meet the requirements of all using conditions.
Fire safe design.
Anti-blowout stem design.
Anti-static design.
ISO 5211 Mounting Pad design.
Design standard
Body Material: Standard in WCB, CF8, CF8M. Other materials are available according to requirements.
Nominal Size: 2” to 24” (DN50 to DN600)
Pressure Rating: ASME CLASS 150/300/600, 900/1500/2500 on request.
End Connections: RF / RTJ
Temperature Range: Soft seat: -320~482°F (-196~250°C) / Metal seat: -320~932°F (-196~500°C), higher temperature on request.
Face-to-face Dimensions: ASME B16.10
Flanged Dimensions: ASME B16.5
Body Pressure Test: ASME B16.34 / API 598 / API 6D
Seat Leakage Test: Soft seat: ASME B16.34 / API 598 / API 6D / Metal seat: ANSI/FCI70-2 Class V in standard, Class VI in option.
Casting: MSS-SP-25 / MSS-SP-55
Fire Safe Design: Certificated according to API 607 / API 6FA
