| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/CE/ISO |
| Model Number: | Z41Y-150LB-DN15 |
| Minimum Order Quantity: | 10 |
| Price: | Negotiable |
| Packaging Details: | plywood case |
| Delivery Time: | 1 week |
| Payment Terms: | L/C, T/T, Western Union, D/A |
| Supply Ability: | 40000pcs/month |
| Name: | Wedge Gate Valve | Connection: | ASME B16.5,ASME B16.47,BSEN 1092 |
|---|---|---|---|
| Standard: | API 600,BS 1414,ASME B16.34 | Pressure: | Class 150~2500 |
| Power: | Manual,Electric Actuator,Pneumatic Actuator | Temperature: | -29~540℃ |
| Size: | NPS 1/2"~56" | ||
| High Light: | Wedge Gate Valve,Standard Body Gate Valve,Gate Valve for Large Handwheels |
||
Design
VERVO cast steel gate valves are designed and manufactured to provide maximum service life and dependability. All gate valves are full ported and meet the design requirements of American Petroleum Institute standard API600&API 6D,British standard BS1414& BS EN 1984 and generally, conform to American Society of Mechanical Engineers standard ASME B16.34. Valves are available in a complete range of body/bonnet materials and trims.
Ranges of Materials
Standard body/bonnet materials include nine grades of carbon, low alloy and stainless steels. For special applications they can be supplied in other grades of alloy and stainless steel. There’s a full range of trim materials to match any service .optional packing and gasket materials are available for a full range of service conditions.
Available Modifications For VERVO Steel Valves
| Trim Changes End Connection Modifications Packing and Gasket Change Operator Mounting Handwheel Extensions |
Pressure Equalizing By-Pass Customer Specified Coatings Weld End Bore Changes Oxygen & Chlorine Clearing & Packaging |
| A)Operation Large handwheels for easy operation. alsoavaliable with gearing.motor actuators, pneumatic or hydraulic actuators for more difficult services. |
B)Live Load Packing In services requiring frequent cycling or with high pressure/temperature variations,live loading extends the service life between maintenance periods by requiring less stments. Belleville springs are employed to provide constant packing gland stress. |
C)OS&Y Outside screw and yoke.Cast steel gate valve yoke integral with bonnet for 150Lb-8″ 600Lb-6″, 900Lb-4″&small. |
||
| D)BB Bolted bonnet, welding bonnet and pressure seal bonnet in services requiring frequent cycling or with high pressure/temperature variations. |
E)End Connections A choice of flanged, RTJ flanged or buttwelding end for piping flexibility. |
F)Yoke Sleeve Extra long thread engagement between yoke sleeve and stem provide long thread life.valves of sizes larger than 150Lb-12″, 300Lb-10″,600Lb-6″, 900Lb/1500Lb/2500Lb-4″ are regularly provided with roll bearing yokes. |
||
| G)Lantern Ring And Double Packing Set Lantern ring leak-off fitting connection and double packing stack is optionally avaliable for critical services |
H)Body-to-Bonnet Joint A flat face gasket joint is used in the 150lb valves. A male and female joint is used in 300lb to 600lb valves.ring joint is used in the body to bonnet connections in 900lb & higher rated valves. |
I)Stem All wedge gate valves are provided with upset forged T-head stems. By forging the T-head ,the stem at the stem-wedge connection is stregthened,this design also allows the wedge possibility of a bent stem jamming the wedge. |
||
| J)Wedge Integral guide rib faces assure self-centering of wedge.flexible wedge gate valve has a onepiece, twin-disc wedge,which is designed so that each half flexes independently.avaliable in solid, flex split and his designs. |
Applicable Standards:
●STEEL GATE VALVES API 600/API6D
●STEEL GATE VALVES ISO 10434/ISO 14313
●STEEL VALVES,ASME B16.34
●FACE TO FACE ,ASME B16.10
●END FLANGES ,ASME B16.5
●BUTTWELDING ENDS,ASME B16.25
●INSPECTION AND TEST API 598/API 6D
Design descriptions:
●FULL PORT DESIGN
●OS&Y OUTSIDE SRCEW AND YOKE
●BB.BOLTED BONNET
●FLEXIBLE WEDGE,FULLY GUIDED
●CHOICE OF SOLID OR SPLIT WEDGE
●RENEWABLE SEAT RINGS
●FORGED T-HEAD STEM
●RISING STEM AND NON-RISING HANDWHEEL
●FLANGED OR BUTTWELDING ENDS
●AVAILABLE WITH BG OPERATOR

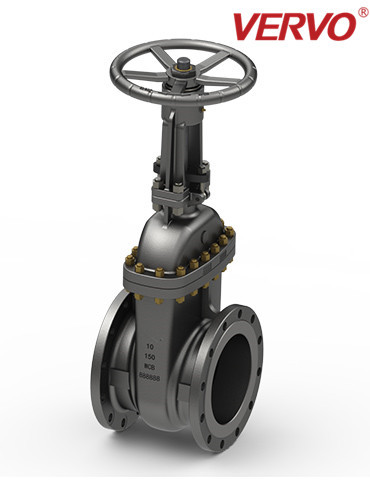

Wedge Gate Valve CN7M gate Large handwheels And Bolted Bonnet Valve RTJ Flanged Or Buttwelding End For Piping Flexibility
