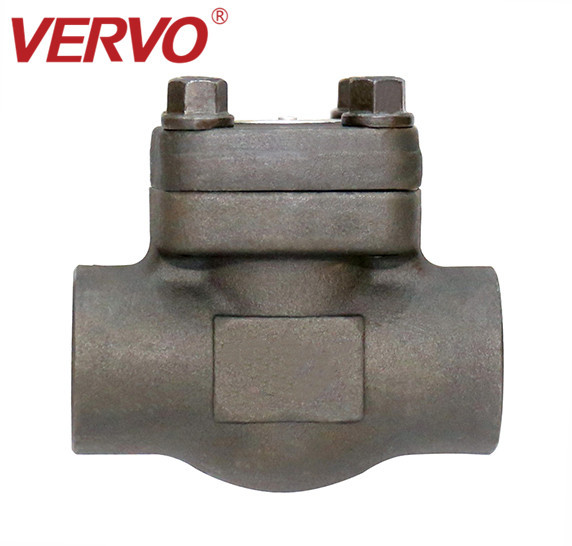

API 602 Design Alloy Forged Steel Check Valves Swing Lift Type Pressure Seal Cover

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/ISO/CE
Model Number: H41W-150LB-DN50
Minimum Order Quantity: 1
Packaging Details: plywood case
Delivery Time: 30
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 400000
Design Standard: API 602, ASME B16.34 Body Material:: Alloy N08020
Nominal Diameter: NPS 1/2 To NPS 2 Pressure: Class 800 To Class 2500
End Connection.: ASME B16.11 (SW), ASME B1.20.1 (NPT),ASME B16.25 (BW) Face To Face: Factory STD
Test And Inspection: API 598
High Light:

swing type Forged Steel Check Valve

,

Pressure seal cover Forged Check Valve

,

lift Forged Steel Check Valve

Forged Steel Check Valve

VERVO forged steel check valves are offered in swing type, lift type, bolted bonnet and welded bonnet design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO forged steel check valves are manufactured according to API 602 Design.

PRODUCT RANGE

Sizes NPS 1/2 to NPS 2

Class 800 to Class 2500

MATERIALS

Available in Forged (A105, LF2, F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51), Alloy 20, Monel, Inconel, Hastelloy
DESIGN FEATURES
Swing Type or Lift (Piston) Type

SW, NPT, or BW connections

Bolted cover, Welded Cover or Pressure seal cover

DESIGN STANDARD

Design & manufacture according to API 602, ASME B16.34

End flanges according to ASME B16.11 (SW), ASME B1.20.1 (NPT),ASME B16.25 (BW)

Test & inspection according to API 598

Also available per NACE MR-0175, NACE MR-0103


Keywords of VERVO forged steel check valves are manufactured according to API 602 Design.

API 602 Design Alloy Forged Steel Check Valves Swing Lift Type Pressure Seal Cover 0

150LB Piston Check Valve,SW Piston Check Valve,2Inch Piston Check Valve,DN50 Piston Check Valve,Asme 16.34 Piston Check Valve,Alloy Steel N08020 Piston Check Valve,High Temperature Piston Check Valve, Piston Check Valve,Reduce Bore Piston Check Valve,50MM Piston Check Valve,API602 Piston Check Valve,API622 Packing,API624 Check Valve
