Place of Origin: | LISHUI,ZHEJIANG |
---|---|
Brand Name: | VERVO |
Certification: | API/CE/ISO |
Model Number: | PSBZ41Y-1500LB-DN200 |
Minimum Order Quantity: | 1 |
Price: | Negotiable |
Packaging Details: | plywood case |
Delivery Time: | 45days |
Payment Terms: | L/C, T/T, Western Union, D/A |
Supply Ability: | 40000pcs/month |
Material: | Casting,Stainless Steel,Alloy Steel | Connection: | RF FLANGE,RTJ FLANGE,BW |
---|---|---|---|
Standard: | API600,ASME B16.34 | Pressure: | Medium Pressure, Low Pressure, High Pressure, PN1.6 To 6.4MPa, 150LB ~2500LB |
Media: | Water, Oil, Base, Gas, Etc | Temperature Of Media: | Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃) |
Port Size: | 2~48INCH,DN100~1200,2''~48'' | Structure: | PSB,PRESSURE SEAL BONNET,BB,BOLTED BONNET |
High Light: | asme b16.34 gate valve,6 Carbon Steel Gate Valve 1500 rtj,6 Carbon Steel Gate Valve DN200 |
Sizes NPS 2 to NPS 48
Class 150 to Class 2500
MATERIALS
Available in Casting (A216 WCB, WC6, WC9, A352 LCB, A351 CF8, CF8M, CF3, CF3M, A995 4A, A995 5A, A995 6A), Alloy 20, Monel, Inconel, Hastelloy
DESIGN FEATURES
Full or Reduced Bore
RF, RTJ, or BW
Outside Screw & Yoke (OS&Y), rising stem
Bolted Bonnet or Pressure Seal Bonnet
Flexible or Solid Wedge
Renewable seat rings
Design & manufacture according to API 600, API 603, ASME B16.34
Face-to-face according to ASME B16.10
End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)
Test & inspection according to API 598
Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API624

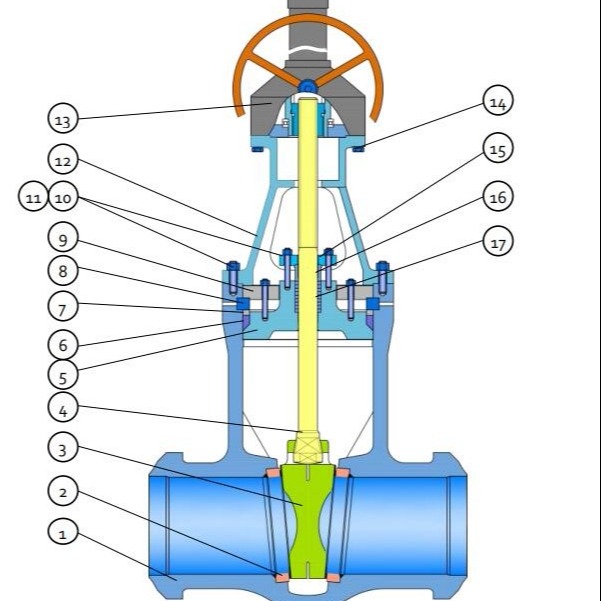

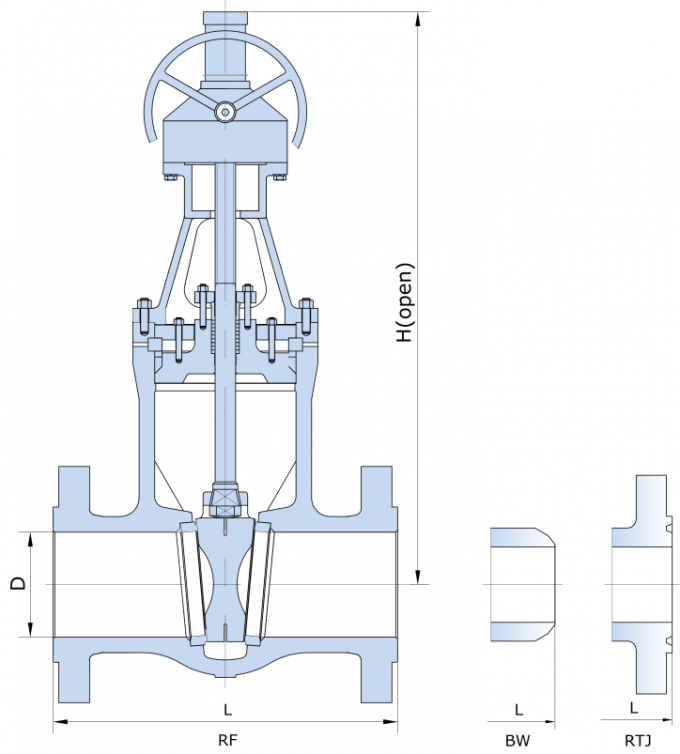

DIMENSIONS AND WEIGHTS(Pressure Seal Bonnet)
ASME CLASS900(PN150)
ASME CLASS 900 (PN 150)
|
|||||||
Size | D | L | H | W | Weight RF/BW |
||
in/mm | RF | RTJ | BW | (lb/kg) | |||
2 50 |
1.87 47.5 |
14.5 368 |
14.63 371 |
14.5 368 |
19.62 498 |
7.87 200 |
163/119 74/54 |
2 ½ 65 |
2.24 57 |
16.5 419 |
16.62 422 |
16.5 419 |
21.5 547 |
9.84 250 |
222/172 101/78 |
3 80 |
2.87 73 |
15 381 |
15.13 384 |
15 381 |
22.5 573 |
11.81 300 |
289/231 131/105 |
4 100 |
3.86 98 |
18 457 |
18.13 460 |
18 457 |
26.62 678 |
17.72 450 |
379/297 172/135 |
5 125 |
4.76 121 |
22 559 |
22.13 562 |
22 559 |
35.5 900 |
19.7 500 |
615/463 276/210 |
6 150 |
5.75 146 |
24 610 |
24.13 613 |
24 610 |
38.2 970 |
19.7 500 |
378/573 335/260 |
8 200 |
7.48 190 |
29 737 |
29.13 740 |
29 737 |
43.5 1103 |
23.62 600 |
1410/1134 640/515 |
10 250 |
9.37 238 |
33 838 |
33.13 841 |
33 838 |
53 1345 |
- | 2423/2026 1100/920 |
12 300 |
11.1 282 |
38 965 |
38.13 968 |
38 965 |
60 1525 |
- | 3546/3040 1600/1380 |
14 350 |
12.24 311 |
40.5 1029 |
40.88 1039 |
40.5 1029 |
74.5 1900 |
- | 4956/4427 2250/2010 |
16 400 |
14 356 |
44.5 1130 |
44.88 1140 |
44.5 1130 |
81 2055 |
- | 6278/5650 2850/2565 |
18 450 |
15.75 400 |
48 1219 |
48.5 1232 |
48 1219 |
87 2215 |
- | 6740/5474 3060/2485 |
20 500 |
17.52 445 |
52 1321 |
52.5 1334 |
52 1321 |
101 2565 |
- | 8447/7159 3835/3250 |
24 600 |
21 533 |
61 1549 |
61.75 1568 |
61 1549 |
104 2640 |
- | 10793/8954 4900/4065 |
