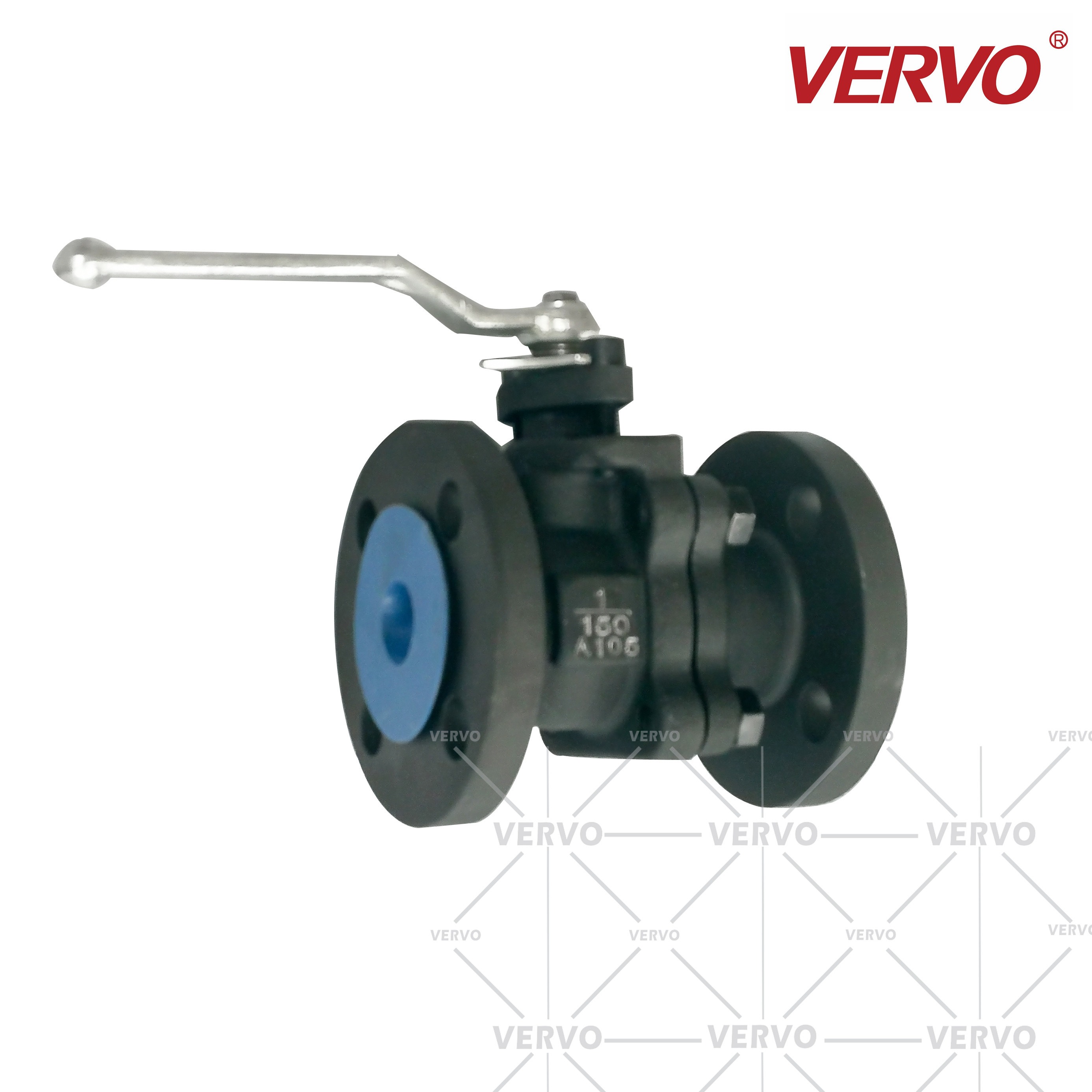

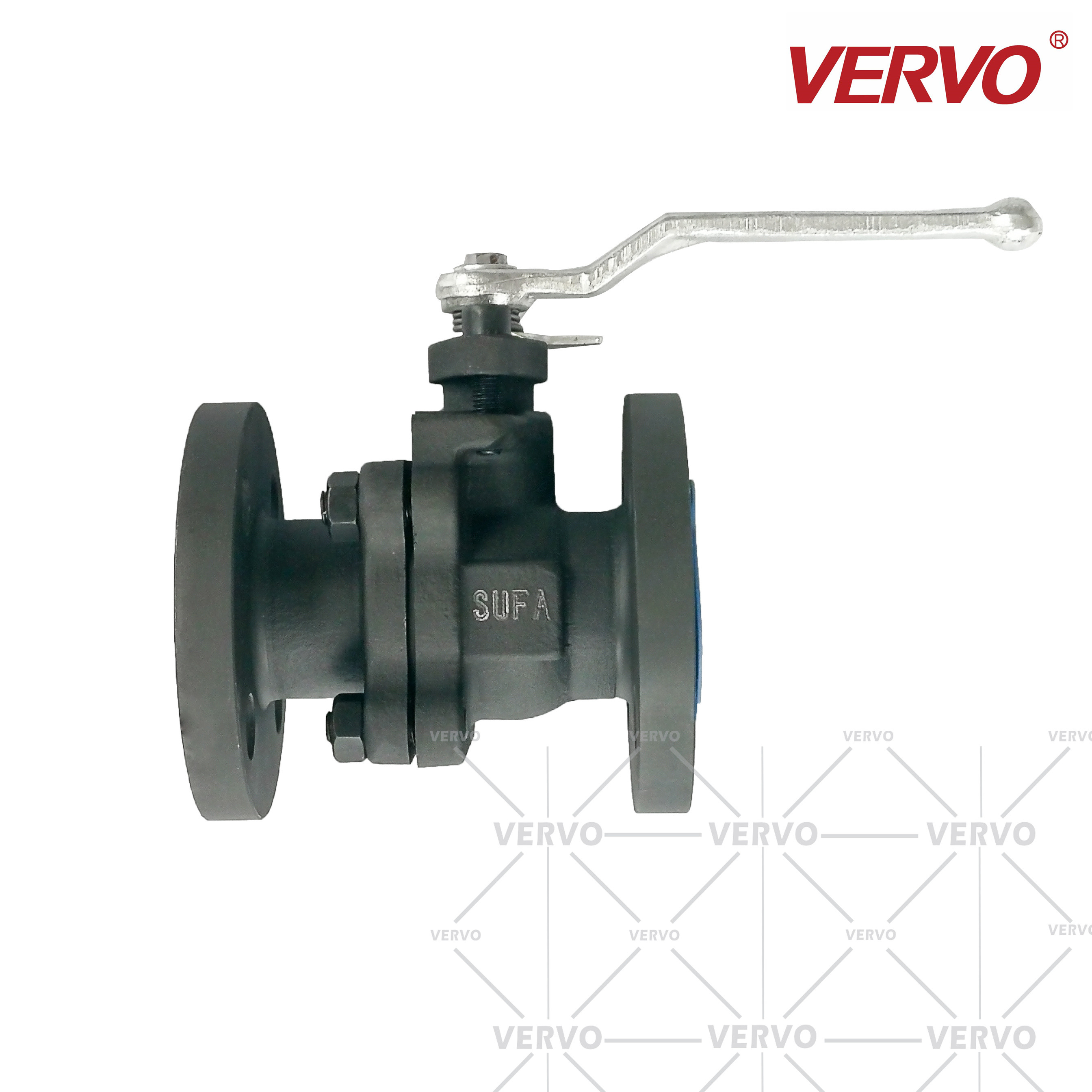

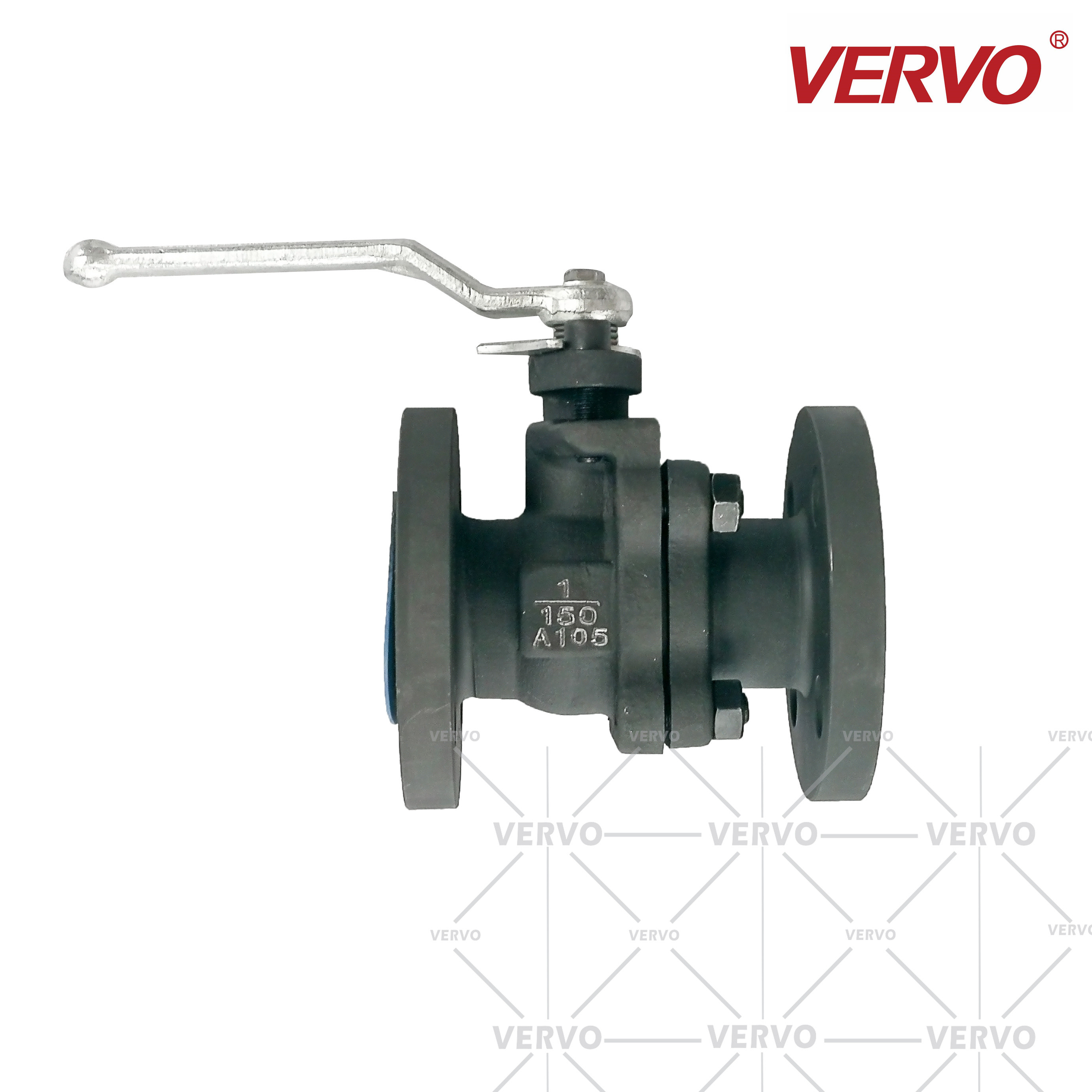

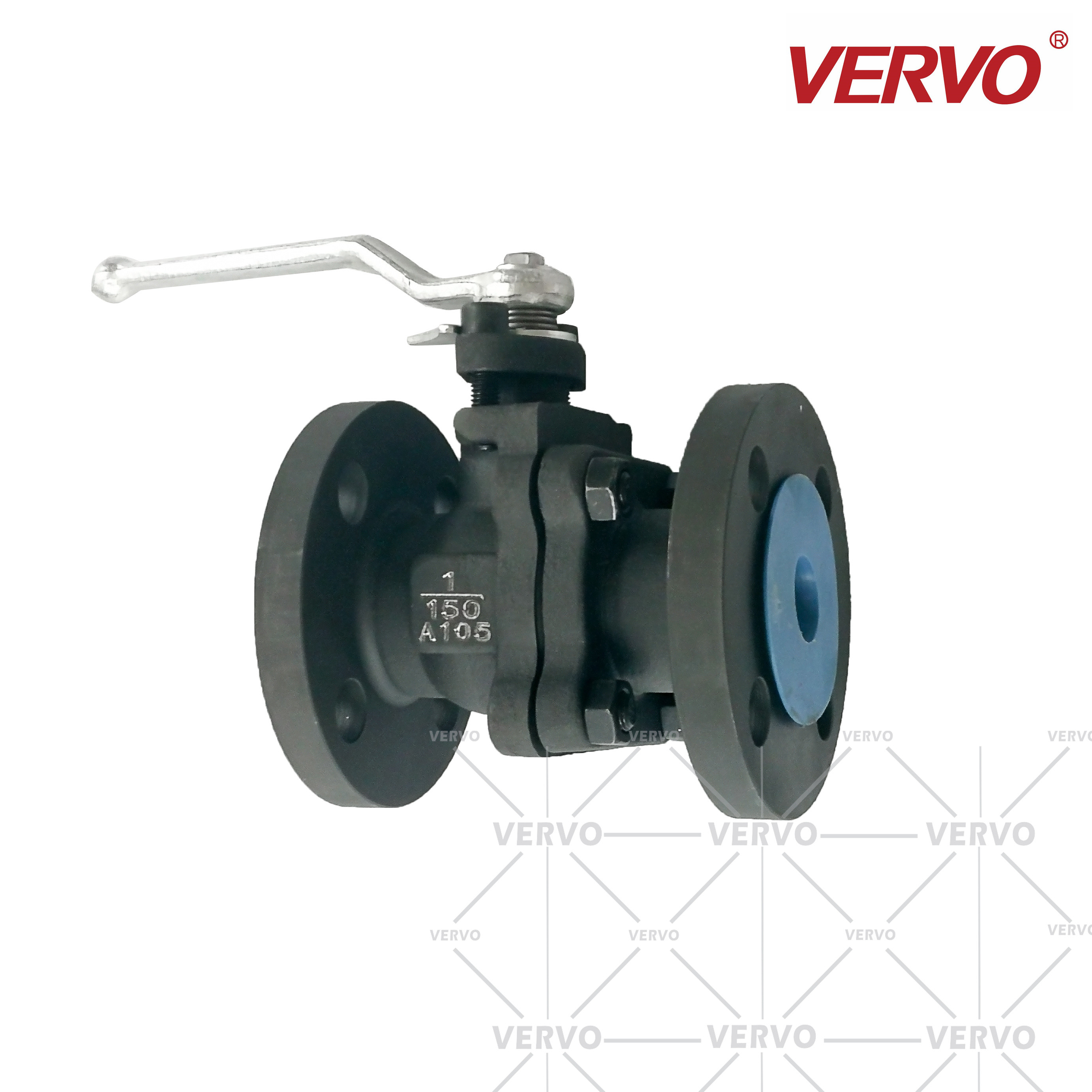

DN25 2 Piece Ball Valve Forged Steel Ball Valve Full Bore Forging Two-Piece Soft Seal Integral Flange Ball Valve

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/CE/ISO
Model Number: Q41F-150LB
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1 week
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 40000pcs/month
Name: 2 Piece Ball Valve Standard: API608/Gost/Din
Pressure: Class150 Class300 Class600 Class900 Class1500 Temperature Of Media: Medium Temperature,Normal Temperature,High Temperature-29℃ To 120℃)
Size: 1/4"-4",DN8-DN100 Seat Material: PTFE,RPTFE,Devlon,Nylon,Peek
Connection: RF,RTJ,SW

DN25 2 Piece Ball Valve Forged Steel Ball Valve Full Bore Forging Two-Piece Soft Seal Integral Flange Ball Valve



Quick Detail

DN25 2 Piece Ball Valve Forged Steel Ball Valve Full Bore Forging Two-Piece Soft Seal Integral Flange Ball Valve 0

VERVO Forged steel ball valves are manufactured to the latest edition of API608, BS5352 and ASME B16.34. And tested to API 598.All Forged steel valves from VERVO VALVE are strictly 100% tested before shipment to guarantee zero leakage.

Forged valves are great for high-temperature, high-pressure applications, they cannot be made in all kinds of shapes and sizes.VERVO Forged valves including forged-steel gate, globe, and check valves and forged ball valves which are widely applied in boiler, petroleum, chemical, metallurgy, energy systems and critical power-industry applications



The main construction features of VERVO Forged steel valve are following:

1. Full bore and standard bore (reduced bore) design are available.

2. Three bonnet design for forged gate valve, globe valve and check valve

--Bolted Bonnet, welded bonnet and pressure seal design

3. Y-pattern body for forged globe valve, extended body and extended stem for all forged valves.

4. Integral flanged end and welded flanged end design are available

5. Forged Ball Valve can be metal-seat and soft-seat design in floating ball construction.

The range of GZP Forged steel valves design is as follows:



Size: 1/2” to 2” DN15 to DN1200
Pressure: Class 800lb to 2500lb PN100-PN420
Connection ends: Socket weld end to ASME B16.11
Screwed end (NPT,BS[) to ANSI/ASME B 1.20.1
Butt weld end (BW) to ASME B 16.25

Flanged end (RF, FF, RTJ) to ASME B 16.5

Temperature: -29℃ to 485 ℃


VERVO valves can be manufactured in all kinds of materials to meet different requirements from clients, especially in NACE standard.

VERVO valves can be equipped with gear operator, pneumatic actuators, Hydraulic actuators, Electric actuators, bypasses, locking devices, chainwheels, extended stems and many others are available to meet the customers’ requirements.



Item Valve
Type Ball Valve
Certification CE,TS,ISO9001,ISO14001,ISO18001
Brand VERVO
Model number Q41F-150LB
Power Manual
Port Size 1"
Structure Ball,Floating
Pressure low perssure
Temperature -29~180
Medium Water, steam, oil
Connection form Flanged
Body material Forged steel
Seal material Gasket
Feature Full Diameter

DN25 2 Piece Ball Valve Forged Steel Ball Valve Full Bore Forging Two-Piece Soft Seal Integral Flange Ball Valve 1DN25 2 Piece Ball Valve Forged Steel Ball Valve Full Bore Forging Two-Piece Soft Seal Integral Flange Ball Valve 2



DN25 2 Piece Ball Valve Forged Steel Ball Valve Full Bore Forging Two-Piece Soft Seal Integral Flange Ball Valve 3

FAQ

DN25 2 Piece Ball Valve Forged Steel Ball Valve Full Bore Forging Two-Piece Soft Seal Integral Flange Ball Valve 4

1/Do you have any Certification ?

Yes we have ISO9001-2015 and CE/PED according to Directive 2014/68/EU,fire safe certificate,ISO15848-1

2/Can we visit your factory?

Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.

3/Do you have quality control system?

Yes, we have ISO/PED certifications and our own quality control laboratory.

4/Can you arrange the shipment for us?

Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earliest vessel and professional service.

5/Can I get some samples?

We are glad to provide free samples to you, but the express fee will be on your charge.

6/What is your after-sale service?

We provide after-sale service and offer 100% guarantee on our products.

7/What is your main products?

Valve, and in order to meet different needs, we expanded our business, we also do sanitary type products.

8/Are you trading company or manufacturer

We are factory, and welcome to visit our factory

9/What is your MOQ

No MOQ, As your request .Normal size and material we have stock



Keywords of DN25 2 Piece Ball Valve Forged Steel Ball Valve Full Bore Forging Two-Piece Soft Seal Integral Flange Ball Valve



DN25 2 Piece Ball Valve Forged Steel Ball Valve Full Bore Forging Two-Piece Soft Seal Integral Flange Ball Valve 5

DN25 Ball Valve,2 Piece Ball Valve,Soft Seal Ball Valve,Two Piece Ball Valve,Forged steel Carbon Steel Ball Valve,Metal to Metal Seat Ball Valve,Integral Type Forged Steel Ball Valve, A105​ Ball Valve
