| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/CE/ISO |
| Model Number: | Q61Y-1500LB |
| Minimum Order Quantity: | 10 |
| Price: | Negotiable |
| Packaging Details: | plywood case |
| Delivery Time: | 1 week |
| Payment Terms: | L/C, T/T, Western Union, D/A |
| Supply Ability: | 40000pcs/month |
| Name: | 3 Piece Ball Valve Floating Type Ball Valve | Standard: | API608/Gost/Din |
|---|---|---|---|
| Pressure: | Class150 Class300 Class600 Class900 Class1500 Class2500 | Temperature Of Media: | Medium Temperature,Normal Temperature,High Temperature-29℃ To 120℃) |
| Size: | 1/4"-4",DN8-DN100 | Seat Material: | PTFE,RPTFE,Devlon,Nylon,Peek,Metal |
| Connection: | Thread BSP NPT,Female Thread/OD Size,threaded,Female,RF,RTJ,SW | ||
| High Light: | Floating Valve 3 Inch |
||

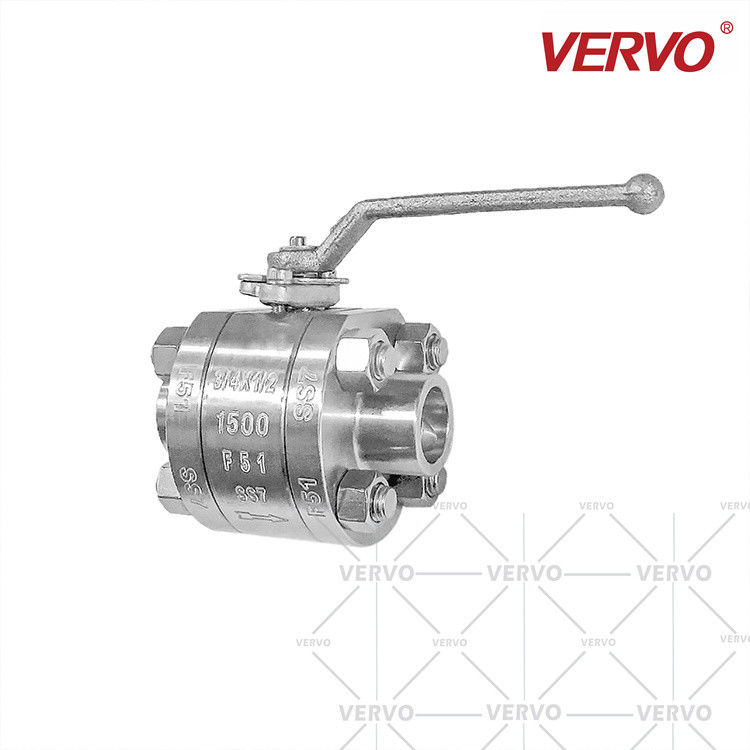

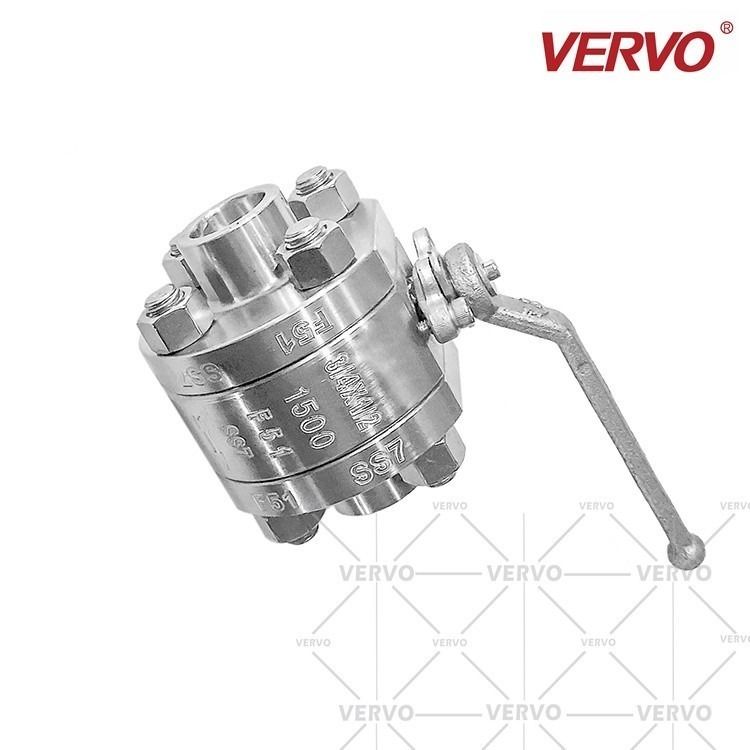

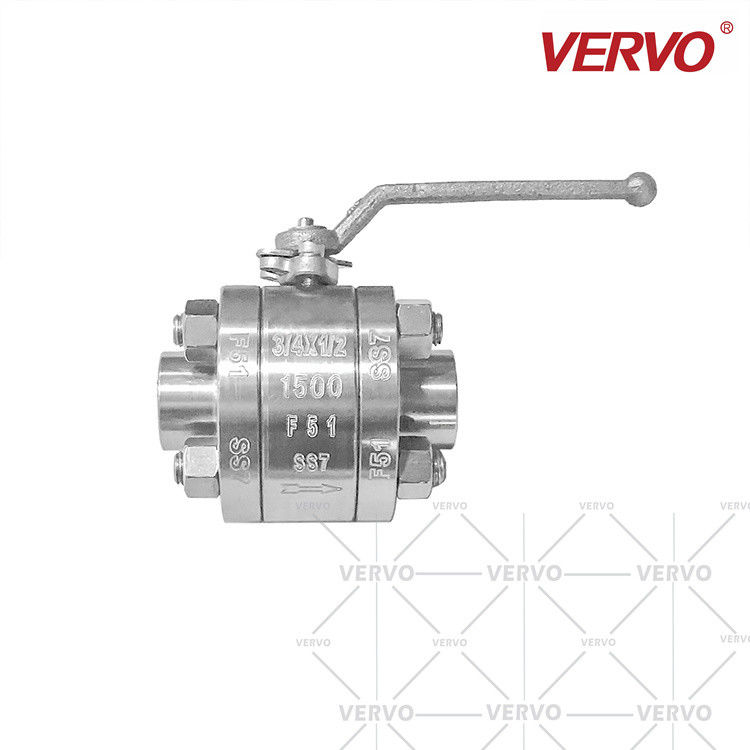

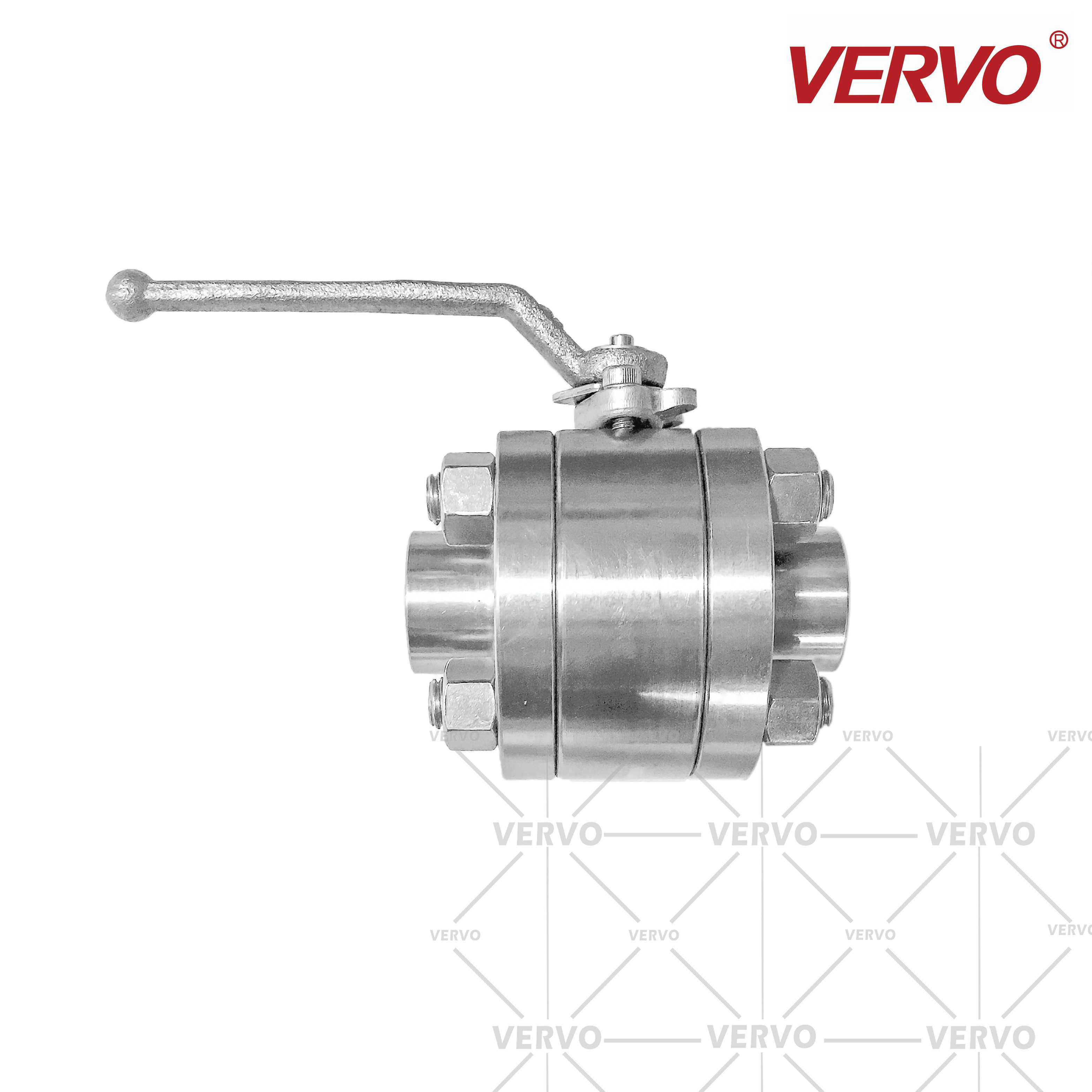

DN25 Floating Type Ball Valve Metal Seat Stainless Steel F51 2 Piece Ball Valve,1inch,800LB,1500LB,2500LB Full Bore
| Item | Valve |
| Type | Ball Valve |
| Certification | CE,TS,ISO9001,ISO14001,ISO18001,API6D |
| Brand | VERVO |
| Model number | Q61Y-1500LB |
| Power | Manual |
| Port Size | 25MM |
| Structure | Ball,Floating,3 Piece Ball Valve |
| Pressure | high perssure |
| Temperature | -46~200 |
| Medium | Weak acid base medium |
| Connection form | welding,SW |
| Body material | stainless steel F51 |
| Seal material | Gasket |
Quick Detail
VERVO floating ball valves are offered in 2 PC side entry, 3 PC side entry or welded body design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO floating ball valves are manufactured according to API 6D or API 608 Design and fire tested per API 6FA and API 607 Standard.
| Main Material | Can ensure us impose reliable control in metal material like casting and forging. |
| Standard | DIN/ ANSI /BS/ JIS /CNS |
| Color | As Custom |
| Main Market | Southeast Asia,The Middle Eas,North Africa,South America |
| Certificate | ISO 9001, API 600, API 6D , API Q1, CE/PED etc |
| Advantage | We are one of the leading manufacturers in china to supply quality valve solutions for oil, gas, refinery, chemistry, marine, power plant, pipeline transmit industries etc.; |
| Application | Industry,electric power,petrochemistry,coal gas channel etc. |
DESIGN STANDARD
Design & manufacture according to API 6D, API 608, ISO 17292
Face-to-face according to API 6D, ASME B16.10 OR MFG’s standard
End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)
Test & inspection according to API 6D, API 598
Fire safe design according to API 6FA, API 607
Also available per NACE MR-0175, NACE MR-0103, ISO 15848
We are one of the leading manufacturers in china to supply quality valve solutions for oil, gas, refinery, chemistry, marine, power plant, pipeline transmit industries etc.; We provide full range of industrial valves products, include Gate valve, Globe valve, Check valve, Ball valve, Plug valve, Butterfly valve, strainer etc. of different types ,sizes and material, Available standard include API, BS,JIS, EN, DIN, GOST etc.
All our branch factories have strict Quality control system as per ISO 9001, API 600, API 6D , API Q1, CE/PED etc. so our products are designed and manufactured strictly as per client's requirements and latest manufacturing specification of international standards organization
Keywords of DN25 Floating Type Ball Valve Metal Seat Stainless Steel F51 2 Piece Ball Valve,1inch,800LB,1500LB,2500LB Full Bore
DN25 Ball Valve,F51 Ball Valve,3 Piece Ball Valve,Soft Seal Ball Valve,Three Piece Ball Valve,Forged steel Stainless Steel Ball Valve,Metal to Metal Seat Ball Valve
