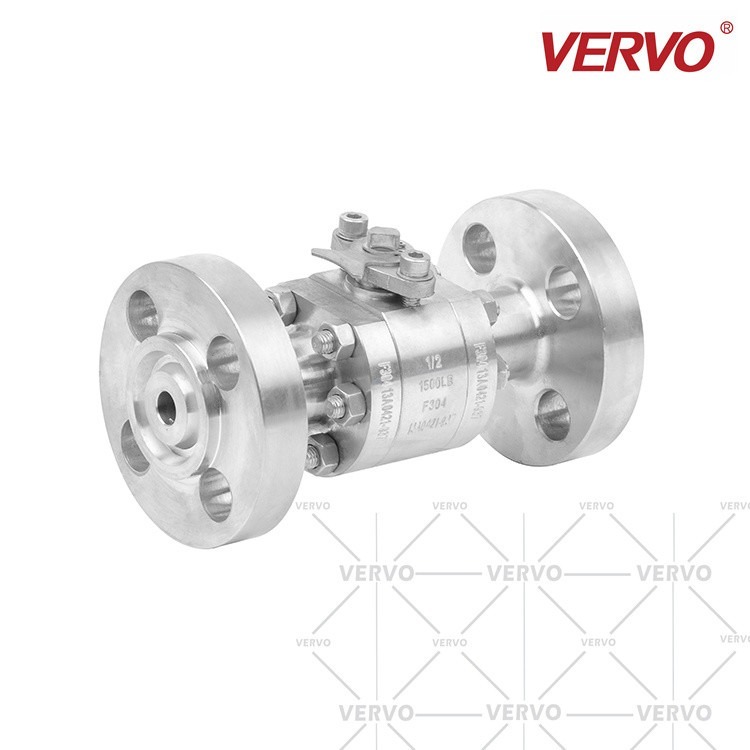

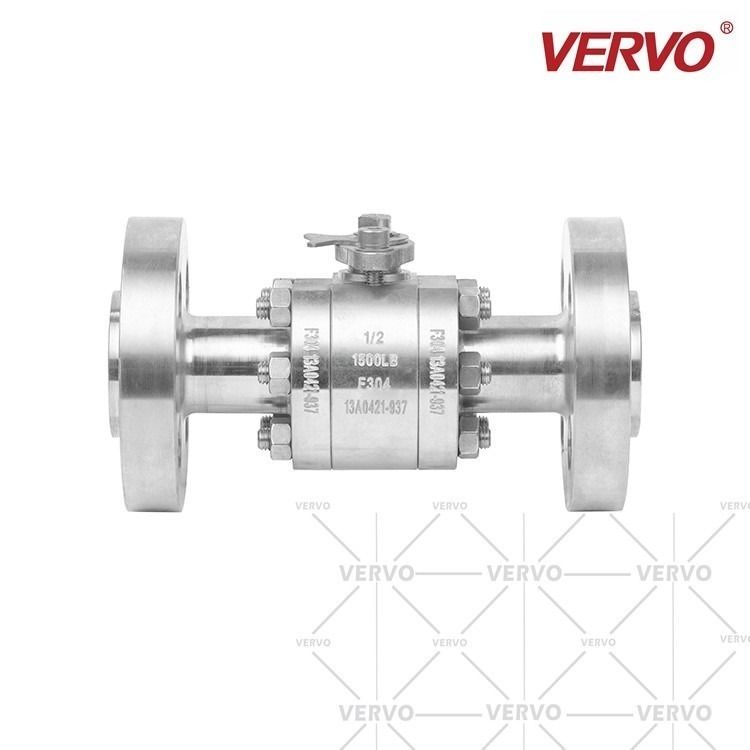

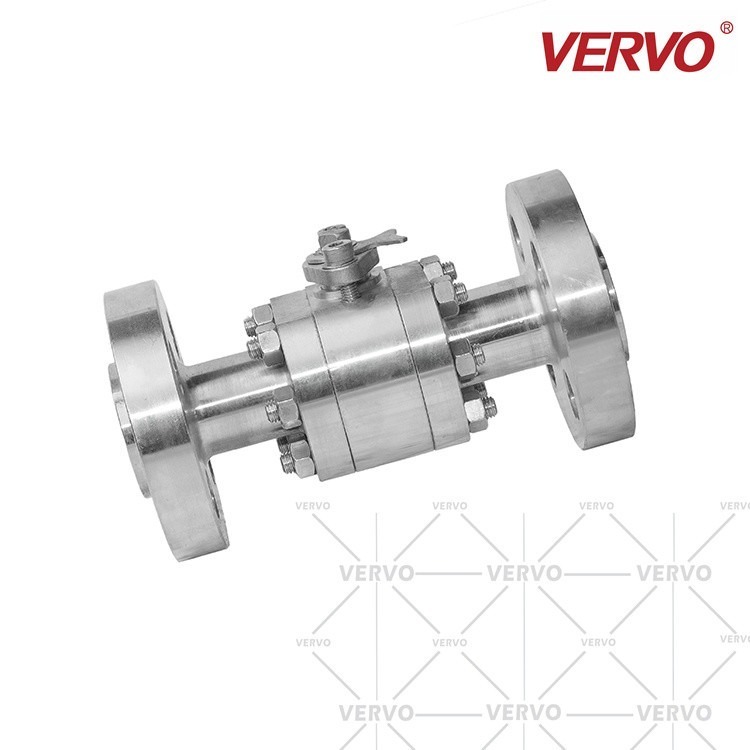

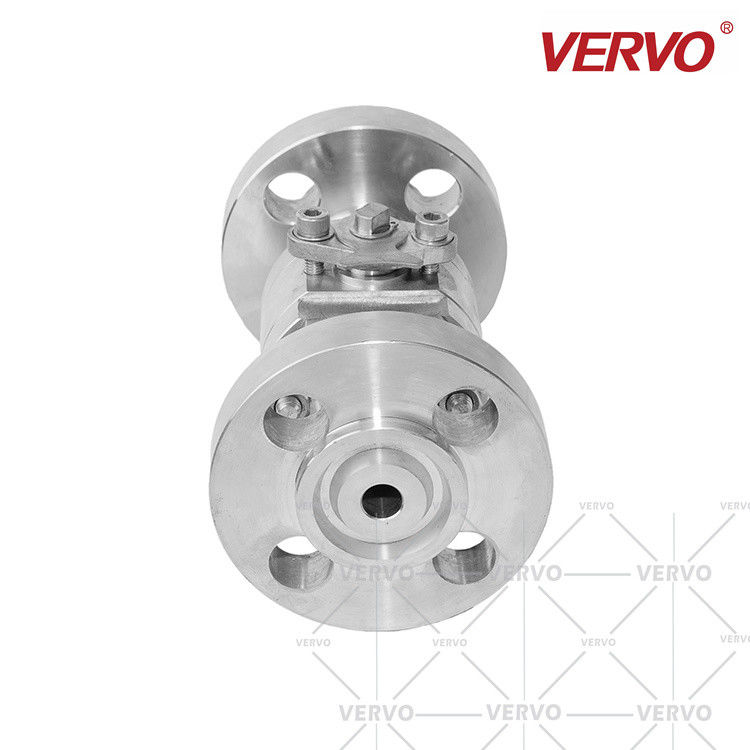

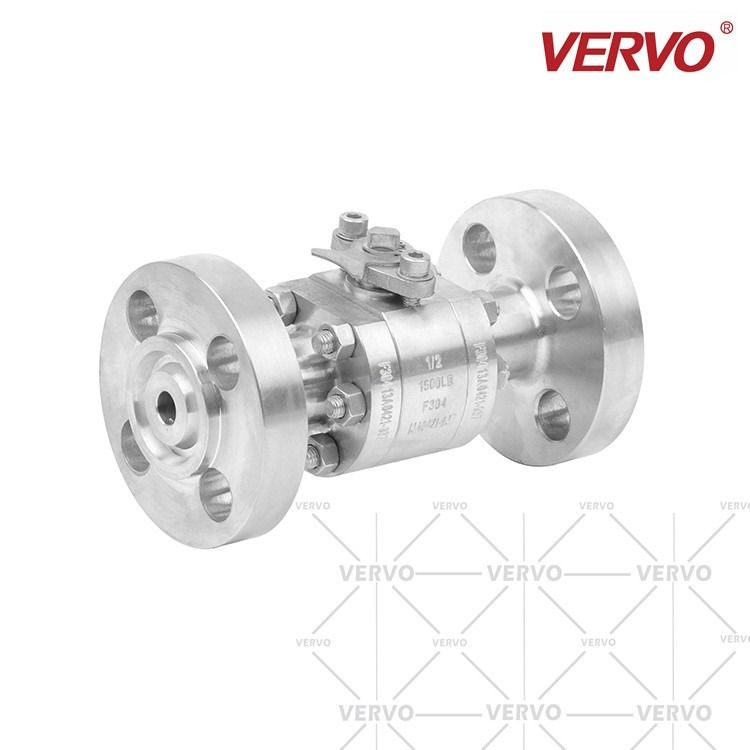

DN15 Forged Steel 1500LB F304 Soft Seated Flange Ball Valve Side Entry 3 Piece Type API608 Full Bore And Reduce Bore

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/CE/ISO
Model Number: Q61F-1500LB
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1 week
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 40000pcs/month
Name: 3 Piece Ball Valve Standard: API608/Gost/Din
Pressure: Class150 Class300 Class600 Class900 Class1500 Class2500 Temperature Of Media: Medium Temperature,Normal Temperature,High Temperature-29℃ To 120℃)
Size: 1/4"-4",DN8-DN100 Seat Material: PTFE,RPTFE,Devlon,Nylon,Peek,Metal Seat
Connection: Thread BSP NPT,Female Thread/OD Size,threaded,Female,RF,RTJ,SW

DN15 Forged Steel 1500LB F304 Soft Seated Flange Ball Valve Side Entry 3 Piece Type API608 Full Bore And Reduce Bore

DN15 Forged Steel 1500LB F304 Soft Seated Flange Ball Valve Side Entry 3 Piece Type API608 Full Bore And Reduce Bore 0



Item Valve
Type Ball Valve
Certification CE,TS,ISO9001,ISO14001,ISO18001
Brand VERVO
Model number Q41F-1500LB
Power Manual
Port Size 1/2"
Structure Ball,Floating
Pressure 1500LB
Temperature -48~280
Medium Water,Steam,Oil
Connection form      Flange
Body material Stainless steel
Seal form double seal



INTRODUCTION

DN15 Forged Steel 1500LB F304 Soft Seated Flange Ball Valve Side Entry 3 Piece Type API608 Full Bore And Reduce Bore 0

A ball valve is a valve with a spherical disc, the part of the valve which controls the flow through it. The sphere has a hole, or port, through the middle so that when the port is in line with both ends of the valve, flow will occur. When the valve is closed, the hole is perpendicular to the ends of the valve, and flow is blocked.


VERVO floating ball valves are offered in 2 PC side entry, 3 PC side entry or welded body design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO floating ball valves are manufactured according to API 6D or API 608 Design and fire tested per API 6FA and API 607 Standard.



PRODUCT RANGE

DN15 Forged Steel 1500LB F304 Soft Seated Flange Ball Valve Side Entry 3 Piece Type API608 Full Bore And Reduce Bore 0

Sizes NPS 1/2 to NPS 4

Class 150 to Class 2500



MATERIALS

DN15 Forged Steel 1500LB F304 Soft Seated Flange Ball Valve Side Entry 3 Piece Type API608 Full Bore And Reduce Bore 0

Available Forging (A105, A182 F304, F3304L, F316, F316L, A182 F51, F53, A350 LF2, LF3, LF5) Casting (A216 WCB, A351 CF3, CF8, CF3M, CF8M, A352 LCB, LCC, LC2, A995 4A. 5A), Inconel, Hastelloy, Monel

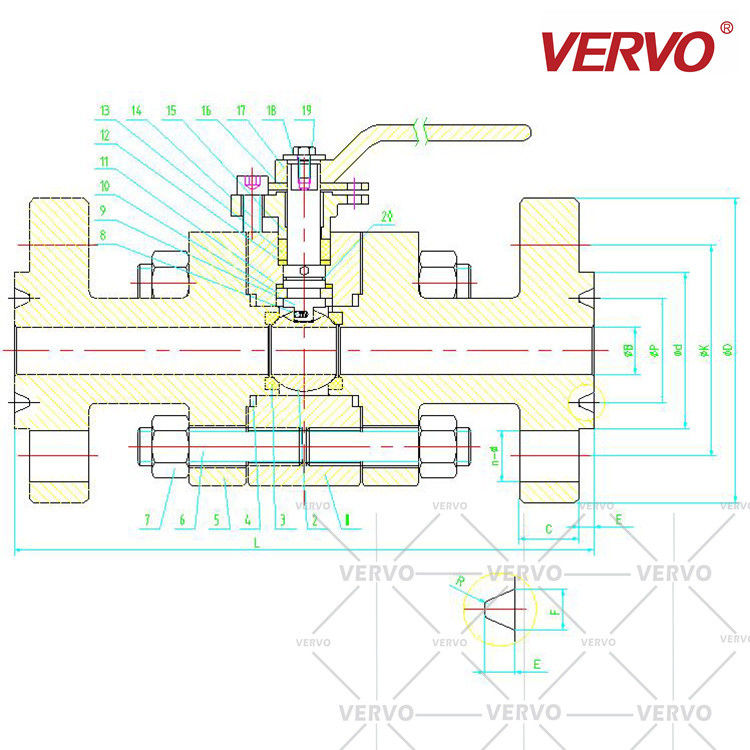

DESIGN FEATURES

DN15 Forged Steel 1500LB F304 Soft Seated Flange Ball Valve Side Entry 3 Piece Type API608 Full Bore And Reduce Bore 0

Full or Reduced Bore

RF, RTJ, or BW

Bolted bonnet

Anti-Static Device

Anti-Blow out Stem

Cryogenic or High Temperature, Extended Stem



DESIGN STANDARD

DN15 Forged Steel 1500LB F304 Soft Seated Flange Ball Valve Side Entry 3 Piece Type API608 Full Bore And Reduce Bore 0

Design & manufacture according to API 6D, API 608, ISO 17292

Face-to-face according to API 6D, ASME B16.10 OR MFG’s standard

End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)

Test & inspection according to API 6D, API 598

Fire safe design according to API 6FA, API 607

Also available per NACE MR-0175, NACE MR-0103, ISO 15848



Package

DN15 Forged Steel 1500LB F304 Soft Seated Flange Ball Valve Side Entry 3 Piece Type API608 Full Bore And Reduce Bore 0

DN15 Forged Steel 1500LB F304 Soft Seated Flange Ball Valve Side Entry 3 Piece Type API608 Full Bore And Reduce Bore 7DN15 Forged Steel 1500LB F304 Soft Seated Flange Ball Valve Side Entry 3 Piece Type API608 Full Bore And Reduce Bore 8

RFQ

DN15 Forged Steel 1500LB F304 Soft Seated Flange Ball Valve Side Entry 3 Piece Type API608 Full Bore And Reduce Bore 0

1/Do you have any Certification ?

Yes we have ISO9001-2015 and CE/PED according to Directive 2014/68/EU,fire safe certificate,ISO15848-1

2/Can we visit your factory?

Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.

3/Do you have quality control system?

Yes, we have ISO/PED certifications and our own quality control laboratory.

4/Can you arrange the shipment for us?

Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earliest vessel and professional service.

5/Can I get some samples?

We are glad to provide free samples to you, but the express fee will be on your charge.

6/What is your after-sale service?

We provide after-sale service and offer 100% guarantee on our products.

7/What is your main products?

Valve, and in order to meet different needs, we expanded our business, we also do sanitary type products.

8/Are you trading company or manufacturer

We are factory, and welcome to visit our factory

9/What is your MOQ

No MOQ, As your request .Normal size and material we have stock



Keywords of DN15 Forged Steel 1500LB F304 Soft Seated Flange Ball Valve Side Entry 3 Piece Type API608 Full Bore And Reduce Bore

DN15 Forged Steel 1500LB F304 Soft Seated Flange Ball Valve Side Entry 3 Piece Type API608 Full Bore And Reduce Bore 10

ASTM A182 F304 Floating Ball Valve, Floating Ball Valve, Class 1500 Ball Valve, 1/2 Inch Ball Valve, RTJ Ball Valve,0.5 Inch Ball Valve,Soft Seated Ball Valve,Metal to Metal Ball Valve,Metal to Metal Seat
