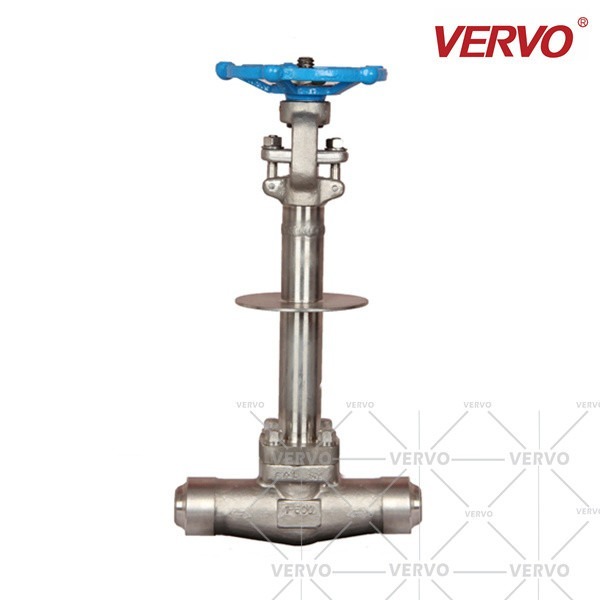

API602 BS6364 Extended Stem Pressure Seal Gate Valve A182 F304L Cryogenic 1 Inch DN25 CL1500 BW

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/CE/ISO
Model Number: Z61Y-1500LB-DN25
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1 week
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 40000pcs/month
Name: Forged Steel Cryogenice Gate Valve Connection: Socket Weld,FNPT,BW,RF Flange,RTJ Flange
Standard: API602/BS5352/GOST/JIS/DIN/ISO Pressure: 150LB-800LB,1500LB,2500LB
Power: Manual,Pneumatic,Solenoid,Electrical Actuated Temperature Of Media: Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃)
Size: 1/4"-4",DN8-DN100
High Light:

BS6364 Extended Stem Pressure Seal Gate Valve A182

,

BS6364 Pressure Seal Gate Valve

,

BS6364 cl1500 gate valve

High Pressure Cryogenic Gate Valve A182 F304L Gate Valve 1 Inch DN25 CL1500 BW Extended Stem Gate Valve API602 BS6364



General Introduction:

API602 BS6364  Extended Stem Pressure Seal Gate Valve A182 F304L Cryogenic 1 Inch DN25 CL1500 BW 0
VERVO Gate valve belongs to shutter gate. The direction of movement of the gate is perpendicular to the direction of the flow. The gate valve can only be fully opened and fully closed, and it cannot be adjusted or throttled. The gate valve is sealed by the contact between the valve seat and the gate plate. Usually the sealing surface will be surfacing with metal materials to increase the wear resistance, such as surfacing 1Cr13, STL6, stainless steel and so on. The gate plate has a rigid gate plate and a flexible gate plate. According to the gate plate, the gate valve is divided into a rigid gate valve and an elastic gate valve.



Model number Z61Y-1500LB-DN25
Item Gate Valve
Certification ISO9001,ISO14001,ISO18001,TS,CE,API
Connection form BW
Body material Stainless Steel A182 F304L
Seal material Gasket
Feature Easy disassembly and assembly



                     API602 BS6364  Extended Stem Pressure Seal Gate Valve A182 F304L Cryogenic 1 Inch DN25 CL1500 BW 1

Standards
API602 BS6364  Extended Stem Pressure Seal Gate Valve A182 F304L Cryogenic 1 Inch DN25 CL1500 BW 2
Design & Manufacture
API 602, ISO 15761, ASME B16.34
Face-to-face
VERVO'STD, ASME B16.10
End Dimension
ASME B1.20.1 (NPT)
ASME B16.11 (SW)
ASME B16.25 (BW)
ASME B16.5 (RF, RTJ),
Test & Inspection
API 598
Typical Materials
Body,Bonnet,Disc
A105,A350 LF2, LF3, LF5, A182 F304, F304L, F316, F316L, F51, F53,
F5,F11,F22,F91, Monel, Inconel, Hastelloy,C95800,B62
Stem
A276 410, F304, F304L, F316, F316L, F51, F53, Monel, Inconel, Hastelloy,C95800



                                                          API602 BS6364  Extended Stem Pressure Seal Gate Valve A182 F304L Cryogenic 1 Inch DN25 CL1500 BW 3



CL800 Bolt Bonnet (BB)/Welding Bonnet (WB),
Reduce Port (RP)/Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW),
Size (NPS) R.P 3/4 1 1-1/4 1-1/2 2 2-1/2
F.P 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face L 92 111 120 120 140 178
Handwheel Diameter W 100 125 160 160 180 200
Height H 169 207 230 249 283 333
Flow Port Diameter d 13.5 18 23 29 36 45
Weight (Kg) B.B 2.4 4.1 5.5 7.5 10 19
W.B 2.3 4 5.5 7.3 9.5 18.5



About Us

API602 BS6364  Extended Stem Pressure Seal Gate Valve A182 F304L Cryogenic 1 Inch DN25 CL1500 BW 4

VERVO is an ISO 9001 certified company specializing in manufacturing industrial valves including ball valves, gate valves, globe valves, check valves, plug valves and butterfly valves in carbon steel, stainless steel, duplex stainless and alloy materials. Our products conform to the latest industry standards in accordance to ANSI, ASME and API.VERVO today has over 10000 square meters of manufacturing facilities. Through its conviction to provide only the finest quality products and services to match the need of our customers, VERVO has now established itself as a serious player in the valve business.
VERVO has sold worldwide in North America, Europe, South America, South Asia, Africa and the Middle East. We consider product quality and customer satisfaction as our highest priority.
We look forward to new customer relationships by providing value, quality, customer service,honesty, integrity and the commitment to maintain product consistency with each and every order.

API602 BS6364  Extended Stem Pressure Seal Gate Valve A182 F304L Cryogenic 1 Inch DN25 CL1500 BW 5



Keywords of High Pressure Cryogenic Gate Valve A182 F304L Gate Valve 1 Inch DN25 CL1500 BW Extended Stem Gate Valve API602 BS6364

API602 BS6364  Extended Stem Pressure Seal Gate Valve A182 F304L Cryogenic 1 Inch DN25 CL1500 BW 6

Dn25 Long Stem 250mm Gate Valve,Stainless Steel Gate Valve,1500lb Gate Valve,Flanged RF Gate Valve,Cryrogenic Gate Valve,Extended Stem Gate Valve,Gate Valve BS6364, -196 Degree Gate Valve
