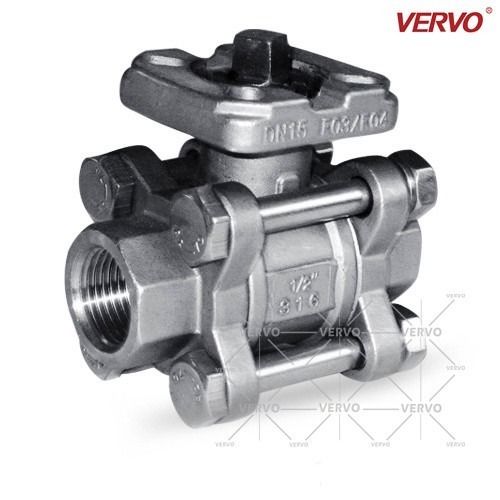

Direct Mount Ball Valve 3 Piece Ball Valve Forged Steel SS316 1/2inch With Top Flange 1000psi Npt DN15

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/ISO/CE
Model Number: Q61F-800LB-DN15
Minimum Order Quantity: 1
Packaging Details: plywood case
Delivery Time: 30
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 400000
Design Standard: API608 Body Material:: SS316
Nominal Diameter: 0.5 Inch Pressure: 1000PSI
End Connection.: FLANGE Face To Face: FACTORY STANDARD
Test And Inspection: API 598

Direct Mount Ball Valve 3 Piece Ball Valve Forged Steel SS316 1/2inch With Top Flange 1000psi Npt DN15

Product Description
Direct Mount Ball Valve 3 Piece Ball Valve Forged Steel SS316 1/2inch With Top Flange 1000psi Npt DN15 0
Three-Piece High Cycle Direct Mount Ball Valve

Product Feature
Direct Mount Ball Valve 3 Piece Ball Valve Forged Steel SS316 1/2inch With Top Flange 1000psi Npt DN15 0
Oval handle
Cavity filled seats
Polish to custom's specification
ASME/ BPE (for SS316L)
low ferrite ( 3%)

low sulphur (0.005% to 0.017%)

Automation application
Direct Mount Ball Valve 3 Piece Ball Valve Forged Steel SS316 1/2inch With Top Flange 1000psi Npt DN15 0
PTFE/ PFA coating (40-70 um)
Hastalloy C/ Super duplex/ Alloy 20/ Monel
Product Specification / Models
Body & end caps quality investment casting
with High Cycle Direct Mount
Adjustable stem packing
Available in stainless steel or carbon steel
Blow-out proof stem design
100% air tested under water at 80-100 psi
Working pressure: 1000/ 800/ 600 psi
Temperature range (PTFE) -20F to 350F
Temperature range (TFM) -20F to 420F
with locking function
End type: T-Clamp, Tube weld, Extended tube weld
6 bolts & nuts for 4" valve

Other Information
Direct Mount Ball Valve 3 Piece Ball Valve Forged Steel SS316 1/2inch With Top Flange 1000psi Npt DN15 0
VERVO Three-Piece High Cycle Direct Mount Ball Valve is designed for food biological, pharmaceutics or similar industries. The cavity filled seat option will help not to remain the media in the body cavity to keep from spoiling or mixing. Cavity filler seats will also help to clean the valve port easily.

The options on end types can be T-Clamp, Tube weld end, Extended tube weld end. Different material of soft kits will be applicable for different working circumstance.
ASME/ BPE (for SS316L) standard are available on 302SD, with low ferrite ( 3%), and low sulphur (0.005% to 0.017%). The finish are available for Ra 40 uin or Ra 25 u-in.
The standard bare stem type is well designed for mounting actuator directly. VERVO offer pneumatic/ electric actuator and limit switch box/ solenoid valve/ modulating controller....assembling without further charge.


Keywords of Direct Mount Ball Valve 3 Piece Ball Valve Forged Steel SS316 1/2inch With Top Flange 1000psi Npt DN15

Direct Mount Ball Valve 3 Piece Ball Valve Forged Steel SS316 1/2inch With Top Flange 1000psi Npt DN15 0

DN15 Ball Valve,SS316 Ball Valve,3 Piece Ball Valve,Soft Seal Ball Valve,Three Piece Ball Valve,Forged steel Stainless Steel Ball Valve,Metal to Metal Seat Ball Valve,Direct Mount Ball Valve,1000Psi Ball Valve
