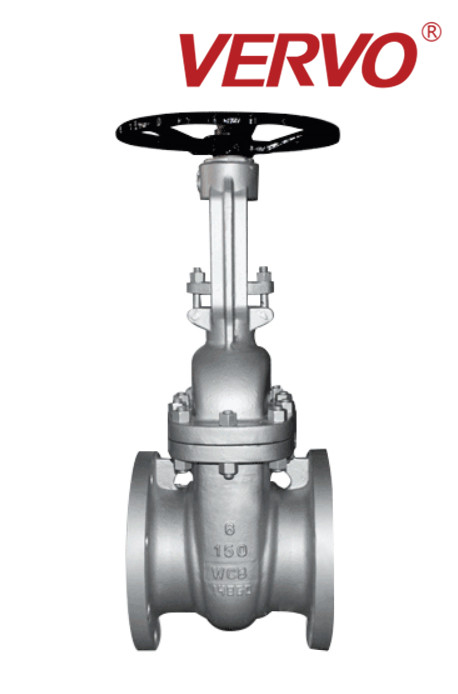

Bolted Bonnet Wedge Type Cast Steel Gate Valve Welding Seat Rings

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/CE/ISO
Model Number: Z41Y-PN800-DN15
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1 month
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 40000pcs/month
High Light:

Wedge type gate valves

,

Bolted Bonnet Cast Steel Gate Valve

,

Welding Seat Rings Gate Valve



Product Description

Wedge type gate valves are manufactured to the latest edition of API Standard 600 and tested to API Standard 598.



Applicable Standards:

– gate valves design according to API600, ASME B16.34

– Face to face ASME B16.10

– End Flanges ASME B16.5/ASME B16.47

– Buttwelding ends ASME B16.25

– Inspection and test API 598



Pressure Range:

– ASME CL150, CL300, CL600, CL900, CL1500



Working temp:

– -196°C~650°C



Size Range:

– 2”~36”



End Connection:

– Flanged, butt weld



Body Material:

– A216 WCB, A217 WC6/WC9, A351 CF8/ CF8M, A352 LCB/LCC



Operation:

– manual, handwheel, gear, electric, pneumatic, hydraulic

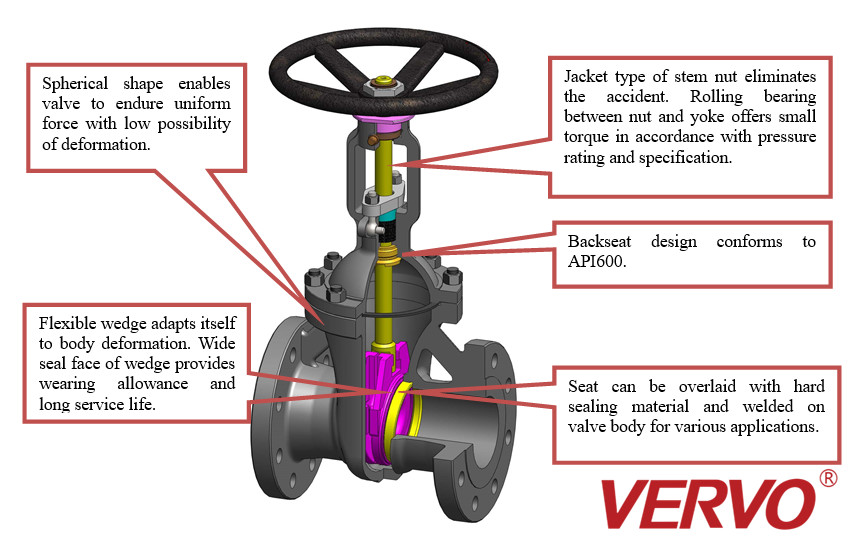

Design Description:

– Outside Screw and York

– Bolted Bonnet and Pressure Seal

– Flexible wedge, fully guided

– Welding seat rings or Renewable seat rings

– Rising stem and non-rising stem

– Available with gear operator

– Flange Ends

– Buttwelding Ends



Keywords of VERVO Wedge type gate valves are manufactured to the latest edition of API Standard 600 and tested to API Standard 598.

Bolted Bonnet Wedge Type Cast Steel Gate Valve Welding Seat Rings 0

DN200 Gate Valve,DIN STANDARD Gate Valve, GS C25 Gate Valve, 8 Inch Gate Valve, Class600 Gate Valve, PN100 Gate Valve, RF Flanged Gate Valve, Full Bore Gate Valve, Cast Steel Gate Valve, LCB Gate Valve,LCC Gate Valve,CF8 Gate Valve,CF8M Gate Valve, 4A Gate Valve, 5A Gate Valve,ASME B16.34 Gate Valve,API603 Gate Valve
