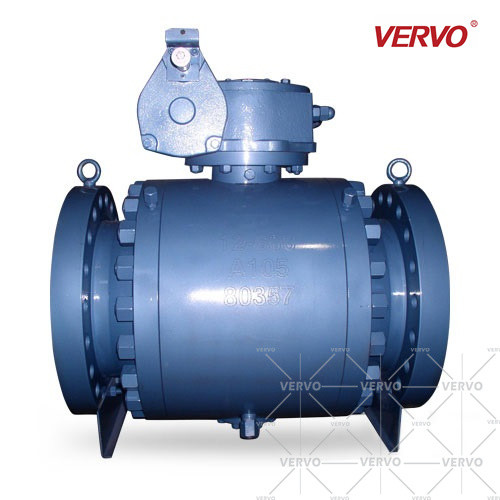

Full Bore Api 6d Api 598 12 Trunnion Ball Valve Manufacturer A105 600 Lb Rtj

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/ISO/CE
Model Number: Q47F-DN300-600LB
Minimum Order Quantity: 1
Packaging Details: plywood case
Delivery Time: 30
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 400000
Design Standard: API 6D Body Material:: ASTM A105
Nominal Diameter: 12 Inch/300MM/DN300 Pressure: 600 LB
End Connection.: RTJ FLANGE Face To Face: ASME B16.10
Test And Inspection: API 598
High Light:

API 598 12 Trunnion Ball Valve

,

API 598 12 Trunnion Ball Valve A105

,

full bore trunnion mounted ball valves

12 Trunnion Ball Valve A105 600 LB RTJ API 6D FULL BORE

VERVO trunnion ball valves are offered in 2 PC side entry, 3 PC side entry, welded body and top entry design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO trunnion ball valves are manufactured according to API 6D Design and fire safe tested per API 6FA and API 607 Standard.

EMERGENCY SEALS

Full Bore Api 6d Api 598 12 Trunnion Ball Valve Manufacturer A105 600 Lb Rtj 0

For trunnion mounted ball valve size NPS 6 (DN 150) and above, it comes with provisions for sealant injection on both the stem and seat while for sizes NPS 5 (DN125) and below on body cavity. In case of failed underperformed seals, a temporary emergency seal can be achieved by injecting sealants.

ANTI-STATIC

Full Bore Api 6d Api 598 12 Trunnion Ball Valve Manufacturer A105 600 Lb Rtj 0

Because the ball and stem in a ball valve are suspended on non-metallic parts, i.e. the seat seal and stem seal, there is a possibility a static charge may build up on the stem-ball, a mechanical (antistatic metal spring and ball) is introduced in the design to maintain the metal- to-metal contact between the rotating ball/stem and the valve body which will ground any charges to the valve body.



BLOWOUT PROOF STEM

Full Bore Api 6d Api 598 12 Trunnion Ball Valve Manufacturer A105 600 Lb Rtj 0

The valve stem is made with a shoulder at the bottom end. It’s securely retained by the stuffing box, to avoid that the stem, under certain operating conditions, accidentally blows out. Other designs are available on request.

Body material: Available Forged (A105, A182 F304, F304L, F316, F316L, F51, F53, A350 LF2, LF3, LF5,) Casting (A216 WCB, A351 CF3, CF8, CF3M, CF8M, A995 4A, 5A, A352 LCB, LCC, LC2) Monel, Inconel, Hastelloy

Normal diameter:

Sizes:NPS 2 to NPS 48
Class:150 to Class 2500

End connection: BW, Flanged.
Pressure range: 150 lbs~250 lbs (PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actutor, Gas Over Oil Actuator.
Working temperature: -46℃~+200℃.

DESIGN FEATURES

Full Bore Api 6d Api 598 12 Trunnion Ball Valve Manufacturer A105 600 Lb Rtj 0
Full or Reduced Bore
RF, RTJ, BW or PE
Side entry, top entry, or welded body design
Double Block & Bleed (DBB),Double Isolation & Bleed (DIB)
Emergency seat and stem injection
Anti-Static Device

DESIGN STANDARD

Full Bore Api 6d Api 598 12 Trunnion Ball Valve Manufacturer A105 600 Lb Rtj 0

Design & manufacture according to API 6D, API 608, ISO 17292
Face-to-face according to API 6D, ASME B16.10
End Connection according to ASME B16.5, ASME B16.47, MSS SP-44 (NPS 22 Only)
Test & inspection according to API 6D, API 598
Fire safe design according to API 6FA, API 607
Also available per NACE MR-0175, NACE MR-0103, ISO 15848

Full Bore Api 6d Api 598 12 Trunnion Ball Valve Manufacturer A105 600 Lb Rtj 5

ASME CLASS 600 (PN 100) FULL BORE

Size

in/mm



D



D1

L Casting Forging Weight
RF RTJ BW A B C A B C

RF/RTJ

(lb/kg)

BW

(lb/kg)

2

50

1.93

49

1.93

49

11.5

292

11.63

295

11.5

292

3.7

95

5.7

145

6.5

165

3.3

83

5

126

6.5

165

62

28

57

26

2 ½

65

2.44

62

2.44

62

13

330

13.13

333

13

330

3.9

100

6.3

160

7.7

195

3.7

95

5.9

150

7.4

188

119

54

106

48

3

80

2.94

74

2.94

74

14

356

14.13

359

14

356

5

128

7.2

184

8.3

210

4.6

117

6.1

155

8.3

210

165

75

159

72

4

100

3.94

100

3.94

100
