| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/CE/ISO |
| Model Number: | J41Y-600LB-DN20 |
| Minimum Order Quantity: | 10 |
| Price: | Negotiable |
| Packaging Details: | plywood case |
| Delivery Time: | 1 week |
| Payment Terms: | L/C, T/T, Western Union, D/A |
| Supply Ability: | 40000pcs/month |
| Name: | Forged Steel Carbon Steel Globe Valve | Media: | Oli,Gas,Water |
|---|---|---|---|
| Standard: | API602/BS5352/GOST/JIS/DIN/ISO | Pressure: | 150LB-800LB,1500LB,2500LB |
| Power: | Manual,Pneumatic,Solenoid,Electrical Actuated | Temperature Of Media: | Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃) |
| Size: | 1/4"-4",DN8-DN100 | ||
| High Light: | BS5352 Industrial Globe Valve,Industrial Globe Valve Dn2,api 602 globe valves |
||

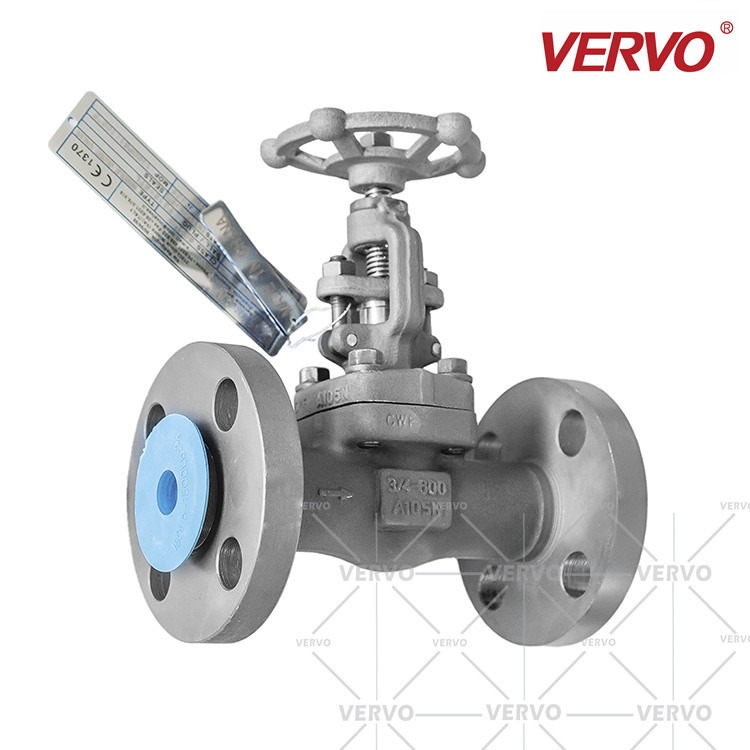

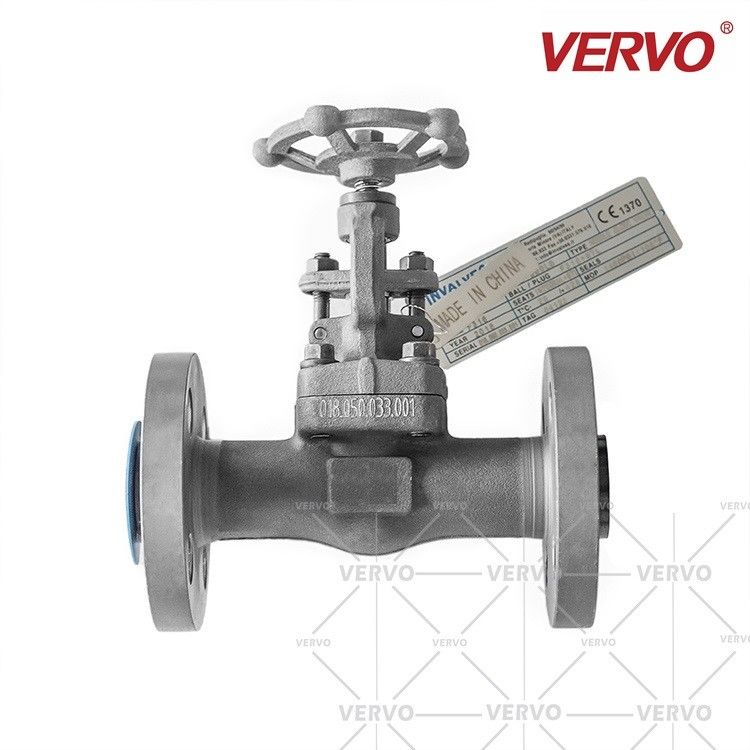

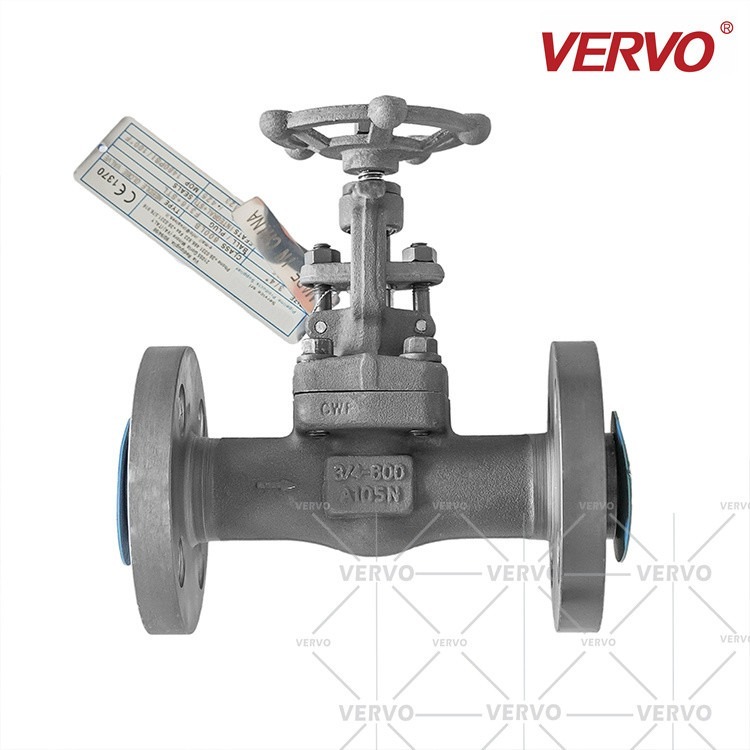

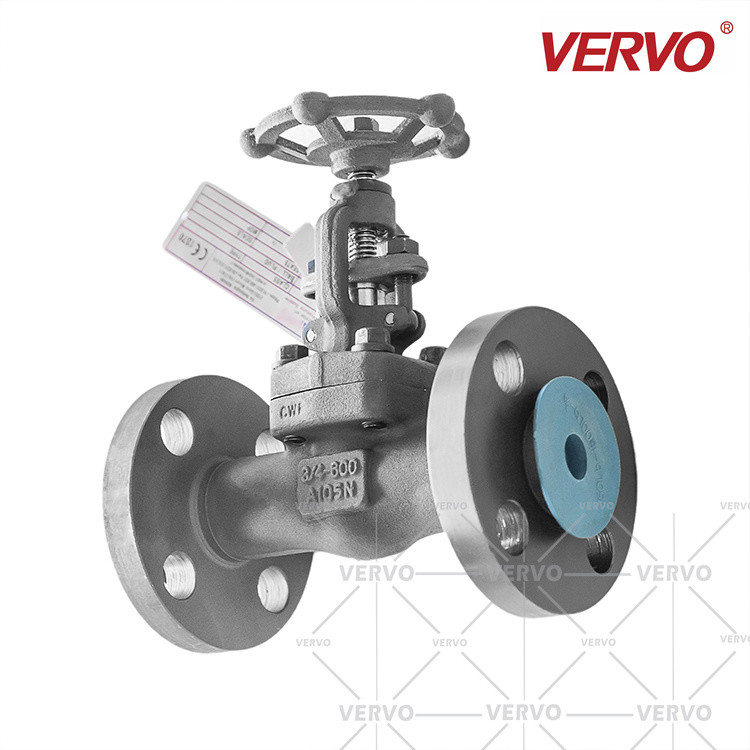

Industrial Globe Valve API602 Valve BS5352 Forged Steel A105n 3/4 Inch Dn20 600lb Rf Welded Flanged Globe Valve
VERVO forged steel globe valves are offered in straight pattern, Y-pattern, bolted bonnet and welded bonnet design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO forged steel globe valves are manufactured according to API 602 Design.
PRODUCT RANGE
Sizes NPS 1/2 to NPS 4
Class 800 to Class 2500
MATERIALS
Available in Forged (A105, A350 LF2, A182 F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51), Alloy 20, Monel, Inconel, Hastelloy
DESIGN FEATURES
SW, NPT, RF, or BW
Outside Screw & Yoke (OS&Y)
Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet
DESIGN STANDARD
Design & manufacture according to API 602, ASME B16.34
End Connection according to ASME B16.11 (SW), ASME B1.20.1 (NPT), ASME B16.5 (RF, RTJ)
Test & inspection according to API 598
Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624
| Model number | J41Y-600LB-DN20 |
| Item | Industrial Globe Valve |
| Certification | ISO9001,ISO14001,ISO18001,TS,CE,API |
| Connection form | Flanged |
| Body material | Forged Steel Carbon Steel A105N |
| Seal material | Gasket |
| Feature | Easy disassembly and assembly |
 |
||||||||
| CL150~CL600 | Bolt Bonnet (BB), Reduce Port (RP), Outside Screw and Yoke (OS&Y), Flanged (RF/RTJ) |
|||||||
| Size (NPS) |
R.P | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
| Face To Face | CL150 | L (RF) |
108 | 117 | 127 | 140 | 165 | 203 |
| CL300 | 152 | 178 | 203 | 216 | 229 | 267 | ||
| CL600 | 165 | 190 | 216 | 229 | 241 | 292 | ||
| Handwheel Diameter | W | 100 | 100 | 125 | 160 | 160 | 180 | |
| Height | H | 170 | 172 | 207 | 228 | 270 | 320 | |
| Flow Port Diameter | d | 10.5 | 13.5 | 17 | 22 | 28 | 34 | |
| Weight (Kg) |
CL150 | B.B | 4.1 | 4.8 | 7.1 | 10 | 12.7 | 21 |
| CL300 | 4.8 | 6.7 | 10 | 14.5 | 18.3 | 25.2 | ||
| CL600 | 5.4 | 7.4 | 11 | 16 | 19.2 | 28.8 | ||
 |
||||||||
| CL900~CL1500 | Bolt Bonnet (BB), Reduce Port (RP), Outside Screw and Yoke (OS&Y), Flanged (RF/RTJ) |
|||||||
| Size (NPS) |
R.P | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
| Face To Face | CL900 | L (RF) | 216 | 229 | 254 | 279 | 305 | 368 |
| CL1500 | ||||||||
| Handwheel Diameter | W | 100 | 100 | 125 | 160 | 160 | 180 | |
| Height | H | 170 | 172 | 207 | 228 | 270 | 320 | |
| Flow Port Diameter | d | 10.5 | 13.5 | 17 | 22 | 28 | 34 | |
| Weight (Kg) | CL900 | B.B | 10.1 | 13 | 18.3 | 26 | 32.8 | 54 |
| CL1500 | ||||||||
