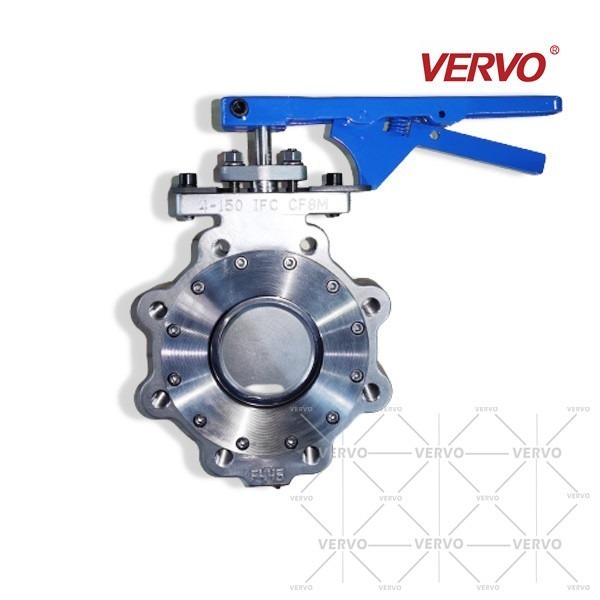

4 Inch Lug Double Eccentric Butterfly Valve PN20 A351 Cf8m 150Lb 100mm PTFE Seat Double Offset Butterfly Valve

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/ISO/CE
Model Number: BV47F
Minimum Order Quantity: 1
Packaging Details: plywood case
Delivery Time: 30
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 400000
Design Standard: API 609 Body Material:: Casting Steel Stainless Steel A351 CF8M
Nominal Diameter: 4Inch/DN100/100MM Pressure: 150LB/Class 150
End Connection.: LUG Type End Face To Face: API 609
Test And Inspection: API 598
High Light:

4 Inch Double Eccentric Butterfly Valve

,

Double Eccentric Butterfly Valve PN20

,

eccentric butterfly valve A351

4 Inch Lug Double Eccentric Butterfly Valve PN20 A351 Cf8m 150Lb 100mm PTFE Seat Double Offset Butterfly Valve



VERVO High performance butterfly valve is a new butterfly valve designed on the basis of advantages absorbed from several different structures of butterfly valves. The seal surface of the disk is spherical arc, and the seal structure achieves a real dynamic seal through the system pressure, so it has excellent cut-off performance and durability. Its advantages are small size, light weight, owning a wide range of manufacturing, easy to repair and maintenance.



Basic Info

4 Inch Lug Double Eccentric Butterfly Valve PN20 A351 Cf8m 150Lb 100mm PTFE Seat Double Offset Butterfly Valve 0
●Connection: Lug
●Seal: Soft Sealed
●Work Pressure: High Pressure (Pn<10Mpa)
●Material of Seal Surface: Soft Sealed
●Application: Industrial Usage, Water Industrial Usage, Household Usage
●Driving Mode: Worm Gear
●Structure: Double Eccentric/Double Offset
●Valve Stem: Normal
●Working Temperature: Low Temperature (T<150°C)
●Valve Body: Casting
●Size: 2" to 64"



1.Descriptions of product

4 Inch Lug Double Eccentric Butterfly Valve PN20 A351 Cf8m 150Lb 100mm PTFE Seat Double Offset Butterfly Valve 0
Body: Carbon Steel/Stainless Steel
Disc: Carbon Steel/ Stainless Steel/Monel
Shaft: Stainless Steel/mMonel
Seat: PTFE/RPTFE/PPL
SIZE:DN50-DN1600
Operator:Worm Gear, Electric Actuator, Pneumatic Actuator

2.Uses of product

4 Inch Lug Double Eccentric Butterfly Valve PN20 A351 Cf8m 150Lb 100mm PTFE Seat Double Offset Butterfly Valve 0
This product working temperature is -35° C-150° C and suitable for throttling or shutting off the flow of corrosive or incorrosive gases, liquids, semliquids, semiliquids and solid powder, and can be installed in and selected position in pipelines or on vessels in the industries of petroleum processing, chemicals, food, medicine, textile, paper making, hydroelectricity engineering, Ship building, water supply and sewage, metallurgy, energy engineering as well as light industry, etc.

                                       4 Inch Lug Double Eccentric Butterfly Valve PN20 A351 Cf8m 150Lb 100mm PTFE Seat Double Offset Butterfly Valve 3       4 Inch Lug Double Eccentric Butterfly Valve PN20 A351 Cf8m 150Lb 100mm PTFE Seat Double Offset Butterfly Valve 4

                                                     4 Inch Lug Double Eccentric Butterfly Valve PN20 A351 Cf8m 150Lb 100mm PTFE Seat Double Offset Butterfly Valve 5                        4 Inch Lug Double Eccentric Butterfly Valve PN20 A351 Cf8m 150Lb 100mm PTFE Seat Double Offset Butterfly Valve 6

The Design of High Performance Butterfly Valve

                                                                        4 Inch Lug Double Eccentric Butterfly Valve PN20 A351 Cf8m 150Lb 100mm PTFE Seat Double Offset Butterfly Valve 7

                                                                                          Centerline of Seal Surface

Design Criteria Flange Standard Face-to-face Length Standard Test Standard
GB/T 12238 GB/T 9113 GB/T 12221 GB/T 13927
EN593 EN1092 EN558 EN12266-1
API 609 ASME B 16.5 ASME B 16.47B API 609 ASME B 16.10 API 598
  1. The double soft seal design of the high performance butterfly valve gives it zero leakage performance.

  2. The high performance butterfly valve can get the disk detached from the seat quickly when the valve is opened,greatly eliminating the unnecessary over extrusion and scraping between the disk and the seat, reducing the opening resistance torque as well as the wear, and increasing the seat life.

  3. The seat design of the high performance butterfly valve adopts different non metallic materials according to different customers to meet different working conditions. It can also use both soft seal and metal seal to make the valve fire seal by creating a double seal structure.

  4. The external blow out proof stem of the high performance butterfly valve is safe and reliable, and conforms

​                                              4 Inch Lug Double Eccentric Butterfly Valve PN20 A351 Cf8m 150Lb 100mm PTFE Seat Double Offset Butterfly Valve 8

o

U)
CLASS150



DN L D2 D3 f n-M ISO5211 Nm Weight CV H H1 H2
2"(DN50) 43 120.7 92.1 2 4-5/8-11UNC F07 24 5 65 64 162 40
2.5"(DN65) 46 139.7 104.8 2 4-5/8-11UNC F07 35 6 113 70 172 40
3"(DN80) 48 152.4 127 2 4-5/8-11 UNC F07 47 7 172 85 182 40
4"(DN100) 54 190.5 157.2 2 8-5/8-11 UNC F07 75 10 385 92 208 40
5"(DN125) 57 215.9 185.7 2 8-3/4-10UNC F07 112 12 658 117 222 40
6"(DN150) 57 241.3 215.9 2 8-3/4-10UNC F10 169 16 1050 150 272 40
8"(DN200) 64 298.5 269.9 2 8-3/4-10UNC F10 325 30 2180 187 307 60
10"(DN250) 71 362 323.8 2 12-7/8-9UNC F12 558 48 3280 215 337 60
12"(DN300) 81 431.8 381 2 12-7/8-9UNC F14 1200 75 5100 252 380 80
14"(DN350) 92 476.3 412.8 2 12-1-8UNC F16 1620 90 5800 287 405 80
16"(DN400) 102 539.8 469.9 2 16-1-8UNC F16 2130 100 9287 317 468 80
18"(DN450) 114 577.9 533.4 2 16-1 1/8-8UN F16 3100 150 11400 347 485 90
20"(DN500) 127 635 584.2 2 20-1 1/8-8UN F16 4000 210 13800 380 510 90
22"(DN550) 154 692.2 641.4 2 20-1 1/4-8UN F25 5200 250 17000 430 575 90
24"(DN600) 154 749.3 692.2 2 20-1 1/4-8UN F25 5800 300 21600 452 605 90





































CLASS300



























DN

2"(DN50)

L

D2

D3

f

n-M

ISO5211

Nm

Weight

cv

H

H1

H2

43

127

92.1

2

8-5/8-11UNC

F07

70

7

65

64

162

40

2.5"(DN65)

46

149.2

104.8

2

8-3/4-10UNC

F07

95

9

113

70

172

40

3"(DN80)

48

168.3

127

2

8-3/4-10UNC

F07

112

13

172

98.5

197

40

4"(DN100)

54

200

157.2

2

8-3/4-10UNC

F07

146

16

385

120

222

40

5"(DN125)

59

235

185.7

2

8-3/4-10UNC

F07

248

23

658

165

250

60

6"(DN150)

59

269.9

215.9

2

12-3/4-1OUNC

F10

378

30

1050

178

264

60

8"(DN200)

73

330.2

269.9

2

12-7/8-9UNC

F12

852

38

1895

215

323

60

10"(DN250)

83

387.4

323.8

2

16-1-8UNC

F14

1390

80

3050

252

358

60

12"(DN300)

92

450.8

381

2

16-1 1/8-8UN

F16

2200

110

4800

286

414

80

14"(DN350)

117

514.4

412.8

2

20-1 1/8-8UN

F16

3450

160

5395

324

456

90

16"(DN400)

133

571.5

469.9

2

20-1 1/4-8UN

F25

4080

250

7900

345

510

90

18"(DN450)

149

628.6

533.4

2

24-1 1/4-8UN

F25

5920

350

10086

405

550

110

20"(DN500)

159

685.8

584.2

2

24-1 1/4-8UN

F25

7900

450

11300

435

580

120

22"(DN550)

181

743

641.4

2

24-1 1/2-8UN

F25

10500

530

13000

480

610

150

24"(DN600)

181

812.8

692.2

2

24-1 1/2-8UN

F25

11800

610

16980

505

645

150

Keywords of 4 Inch Double Eccentric Butterfly Valve PN20 A351 Cf8m 150 Lb 100mm PTFE Seat Double Offset Butterfly Valve High Performance Butterfly Valve

4 Inch Lug Double Eccentric Butterfly Valve PN20 A351 Cf8m 150Lb 100mm PTFE Seat Double Offset Butterfly Valve 9

4 Inch Double Eccentric Butterfly Valve,PN20 A351 Cf8m High Performance Butterfly Valve,150 Lb High Performance Butterfly Valve,100mm PTFE Seat Double Offset Butterfly Valve,DN100 High Performance Butterfly Valve
