Design Standard: | API602/BS5352 | Body Material:: | A182 F316L |
---|---|---|---|
Nominal Diameter: | DN25/25MM/1INCH | Pressure: | 600LB |
End Connection.: | RF FLANGE | Face To Face: | ASME B16.10 |
Test And Inspection: | API 598 |

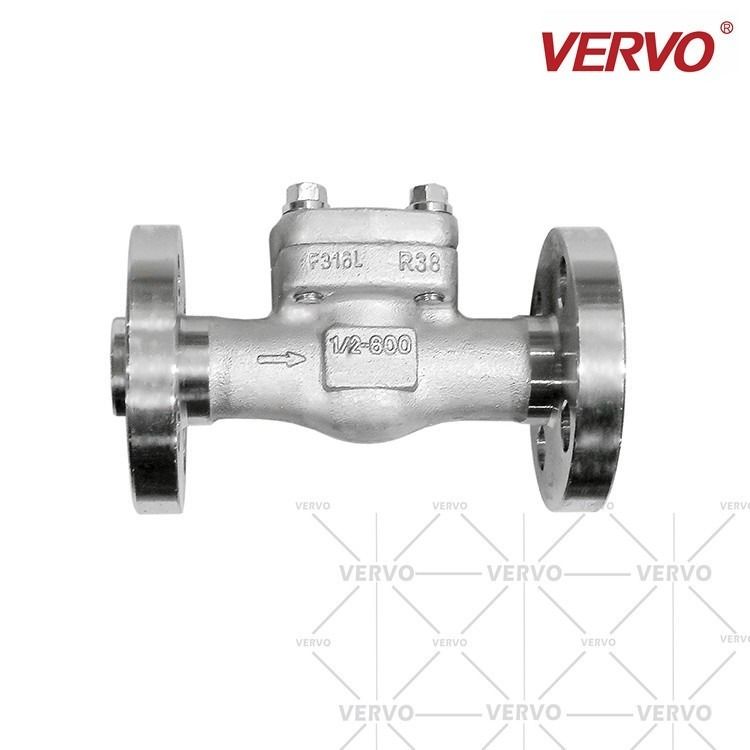

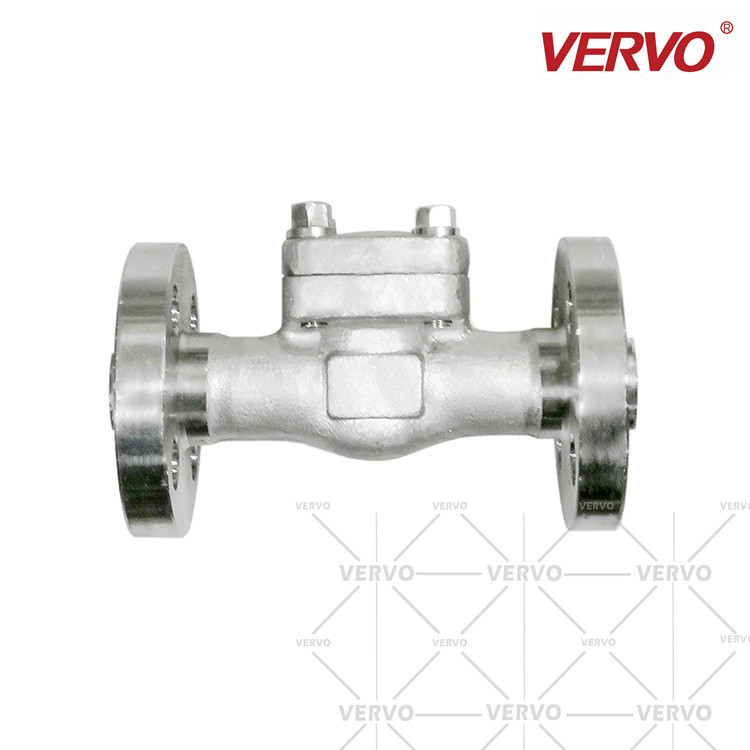

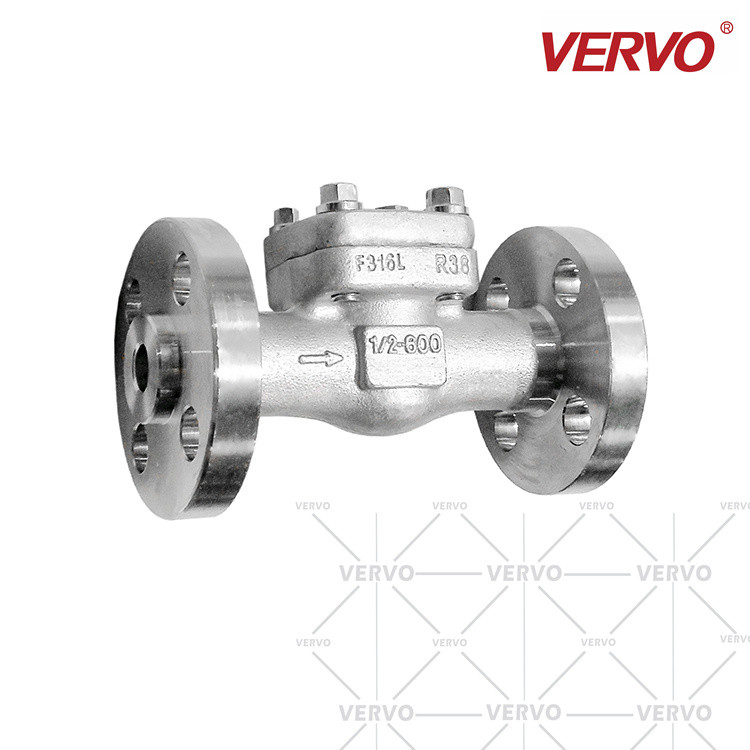

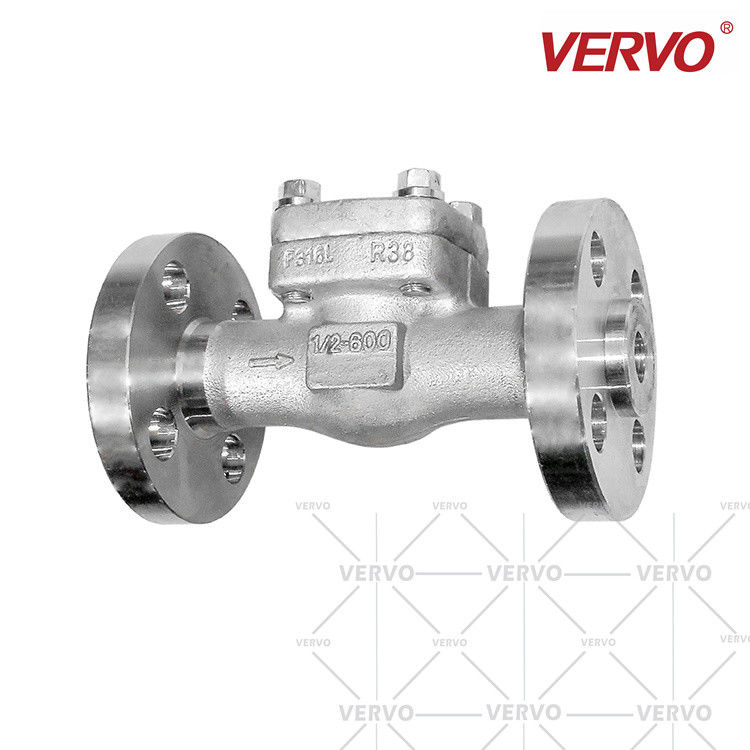

API602 Swing Check Valve Forged Steel Stainless Steel Check Valve Dn25 600lb Rf Flanged Bolted Cover Forged Steel Valves
VERVO Forged check valve is engineered using best available cutting edge techniques and following international industrial standard. With the availability in various technical specifications, dimensions, sizes and range, these products are easily available with us. These are engineered from finest quality components including a105, f11, f22, lf2, f304, f304l, f316, f316l and others which make these extensively durable and robust. We ensure high tensile strength, corrosion resistance and durability of these products. Besides, these are acclaimed for its longer functional life, precise design and optimum quality. These are properly quality checked on various parameters to ensure delivery of flawless range at clients’ end. These are available with us in various standard sizes including 15 mm to 50 mm. These are admired for its corrosion resistance, easy installation and optimum strength. Besides, its lift type design make it extensively application specific.
Forged Steel Check Valve
forged steel check valves are offered in swing type, lift type, bolted bonnet and welded bonnet design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. FBV forged steel check valves are manufactured according to API 602 Design.
PRODUCT RANGE
Sizes NPS 1/2 to NPS 4
Class 800 to Class 2500
MATERIALS
Available in Forged (A105, LF2, F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51), Alloy 20, Monel, Inconel, Hastelloy
DESIGN FEATURES
SW, NPT, RF or BW
Outside Screw & Yoke (OS&Y)
Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet
DESIGN STANDARD
Design & manufacture according to API 602, ASME B16.34
End Connection according to ASME B16.11 (SW), ASME B1.20.1 (NPT), ASME B16.5 (RF, RTJ)
Test & inspection according to API 598
Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624
DIMENSIONS AND WEIGHTS (Check Valve )
CL800 CL900~CL1500 | Bolt Cover (BC)/ Welding Cover (WC) Full Port (FP) Thread (NPT), Socket Weld (SW), Butt Weld (BW) |
|||||||
Size (NPS) | F.P | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
Face To Face | CL800 | L | 100 | 100 | 120 | 140 | 140 | 172 |
CL900 CL1500 |
100 | 120 | 140 | 140 | 172 | 220 | ||
Height | H | 70 | 70 | 70 | 100 | 110 | 120 | |
Flow Port Diameter | d | 13.5 | 17 | 22 | 28 | 34 | 44 | |
Weight (Kg) | CL800 | B.B | 2.2 | 2.2 | 2.2 | 4.2 | 9 | 9 |
W.B | 2.1 | 2.1 | 2.1 | 4 | 8.8 | 8.8 | ||
CL900 CL1500 | B.B | 4.2 | 9 | 9 | 10 | 18.6 | 20 | |
W.B | 4 | 8.8 | 8.8 | 9.7 | 18.2 | 19.5 | ||
CL150~CL600 | Bolt Cover (BC)/ Welding Cover (WC) Reduce Port (RP), Flanged (RF/RTJ) |
|||||||
Size (NPS) |
R.P | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
Face To Face | CL150 | L (RF) | 108 | 117 | 127 | 140 | 165 | 203 |
CL300 | 152 | 178 | 203 | 216 | 229 | 267 | ||
CL600 | 165 | 190 | 216 | 229 | 241 | 292 | ||
Height | H | 55 | 55 | 65 | 80 | 85 | 105 | |
Flow Port Diameter | d | 10.5 | 13.5 | 17 | 22 | 28 | 34 | |
Weight (Kg) |
CL150 | B.B | 3.5 | 3.5 | 4.7 | 8.5 | 11.5 | 13 |
CL300 | 3.5 | 3.5 | 5.6 | 8.6 | 12 | 14 | ||
CL600 | 3.5 | 3.5 | 6.5 | 10.5 | 16 | 22 | ||
CL900 CL1500 | Bolt Cover (BC)/ Welding Cover (WC) Reduce Port (RP), Flanged (RF/RTJ) |
|||||||
Size (NPS) |
R.P | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
Face To Face | CL900 CL1500 | L (RF) | 216 | 229 | 254 | 279 | 305 | 368 |
Height | H | 55 | 55 | 65 | 80 | 85 | 105 | |
Flow Port Diameter | d | 10.5 | 13.5 | 17 | 22 | 28 | 34 | |
Weight (Kg) | CL150 CL300 | B.B | 4.5 | 5.8 | 8.7 | 14.5 | 22 | 32 |
1.The dimension and weights are for reference only and subject to change without notice.
2.The flanged valve are defaulted by integral flange.
3.For more size or dimensional information, please contact our sales representative.
