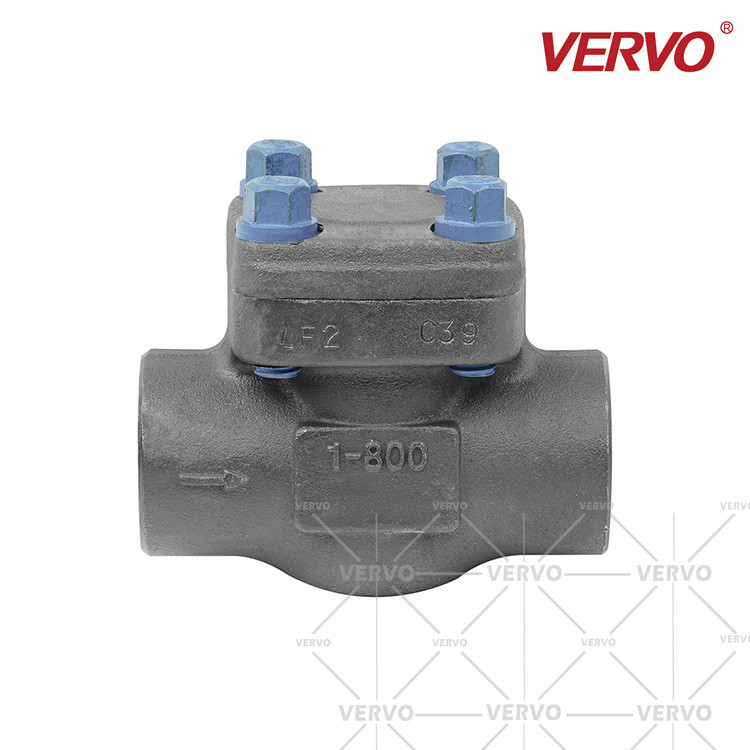

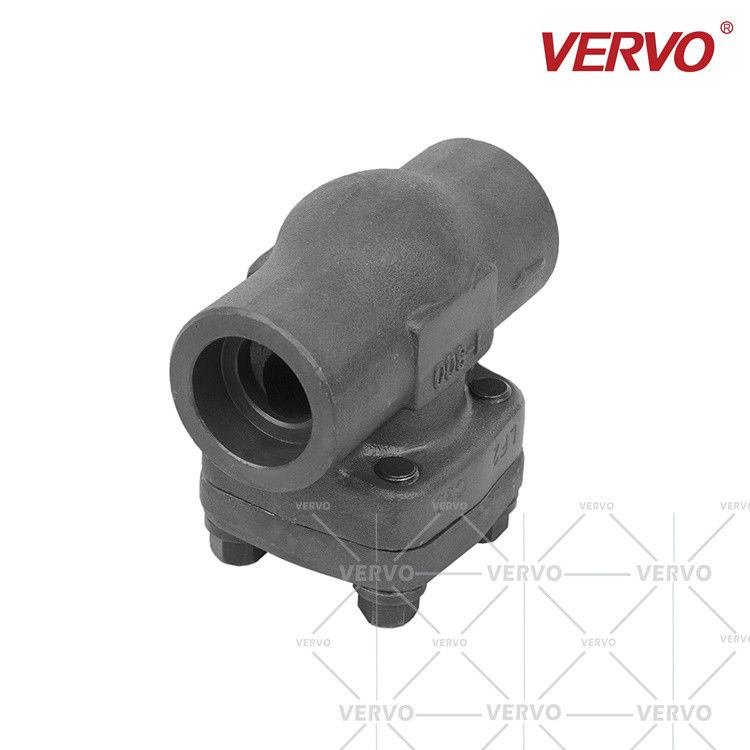

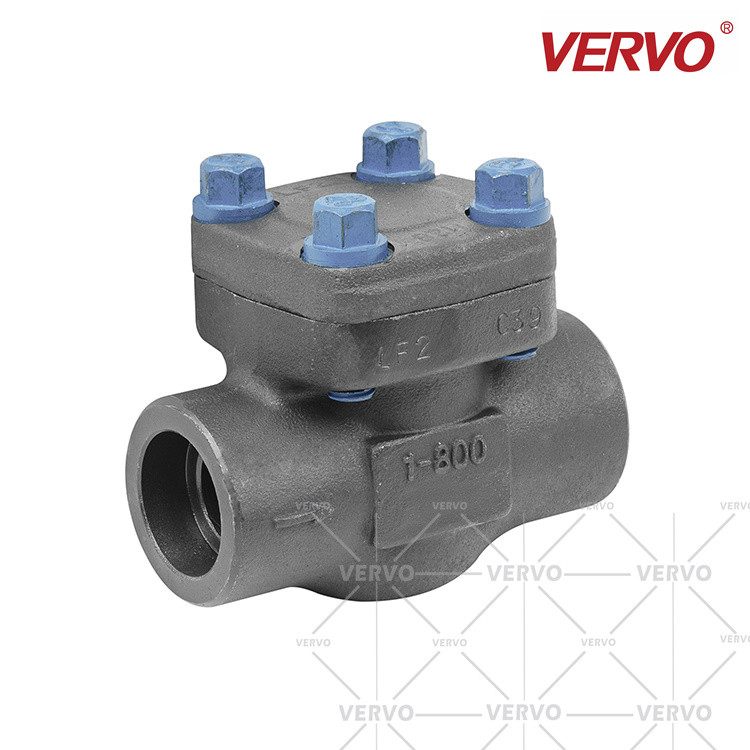

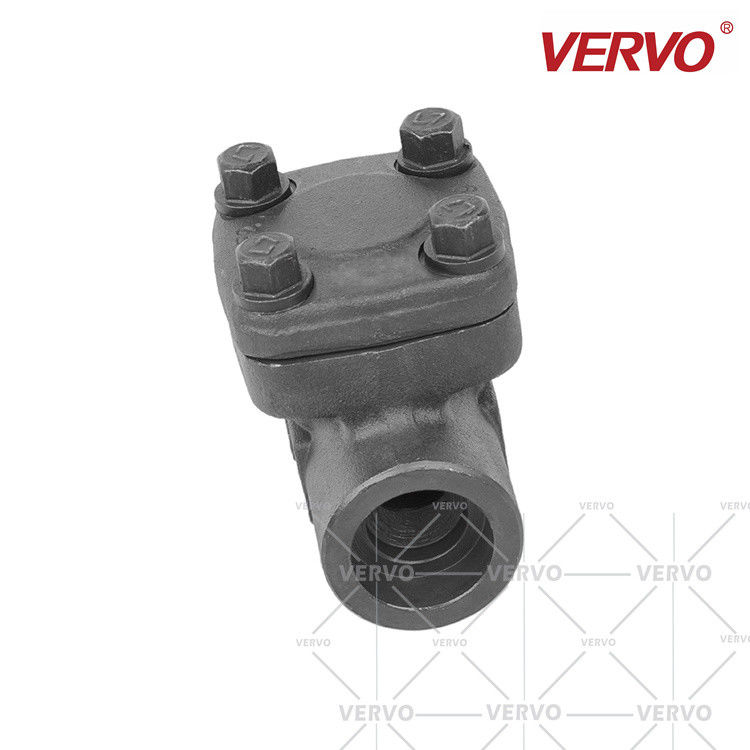

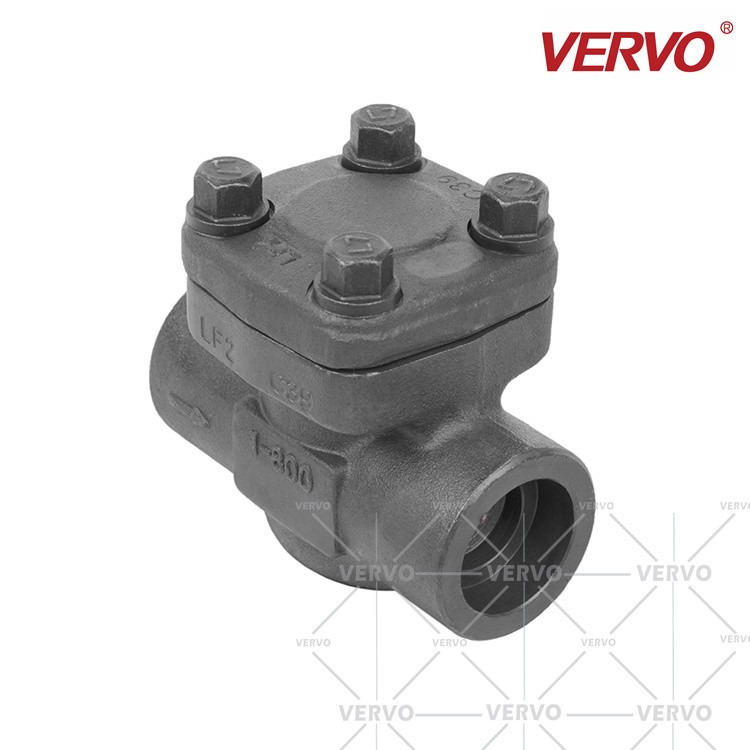

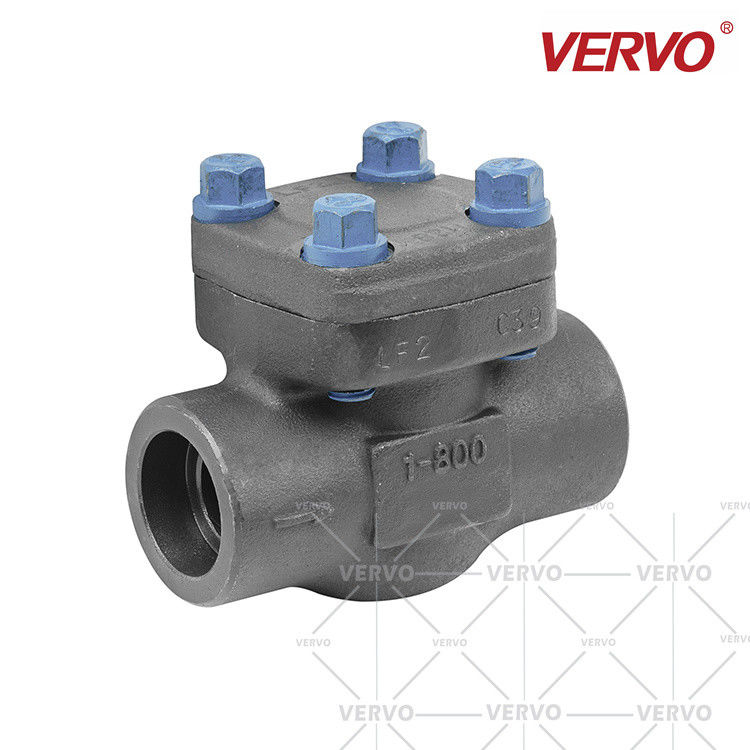

Dn25 Class 800 Piston Lift Check Valve In Vertical Position LF2 Bolted Bonnet High Pressure

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/ISO/CE
Model Number: H61Y-800LB-DN25
Minimum Order Quantity: 1
Packaging Details: plywood case
Delivery Time: 30
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 400000
Design Standard: API602 Body Material:: A350 LF2
Nominal Diameter: DN25 25MM 1INCH Pressure: 800LB
End Connection.: SW Face To Face: Factory STD
Test And Inspection: API 598
High Light:

Dn25 Piston Lift Check Valve

,

Dn25 Class 800 Piston Lift Check Valve

,

LF2 bolted bonnet piston check valve

Vertical Lift Check Valve Carbon Steel LF2 Dn25 800lb Bolted Bonnet High Pressure Check Valve Piston Type Check Valve



Forged Steel Check Valve

Dn25 Class 800 Piston Lift Check Valve In Vertical Position LF2 Bolted Bonnet High Pressure 0

VERVO forged steel check valves are offered in swing type, lift type, bolted bonnet and welded bonnet design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO forged steel check valves are manufactured according to API 602 Design.



PRODUCT RANGE

Dn25 Class 800 Piston Lift Check Valve In Vertical Position LF2 Bolted Bonnet High Pressure 0

Sizes NPS 1/2 to NPS 4

Class 800 to Class 2500



MATERIALS

Dn25 Class 800 Piston Lift Check Valve In Vertical Position LF2 Bolted Bonnet High Pressure 0

Available in Forged (A105, LF2, F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51), Alloy 20, Monel, Inconel, Hastelloy



DESIGN FEATURES

Dn25 Class 800 Piston Lift Check Valve In Vertical Position LF2 Bolted Bonnet High Pressure 0

SW, NPT, RF or BW

Outside Screw & Yoke (OS&Y)

Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet



DESIGN STANDARD

Dn25 Class 800 Piston Lift Check Valve In Vertical Position LF2 Bolted Bonnet High Pressure 0

Design & manufacture according to API 602, ASME B16.34

End Connection according to ASME B16.11 (SW), ASME B1.20.1 (NPT), ASME B16.5 (RF, RTJ)

Test & inspection according to API 598

Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624

DIMENSIONS AND WEIGHTS (Check Valve - Lift Type )



Model number H61Y-800LB-DN25
Item Carbon steel Check Valve
Certification ISO9001,ISO14001,ISO18001,CE,TS,API
Port Size 1''
Connection form Socket welding
Body material Carbon steel
Structure type lift check valve
Feature Easy disassembly and assembly



DIMENSIONS AND WEIGHTS (Check Valve - Lift Type )

                  Dn25 Class 800 Piston Lift Check Valve In Vertical Position LF2 Bolted Bonnet High Pressure 5

CL800 Bolt Cover (BC)/ Welding Cover (WC)
Reduce Port (RP)/Full Port (FP)
Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size (NPS) R.P 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2
F.P 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face L 79 92 111 120 152 172
Height H 55 55 65 80 85 105
Flow Port
Diameter
d 10.5 13.5 17 22 28 34
Weight (Kg) B.B 1.2 1.5 2.1 3.5 4.8 7.6
W.B 1.1 1.3 2 3.3 4.6 7.4
Dn25 Class 800 Piston Lift Check Valve In Vertical Position LF2 Bolted Bonnet High Pressure 6
CL900 CL1500 Bolt Cover (BC)/ Welding Cover (WC)
Reduce Port (RP)/Full Port (FP)
Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size (NPS) R.P 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2
F.P 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face L 92 111 120 152 172 220
Height H 55 65 80 85 105 115
Flow Port
Diameter
d 10.5 13.5 17 22 28 34
Weight (Kg) B.B 1.5 2.1 3.5 4.8 7.6 12.5
W.B 1.3 2 3.3 4.6 7.4 12.1
Dn25 Class 800 Piston Lift Check Valve In Vertical Position LF2 Bolted Bonnet High Pressure 7
CL2500 Welding Cover (WC),
Reduce Port (RP)/Full Port (FP)
Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size
(NPS)
R.P 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face L   120 120 152 172 220 220
Height H   80 80 85 105 115 115
Flow Port
Diameter
d   10.5 13.5 17 22 28 34
Weight
(Kg)
W.B   3.5 3.5 4.8 7.6 12.5 12.5
The dimension and weights are for reference only and subject to change without notice.
1. For more size or dimensional information, please contact our sales representative.

Keywords of Vertical Lift Check Valve Carbon Steel LF2 Dn25 800lb Bolted Bonnet High Pressure Check Valve Piston Type Check Valve

Dn25 Class 800 Piston Lift Check Valve In Vertical Position LF2 Bolted Bonnet High Pressure 8

800lb Piston Check Valve SW Piston Check Valve 1Inch Piston Check Valve Dn25 Piston Check Valve Asme 16.34 Piston Check Valve LF2 Piston Check Valve Low Temperature Piston Check Valve Rf Flanged Swing Check Valve Reduce Bore Swing Check Valve 25MM Swing Check Valve API602 Piston Check Valve API622 Packing API624 Check Valve
