| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/ISO/CE |
| Model Number: | H41W-CL600-16INCH |
| Minimum Order Quantity: | 1 |
| Packaging Details: | plywood case |
| Delivery Time: | 30 |
| Payment Terms: | T/T, L/C, D/P, Western Union |
| Supply Ability: | 400000 |
| Design Standard: | API6D/BS1868 | Body Material:: | A351 CF8M |
|---|---|---|---|
| Nominal Diameter: | 16INCH/DN400 | Pressure: | 600LB |
| End Connection.: | RTJ Flange | Face To Face: | ASME B16.10 |
| Test And Inspection: | API 598 | ||
| High Light: | vertical swing check valves DN400,SS Swing Check Valve DN400,nrv check valves |
||

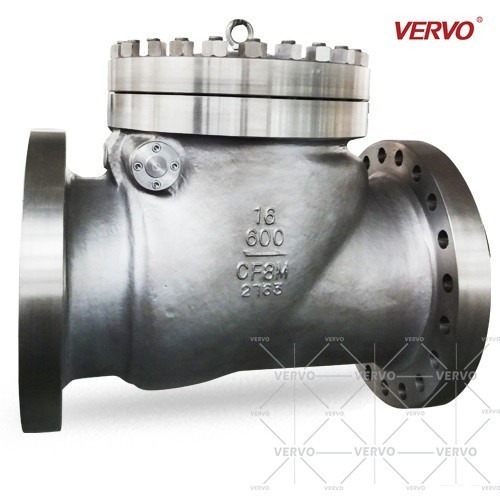

DN400 Swing Check Valve API6D 16INCH Check Valve CL600 RTJ Flange CF8M Full Bore NRV Vertical SS Swing Check Valve
| Item | 16 Inch Swing Check Valve |
| Certification | ISO9001,ISO14001,ISO18001,TS,CE,API |
| Brand | VERVO |
| Model number | H41W-CL600-16INCH |
| Port Size | 16INCH/DN400 |
| Structure type | Swing Check Valve |
| Pressure | 600LB |
| Temperature | -29~300Degree |
| Connection form | RTJ Flanged |
| Material | Stainless Steel A351 CF8M |
| Feature | Easy disassembly |
SWING CHECK VALVE
VERVO swing check valves are offered in bolted bonnet and welded bonnet design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO swing check valves are manufactured according to API 6D, BS 1868 Design.
PRODUCT RANGE
Sizes NPS 2 to NPS 36
Class 150 to Class 2500
MATERIALS
Available in Casting (A216 WCB, WC6, WC9, A350 LCB, A351 CF8, CF8M, CF3, CF3M, A995 4A, A995 5A, A995 6A), Alloy 20, Monel, Inconel, Hastelloy
DESIGN FEATURES
Full or Reduced Bore
RF, RTJ, or BW
Bolted Cover or Pressure Seal Cover
DESIGN STANDARD
Design & manufacture according to API 6D, BS 1868
Face-to-face according to ASME B16.10
End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)
Test & inspection according to API 598
Also available per NACE MR-0175, NACE MR-0103
|
Size in/mm |
D |
L |
H |
Weight (lb/kg) | ||
| RF | RTJ | BW | RF/RTJ | |||
|
2 50 |
2 51 |
11.5 292 |
11.61 295 |
11.5 292 |
6.7 170 |
57 26 |
|
2 ½ 65 |
2 ½ 64 |
13 330 |
13.11 333 |
13 330 |
7.4 188 |
70 32 |
|
3 80 |
3 80 |
14 356 |
14.13 359 |
14 356 |
9.37 238 |
108 49 |
|
4 100 |
4 102 |
17 432 |
17.13 435 |
17 432 |
11.42 290 |
189 86 |
|
6 150 |
6 152 |
22 559 |
22.13 562 |
22 559 |
14 355 |
555 252 |
|
8 200 |
7.87 200 |
26 660 |
26.10 663 |
26 660 |
16.34 415 |
945 429 |
|
10 250 |
9.76 248 |
31 787 |
31.1 790 |
31 787 |
18.82 478 |
1227 557 |
|
12 300 |
11.77 299 |
33 838 |
33.11 841 |
33 838 |
21.26 540 |
1467 670 |
|
14 350 |
12.87 327 |
35 889 |
35.12 892 |
35 889 |
22.83 580 |
2079 944 |
|
16 400 |
14.76 375 |
39 991 |
39.13 994 |
39 991 |
26.38 670 |
2863 1300 |
|
18 450 |
16.5 419 |
43 1092 |
43.11 1095 |
43 1092 |
30.94 786 |
3877 1760 |
|
20 500 |
18.27 464 |
47 1194 |
47.24 1200 |
47 1194 |
33.27 845 |
4846 2200 |
|
24 600 |
22 559 |
55 1397 |
55.39 1407 |
55 1397 |
37 940 |
6308 2864 |
|
28 700 |
25.51 648 |
63 1600 |
63.5 1613 |
63 1600 |
41.34 1050 |
7048 3200 |
|
32 800 |
29 737 |
70 1778 |
70.63 1794 |
70 1778 |
45.67 1160 |
8238 3740 |
|
36 900 |
32.64 829 |
82 2083 |
82.64 2099 |
82 2083 |
50 1270 |
9912 4500 |
