| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/ISO/CE |
| Model Number: | H41Y-CL150-DN300 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | plywood case |
| Delivery Time: | 30 |
| Payment Terms: | T/T, L/C, D/P, Western Union |
| Supply Ability: | 400000 |
| Design Standard: | API6D/BS1868 | Body Material:: | A216 WCB |
|---|---|---|---|
| Nominal Diameter: | 12INCH/DN300 | Pressure: | 150LB |
| End Connection.: | Raise Face Flange | Face To Face: | ASME B16.10 |
| Test And Inspection: | API 598 | ||
| High Light: | BS 1868 Flanged Swing Check Valve,Flanged Swing Check Valve A216 Wcb,swing check valve dn300 |
||

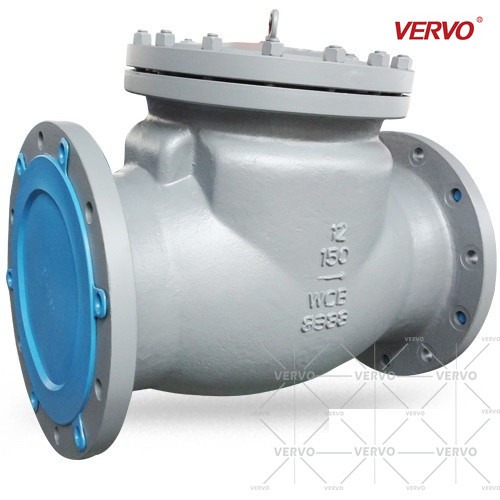

12Inch BS1868 Flanged Check Valve DN300 API6D Swing Check Valve CL150 RF Flanged A216 Wcb Full Bore Non Return Valve China Valve Supplier
| Item | 12Inch Swing Check Valve |
| Certification | ISO9001,ISO14001,ISO18001,TS,CE,API |
| Brand | VERVO |
| Model number | H41Y-150LB-DN300 |
| Port Size | 12INCH/DN300 |
| Structure type | Swing Check Valve |
| Pressure | 150LB |
| Temperature | -29~429Degree |
| Connection form | Raise Face Flanged |
| Material | Carbon Steel A216 WCB |
| Feature | Easy disassembly |
SWING CHECK VALVE
VERVO swing check valves are offered in bolted bonnet and welded bonnet design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO swing check valves are manufactured according to API 6D, BS 1868 Design.
PRODUCT RANGE
Sizes NPS 2 to NPS 36
Class 150 to Class 2500
MATERIALS
Available in Casting (A216 WCB, WC6, WC9, A350 LCB, A351 CF8, CF8M, CF3, CF3M, A995 4A, A995 5A, A995 6A), Alloy 20, Monel, Inconel, Hastelloy
DESIGN FEATURES
Full or Reduced Bore
RF, RTJ, or BW
Bolted Cover or Pressure Seal Cover
DESIGN STANDARD
Design & manufacture according to API 6D, BS 1868
Face-to-face according to ASME B16.10
End Connection according to ASME B16.5 (RF & RTJ), ASME B16.25 (BW)
Test & inspection according to API 598
Also available per NACE MR-0175, NACE MR-0103
|
Size in/mm |
D |
L |
H |
Weight (lb/kg) | ||
| RF | RTJ | BW | RF/RTJ | |||
|
2 50 |
2 51 |
8 203 |
8.5 216 |
8 203 |
5.5 140 |
37 17 |
|
2 ½ 65 |
2 ½ 64 |
8.5 216 |
9 229 |
8.5 216 |
6.3 160 |
44 20 |
|
3 80 |
3 80 |
9.5 241 |
10 254 |
9.5 241 |
7.1 180 |
53 24 |
|
4 100 |
4 102 |
11.5 292 |
12 305 |
11.5 292 |
8.27 210 |
84 38 |
|
6 150 |
6 152 |
14 356 |
14.5 368 |
14 356 |
11.42 290 |
198 90 |
|
8 200 |
8 203 |
19.5 495 |
20 508 |
19.5 495 |
14.17 360 |
286 130 |
|
10 250 |
10 252 |
24.5 622 |
25 635 |
24.5 622 |
15.75 400 |
430 195 |
|
12 300 |
12 305 |
27.48 698 |
28 711 |
27.48 698 |
18.11 460 |
661 300 |
|
14 350 |
14 337 |
31 787 |
31.5 800 |
31 787 |
20.47 520 |
804 365 |
|
16 400 |
15.24 387 |
34 864 |
34.5 876 |
34 864 |
24.41 620 |
1178 535 |
|
18 450 |
17.24 438 |
38.5 978 |
39 991 |
38.5 978 |
27.17 690 |
1652 750 |
|
20 500 |
19.25 489 |
38.5 978 |
39 991 |
38.5 978 |
28.35 720 |
1949 885 |
|
24 600 |
23.22 590 |
51 1295 |
51.5 1308 |
51 1295 |
29.13 740 |
2533 1150 |
|
28 700 |
27.24 692 |
57 1448 |
- |
57 1448 |
33.46 850 |
3822 1735 |
|
30 750 |
29.25 743 |
60 1524 |
- |
60 1524 |
39.37 1000 |
4515 2050 |
|
36 900 |
35.23 895 |
77 1956 |
- |
77 1956 |
44.88 1140 |
4626 2100 |
