| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/CE/ISO |
| Model Number: | Z61W-800LB-DN15 |
| Minimum Order Quantity: | 10 |
| Price: | Negotiable |
| Packaging Details: | plywood case |
| Delivery Time: | 1 week |
| Payment Terms: | L/C, T/T, Western Union, D/A |
| Supply Ability: | 40000pcs/month |
| Name: | Forged Steel Stainless Steel Gate Valve | Media: | Oli,Gas,Water |
|---|---|---|---|
| Standard: | API602/BS5352/GOST/JIS/DIN/ISO | Pressure: | 150LB-800LB,1500LB,2500LB |
| Power: | Manual,Pneumatic,Solenoid,Electrical Actuated | Temperature Of Media: | Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃) |
| Size: | 1/4"-4",DN8-DN100 |

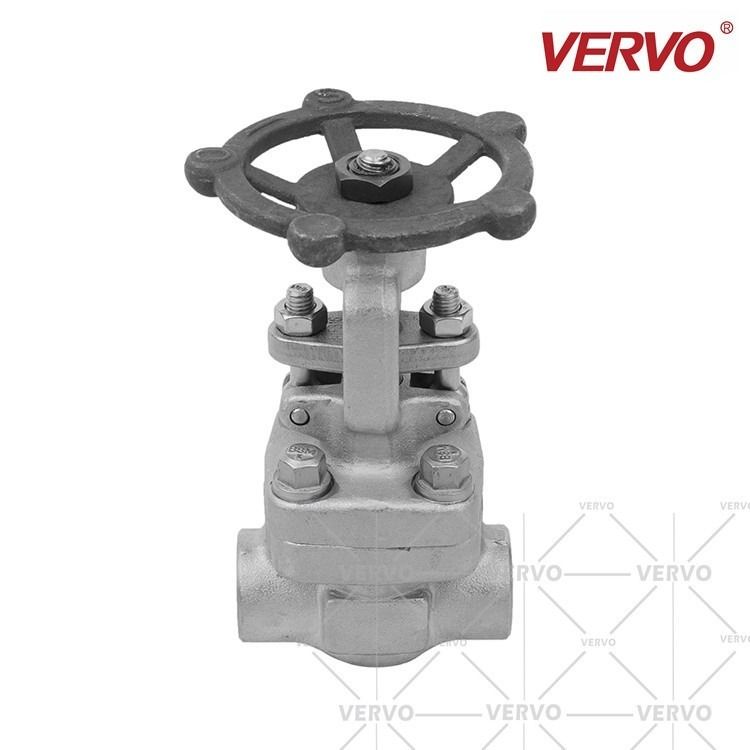

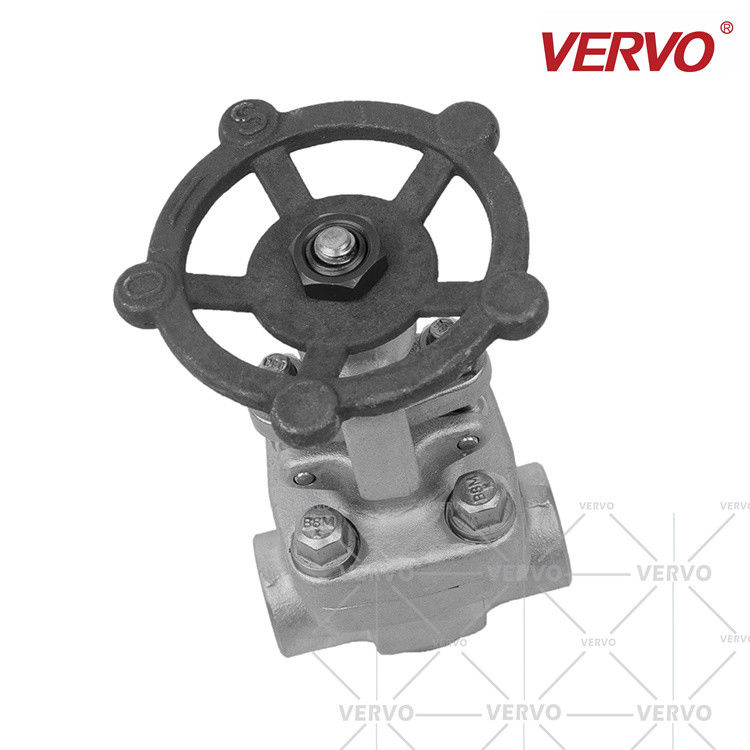

Industrial Gate Valve ISO 15761 Industrial Valves Forged Steel Stainless Steel F304 316L 0.5 Inch Gate Valve 800lb SW
Quick Detail
| Model number | Z61Y-800LB-DN15 |
| Item | Forged Steel Solid Wedge Gate Valve |
| Certification | ISO9001,ISO14001,ISO18001,TS,CE,API |
| Connection form | SOCKET WELD |
| Body material | Forged steel ASTM A182 F316 |
| Purpose | Sutiable for Various Industrise |
| Temperature | -29-425 |

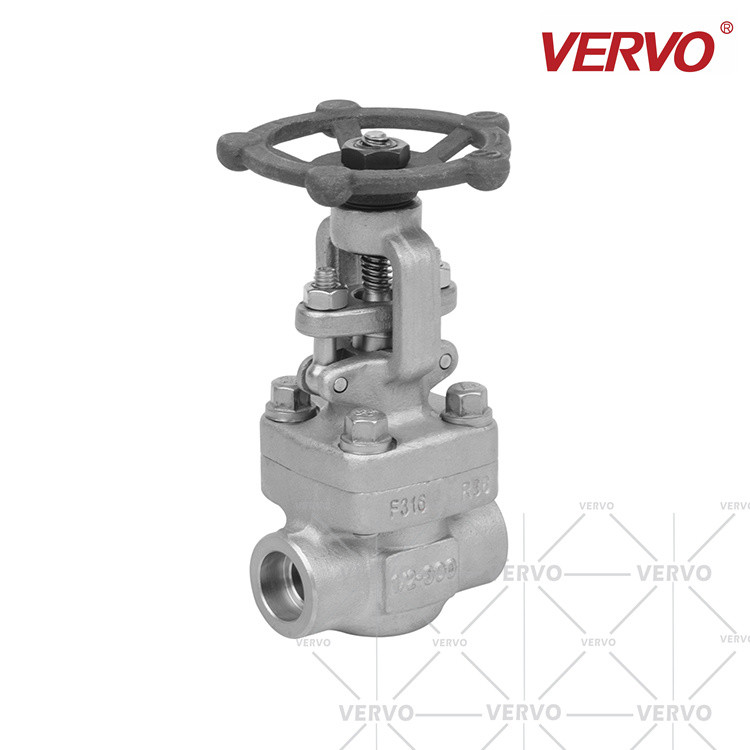

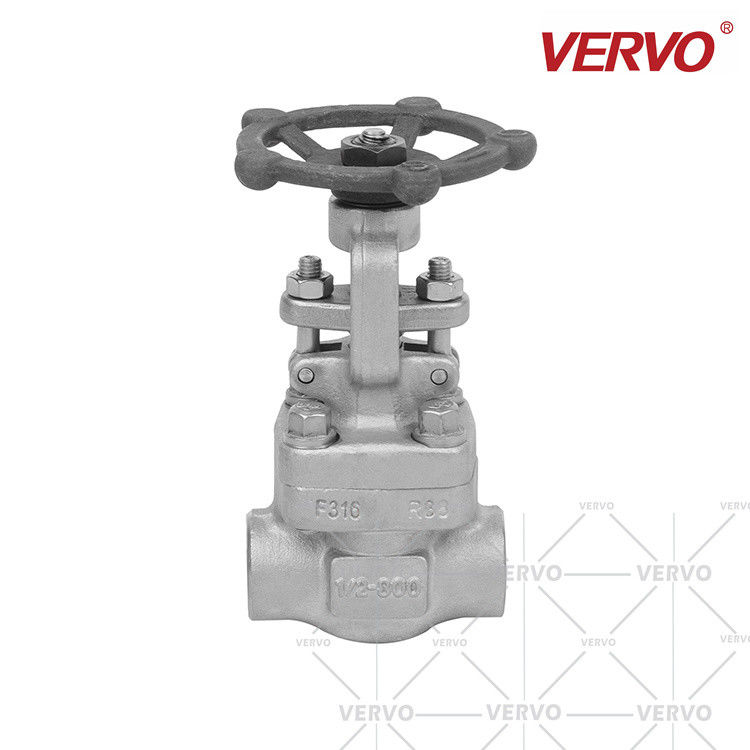

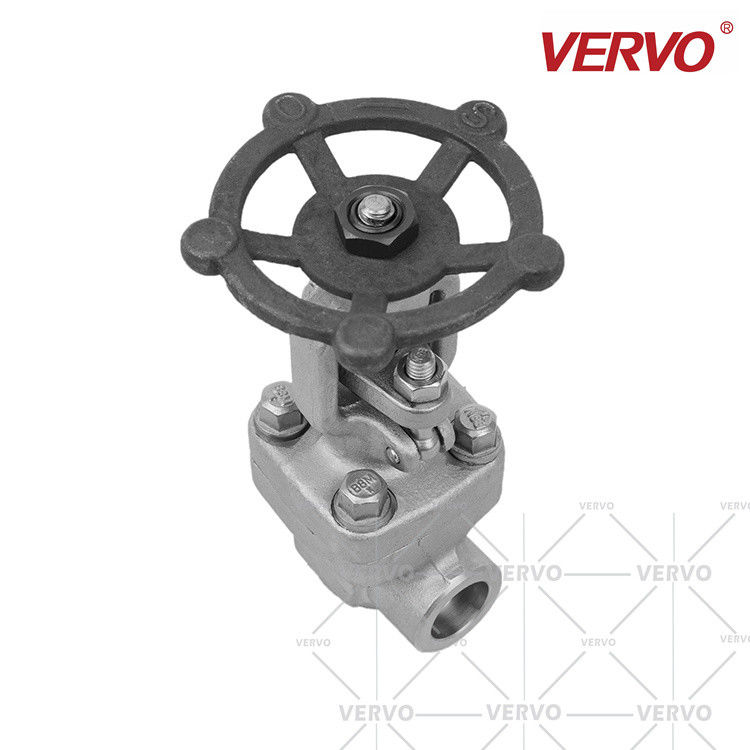

Forged Stainless Steel A182 F316 Gate Valve
• Forged Stainless Steel F316 Gate Valve
• Class 150/300/600/800/900/1500/2500/4500
• Reduced Port/Full Port
• Available in Forged (A105, LF2, F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51,F53,F55,F60), Alloy 20, Monel, Inconel, Hastelloy,C95800
• ASME B16.34
• Maximum Pressure 1975 PSI
• Maximum Temperature 850
• Bolted Bonnet/Welded Bonnet/Pressure Seal Bonnet
• API 602 /BS5352/ API 598
• NACE MR0175
• Sizes 1/2” - 4”
Features and benefits
TWO TYPES:
● This valve is available with an extended body or an integrally reinforcedextended body (IREB).
● Extended body gate valves have a welded or threaded connection and are used for tapping of pressure vessels and header lines for vents, drains or takeoff lines and instrumentation.
● Also available: extended body assemblies for vents, drains, and instrument root valves.
 |
||||||||
| CL800 | Bolt Bonnet (BB)/Welding Bonnet (WB), Reduce Port (RP)/Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW), |
|||||||
| Size (NPS) | R.P | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 |
| F.P | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
| Face To Face | L | 79 | 92 | 111 | 120 | 120 | 140 | 178 |
| Handwheel Diameter | W | 100 | 100 | 125 | 160 | 160 | 180 | 200 |
| Height | H | 165 | 169 | 207 | 230 | 249 | 283 | 333 |
| Flow Port Diameter | d | 10.3 | 13.5 | 18 | 23 | 29 | 36 | 45 |
| Weight (Kg) | B.B | 2.2 | 2.4 | 4.1 | 5.5 | 7.5 | 10 | 19 |
| W.B | 2.1 | 2.3 | 4 | 5.5 | 7.3 | 9.5 | 18.5 | |
|
||||||||
| CL900~CL1500 | Bolt Bonnet (BB)/ Welding Bonnet (WB), Reduce Port (RP)/ Full Port(FP), Outside Screw and Yoke(OS&Y), Thread(NPT), Socket Weld(SW), Butt Weld(BW) |
|||||||
| Size (NPS) | R.P | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 |
| F.P | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
| Face To Face | L | 92 | 111 | 120 | 120 | 140 | 178 | |
| Handwheel Diameter | W | 100 | 125 | 160 | 160 | 180 | 200 | |
| Height | H | 169 | 207 | 230 | 249 | 283 | 333 | |
| Flow Port Diameter | d | 10.3 | 13.5 | 18 | 23 | 29 | 36 | |
| Weight (Kg) | B.B | 2.4 | 4.1 | 6.2 | 6.2 | 8.7 | 12.5 | |
| W.B | 2.2 | 4 | 6 | 6 | 8.5 | 12 | ||
 |
||||||||
| CL2500 | Welding Bonnet (WB), Reduce Port (RP)/Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW) |
|||||||
| Size (NPS) |
R.P | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 |
| Face To Face | L | 120 | 120 | 120 | 140 | 178 | 178 | |
| Handwheel Diameter | W | 160 | 160 | 160 | 180 | 200 | 200 | |
| Height | H | 230 | 235 | 249 | 283 | 333 | 333 | |
| Flow Port Diameter | d | 10.3 | 13.5 | 18 | 23 | 29 | 36 | |
| Weight (Kg) |
W.B | 6.5 | 6.5 | 6.5 | 9 | 13 | 13 | |
