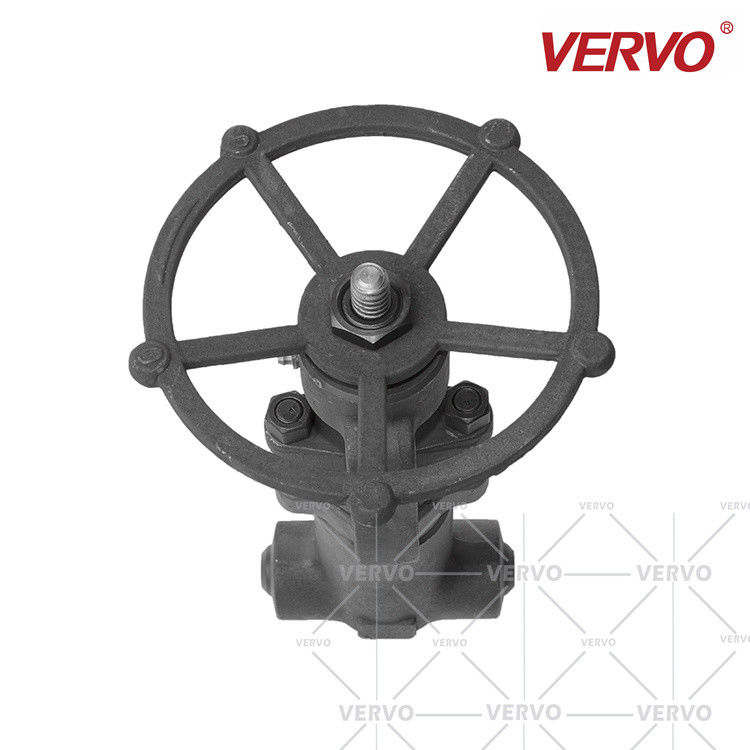

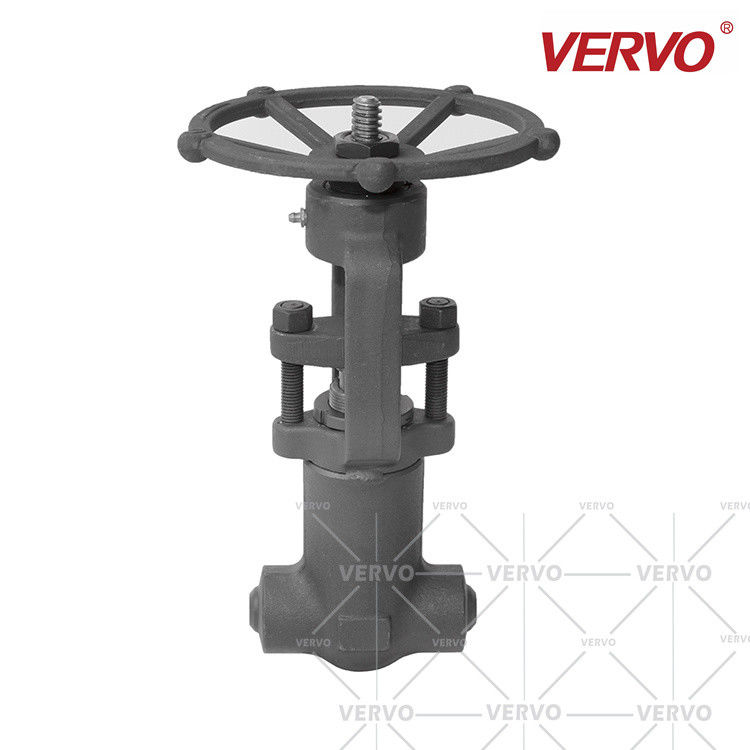

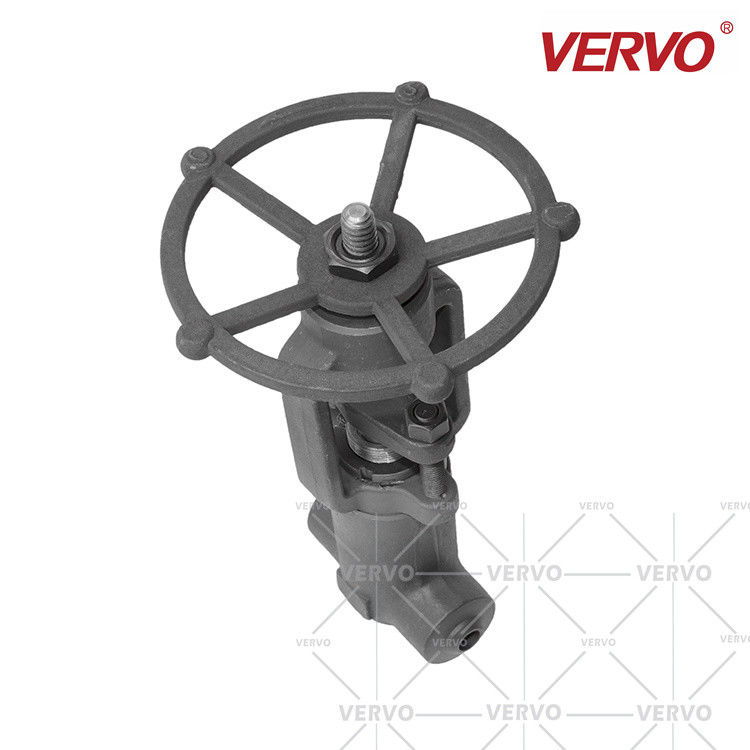

High Pressure Gate Valve Forged Steel Wcb 1 Inch Dn25 2500LB Self Sealing Bw Handwheel

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/CE/ISO
Model Number: Z61-2500LB-DN25
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1 week
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 40000pcs/month
Name: Forged Gate Valve Media: Oli,Gas,Water
Standard: API602/BS5352/GOST/JIS/DIN/ISO Pressure: 150LB-800LB,1500LB,2500LB
Power: Manual,Pneumatic,Solenoid,Electrical Actuated Temperature Of Media: Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃)
Size: 1/4"-4",DN8-DN100

API602 BS5352 Gate Valve 800lbs API602 Forged A105 SW BW NPT



General Introduction:

VERVO forged steel valve has the advantages of small volume and compact type. Bolted bonnet, welded bonnet, pressure bonnet, bellow seal bonnet, high/low temperature extended bonnet and ISO 15848 fugitive emission designed valves are available upon different request of services.



Forged Steel Gate Valve
VERVO forged steel gate vales adopts solid gate, renewable seat, rising stem and non-ring hand wheel. It plays the role of pipe opening and closing ultimately through the rotation of the hand wheel to drive the lifting of gate.



Item Carbon steel gate Valve
Type Gate Valve
Certification ISO9001,ISO14001,ISO18001,CE,TS
Brand VERVO
Model number Z61Y-2500LB
Port Size 1''
Pressure 2500LB
Temperature -29~425
Connection form Welding
Body material Carbon steel
Feature Easy disassembly and assembly



High Pressure Gate Valve Forged Steel Wcb 1 Inch Dn25 2500LB Self Sealing Bw  Handwheel 0

Standards
Design & Manufacture
API 602, ISO 15761, ASME B16.34
Face-to-face
VERVO'STD, ASME B16.10
End Dimension
ASME B1.20.1 (NPT)
ASME B16.11 (SW)
ASME B16.25 (BW)
ASME B16.5 (RF, RTJ),
Test & Inspection
API 598
Typical Materials
Body,Bonnet,Disc
A105,A350 LF2, LF3, LF5, A182 F304, F304L, F316, F316L, F51, F53,
F5,F11,F22,F91, Monel, Inconel, Hastelloy,C95800,B62
Stem
A276 410, F304, F304L, F316, F316L, F51, F53, Monel, Inconel, Hastelloy,C95800






High Pressure Gate Valve Forged Steel Wcb 1 Inch Dn25 2500LB Self Sealing Bw  Handwheel 1
