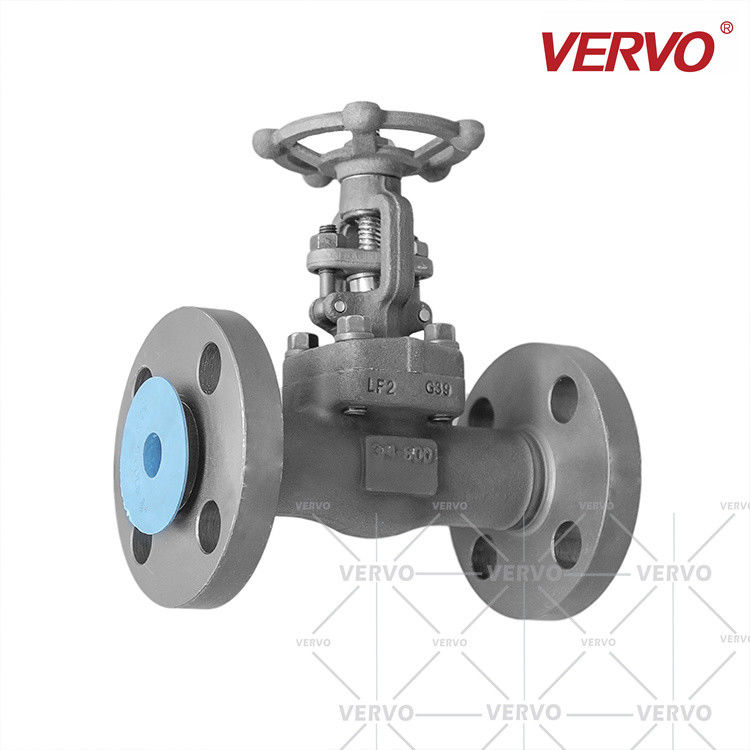

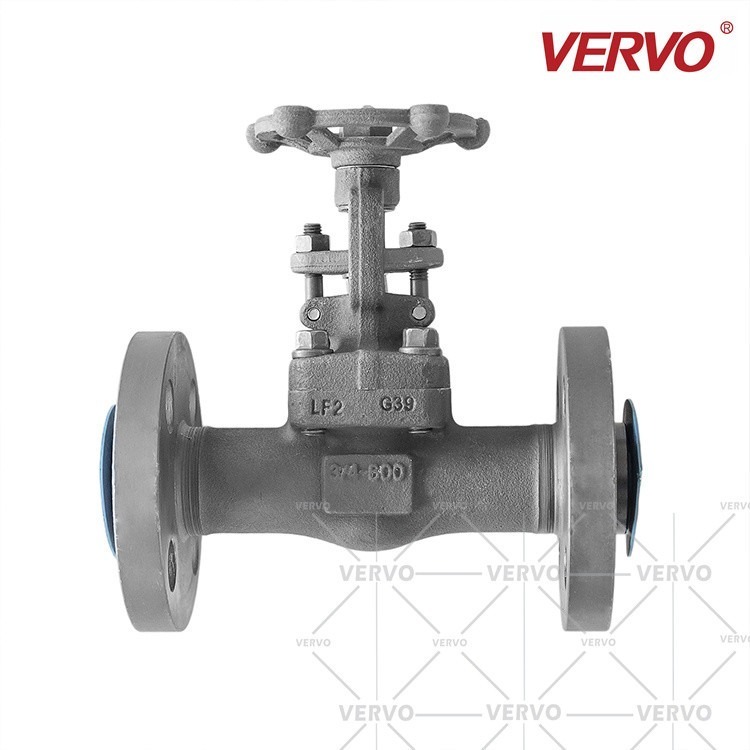

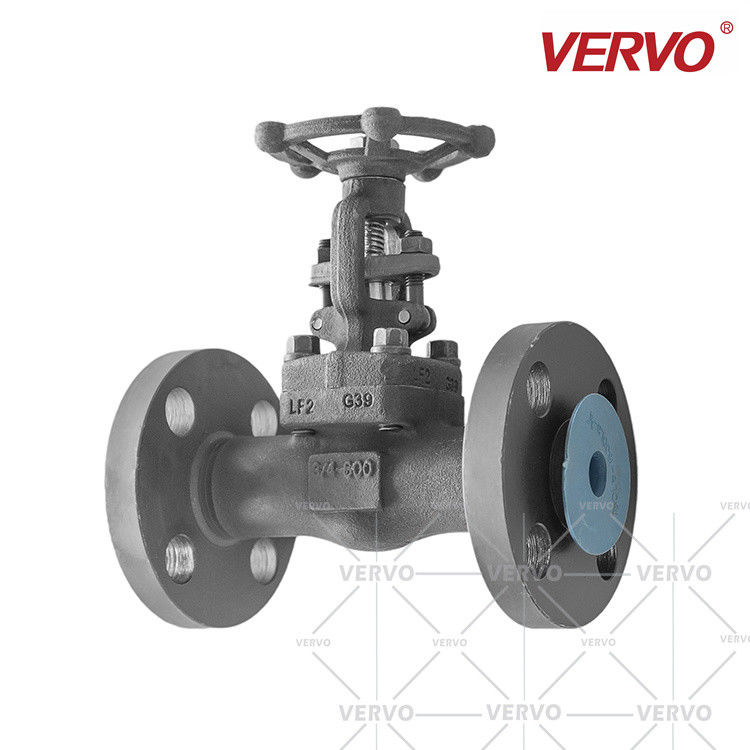

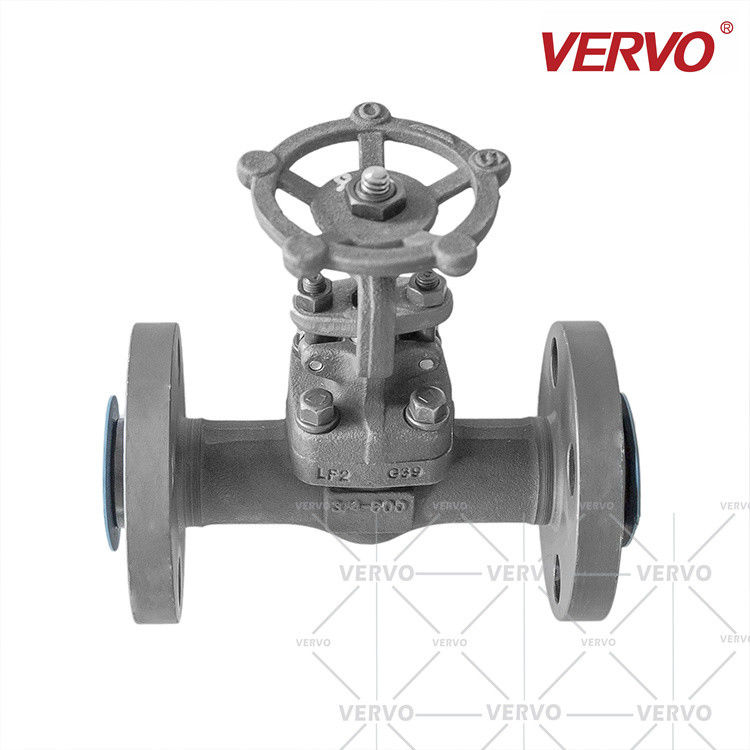

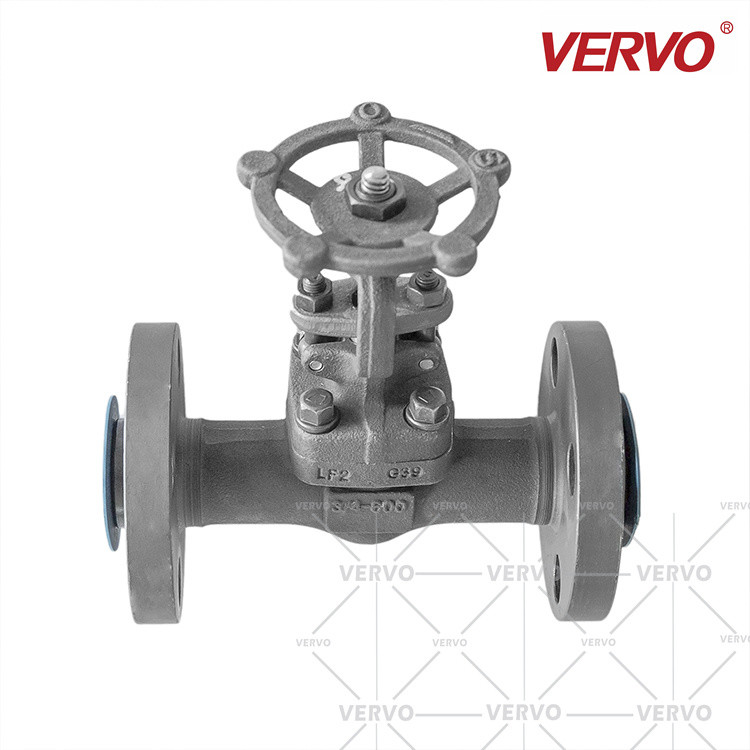

High Pressure Cryogenic Gate Valve Forged Steel LF2 DN20 Gate Valve 600LB RF Flanged Gate Valve Welded Flange Gate Valve

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/CE/ISO
Model Number: Z41Y-600LB-DN20
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1 week
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 40000pcs/month
Name: Forged Steel Cryogenic Gate Valve Media: Oli,Gas,Water
Standard: API602/BS5352/GOST/JIS/DIN/ISO Pressure: 150LB-800LB,1500LB,2500LB
Power: Manual,Pneumatic,Solenoid,Electrical Actuated Temperature Of Media: Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃)
Size: 1/4"-4",DN8-DN100

High Pressure Cryogenic Gate Valve Forged Steel LF2 DN20 Gate Valve 600LB RF Flanged Gate Valve Welded Flange Gate Valve



Model number Z41Y-600LB-DN20
Item Forged steel A350 LF2 Gate Valve
Certification CE,TS,ISO9001,ISO14001,ISO18001,API
Connection form RF Flanged
Body material Forged Steel A350 LF2
Seal material Gasket
Feature Easy disassembly and assembly



General Introduction

High Pressure Cryogenic Gate Valve Forged Steel LF2 DN20 Gate Valve 600LB RF Flanged Gate Valve Welded Flange Gate Valve 0

VERVO forged steel valve has the advantages of small volume and compact type. Bolted bonnet, welded bonnet, pressure bonnet, bellow seal bonnet, high/low temperature extended bonnet and ISO 15848 fugitive emission designed valves are available upon different request of services.



Forged Steel Gate Valve
VERVO forged steel gate vales adopts solid gate, renewable seat, rising stem and non-ring hand wheel. It plays the role of pipe opening and closing ultimately through the rotation of the hand wheel to drive the lifting of gate.



Standards
a.Design & Manufacture:API 602, ISO 15761, ASME B16.34
b.Face-to-face :VERVO'STD, ASME B16.10
c.End Dimension:ASME B1.20.1 (NPT) ASME B16.11 (SW) ASME B16.25 (BW) ASME B16.5 (RF, RTJ),
d.Test & Inspection:API 598

Typical Materials
High Pressure Cryogenic Gate Valve Forged Steel LF2 DN20 Gate Valve 600LB RF Flanged Gate Valve Welded Flange Gate Valve 0
Body,Bonnet,Disc
A105,A350 LF2, LF3, LF5, A182 F304, F304L, F316, F316L, F51, F53,
F5,F11,F22,F91, Monel, Inconel, Hastelloy,C95800,B62
Stem
A276 410, F304, F304L, F316, F316L, F51, F53, Monel, Inconel, Hastelloy,C95800

                                   High Pressure Cryogenic Gate Valve Forged Steel LF2 DN20 Gate Valve 600LB RF Flanged Gate Valve Welded Flange Gate Valve 2
                                                 High Pressure Cryogenic Gate Valve Forged Steel LF2 DN20 Gate Valve 600LB RF Flanged Gate Valve Welded Flange Gate Valve 3
Size
(NPS)
R.P 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2
Face To Face CL150 L
(RF)
108 117 127 140 165 178
CL300 140 152 165 178 190 216
CL600 165 190 216 229 241 292
Handwheel Diameter W 100 100 125 160 160 180
Height H 165 169 207 230 249 283
Flow Port Diameter d 10.3 13.5 18 23 29 36
Weight
(Kg)
CL150 B.B 4.1 4.8 7.1 10 11.6 20
CL300 4.8 6.7 10 13.6 17.2 24
CL600 5.4 7.4 10.6 15 19.2 28.8
High Pressure Cryogenic Gate Valve Forged Steel LF2 DN20 Gate Valve 600LB RF Flanged Gate Valve Welded Flange Gate Valve 4
CL900~CL1500 Bolt Bonnet (BB).
Reduce Port (RP), Outside Screw and Yoke (OS&Y), Flanged (RF/RTJ)
Size
(NPS)
R.P 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2
Face To Face CL90 L (RF) 216 229 254 279 305 368
  CL1500
Handwheel Diameter W 125 125 160 160 180 180
Height H 169 207 230 249 283 333
Flow Port Diameter d 10.3 13.5 18 23 29 36
Weight (Kg) CL900 B.B 10.1 13.0 18.3 26.0 32.8 54.0
CL1500



The dimension and weights are for reference only and subject to change without notice.

1.The flanged valve are defaulted by integral flange;

2.For more size or dimensional information, please contact our sales representative.
