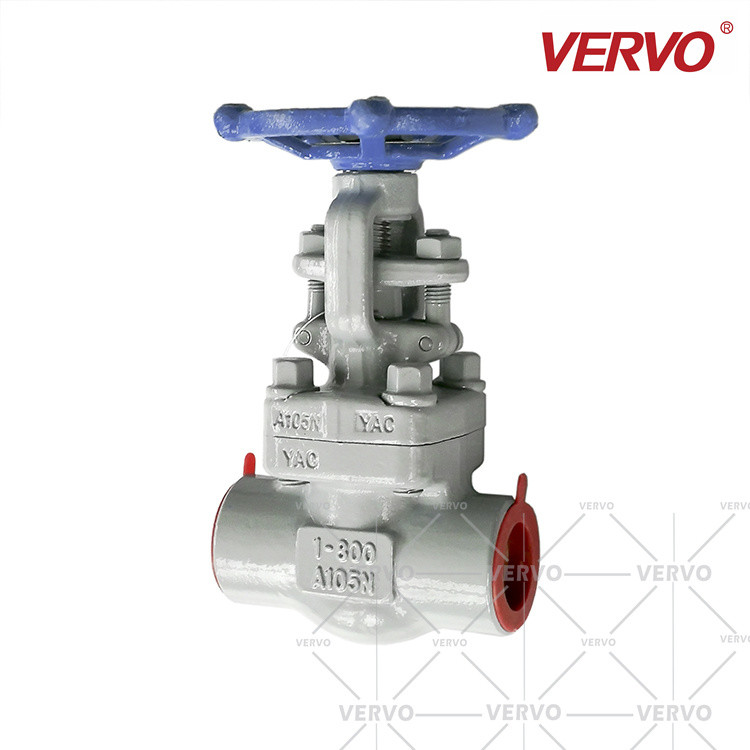

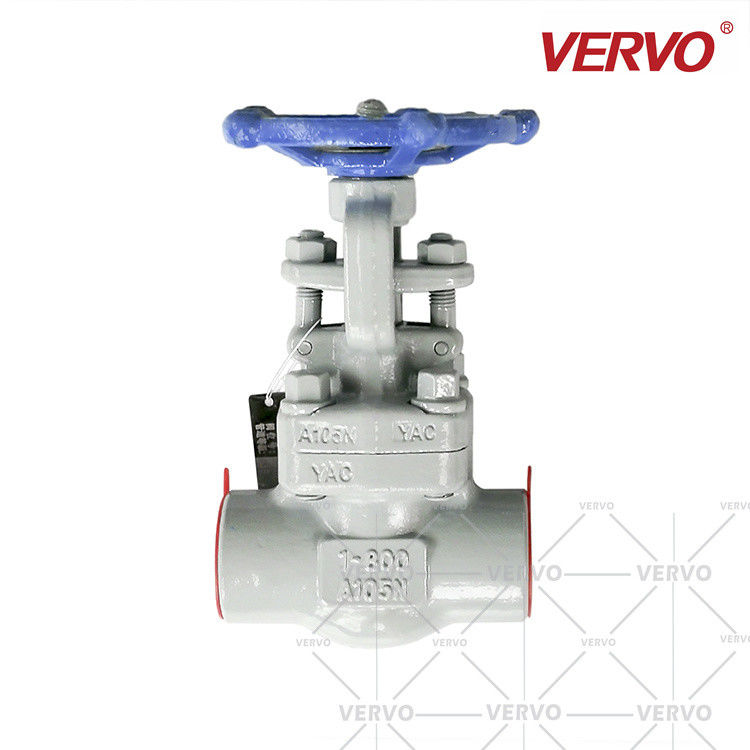

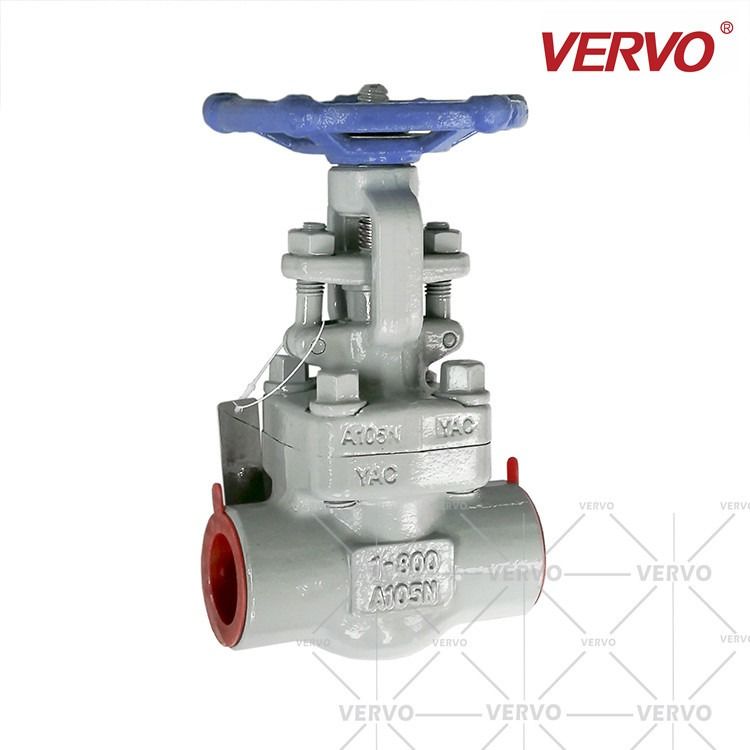

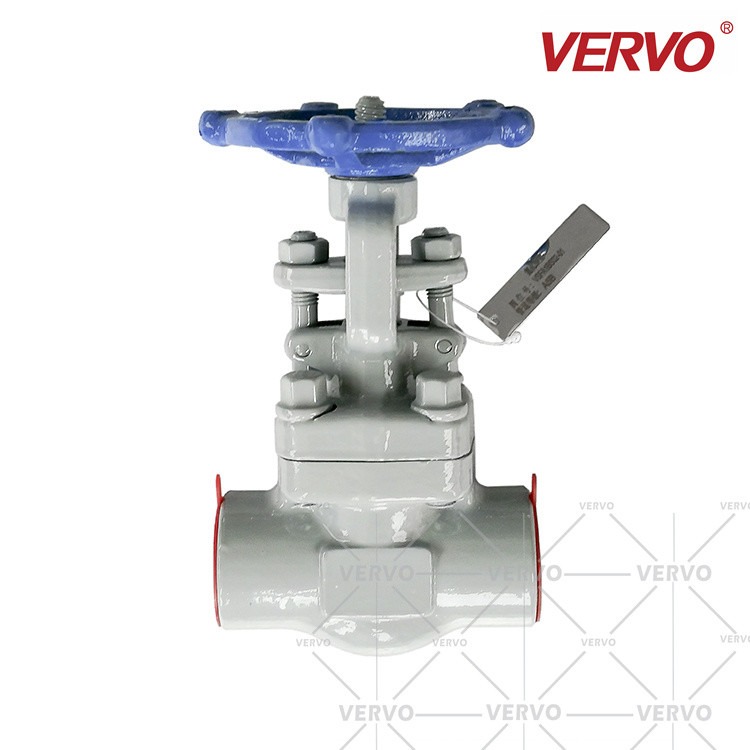

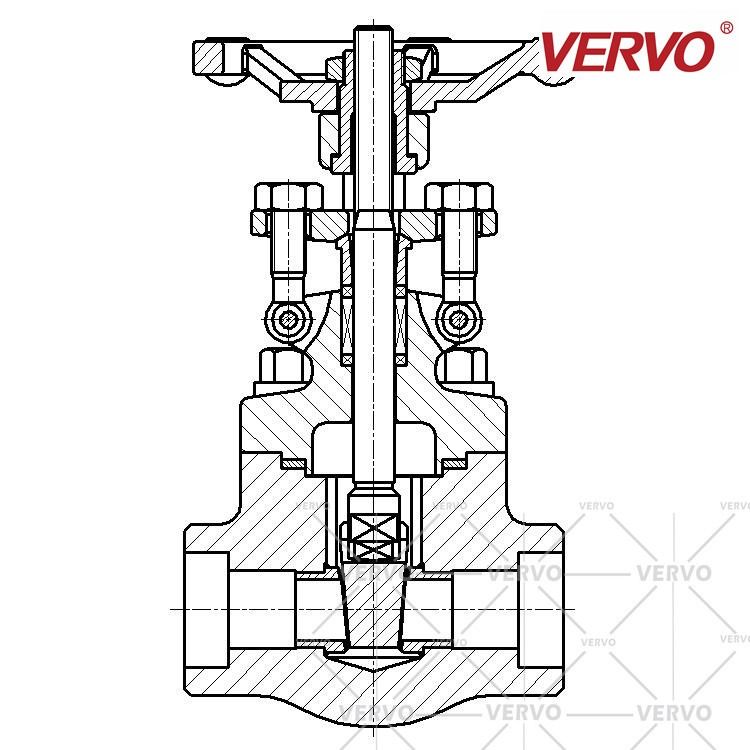

Gate Valve Forged Steel A105N 1 Inch Dn25 800lb SW Socket Weld Gate Valve Solid Wedge Gate Valve A105 Forged Steel

Gate Valve Forged Steel A105N 1 Inch Dn25 800lb SW Socket Weld Gate Valve Solid Wedge Gate Valve A105 Forged Steel

Quick Detail

Forged Carbon Steel Gate Valve

• Forged Carbon Steel Gate Valve
• Class 150/300/600/800/900/1500/2500/4500
• Reduced Port/Full Port
• Available in Forged (A105, LF2, F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51,F53,F55,F60), Alloy 20, Monel, Inconel, Hastelloy,C95800
• ASME B16.34
• Maximum Pressure 1975 PSI
• Maximum Temperature 850
• Bolted Bonnet/Welded Bonnet/Pressure Seal Bonnet
• API 602 /BS5352/ API 598
• NACE MR0175
• Sizes 1/2” - 4”

Features and benefits

TWO TYPES:

● This valve is available with an extended body or an integrally reinforcedextended body (IREB).
● Extended body gate valves have a welded or threaded connection and are used for tapping of pressure vessels and header lines for vents, drains or takeoff lines and instrumentation.
● Also available: extended body assemblies for vents, drains, and instrument root valves.

CL800	Bolt Bonnet (BB)/Welding Bonnet (WB), Reduce Port (RP)/Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW),
Size (NPS)	R.P	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2
	F.P	3/8	1/2	3/4	1	1-1/4	1-1/2	2
Face To Face	L	79	92	111	120	120	140	178
Handwheel Diameter	W	100	100	125	160	160	180	200
Height	H	165	169	207	230	249	283	333
Flow Port Diameter	d	10.3	13.5	18	23	29	36	45
Weight (Kg)	B.B	2.2	2.4	4.1	5.5	7.5	10	19
	W.B	2.1	2.3	4	5.5	7.3	9.5	18.5
CL900~CL1500	Bolt Bonnet (BB)/ Welding Bonnet (WB), Reduce Port (RP)/ Full Port(FP), Outside Screw and Yoke(OS&Y), Thread(NPT), Socket Weld(SW), Butt Weld(BW)
Size (NPS)	R.P	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2
	F.P	3/8	1/2	3/4	1	1-1/4	1-1/2	2
Face To Face	L	92	111	120	120	140	178
Handwheel Diameter	W	100	125	160	160	180	200
Height	H	169	207	230	249	283	333
Flow Port Diameter	d	10.3	13.5	18	23	29	36
Weight (Kg)	B.B	2.4	4.1	6.2	6.2	8.7	12.5
	W.B	2.2	4	6	6	8.5	12
CL2500	Welding Bonnet (WB), Reduce Port (RP)/Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size (NPS)	R.P	3/8	1/2	3/4	1	1-1/4	1-1/2	2
Face To Face	L		120	120	120	140	178	178
Handwheel Diameter	W		160	160	160	180	200	200
Height	H		230	235	249	283	333	333
Flow Port Diameter	d		10.3	13.5	18	23	29	36
Weight (Kg)	W.B		6.5	6.5	6.5	9	13	13
