| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/CE/ISO |
| Model Number: | Z61W-800LB-DN15 |
| Minimum Order Quantity: | 10 |
| Price: | Negotiable |
| Packaging Details: | plywood case |
| Delivery Time: | 1 week |
| Payment Terms: | L/C, T/T, Western Union, D/A |
| Supply Ability: | 40000pcs/month |
| Name: | Forged Aluminum Bronze Gate Valve Socket Welded Valve | Connection: | Socket Weld,RF Flange,FNPT |
|---|---|---|---|
| Standard: | API602/BS5352/GOST/JIS/DIN/ISO | Pressure: | 150LB-800LB,1500LB,2500LB |
| Power: | Manual,Pneumatic,Solenoid,Electrical Actuated | Temperature Of Media: | Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃) |
| Size: | 1/4"-4",DN8-DN100 | ||
| High Light: | Api 602 1/2 Npt Aluminum Bronze Gate Valve,Npt Gate Valve Bronze Dn15 800lb,Aluminum Bronze Gate Valve Dn15 800lb |
||

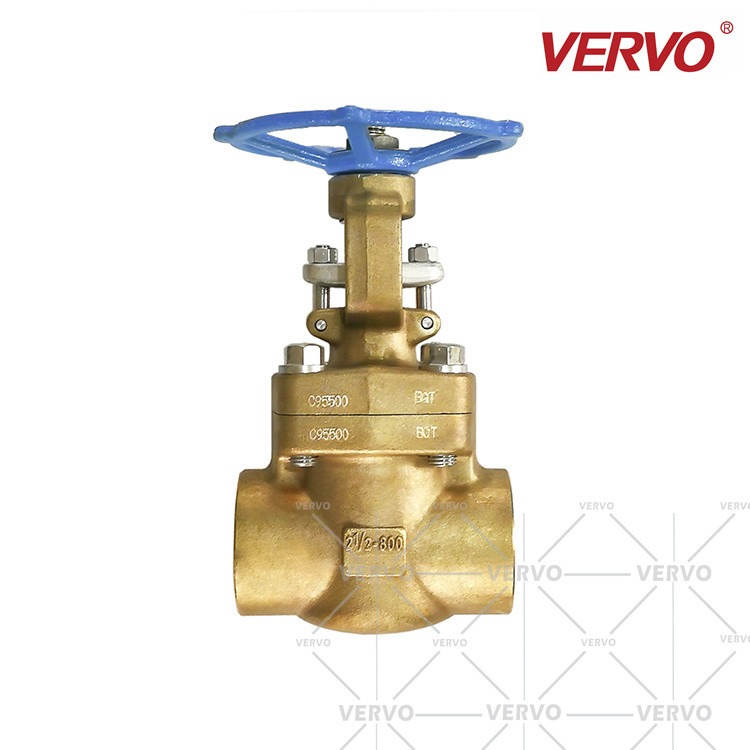

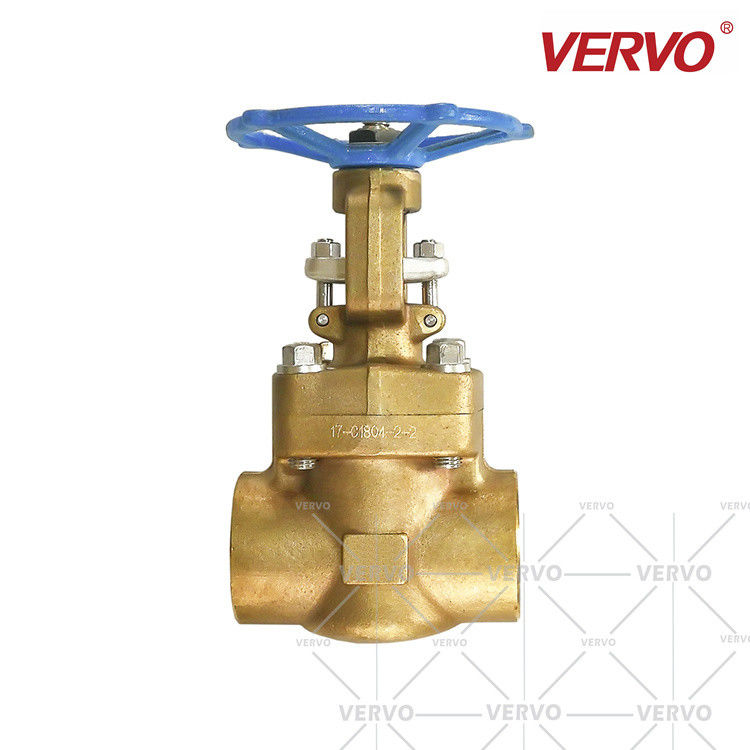

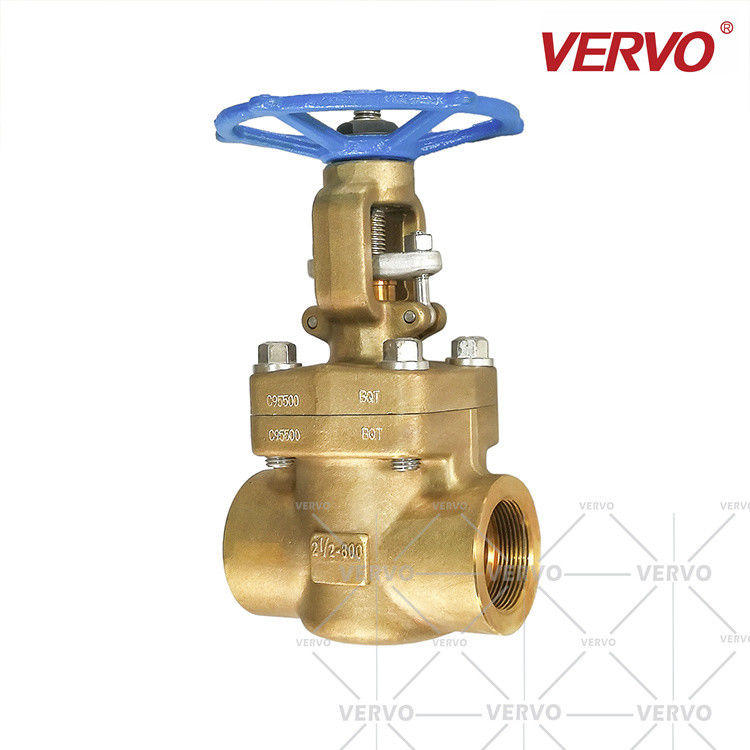

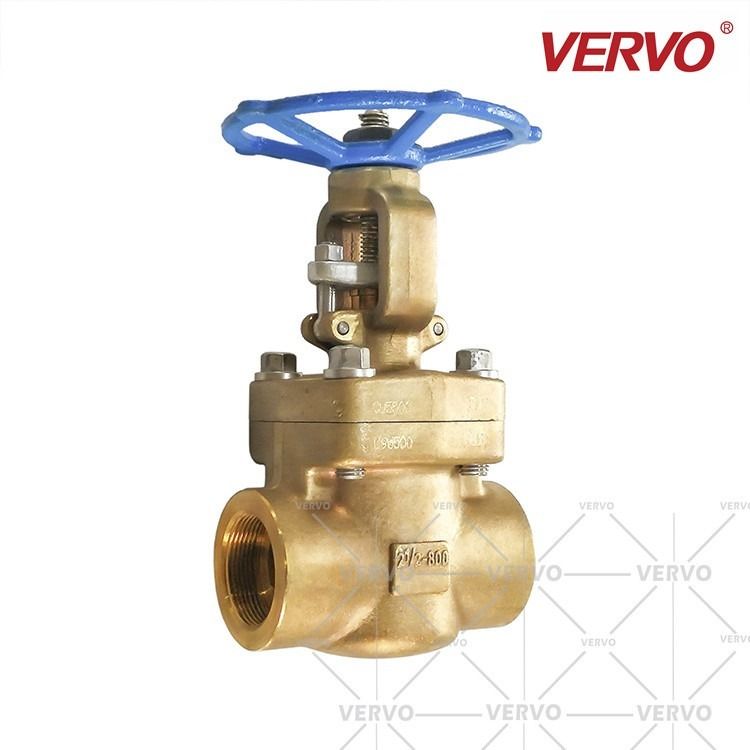

API602 Gate Valve Forged Steel Aluminum Bronze C95800 Gate Valve 1/2 Inch Gate Valve Dn15 Gate Valve 800lb NPT Valve
| Item | Forged steel gate valve |
| Type | Bronze gate valve |
| Certification | ISO9001,ISO14001,ISO18001,TS,CE,API |
| Brand | VERVO |
| Model number | Z11W-800LB-DN15 |
| Port Size | 1/2'' |
| Structure | high temperature |
| 8Pressure | 800LB |
| Temperature | -29~425 |
| Connection form | Welding |
| Body material | Forged steel Aluminum Bronze C95800 |
| Feature | Hard seal |
General Introduction
VERVO forged steel valve has the advantages of small volume and compact type. Bolted bonnet, welded bonnet, pressure bonnet, bellow seal bonnet, high/low temperature extended bonnet and ISO 15848 fugitive emission designed valves are available upon different request of services.
Forged Steel Gate Valve

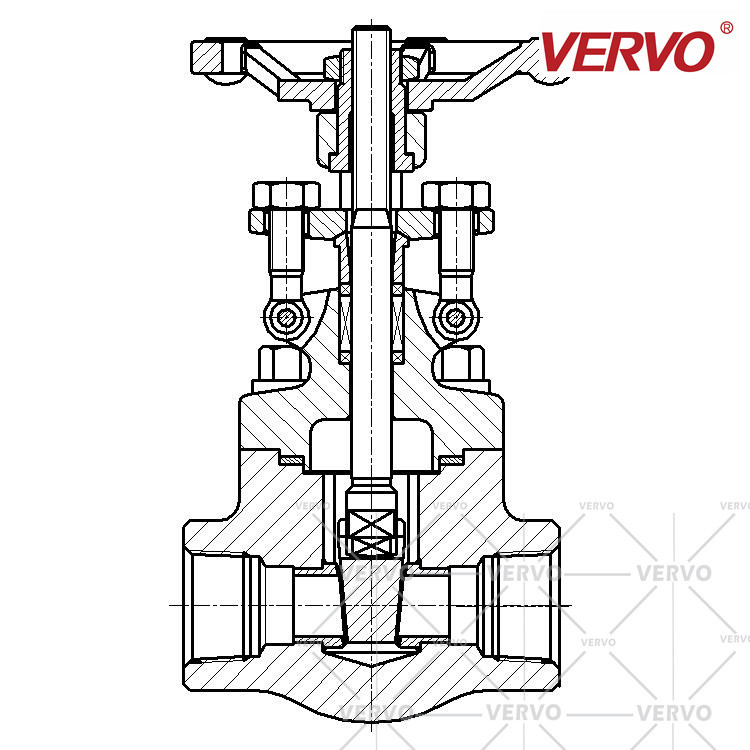

VERVO forged steel gate vales adopts solid gate, renewable seat, rising stem and non-ring hand wheel. It plays the role of pipe opening and closing ultimately through the rotation of the hand wheel to drive the lifting of gate.
Design & Manufacture
 |
||||||||
| CL800 | Bolt Bonnet (BB)/Welding Bonnet (WB), Reduce Port (RP)/Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW), |
|||||||
| Size (NPS) | R.P | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 |
| F.P | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
| Face To Face | L | 79 | 92 | 111 | 120 | 120 | 140 | 178 |
| Handwheel Diameter | W | 100 | 100 | 125 | 160 | 160 | 180 | 200 |
| Height | H | 165 | 169 | 207 | 230 | 249 | 283 | 333 |
| Flow Port Diameter | d | 10.3 | 13.5 | 18 | 23 | 29 | 36 | 45 |
| Weight (Kg) | B.B | 2.2 | 2.4 | 4.1 | 5.5 | 7.5 | 10 | 19 |
| W.B | 2.1 | 2.3 | 4 | 5.5 | 7.3 | 9.5 | 18.5 | |
|
||||||||
| CL900~CL1500 | Bolt Bonnet (BB)/ Welding Bonnet (WB), Reduce Port (RP)/ Full Port(FP), Outside Screw and Yoke(OS&Y), Thread(NPT), Socket Weld(SW), Butt Weld(BW) |
|||||||
| Size (NPS) | R.P | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 |
| F.P | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
| Face To Face | L | 92 | 111 | 120 | 120 | 140 | 178 | |
| Handwheel Diameter | W | 100 | 125 | 160 | 160 | 180 | 200 | |
| Height | H | 169 | 207 | 230 | 249 | 283 | 333 | |
| Flow Port Diameter | d | 10.3 | 13.5 | 18 | 23 | 29 | 36 | |
| Weight (Kg) | B.B | 2.4 | 4.1 | 6.2 | 6.2 | 8.7 | 12.5 | |
| W.B | 2.2 | 4 | 6 | 6 | 8.5 | 12 | ||
 |
||||||||
| CL2500 | Welding Bonnet (WB), Reduce Port (RP)/Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW) |
|||||||
| Size (NPS) |
R.P | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 |
| Face To Face | L | 120 | 120 | 120 | 140 | 178 | 178 | |
| Handwheel Diameter | W | 160 | 160 | 160 | 180 | 200 | 200 | |
| Height | H | 230 | 235 | 249 | 283 | 333 | 333 | |
| Flow Port Diameter | d | 10.3 | 13.5 | 18 | 23 | 29 | 36 | |
| Weight (Kg) |
W.B | 6.5 | 6.5 | 6.5 | 9 | 13 | 13 |
|
