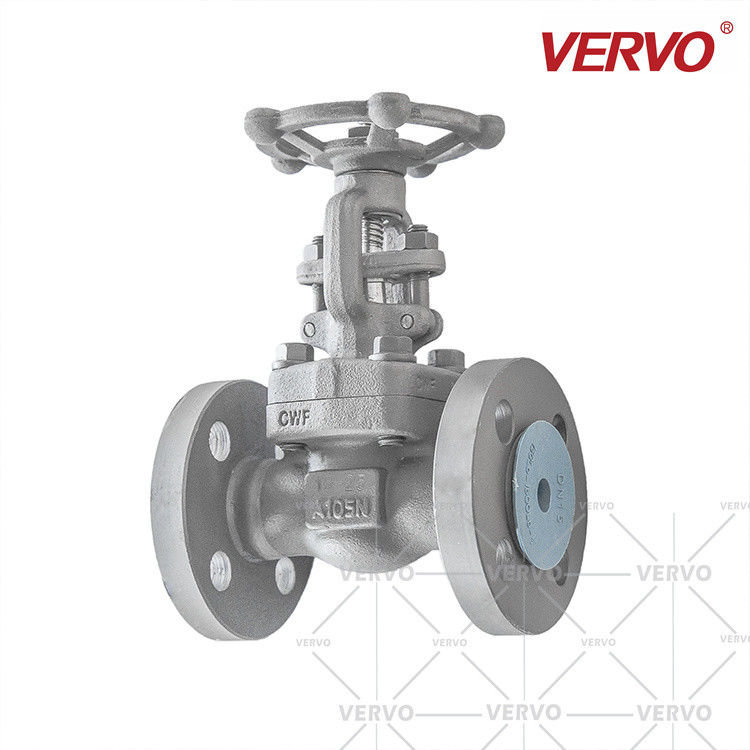

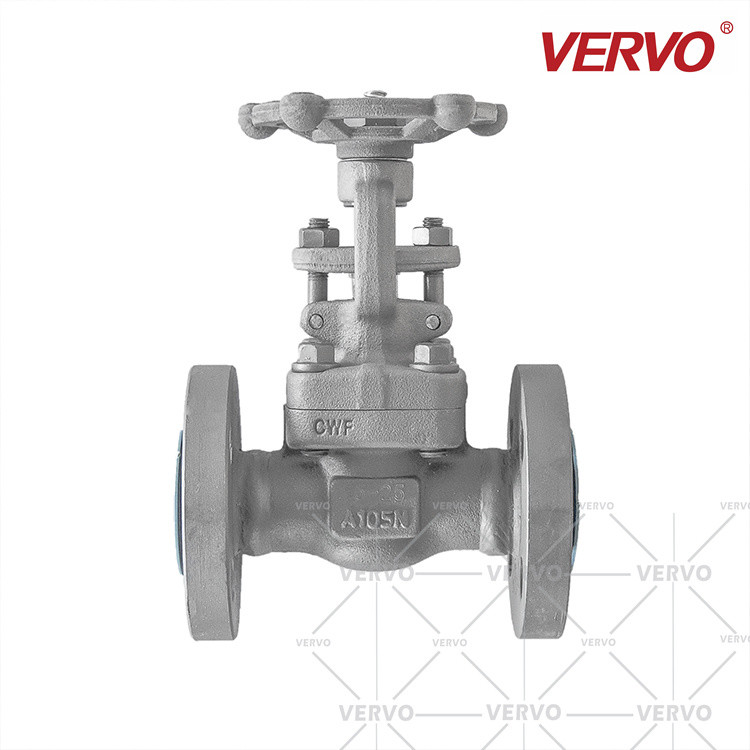

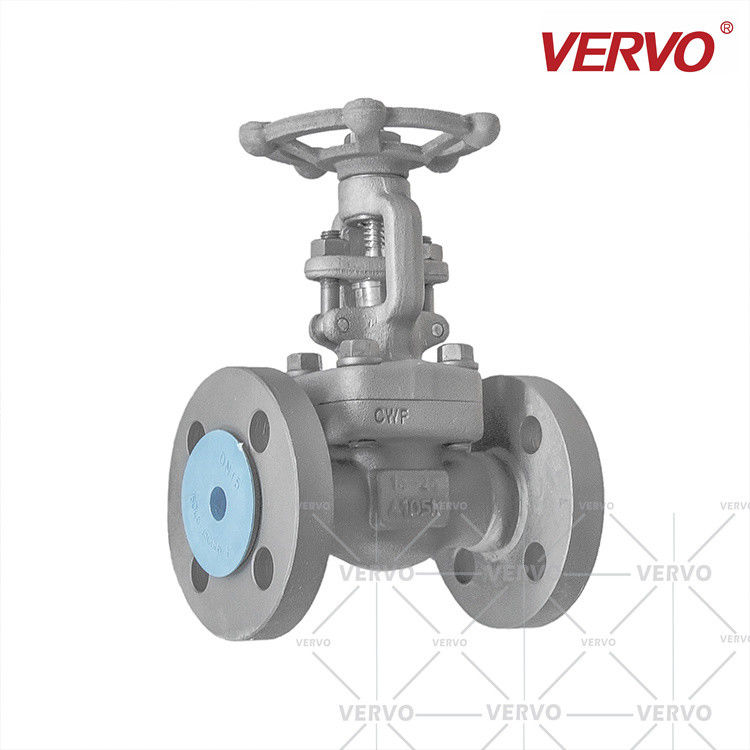

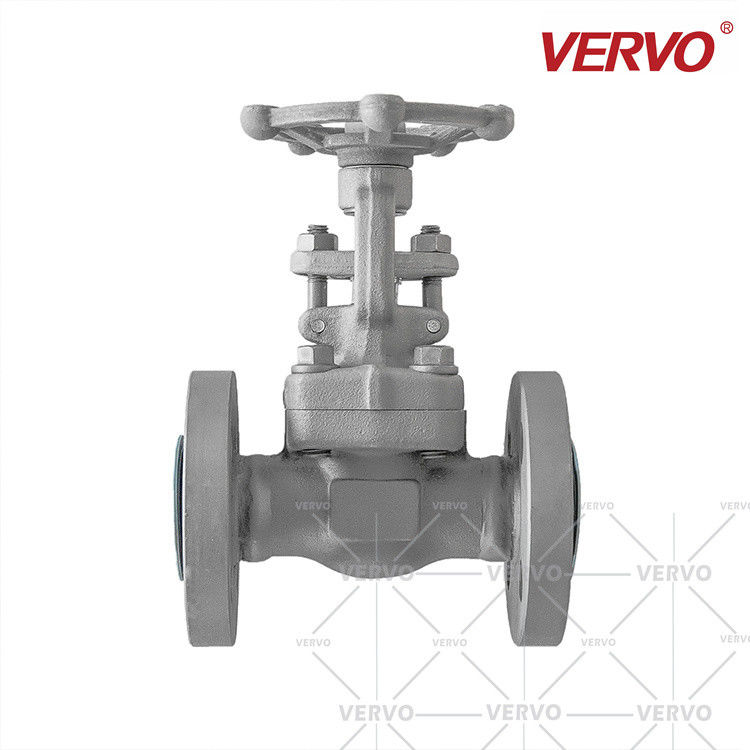

Full Bore Gate Valve Forged Steel A105N 1/2 Inch DN15 PN25 RF Flange Gate Valve 0.5mm Gate Valve Solid Wedge Gate Valve

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/CE/ISO
Model Number: Z41Y-PN25-DN15
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1 week
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 40000pcs/month
Name: Full Bore Full Port Forged Steel Gate Valve Connection: Socket Weld,RF Flange,FNPT
Standard: API602/BS5352/GOST/JIS/DIN/ISO Pressure: 150LB-800LB,1500LB,2500LB
Power: Manual,Pneumatic,Solenoid,Electrical Actuated Temperature Of Media: Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃)
Size: 1/4"-4",DN8-DN100

Full Bore Gate Valve Forged Steel A105N 1/2 Inch DN15 PN25 RF Flange Gate Valve 0.5mm Gate Valve Solid Wedge Gate Valve



Model number Z41Y-PN25-DN15
Item Forged steel A105N Gate Valve
Certification CE,TS,ISO9001,ISO14001,ISO18001,API
Connection form RF Flanged
Body material Forged Steel ASTM A105N
Seal material Gasket
Feature Easy disassembly and assembly



General Introduction

Full Bore Gate Valve Forged Steel A105N 1/2 Inch DN15 PN25 RF Flange Gate Valve 0.5mm Gate Valve Solid Wedge Gate Valve 0

VERVO forged steel valve has the advantages of small volume and compact type. Bolted bonnet, welded bonnet, pressure bonnet, bellow seal bonnet, high/low temperature extended bonnet and ISO 15848 fugitive emission designed valves are available upon different request of services.

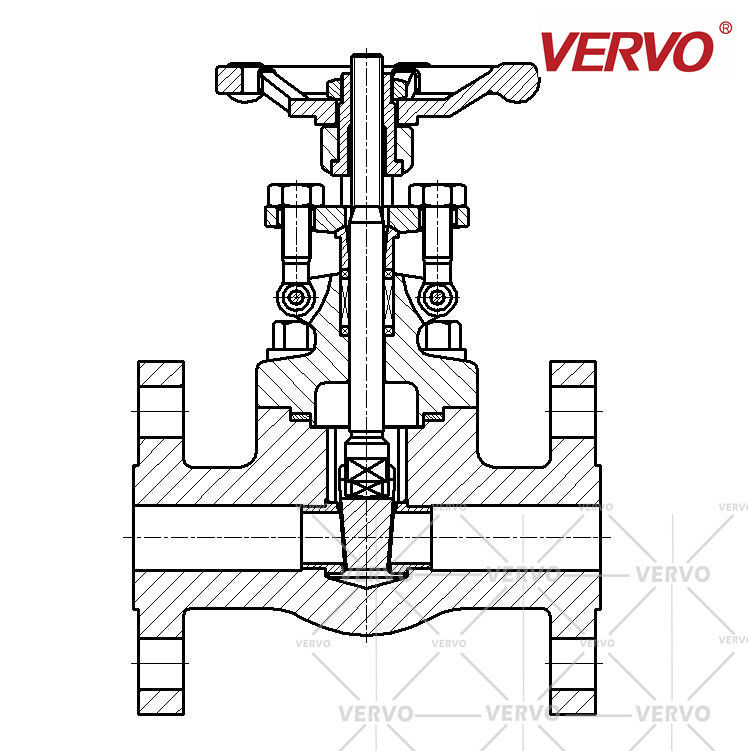

Forged Steel Gate Valve
VERVO forged steel gate vales adopts solid gate, renewable seat, rising stem and non-ring hand wheel. It plays the role of pipe opening and closing ultimately through the rotation of the hand wheel to drive the lifting of gate.



Standards
a.Design & Manufacture:API 602, ISO 15761, ASME B16.34
b.Face-to-face :VERVO'STD, ASME B16.10
c.End Dimension:ASME B1.20.1 (NPT) ASME B16.11 (SW) ASME B16.25 (BW) ASME B16.5 (RF, RTJ),
d.Test & Inspection:API 598

Typical Materials
Full Bore Gate Valve Forged Steel A105N 1/2 Inch DN15 PN25 RF Flange Gate Valve 0.5mm Gate Valve Solid Wedge Gate Valve 0
Body,Bonnet,Disc
A105,A350 LF2, LF3, LF5, A182 F304, F304L, F316, F316L, F51, F53,
F5,F11,F22,F91, Monel, Inconel, Hastelloy,C95800,B62
Stem
A276 410, F304, F304L, F316, F316L, F51, F53, Monel, Inconel, Hastelloy,C95800

                                     Full Bore Gate Valve Forged Steel A105N 1/2 Inch DN15 PN25 RF Flange Gate Valve 0.5mm Gate Valve Solid Wedge Gate Valve 2
                                                          Full Bore Gate Valve Forged Steel A105N 1/2 Inch DN15 PN25 RF Flange Gate Valve 0.5mm Gate Valve Solid Wedge Gate Valve 3
Size
(NPS)
R.P 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2
Face To Face CL150 L
(RF)
108 117 127 140 165 178
CL300 140 152 165 178 190 216
CL600 165 190 216 229 241 292
Handwheel Diameter W 100 100 125 160 160 180
Height H 165 169 207 230 249 283
Flow Port Diameter d 10.3 13.5 18 23 29 36
Weight
(Kg)
CL150 B.B 4.1 4.8 7.1 10 11.6 20
CL300 4.8 6.7 10 13.6 17.2 24
CL600 5.4 7.4 10.6 15 19.2 28.8
Full Bore Gate Valve Forged Steel A105N 1/2 Inch DN15 PN25 RF Flange Gate Valve 0.5mm Gate Valve Solid Wedge Gate Valve 4
CL900~CL1500 Bolt Bonnet (BB).
Reduce Port (RP), Outside Screw and Yoke (OS&Y), Flanged (RF/RTJ)
Size
(NPS)
R.P 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2
Face To Face CL90 L (RF) 216 229 254 279 305 368
  CL1500
Handwheel Diameter W 125 125 160 160 180 180
Height H 169 207 230 249 283 333
Flow Port Diameter d 10.3 13.5 18 23 29 36
Weight (Kg) CL900 B.B 10.1 13.0 18.3 26.0 32.8 54.0
CL1500



The dimension and weights are for reference only and subject to change without notice.

1.The flanged valve are defaulted by integral flange;

2.For more size or dimensional information, please contact our sales representative.



About Us

VERVO is an ISO 9001 certified company specializing in manufacturing industrial valves including ball valves, gate valves, globe valves, check valves, plug valves and butterfly valves in carbon steel, stainless steel, duplex stainless and alloy materials. Our products conform to the latest industry standards in accordance to ANSI, ASME and API.VERVO today has over 10000 square meters of manufacturing facilities. Through its conviction to provide only the finest quality products and services to match the need of our customers, VERVO has now established itself as a serious player in the valve business.
VERVO has sold worldwide in North America, Europe, South America, South Asia, Africa and the Middle East. We consider product quality and customer satisfaction as our highest priority.
We look forward to new customer relationships by providing value, quality, customer service,honesty, integrity and the commitment to maintain product consistency with each and every order.



Keywords of Full Bore Gate Valve Forged Steel A105N 1/2 Inch DN15 PN25 RF Flange Gate Valve 0.5mm Gate Valve Solid Wedge Gate Valve

Full Bore Gate Valve Forged Steel A105N 1/2 Inch DN15 PN25 RF Flange Gate Valve 0.5mm Gate Valve Solid Wedge Gate Valve 5

Full Bore Gate Valve,Forged Steel BB Gate Valve, A105N BB Gate Valve,Bolted Bonnet Gate Valve, 0.5Inch Gate Valve ,PN16 Gate Valve,DIN STD Gate Valve, BS5352 Gate Valve, 15mm BB Gate Valve,DN15 Gate Valve,Butt Weld Gate Valve,High Pressure Valve,RF Flange Gate Valve,Gost Gate Valve,GOST Standard Gate Valve
