| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/CE/ISO |
| Model Number: | Z11/41Y-300LB-DN20 |
| Minimum Order Quantity: | 10 |
| Price: | Negotiable |
| Packaging Details: | plywood case |
| Delivery Time: | 1 week |
| Payment Terms: | L/C, T/T, Western Union, D/A |
| Supply Ability: | 40000pcs/month |
| Name: | Forged Steel Double Block Gate Valve Flange Fnpt | Connection: | Socket Weld,RF Flange,FNPT,RTJ Flange |
|---|---|---|---|
| Standard: | API602/BS5352/GOST/JIS/DIN/ISO | Pressure: | 150LB-800LB,1500LB,2500LB |
| Power: | Manual,Pneumatic,Solenoid,Electrical Actuated | Temperature Of Media: | Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃) |
| Size: | 1/4"-4",DN8-DN100 | ||
| High Light: | Double Gate Valve Dn80 300LB,Bs 5352 Double Gate Valve,bs 5352 gate valves VERVO |
||
Forged Double Gate Valve 300LB Gate Valve Forged Steel Gate Valve One Side Integral Flange One Side FNPT Special Valve
Technical parameters and characteristics
| Product | Small size gate valve. |
| Nominal diameter | 1/4 Inch-4 Inch. |
| Design temp. | -196℃-573℃. |
| Design pressure | Class 150-4500 LB. |
| Material | Carbon steel, Stainless steel, Alloy steel, Bronze. |
| Design standard | API 602, BS 5352. |
| Face to face | Manufacture standard, ASME B16.10. |
| Connection end | NPT, SW, BW, Flange. |
| Test standard | API 598, ISO 5208 |
| Operation | Hand wheel, electric. |
| Application | Power station, petroleum, chemical engineering. |
| Function 1 | Bolted bonnet, welded bonnet, pressure seal bonnet. |
| Function 2 | Solid wedge. |
| Function 3 | Full bore, reduce bore. |
| Function 4 | Integral flanged ends, welded on flanged ends. |
General Introduction
VERVO forged steel valve has the advantages of small volume and compact type. Bolted bonnet, welded bonnet, pressure bonnet, bellow seal bonnet, high/low temperature extended bonnet and ISO 15848 fugitive emission designed valves are available upon different request of services.
Forged Steel Gate Valve
VERVO forged steel gate vales adopts solid gate, renewable seat, rising stem and non-ring hand wheel. It plays the role of pipe opening and closing ultimately through the rotation of the hand wheel to drive the lifting of gate.
Key Specifications / Features
Valve description:

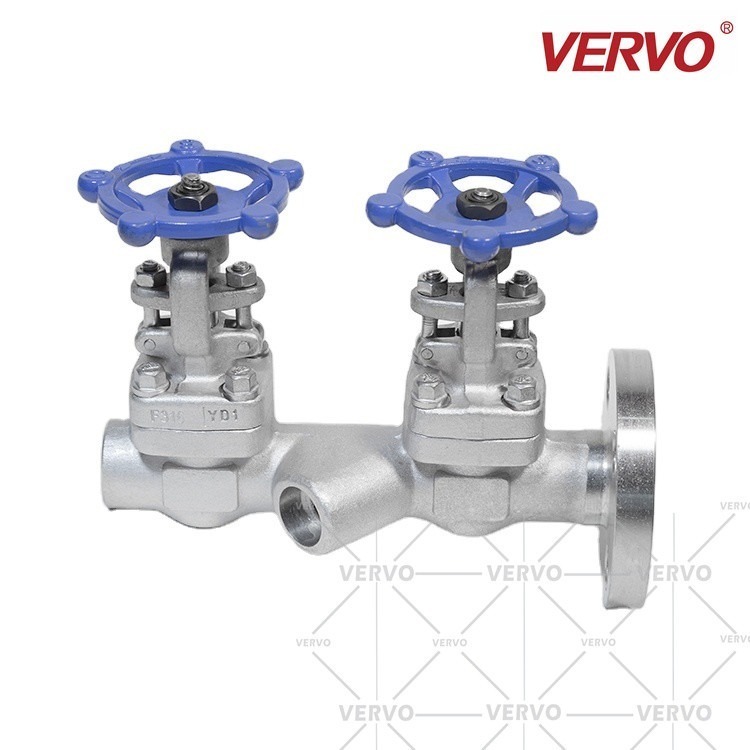

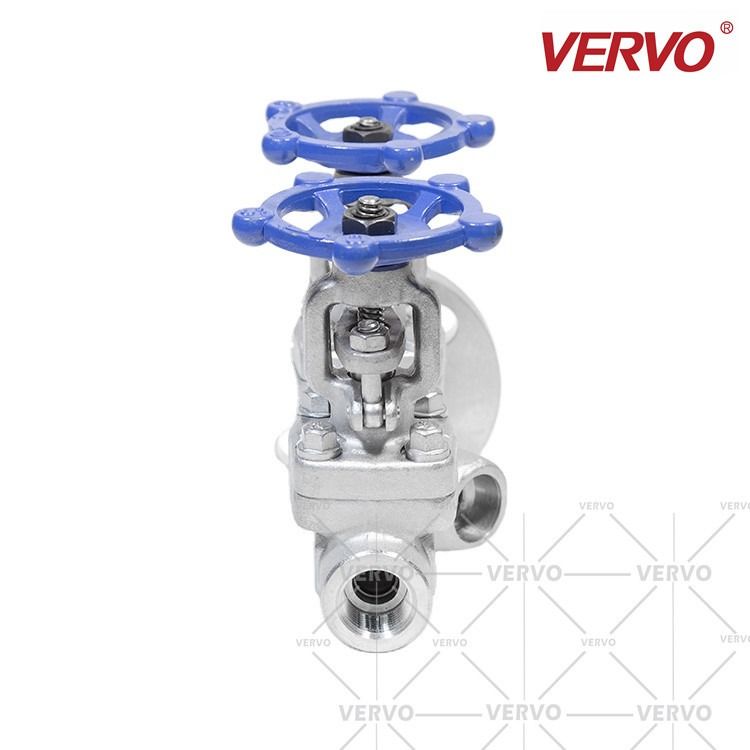

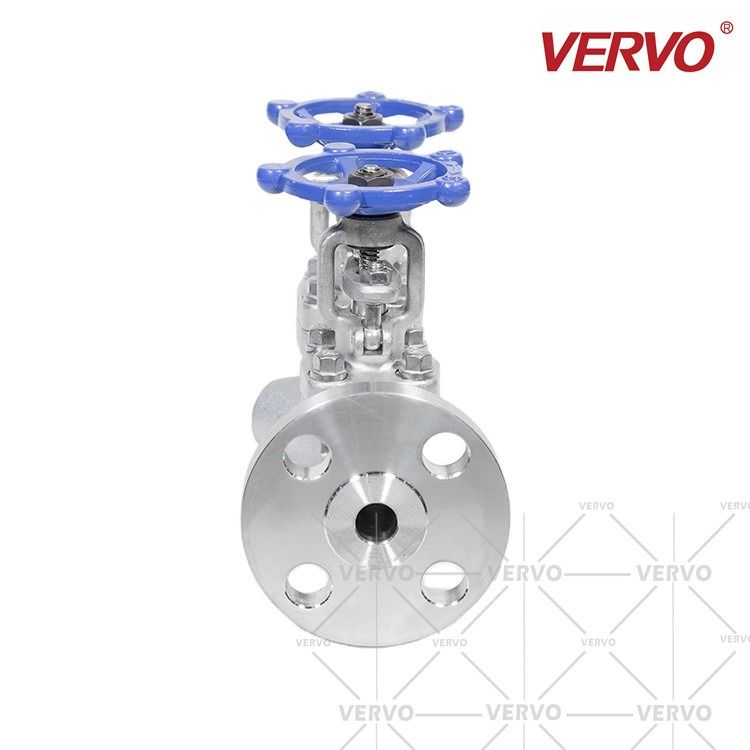

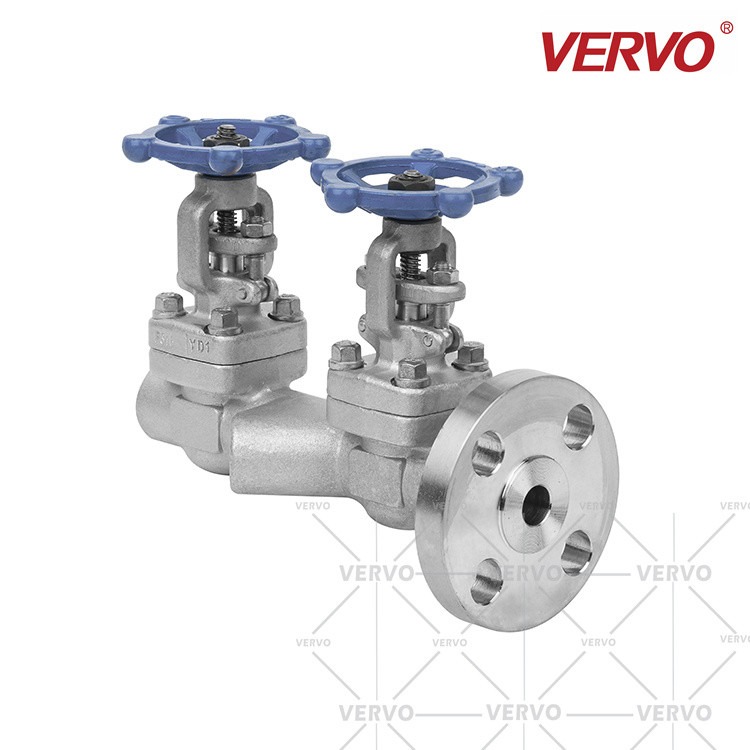

Name: Integrally forged double gate valve, with integral flange end and BW end.
Design: API 602.
Body: ASTM A182 F316.
Nominal size: 3/4 Inch.
Nominal class: Class 300 LB.
End connection: Flange end and BW end.
Face to face: Manufacture standard.
Test and inspection: API 598.
About Us
VERVO is an ISO 9001 certified company specializing in manufacturing industrial valves including ball valves, gate valves, globe valves, check valves, plug valves and butterfly valves in carbon steel, stainless steel, duplex stainless and alloy materials. Our products conform to the latest industry standards in accordance to ANSI, ASME and API.VERVO today has over 10000 square meters of manufacturing facilities. Through its conviction to provide only the finest quality products and services to match the need of our customers, VERVO has now established itself as a serious player in the valve business.
VERVO has sold worldwide in North America, Europe, South America, South Asia, Africa and the Middle East. We consider product quality and customer satisfaction as our highest priority.
We look forward to new customer relationships by providing value, quality, customer service,honesty, integrity and the commitment to maintain product consistency with each and every order.
