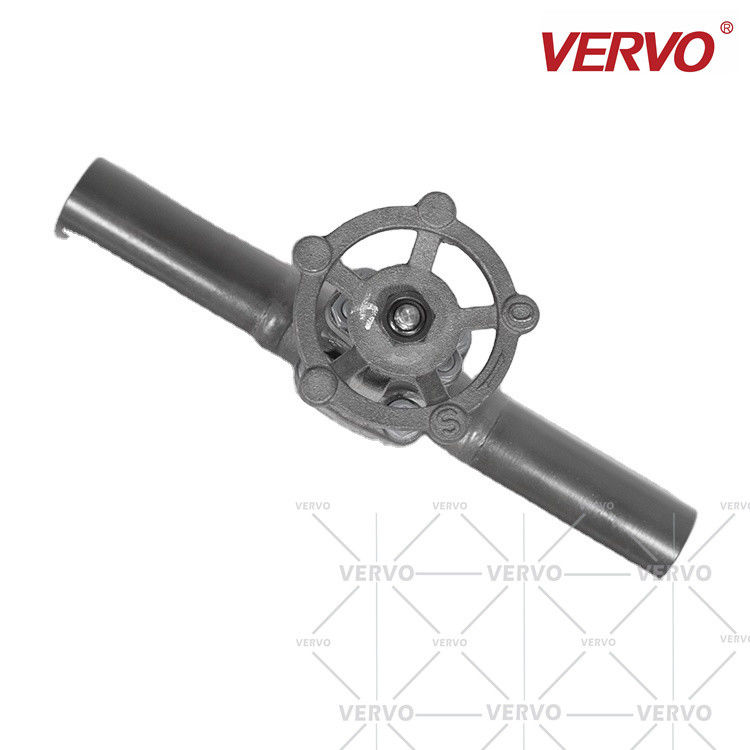

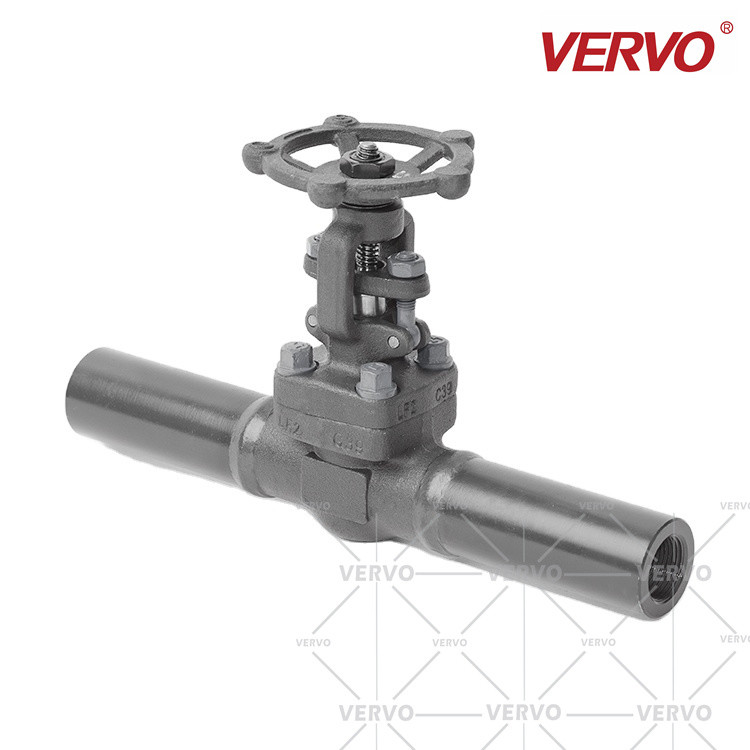

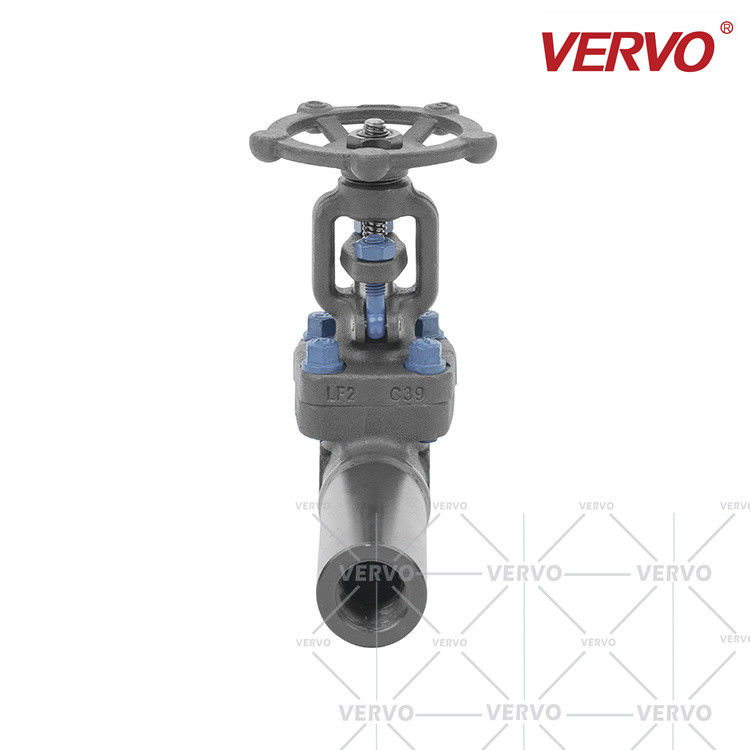

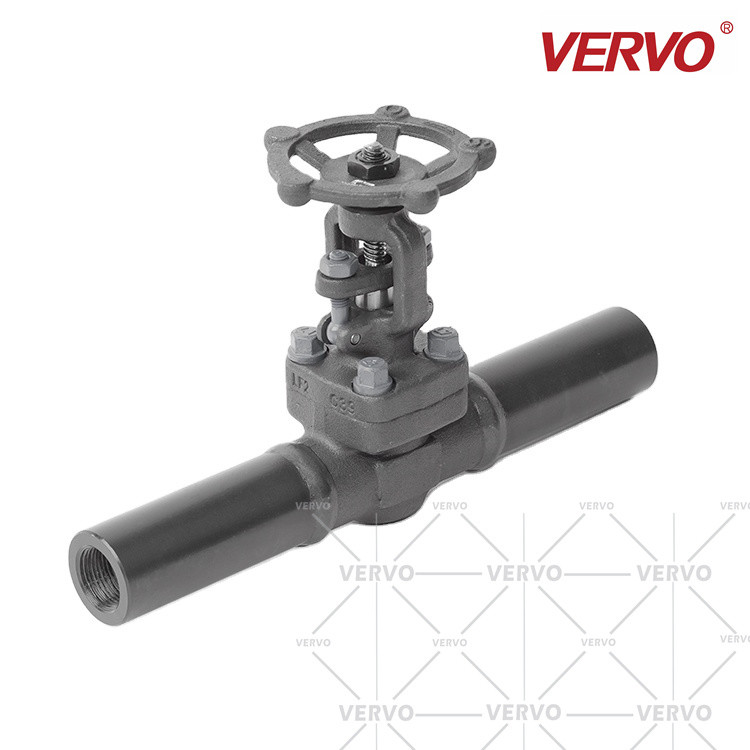

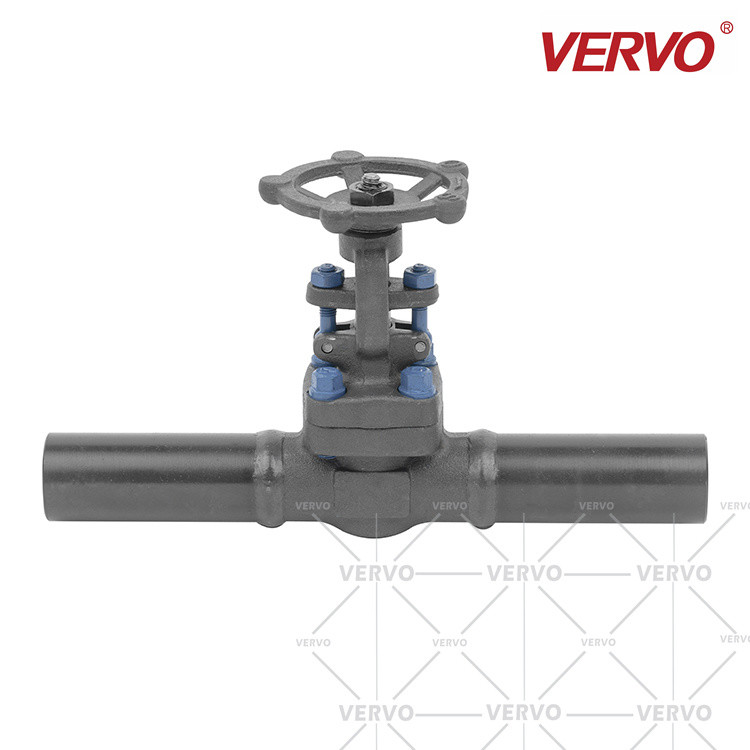

Forged Steel Extended Body Gate Valve A350 LF2 1Inch Dn25 800LB Threaded End Solid Wedge

Forged Steel Extended Body Gate Valve A350 LF2 1Inch Dn25 800LB Threaded End Solid Wedge
Forged Steel Extended Body Gate Valve A350 LF2 1Inch Dn25 800LB Threaded End Solid Wedge Forged Steel Extended Body Gate Valve A350 LF2 1Inch Dn25 800LB Threaded End Solid Wedge Forged Steel Extended Body Gate Valve A350 LF2 1Inch Dn25 800LB Threaded End Solid Wedge Forged Steel Extended Body Gate Valve A350 LF2 1Inch Dn25 800LB Threaded End Solid Wedge Forged Steel Extended Body Gate Valve A350 LF2 1Inch Dn25 800LB Threaded End Solid Wedge
Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/CE/ISO
Model Number: Z11Y-800LB-DN25
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1 week
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 40000pcs/month
Contact Now
Name: Forged Steel Extended Body Gate Valve Connection: Socket Weld,RF Flange,FNPT,Extended Body,Welded Nipple
Standard: API602/BS5352/GOST/JIS/DIN/ISO Pressure: 150LB-800LB,1500LB,2500LB
Power: Manual,Pneumatic,Solenoid,Electrical Actuated Temperature Of Media: Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃)
Size: 1/4"-4",DN8-DN100
High Light:

Extended Body Gate Valve A350 LF2

,

Extended Body Gate Valve Dn25 800LB

,

A350 LF2 Solid Wedge gate valve

Threaded End Valve Forged Steel A350 LF2 1Inch Gate Valve Dn25 800LB Extended Body Gate Valve Solid Wedge Gate Valve



Quick Detail

Forged Steel Extended Body Gate Valve A350 LF2 1Inch Dn25 800LB Threaded End Solid Wedge 0
Model number Z11Y-800LB-DN25
Item Gate Valve welded nipples on the both side 800LB
Certification ISO9001,ISO14001,ISO18001,TS,CE,API
Connection form EXTENDED BODY,WITH NIPPLE END
Body material Forged steel ASTM A350 LF2
Purpose Sutiable for Various Industrise
Temperature -46-425




Forged Low Temperature Carbon Steel Gate Valve -extended Body

Forged Steel Extended Body Gate Valve A350 LF2 1Inch Dn25 800LB Threaded End Solid Wedge 0

• Forged Low Temperature Carbon Steel Gate Valve -extended Body
• Class 800/900/1500/2500
• Reduced Port/Full Port
• Available in Forged (A105, LF2, F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51,F53,F55,F60), Alloy 20, Monel, Inconel, Hastelloy,C95800
• ASME B16.34
• Maximum Pressure 1975 PSI
• Maximum Temperature 850
• Bolted Bonnet
• API 602 / API 598
• NACE MR0175
• Sizes 1/2” - 4”

Features and benefits

Forged Steel Extended Body Gate Valve A350 LF2 1Inch Dn25 800LB Threaded End Solid Wedge 2

TWO TYPES:

● This valve is available with an extended body or an integrally reinforcedextended body (IREB).
● Extended body gate valves have a welded or threaded connection and are used for tapping of pressure vessels and header lines for vents, drains or takeoff lines and instrumentation.
● Also available: extended body assemblies for vents, drains, and instrument root valves.



   Forged Steel Extended Body Gate Valve A350 LF2 1Inch Dn25 800LB Threaded End Solid Wedge 3
CL800 Bolt Bonnet (BB)/Welding Bonnet (WB),
Reduce Port (RP)/Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW),
Size (NPS) R.P 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2
F.P 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face L 79 92 111 120 120 140 178
Handwheel Diameter W 100 100 125 160 160 180 200
Height H 165 169 207 230 249 283 333
Flow Port Diameter d 10.3 13.5 18 23 29 36 45
Weight (Kg) B.B 2.2 2.4 4.1 5.5 7.5 10 19
W.B 2.1 2.3 4 5.5 7.3 9.5 18.5
Forged Steel Extended Body Gate Valve A350 LF2 1Inch Dn25 800LB Threaded End Solid Wedge 3
CL900~CL1500 Bolt Bonnet (BB)/ Welding Bonnet (WB),
Reduce Port (RP)/ Full Port(FP), Outside Screw and Yoke(OS&Y), Thread(NPT), Socket Weld(SW), Butt Weld(BW)
Size (NPS) R.P 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2
  F.P 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face L 92 111 120 120 140 178
Handwheel Diameter W 100 125 160 160 180 200
Height H 169 207 230 249 283 333
Flow Port Diameter d 10.3 13.5 18 23 29 36
Weight (Kg) B.B 2.4 4.1 6.2 6.2 8.7 12.5
W.B 2.2 4 6 6 8.5 12
Forged Steel Extended Body Gate Valve A350 LF2 1Inch Dn25 800LB Threaded End Solid Wedge 5
CL2500 Welding Bonnet (WB),
Reduce Port (RP)/Full Port (FP), Outside Screw and Yoke (OS&Y),
Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size
(NPS)		 R.P 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face L   120 120 120 140 178 178
Handwheel Diameter W   160 160 160 180 200 200
Height H   230 235 249 283 333 333
Flow Port Diameter d   10.3 13.5 18 23 29 36
Weight
(Kg)		 W.B   6.5 6.5 6.5 9 13 13



Keywords of Threaded End Valve Forged Steel A350 LF2 1Inch Gate Valve Dn25 800LB Extended Body Gate Valve Solid Wedge Gate Valve

Forged Steel Extended Body Gate Valve A350 LF2 1Inch Dn25 800LB Threaded End Solid Wedge 6

High Pressure Gate Valve,Forged Steel BB Gate Valve, Threaded End Gate Valve, A350 LF2 Gate Valve, 1 Inch Gate Valve ,Class 800 Globe Valve,API602 Gate Valve, BS5352 Gate Valve, 25mm BB Gate Valve,DN25 Gate Valve,Welding Nipple End Gate Valve, Extended Body Gate Valve,Solid Wedge Gate Valve
