| Place of Origin: | LISHUI,ZHEJIANG |
|---|---|
| Brand Name: | VERVO |
| Certification: | API/CE/ISO |
| Model Number: | HZ61Y-4500LB-DN50 |
| Minimum Order Quantity: | 10 |
| Price: | Negotiable |
| Packaging Details: | plywood case |
| Delivery Time: | 1 month |
| Payment Terms: | L/C, T/T, Western Union, D/A |
| Supply Ability: | 40000pcs/month |
| Name: | Ultra High Pressure Gate Valve 4500LB | Media: | Oli,Gas,Water |
|---|---|---|---|
| Standard: | API602/BS5352/GOST/JIS/DIN/ISO | Pressure: | 150LB-800LB,1500LB,2500LB,4500LB |
| Power: | Manual,Pneumatic,Solenoid,Electrical Actuated | Temperature Of Media: | Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃) |
| Size: | 1/4"-4",DN8-DN100 |

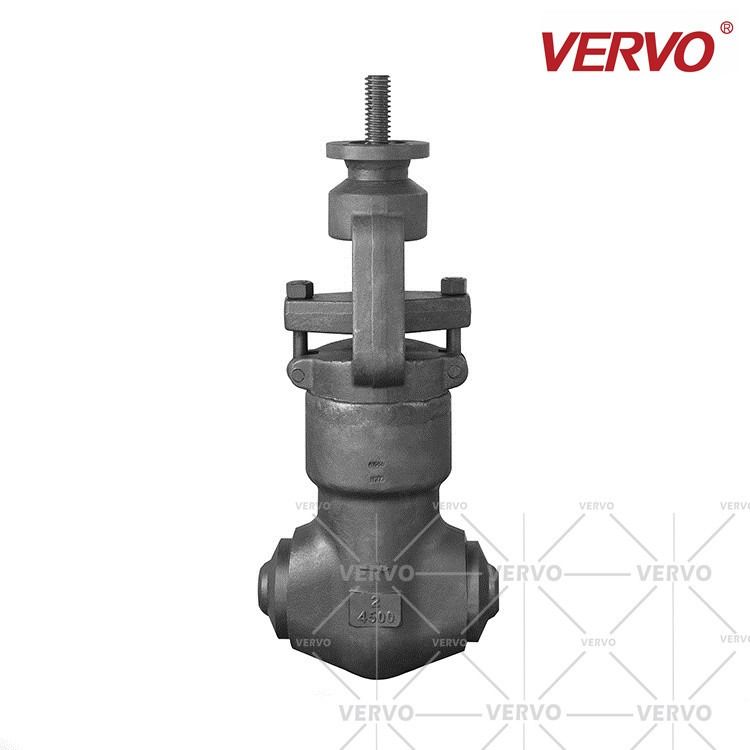

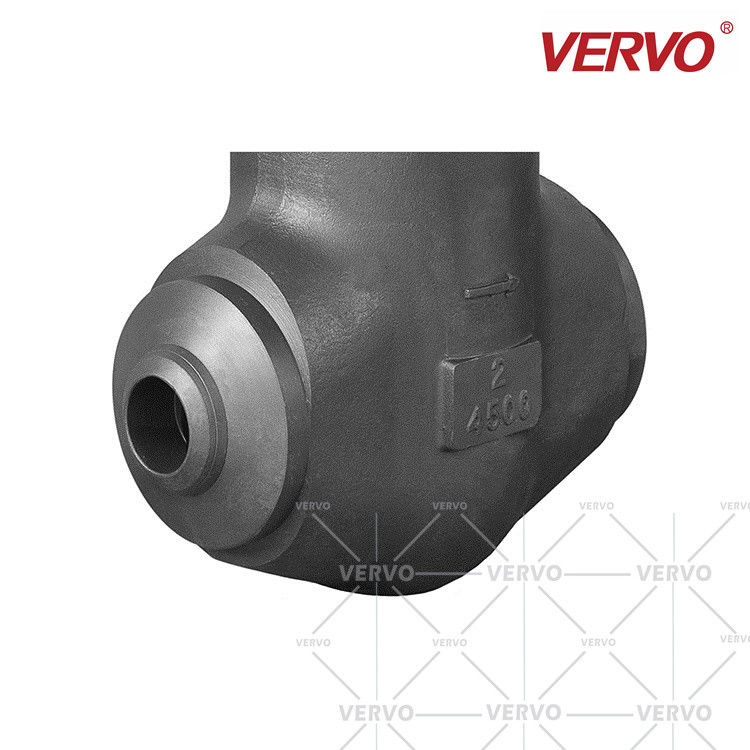

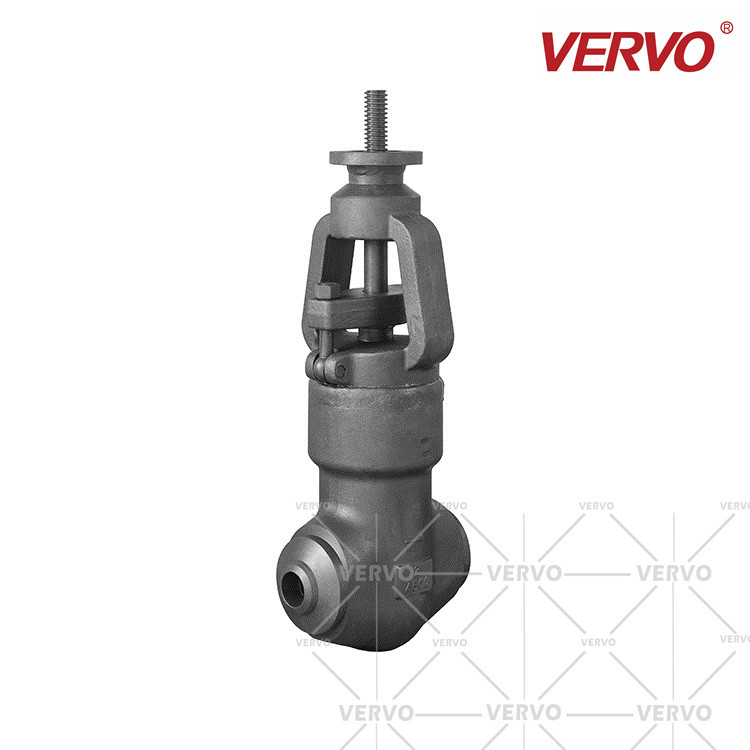

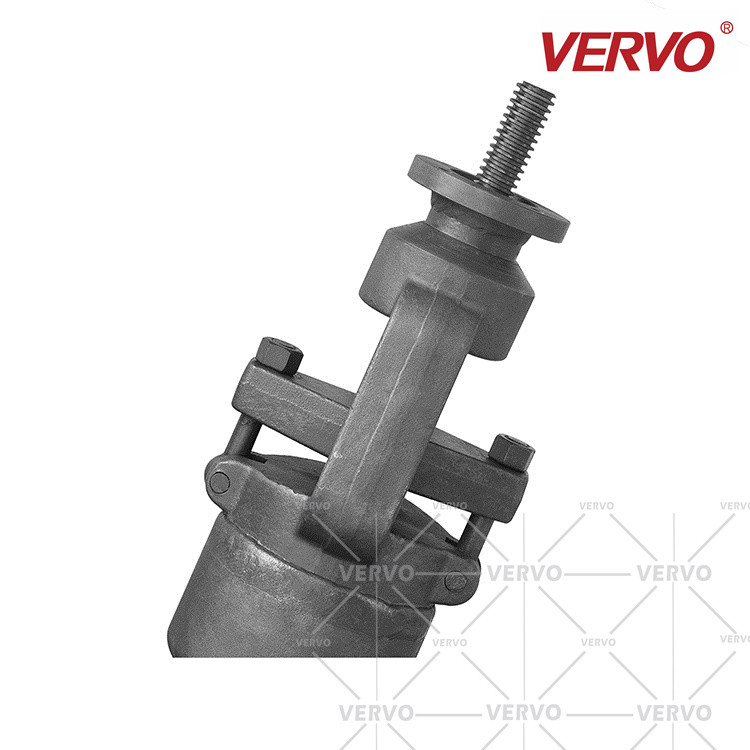

4500LB Valve High Pressure Gate Valve 2Inch DN50 4500Lb Ultra High Pressure Valve Pressure Seal Bonnet Gate Valve
Quick Detail
| Model number |
HZ61Y-4500LB-DN50 |
| Item | Ultra High Pressure Globe Valve 4500LB |
| Certification | ISO9001,ISO14001,ISO18001,TS,CE,API |
| Connection form | Butt Welding |
| Body material | Forged steel ASTM A105N |
| Purpose | Sutiable for Various Industrise |
| Temperature | -29-425 |
SPECIFICATIONS
1) Valve Size : 1/2" ~ 6"
2) Applicable Rating : ASME 1500# ~ 4500#
3) Temperature : Up to 500℃
4) Code & Standard : API, BS, ASME, ASTM
Designed by ASME B16.11 / 16.25 / 16.34 / 16.5
5) Constructions
• End Connection : Socket-Welded or Flanged Type
• PSB (=Pressure-Seal Bonnet) Type
• Full Bore
• Manual or Motor Operated
(Pneumatic, Electric, or Hydraulic)
PSB GLOBE VALVE DIMENSION
| CL900~CL2500 | Pressure Seal Bonnet (PSB), Full Port (FP), Outside Screw and Yoke (OS&Y), Thread(NPT), Socket Weld(SW), Butt Weld (BW) |
||||||||
| Size (NPS) | F.P | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
| Face To Face | CL900 CL1500 |
L | 140 | 140 | 140 | 140 | 178 | 178 | 216 |
| CL2500 | 182 | 182 | 182 | 182 | 232 | 232 | 272 | ||
| Handwheel Diameter | CL900 CL1500 CL2500 | W | 200 | 200 | 200 | 200 | 280 | 280 | 300 |
| Height | CL900 CL1500 | H | 308 | 308 | 315 | 315 | 446 | 446 | 540 |
| CL2500 | 325 | 325 | 325 | 325 | 460 | 460 | 550 | ||
| Flow Port Diameter | d | 8 | 10.3 | 13.5 | 18 | 23 | 29 | 36 | |
| Weight (Kg) | CL900 CL1500 | PSB | 9 | 9 | 9 | 9 | 26 | 26 | 36 |
| CL2500 | 11.9 | 11.9 | 11.8 | 11.7 | 30 | 28 | 42 | ||
 |
|||||||||
| CL900~CL2500 | Pressure Seal Bonnet (PSB), Full Port (FP), Outside Screw and Yoke (OS&Y), Flanged (RF/RTJ) |
||||||||
| Size (NPS) | F.P | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
| Face To Face | CL900 CL1500 | L (RF) | 216 | 229 | 254 | 279 | 305 | 368 | |
| CL2500 | 264 | 273 | 308 | 349 | 384 | 451 | |||
| Handwheel Diameter | CL900 CL1500 CL2500 | W | 200 | 200 | 200 | 280 | 280 | 300 | |
| Height | CL900 CL1500 |
H | 308 | 315 | 315 | 446 | 446 | 540 | |
| CL2500 | 325 | 325 | 325 | 460 | 460 | 550 | |||
| Flow Port Diameter | d | 10.3 | 13.5 | 18 | 23 | 29 | 36 | ||
| Weight (Kg) | CL900 CL1500 | PSB | 11.9 | 13.7 | 18 | 36.8 | 37 | 45 | |
| CL2500 | 13 | 17 | 22 | 30 | 42 | 58 | |||
