1 1/2 Inch Industrial Globe Valve Dn40 BW 2690LB PSB Pressure Seal Bonnet

Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/CE/ISO
Model Number: J41Y-600LB
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1 week
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 40000pcs/month
Name: Power Plant Forged Steel Globe Valve Media: Oli,Gas,Water
Standard: API602/BS5352/GOST/JIS/DIN/ISO Pressure: 150LB-800LB,1500LB,2500LB
Power: Manual,Pneumatic,Solenoid,Electrical Actuated Temperature Of Media: Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃)
Size: 1/4"-4",DN8-DN100
High Light:

1 1/2 Inch Industrial Globe Valve Dn40

,

2690LB Industrial Globe Valve Dn40 BW

,

2690LB Dn40 globe valve

High Pressure Clobe Valve Forged Steel 1 1/2 Inch Dn40 2690LB BW Globe Valve PSB Globe Valve Pressure Seal Bonnet



Model number J61Y-P54/2500LB
Item Globe Valve
Certification ISO9001,ISO14001,ISO18001,TS,CE,API
Connection form Butt Welding
Body material Forged Steel 12CrMoV
Seal material Gasket
Feature Easy disassembly and assembly



Features and benefits

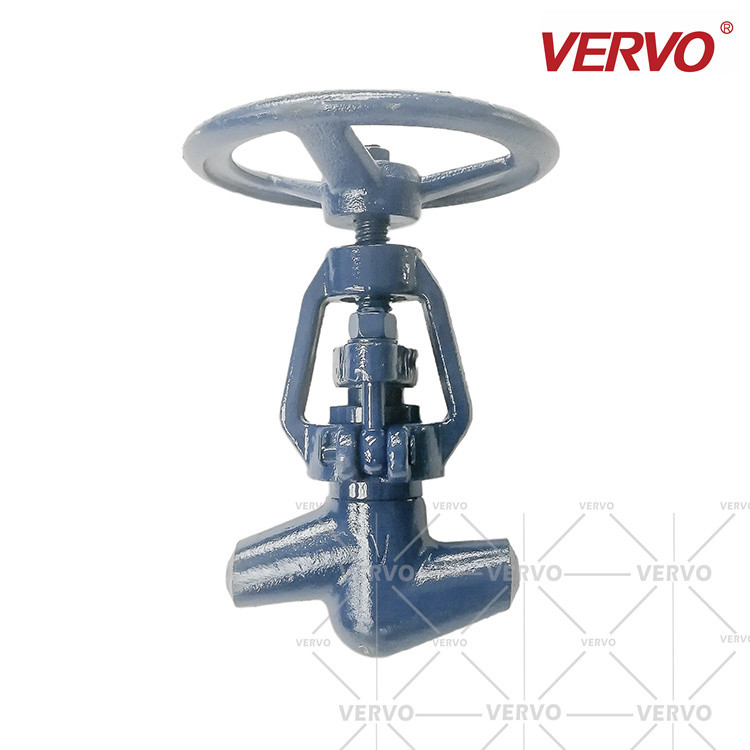

1 1/2 Inch Industrial Globe Valve Dn40 BW 2690LB PSB Pressure Seal Bonnet 0

VERVO globe valve’s top and bottom-guided disc assures stem ­operation without side thrust caused by high pressure flow. The non-rotating stem results in lower friction of all moving parts and longer stem packing life. All this resulting in smooth, easy operation and tight shutoff under extreme pressures.

Brief intro

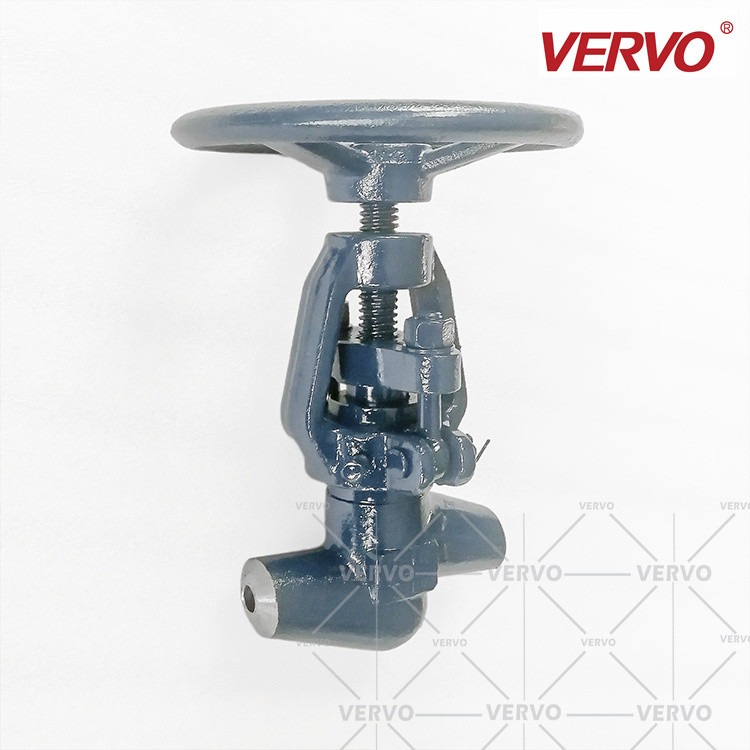

1 1/2 Inch Industrial Globe Valve Dn40 BW 2690LB PSB Pressure Seal Bonnet 1
The middle part of pressure seal globe valve using pressure self-tightening structure,make sure the valve has good sealing performance under high pressure and high temperature conditions,usually,the sealing ring has two kinds of material,one is low carbon steel,the other is flexible graphite+SS 316,besides,the sealing surface is welding with hard alloy,after the welding is finished,the thickness of metal layer should be 3mm or more,therefore,it has advantages of wear-resistant,temperature-resistant and anti-corrosion,greatly prolong the service life.Both ends adopt welding structure,the dimensions of welding groove can be customized on clients' requirements.The medium can be high temperature and high pressure water,steam,oil products and super-heated steam.,etc,it's widely used for thermal power plant,petrochemical industry,metallurgy and other industrial sectors.

Main Features

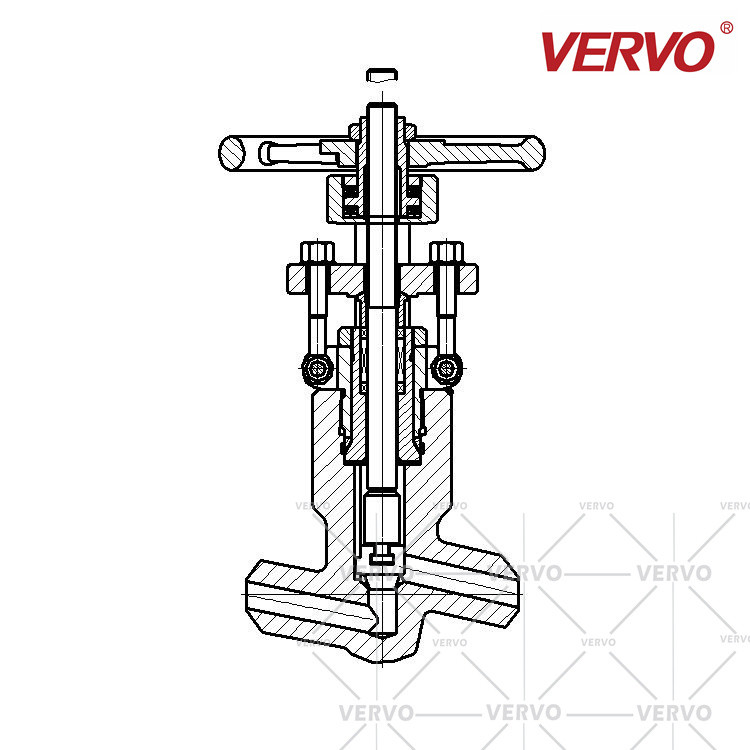

1 1/2 Inch Industrial Globe Valve Dn40 BW 2690LB PSB Pressure Seal Bonnet 1



Main Parts and Materials

Part Name Material Mark
Body WCB WC1 WC6 WC9
Disc WCB WC1 WC6 WC9
Seat 25 15CrMoA 12Cr1MoVA 12Cr1MoVA
Stem 1Cr17Ni2 1Cr17Ni2 SUH600 SUH600
20Cr1Mo1V1A 20Cr1Mo1V1A
Cover 25 15CrMoA 12Cr1MoVA 12Cr1MoVA
WCB WC1 WC6 WC9
Packing Reinforced flexible graphite
Yoke WCB WCB WCB WCB
WC1 WC6 WC9
Sealing ring Mild steel(reinforced flexible graphite) Mild steel Mild steel
Stem Nut 45
Suitable temp. ≤425 °C ≤450 °C ≤540 °C ≤570 °C

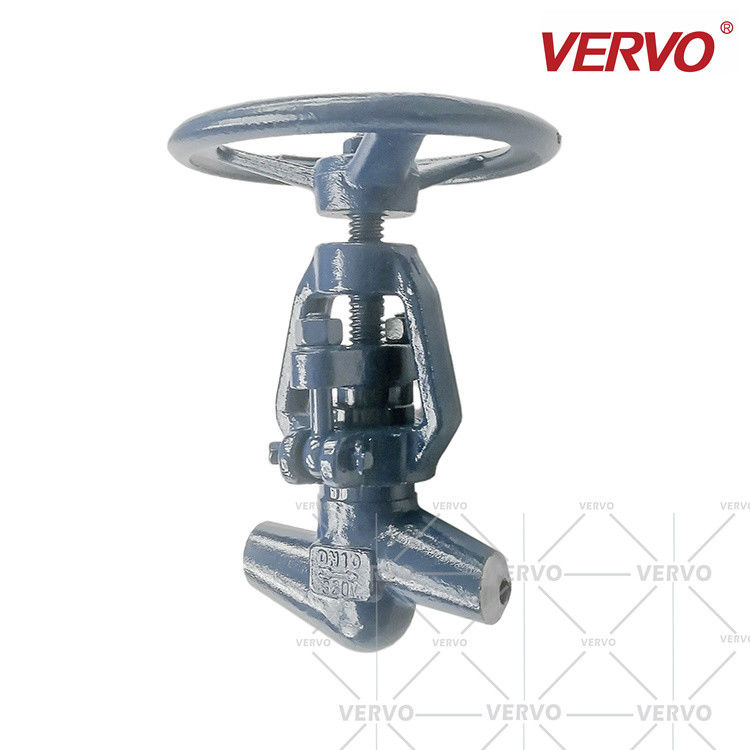

1 1/2 Inch Industrial Globe Valve Dn40 BW 2690LB PSB Pressure Seal Bonnet 31 1/2 Inch Industrial Globe Valve Dn40 BW 2690LB PSB Pressure Seal Bonnet 4

Keywords of Forged Steel High Temperature And High Pressure Power Station Valve Globe Valve DN40 2690LB Butt Weld Globe Valve

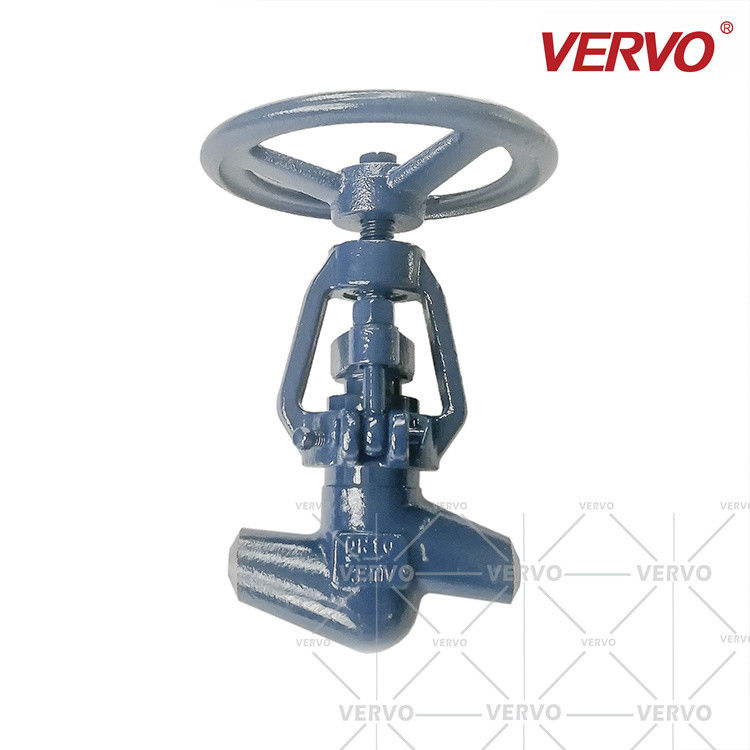

1 1/2 Inch Industrial Globe Valve Dn40 BW 2690LB PSB Pressure Seal Bonnet 5

Power Plant PSB Stop Valve, 12CrMoV PSB Globe Valve, Pressure Seal Bonnet Globe Valve,BW Globe Valve ,Straight Through Globe Valve, 2690LB Globe Valve,50mm PSB Globe Valve,DN40 Globe Valve,Power Station Globe Valve,High Pressure Valve,Power Station Stop Valve,Power Station Globe Valve
