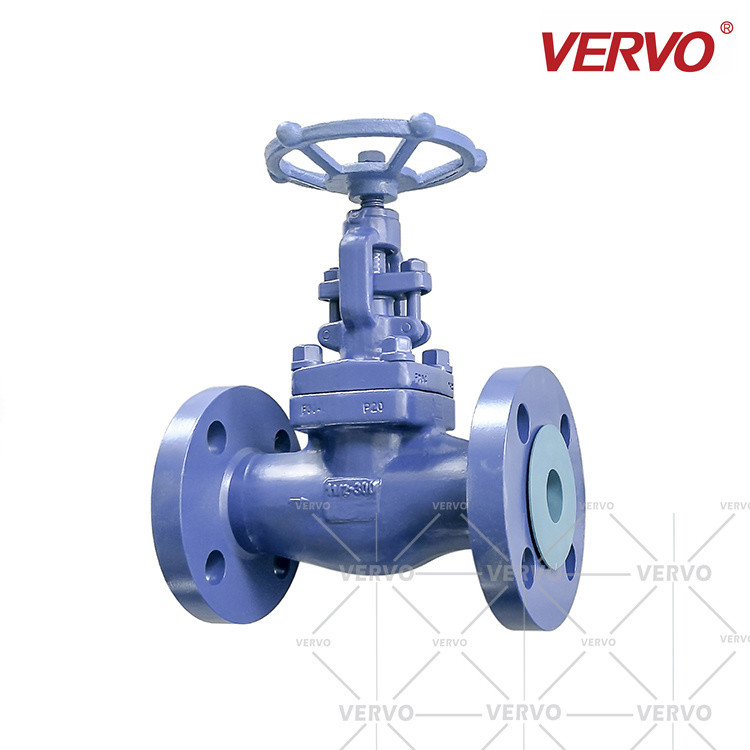

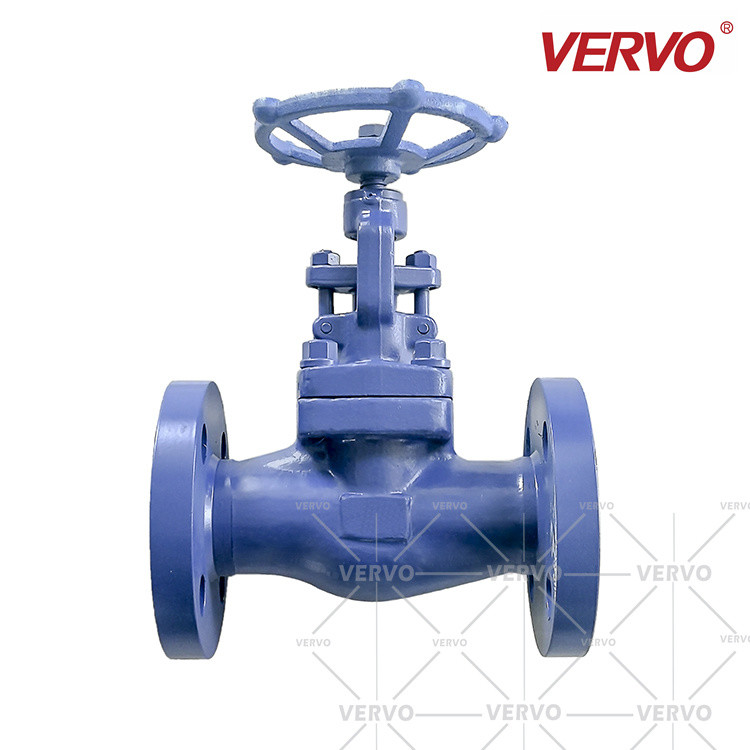

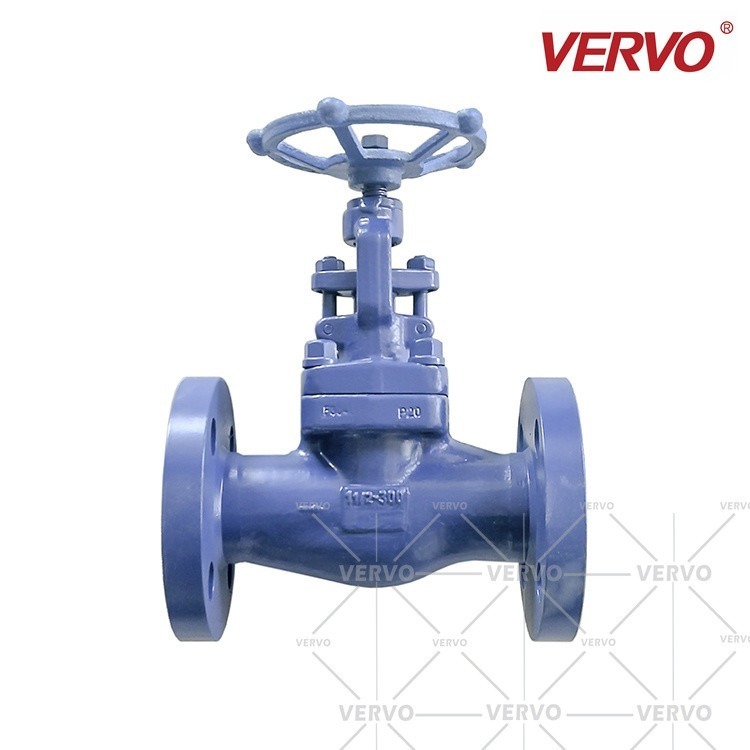

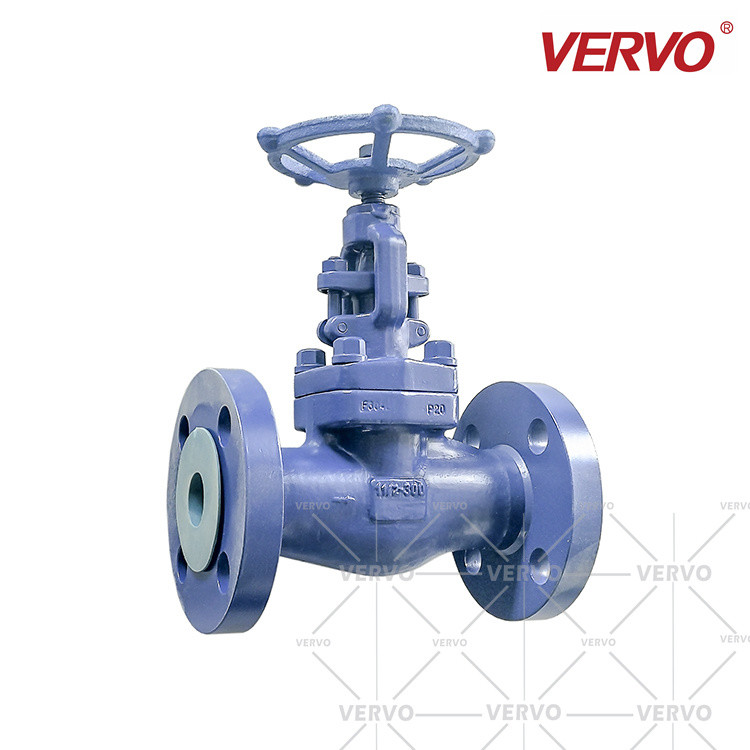

1-1/2 Inch Cl300 Industrial Globe Valve Dn40 Rf Flanged Forged Steel

Globe Valve Forged Stainless Steel 1-1/2 Inch Dn40 Rf Flanged Forged Steel Globe Valve Cl300 Forged Steel Globe Valve

VERVO Valve has forged steel and forged stainless steel gates, globes, and checks in stock.

Forged Steel Globe Valve Flanged

VERVO offer Forged Steel Globe Valves in size 1/2" (DN15) to 4" (DN100) to suit various critical, non-critical applications and pressure rating in 150-2500 class.

Manufacturing range covers Regular Port and Standard Port both types of Valve. Regular Port globe valves have fast delivery or ready stock, for Standard Port globe valve do manufactuing on order basis,wide range of Body Materials like ASTM A 105 - Forged Carbon Steel, ASTM A 182 F 304/304L/316/316L - Forgated Stainless Steel 304/304L/316/316L, ASTM A 182 F 11/22 - Alloy Steel to suit industrial application.

Available under any Third party inspection also. For High Pressure & Temperature application Stellited F6 Face Seat & Disc available. Forged Globe Valve available is Threaded End, Socket Weld End, Butt Weld End and Flanged End Connection. For Flanged End Forged Steel Globe Valve flanges will be a welded with a valve body not integral forged.

Features

• Body & Bonnet made from high quality forging.
• The Forgings are precision machined for high performance
• Leak Proof Body-Bonnet Joint With Spiral Wound Gasket
• Ground Finish Stem
• Self Aligning Two Piece Gland
• Back seating feature facilitates repacking of the stuffing box on line with the valve in fully open position.

Standards

Design Standard:BS 5352 / API 602 / ASME B 16.34

Inspection & Testing Standard:BS EN ISO 12266 - I (BS 6755 - I) / API 598

Flange To Flance Distance:As Per ANSI B 16.10 / BS 5352 / API 602

End Connection:Flanged End to ANSI B 16.5, DIN Standard / JIS Standard / IS Standard

Screwed - Threaded End to ANSI B 1.20.1

Socket Weld End to ANSI B 16.11

Butt Weld End to ANSI B 16.25

Manufacuring Size Range:1/2" (DN15) to 2" (DN50)

Pressure Rating of Valve:Class 8000LB~1500LB

Valve Operation: Hand Wheel Operated

Valve Seat Leakage:Leakage Class IV

Key features:

• Available in ANSI 150, ANSI 300, ANSI 600,ANSI 900,ANSI 1500,ANSI 2500
• sizes 1/2" to 4" DN15 to DN100
• Temperature range: -10°C to 538°C.
• Pressure rating: Class 150 or Class 2500.

A maintenance free valve - design to API602, BS5352.

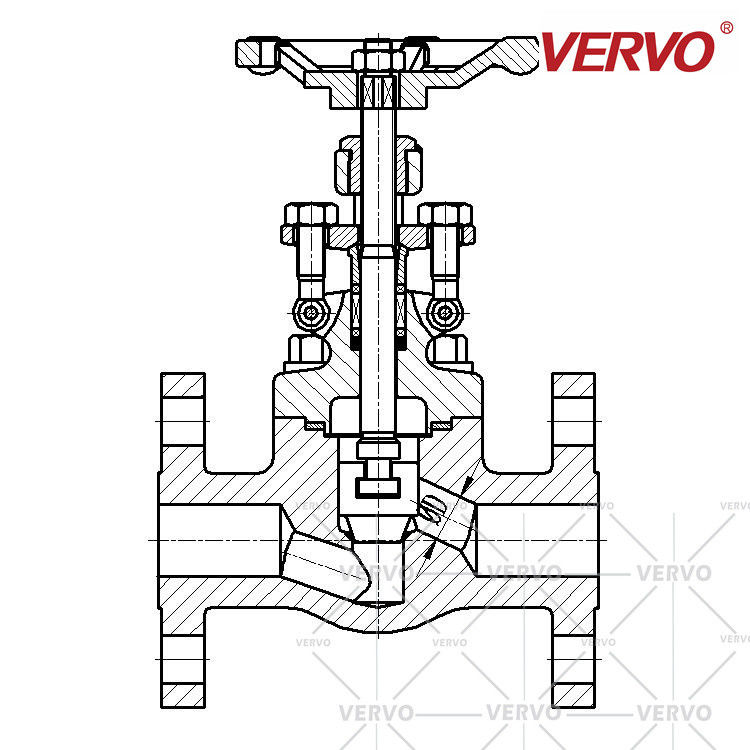

CL150~CL600	Bolt Bonnet (BB), Reduce Port (RP), Outside Screw and Yoke (OS&Y), Flanged (RF/RTJ)
Size (NPS)		R.P	1/2	3/4	1	1-1/4	1-1/2	2
Face To Face	CL150	L (RF)	108	117	127	140	165	203
	CL300		152	178	203	216	229	267
	CL600		165	190	216	229	241	292
Handwheel Diameter		W	100	100	125	160	160	180
Height		H	170	172	207	228	270	320
Flow Port Diameter		d	10.5	13.5	17	22	28	34
Weight (Kg)	CL150	B.B	4.1	4.8	7.1	10	12.7	21
	CL300		4.8	6.7	10	14.5	18.3	25.2
	CL600		5.4	7.4	11	16	19.2	28.8
CL900~CL1500	Bolt Bonnet (BB), Reduce Port (RP), Outside Screw and Yoke (OS&Y), Flanged (RF/RTJ)
Size (NPS)		R.P	1/2	3/4	1	1-1/4	1-1/2	2
Face To Face	CL900	L (RF)	216	229	254	279	305	368
	CL1500
Handwheel Diameter		W	100	100	125	160	160	180
Height		H	170	172	207	228	270	320
Flow Port Diameter		d	10.5	13.5	17	22	28	34
Weight (Kg)	CL900	B.B	10.1	13	18.3	26	32.8	54
	CL1500

The dimension and weights are for reference only and subject to change without notice.

1. For more size or dimensional information, please contact our sales representative.
