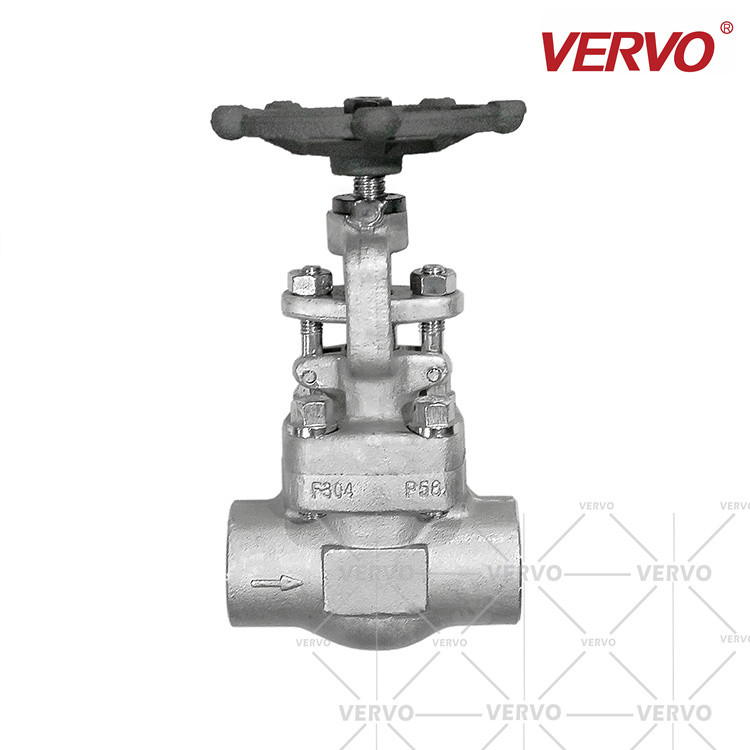

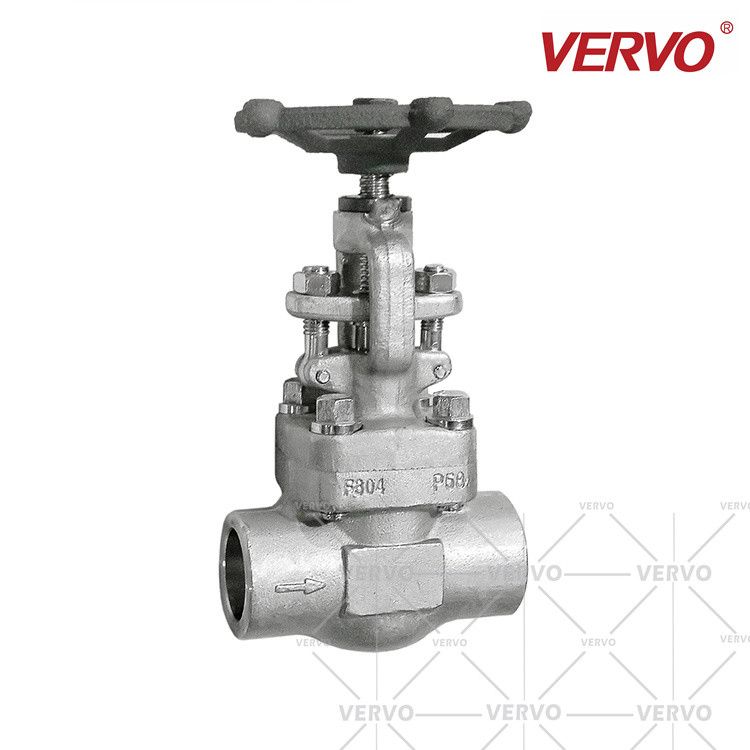

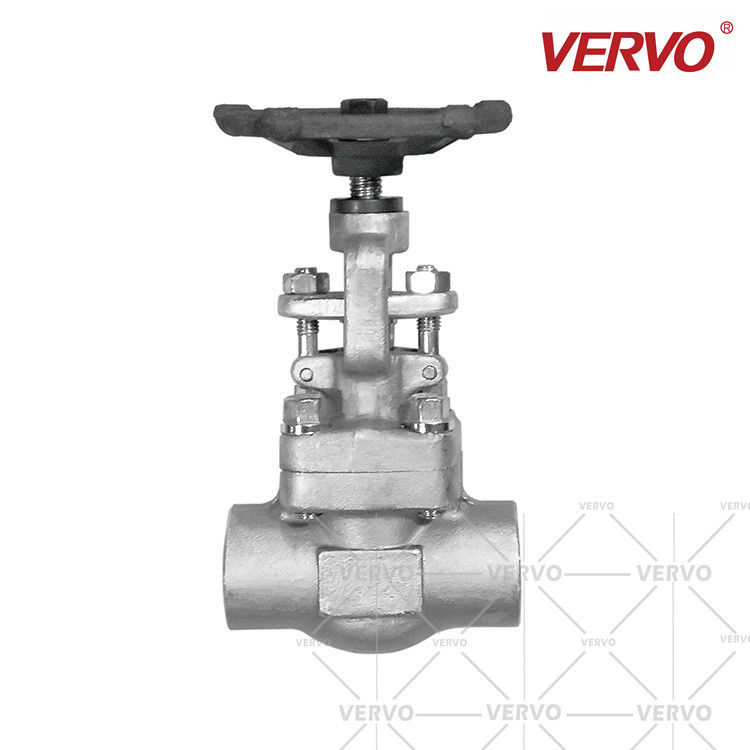

Bolted Bonney Forge Class 800 Globe Valve Dn25 Stainless F304 1 Inch 800lb Sw

Bolted Bonney Forge Class 800 Globe Valve Dn25 Stainless F304 1 Inch 800lb Sw
Bolted Bonney Forge Class 800 Globe Valve Dn25 Stainless F304 1 Inch 800lb Sw Bolted Bonney Forge Class 800 Globe Valve Dn25 Stainless F304 1 Inch 800lb Sw Bolted Bonney Forge Class 800 Globe Valve Dn25 Stainless F304 1 Inch 800lb Sw Bolted Bonney Forge Class 800 Globe Valve Dn25 Stainless F304 1 Inch 800lb Sw Bolted Bonney Forge Class 800 Globe Valve Dn25 Stainless F304 1 Inch 800lb Sw
Basic Information
Place of Origin: LISHUI,ZHEJIANG
Brand Name: VERVO
Certification: API/CE/ISO
Model Number: J61Y-800LB-DN25
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 1 week
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 40000pcs/month
Contact Now
Name: Forged Steel Stainless Steel Gate Valve Media: Oli,Gas,Water
Standard: API602/BS5352/GOST/JIS/DIN/ISO Pressure: 150LB-800LB,1500LB,2500LB
Power: Manual,Pneumatic,Solenoid,Electrical Actuated Temperature Of Media: Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃)
Size: 1/4"-4",DN8-DN100
High Light:

Bolted Bonney Forge Class 800 Globe Valve

,

Forge Class 800 Globe Valve Dn25

,

forged steel globe valve class 800

Globe Valve Forged Steel Stainless F304 1 Inch Dn25 800lb Sw Bolted Bonnet Forged Steel Globe Valve Class 800



VERVO forged steel globe valves are offered in straight pattern, Y-pattern, bolted bonnet and welded bonnet design in a wide range of carbon, stainless steel, duplex stainless steel, alloy and other special materials. VERVO forged steel globe valves are manufactured according to API 602 Design.



PRODUCT RANGE

Bolted Bonney Forge Class 800 Globe Valve Dn25 Stainless F304 1 Inch 800lb Sw 0

Sizes NPS 1/2 to NPS 4

Class 800 to Class 2500



MATERIALS

Bolted Bonney Forge Class 800 Globe Valve Dn25 Stainless F304 1 Inch 800lb Sw 0

Available in Forged (A105, A350 LF2, A182 F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51), Alloy 20, Monel, Inconel, Hastelloy



DESIGN FEATURES

Bolted Bonney Forge Class 800 Globe Valve Dn25 Stainless F304 1 Inch 800lb Sw 0

SW, NPT, RF, or BW

Outside Screw & Yoke (OS&Y)

Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet



DESIGN STANDARD

Bolted Bonney Forge Class 800 Globe Valve Dn25 Stainless F304 1 Inch 800lb Sw 0

Design & manufacture according to API 602, ASME B16.34

End Connection according to ASME B16.11 (SW), ASME B1.20.1 (NPT), ASME B16.5 (RF, RTJ)

Test & inspection according to API 598

Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624



Model number J61W-800LB-DN25
Item Globe Valve
Certification ISO9001,ISO14001,ISO18001,TS,CE
Connection form Welding
Body material Stainless steel F304
Seal material Gasket
Feature Easy disassembly and assembly

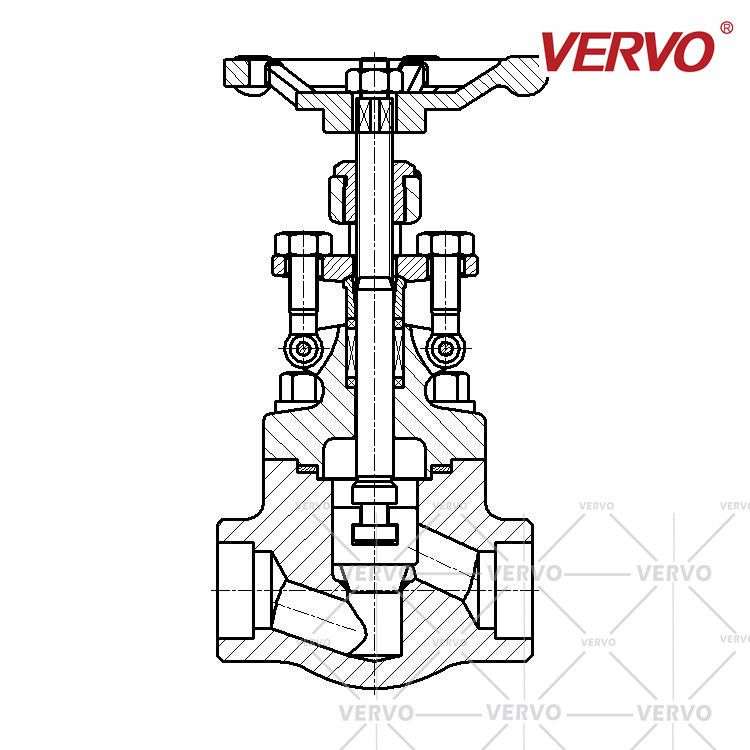

Bolted Bonney Forge Class 800 Globe Valve Dn25 Stainless F304 1 Inch 800lb Sw 4

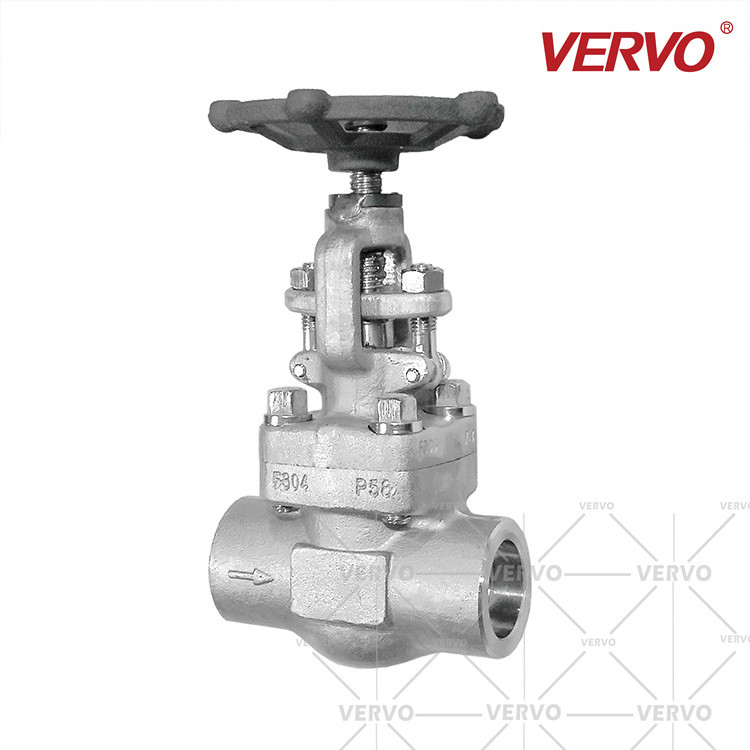

                                                            Bolted Bonney Forge Class 800 Globe Valve Dn25 Stainless F304 1 Inch 800lb Sw 5

CL800 Bolt Bonnet (BB)/ Welding Bonnet(WB),
Reduce Port (RP)/Full Port (FP), Outside Screw and Yoke (OS&Y),
Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size (NPS) R.P 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2
F.P 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face L 79 92 111 120 152 172 220
Handwheel Diameter W 100 100 125 160 160 180 200
Height H 170 172 207 228 270 320 356
Flow Port Diameter d 10.5 13.5 17 22 28 34 44
Weight (Kg) B.B 2.2 2.4 4.1 5.7 7.6 12.2 21
  W.B 1.9 2.1 3.9 5.5 7.4 11.6 19.7
Bolted Bonney Forge Class 800 Globe Valve Dn25 Stainless F304 1 Inch 800lb Sw 6
CL900~CL1500 Bolt Bonnet (BB)/ Welding Bonnet (WB),
Reduce Port (RP)/Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size (NPS) R.P 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2
F.P 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face L 92 111 120 152 172 220
Handwheel Diameter W 100 125 160 160 180 200
Height H 172 207 228 270 320 387
Flow Port Diameter d 10.5 13.5 17 22 28 34
Weight (Kg) B.B 4.1 5.6 6.7 7.6 12.2 21
  W.B 3.8 5.4 6.5 7.4 12 20.2
Bolted Bonney Forge Class 800 Globe Valve Dn25 Stainless F304 1 Inch 800lb Sw 7
CL2500 Welding Bonnet (WB),
Reduce Port (RP)/Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW)
Size (NPS) R.P 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Face To Face L   120 120 152 172 220 220
Handwheel Diameter W   160 160 160 180 200 200
Height H   228 228 270 320 387 396
Flow Port Diameter d   10.5 13.5 17 22 28 34
Weight
(Kg)		 W.B   6.7 6.5 7.6 12.2 21 20.7
The dimension and weights are for reference only and subject to change without notice.
1. For more size or dimensional information, please contact our sales representative.

Keywords of Globe Valve Forged Steel Stainless F304 1 Inch Dn25 800lb Sw Bolted Bonnet Forged Steel Globe Valve Class 800

Bolted Bonney Forge Class 800 Globe Valve Dn25 Stainless F304 1 Inch 800lb Sw 8

Forged Steel Globe Valve, A182 F304 Globe Valve, SS Globe Valve, Stainless Steel Globe Valve, 1 Inch Globe Valve ,Class 800 Globe Valve,API602 Globe Valve, BS5354 Globe Valve, 25mm Globe Valve,Plug Disc Globe Valve
