Name: | Forged Steel A105N Gate Valve | Media: | Oli,Gas,Water |
---|---|---|---|
Standard: | API602/BS5352/GOST/JIS/DIN/ISO | Pressure: | 150LB-800LB,1500LB,2500LB |
Power: | Manual,Pneumatic,Solenoid,Electrical Actuated | Temperature Of Media: | Medium Temperature,Normal Temperature,High Temperature,-65°F To 450°F (-54℃ To 232℃) |
Size: | 1/4"-4",DN8-DN100 | ||
High Light: | Carbon Steel Globe Valve A105,Thread Carbon Steel Globe Valve API602,threaded globe valve BS5354 |

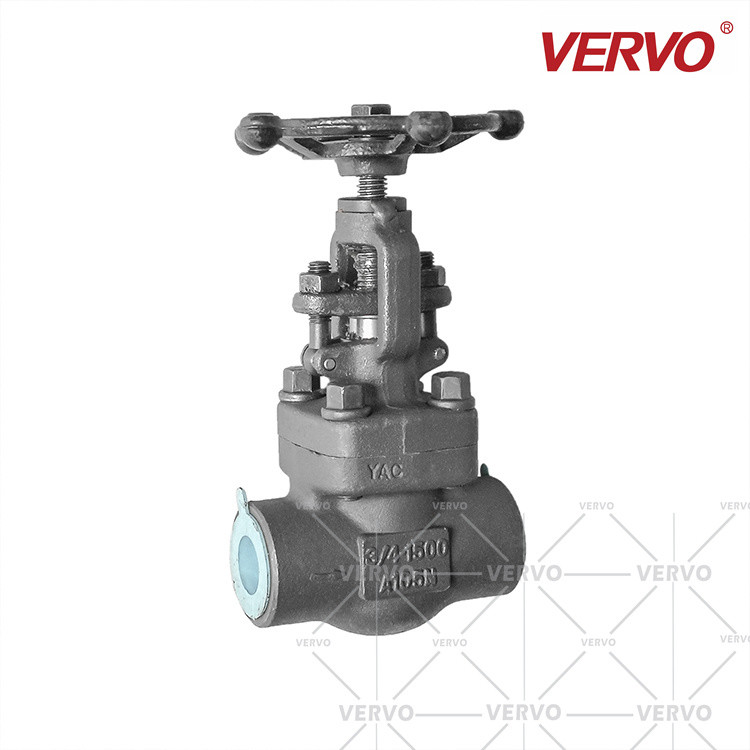

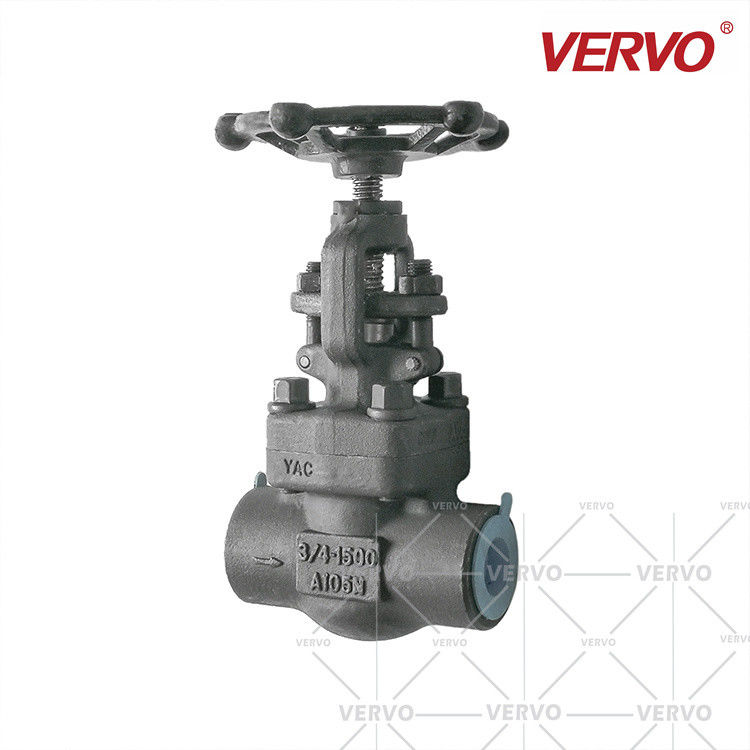

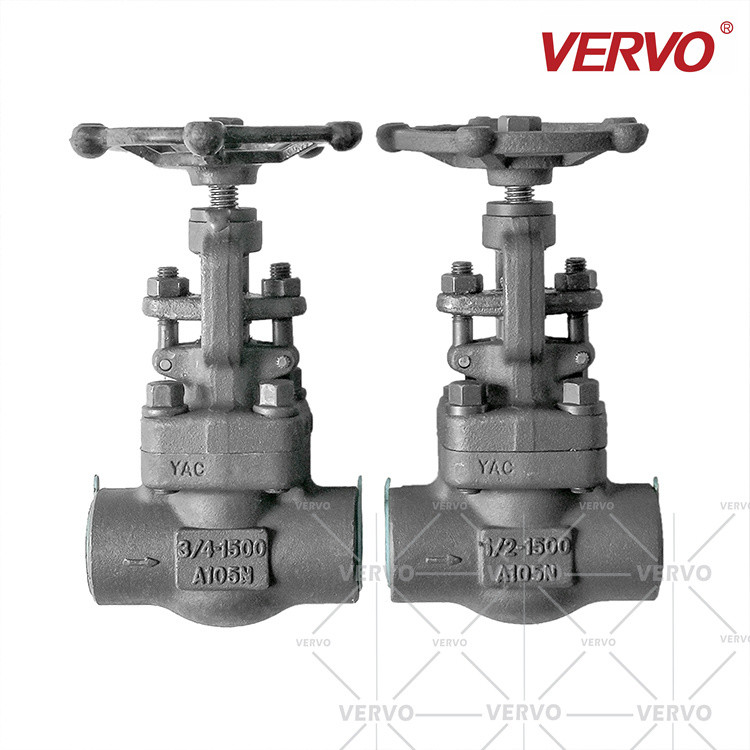

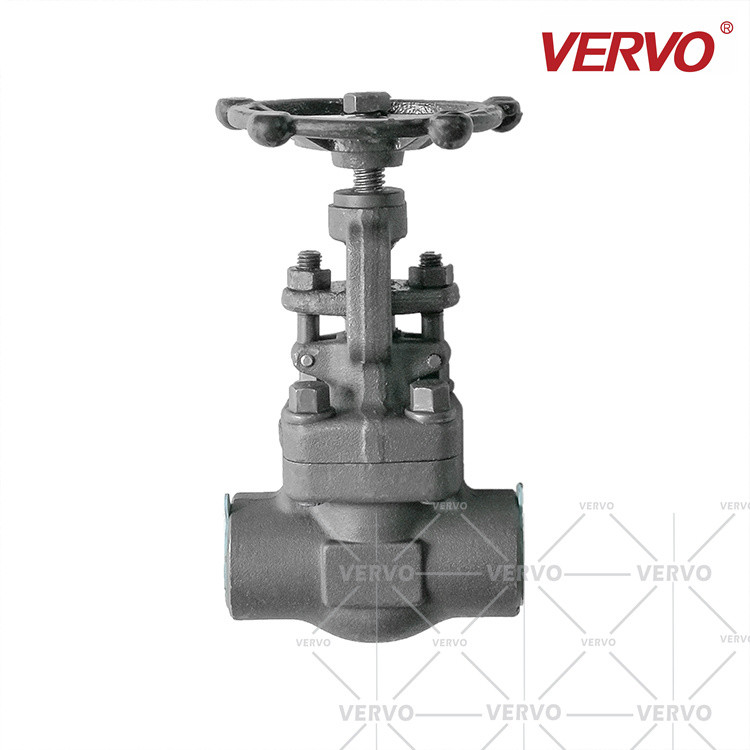

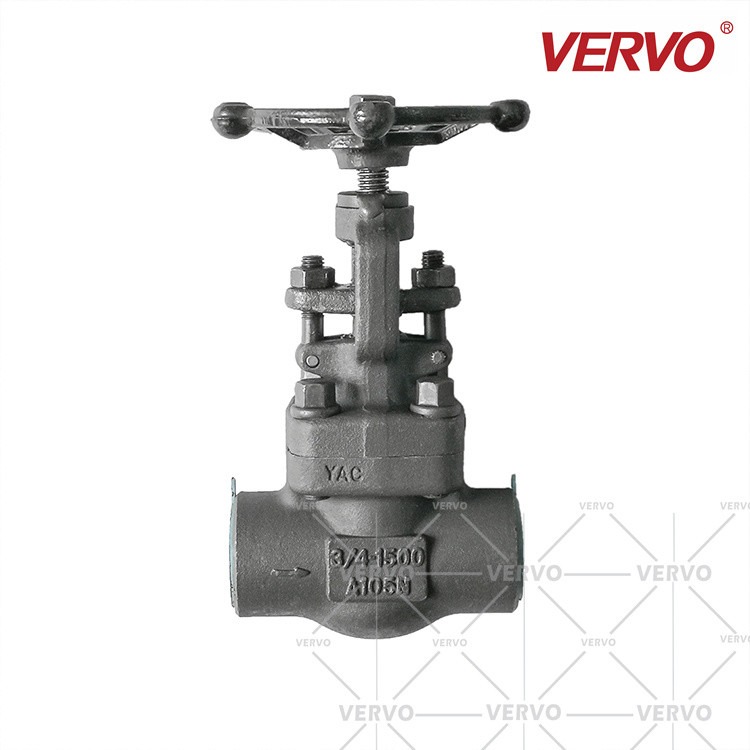

Forged Steel Globe Valve 1500LB high pressure Thread Connection Carbon Steel Globe Valve A105 Globe Valve API602 BS5354
VERVO Forged Steel Globe Valves are compact, sturdy and ideal for high pressure and high temperature applications. These valves are outside screw and yoke type (OS & Y) with rising stem and rising handwheel. These valves shall be bolted bonnet or welded bonnet type with full or standard bore options.
PRODUCT RANGE
Sizes NPS 1/2 to NPS 4
Class 800 to Class 2500
MATERIALS
Available in Forged (A105, A350 LF2, A182 F5, F11, F22, A182 F304 (L), F316 (L), F347, F321, F51), Alloy 20, Monel, Inconel, Hastelloy
DESIGN FEATURES
SW, NPT, RF, or BW
Outside Screw & Yoke (OS&Y)
Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet
DESIGN STANDARD
Design & manufacture according to API 602, ASME B16.34
End Connection according to ASME B16.11 (SW), ASME B1.20.1 (NPT), ASME B16.5 (RF, RTJ)
Test & inspection according to API 598
Also available per NACE MR-0175, NACE MR-0103, ISO 15848, API 624
Model number | J61H-800LB-DN20 |
Item | Globe Valve |
Certification | ISO9001,ISO14001,ISO18001,TS,CE,API |
Connection form | Welding-SW |
Body material | ASTM A105N |
Seal material | Gasket |
Feature | Easy disassembly and assembly |
CL800 | Bolt Bonnet (BB)/ Welding Bonnet(WB), Reduce Port (RP)/Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW) |
|||||||
Size (NPS) | R.P | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 |
F.P | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
Face To Face | L | 79 | 92 | 111 | 120 | 152 | 172 | 220 |
Handwheel Diameter | W | 100 | 100 | 125 | 160 | 160 | 180 | 200 |
Height | H | 170 | 172 | 207 | 228 | 270 | 320 | 356 |
Flow Port Diameter | d | 10.5 | 13.5 | 17 | 22 | 28 | 34 | 44 |
Weight (Kg) | B.B | 2.2 | 2.4 | 4.1 | 5.7 | 7.6 | 12.2 | 21 |
W.B | 1.9 | 2.1 | 3.9 | 5.5 | 7.4 | 11.6 | 19.7 | |
![]() |
||||||||
CL900~CL1500 | Bolt Bonnet (BB)/ Welding Bonnet (WB), Reduce Port (RP)/Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW) |
|||||||
Size (NPS) | R.P | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 |
F.P | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
Face To Face | L | 92 | 111 | 120 | 152 | 172 | 220 | |
Handwheel Diameter | W | 100 | 125 | 160 | 160 | 180 | 200 | |
Height | H | 172 | 207 | 228 | 270 | 320 | 387 | |
Flow Port Diameter | d | 10.5 | 13.5 | 17 | 22 | 28 | 34 | |
Weight (Kg) | B.B | 4.1 | 5.6 | 6.7 | 7.6 | 12.2 | 21 | |
W.B | 3.8 | 5.4 | 6.5 | 7.4 | 12 | 20.2 | ||
![]() |
||||||||
CL2500 | Welding Bonnet (WB), Reduce Port (RP)/Full Port (FP), Outside Screw and Yoke (OS&Y), Thread (NPT), Socket Weld (SW), Butt Weld (BW) |
|||||||
Size (NPS) | R.P | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 |
Face To Face | L | 120 | 120 | 152 | 172 | 220 | 220 | |
Handwheel Diameter | W | 160 | 160 | 160 | 180 | 200 | 200 | |
Height | H | 228 | 228 | 270 | 320 | 387 | 396 | |
Flow Port Diameter | d | 10.5 | 13.5 | 17 | 22 | 28 | 34 | |
Weight (Kg) |
W.B | 6.7 | 6.5 | 7.6 | 12.2 | 21 | 20.7 |
